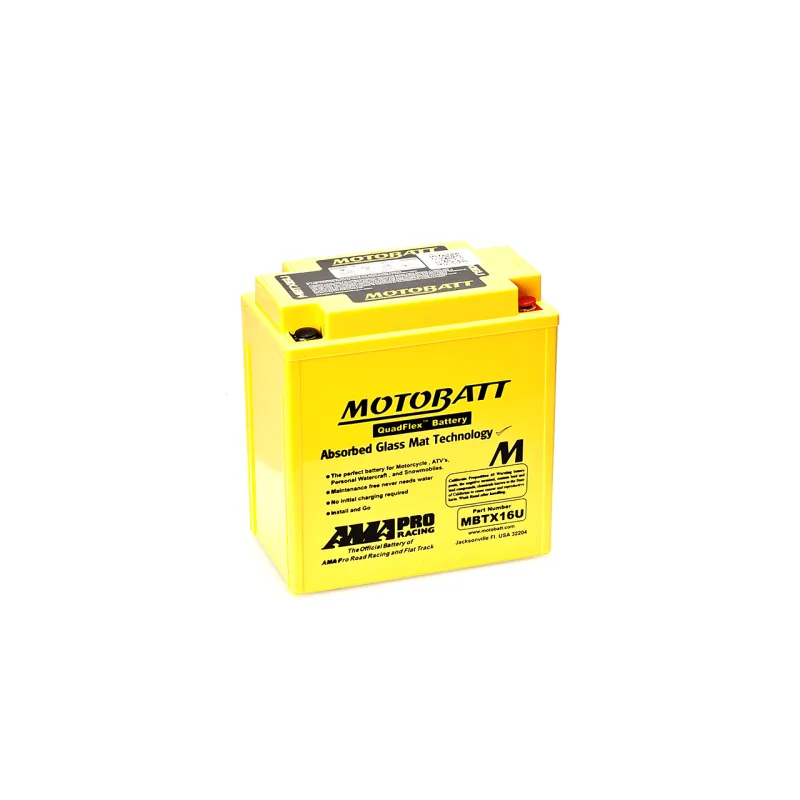

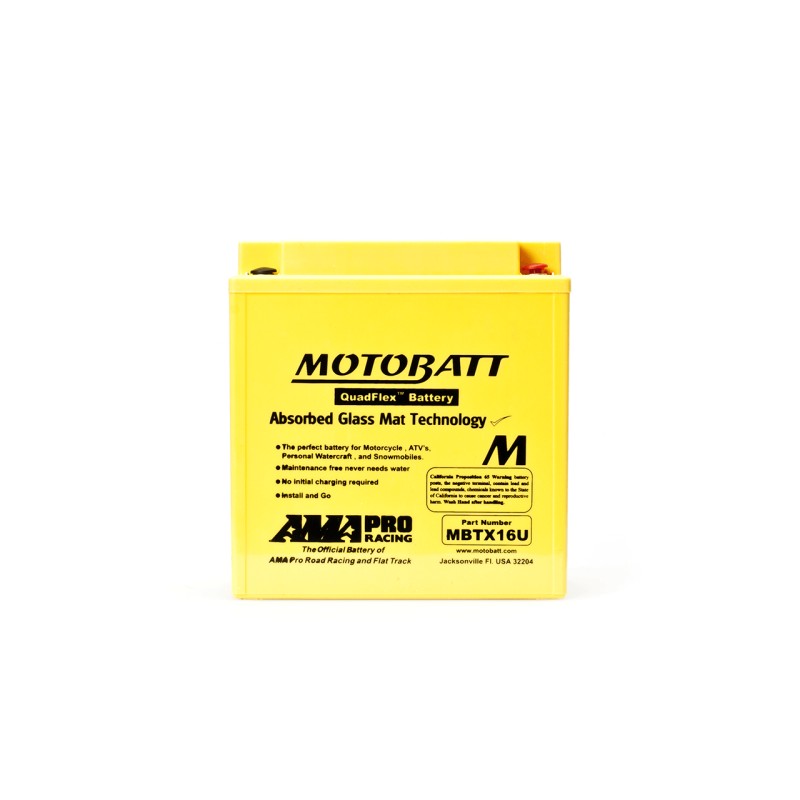

Motobatt MBTX16U · Motorcycle battery 12V 19Ah 250A AGM
Specifications
| Brand | MOTOBATT |
|---|---|
| Part number | MBTX16U |
| Voltage (V) | 12 |
| Capacity (C20) | 19Ah (c20) |
| Capacity (C10) | 19Ah (c10) |
| Technology | Quadflex |
| Length | 151.00 mm |
| Width | 87.00 mm |
| Height | 161.00 mm |
€139.70
VAT included
4,76/5★★★★★27 reviewsVerified purchases
- ★★★★★Pedro Fernandez:
Gracias a vuestra ayuda pude instalar la bateria
- ★★★★★Jose Maria Perez:
Gracias a vuestra ayuda pude instalar la batería
- ★★★★★Juan Antonio Castillo:
No tenía ni idea de cómo instalar la batería en mi coche y me ayudaron de principio a fin. Muchas gracias
Motobatt MBTX16U 12V 19Ah 250A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
JIS code
YTX16BS-YTX20CHBS
Voltage
12 V
Capacity
19 Ah
Cold cranking
250 A
Dimensions
151×87×161 mm
Technology
AGM Quadflex
Weight
5,65 kg
Model
MOTOBATT QUADFLEX
Mfr. reference
MBTX16U
Motorcycle battery Motobatt YTX16BS-YTX20CHBS Quadflex 19Ah 250A 12V
JIS codeYTX16BS-YTX20CHBS
12VVoltage
19AhCapacity
250ACold cranking
5.65kgWeight
The Motobatt YTX16BS-YTX20CHBS from the Quadflex range is a motorcycle battery with 19 Ah and 250 A of cold cranking current (EN), designed for motorcycles, scooters, quads and personal watercraft. Its 151 × 87 × 161 mm make it the exact replacement for the 19 Ah battery fitted as standard to many motorcycles.
- Sealed and ready to fit, no acid handling.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Compact and lightweight format.
- Holds its charge through winter storage.
Will it fit your current battery tray?

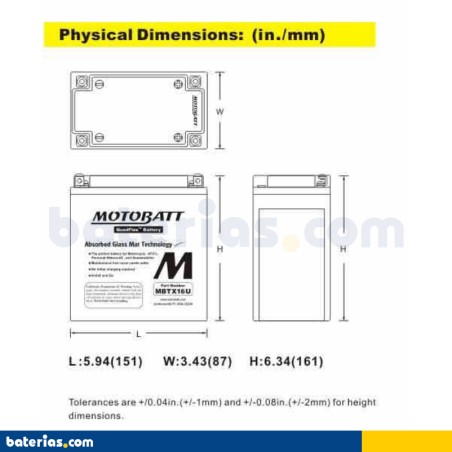

It has external dimensions of 151 × 87 × 161 mm and weighs 5.65 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Motobatt YTX16BS-YTX20CHBS is for
Designed for motorcycles, scooters, quads and personal watercraft, the Motobatt YTX16BS-YTX20CHBS replaces the original battery of bikes that use this code or format. Check the position of the positive terminal before ordering. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 5.65 kg.
The Motobatt YTX16BS-YTX20CHBS: Quadflex range and AGM technology
Within the Motobatt catalogue, the Quadflex series groups the references designed for this use. The YTX16BS-YTX20CHBS is the 19 Ah model of that family, with the same performance as its siblings in other sizes.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
Motobatt: the maker behind the YTX16BS-YTX20CHBS

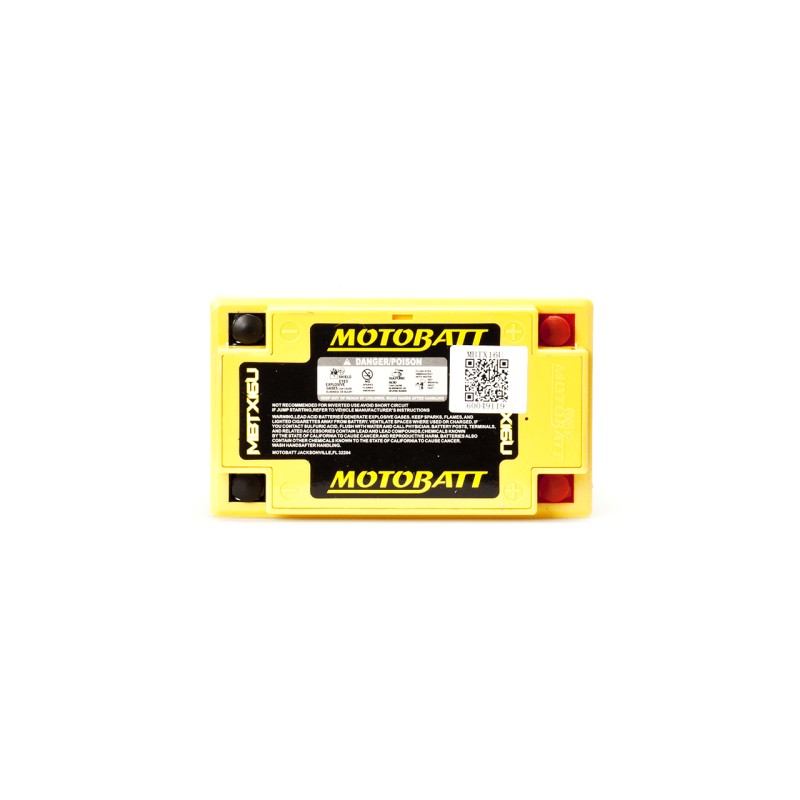

Motobatt is the motorcycle battery specialist with Quadflex technology: four terminals that let you connect the battery in any position and a sealed AGM construction ready to fit. We guarantee that every Motobatt arrives new, charged and with the manufacturer's full warranty.
Official warranty
The Motobatt YTX16BS-YTX20CHBS comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
How to make it last longer
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. If the bike spends the winter standing, connect a trickle charger: deep discharge through inactivity is the first cause of premature failure.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-MOTOBATT-MBTX16U
Data sheet
- Brand
- MOTOBATT
- Reference
- MBTX16U
- Model
- MOTOBATT QUADFLEX
- Voltage (V)
- 12
- Length
- 151.00 mm
- Width
- 87.00 mm
- Height
- 161.00 mm
- Weight
- 5.65 Kgs
- Technology
- Quadflex
- JIS
- YTX16BS-YTX20CHBS
- Cold cranking amps (EN)
- 250A
- Capacity (C20)
- 19Ah (c20)
- Capacity (C10)
- 19Ah (c10)
Specific References
- MPN
- MBTX16U
4,76/5
Verified purchasesLatest verified reviews
★★★★★Pedro Fernandez
20/09/2026Me asesoraron
Gracias a vuestra ayuda pude instalar la bateria
★★★★★Jose Maria Perez
03/06/2026Resolvieron mis dudas
Gracias a vuestra ayuda pude instalar la batería
★★★★★Juan Antonio Castillo
15/02/2026Precio. Tiempo de entrega correctos
No tenía ni idea de cómo instalar la batería en mi coche y me ayudaron de principio a fin. Muchas gracias
★★★★★Juan Antonio Gil
26/01/2026Mil gracias por la ayuda
Agradezco que me asesoraran de cómo instalar la batería que compré
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Motobatt YTX16BS-YTX20CHBS battery installed in the vehicle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Motobatt YTX16BS-YTX20CHBS battery last?
Expected lifespan of the Motobatt YTX16BS-YTX20CHBS is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Motobatt YTX16BS-YTX20CHBS battery?
Dimensions (length × width × height) are 151×87×161 mm — also written as 151x87x161 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Motobatt YTX16BS-YTX20CHBS battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The YTX16BS-YTX20CHBS typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Motobatt YTX16BS-YTX20CHBS?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
