Trojan SPRE 12 225 · Solar battery 204Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | SPRE 12 225 |
| Voltage (V) | 12 |
| Capacity (C20) | 204Ah (c20) |
| Capacity (C10) | 179Ah (c10) |
| Technology | Lead-acid |
| Length | 380.00 mm |
| Width | 176.00 mm |
| Height | 374.00 mm |
Trojan SPRE 12 225 12V 204Ah is a solar battery designed for PV systems with daily charge/discharge cycles. Tolerates extreme temperatures well, with low self-discharge during winter shutdowns or between stays at vacation homes.
Why this solar battery?
- Designed for solar systemsoptimised for daily charge/discharge cycles
- Handles extreme temperaturesin technical rooms or outdoor installs
- Minimal self-dischargewhen left idle over winter or holidays
Where it fits: the Trojan SPRE 12 225 is one of our batteries for solar applications and belongs to our Trojan batteries.
The Trojan SPRE 12 225 in practice
SPRE 12 225 vs Trojan SSIG 12 230
The Trojan SPRE 12 225 offers 204 Ah and 0 A cold cranking in a 380 × 176 × 374 mm case. The Trojan SSIG 12 230, same brand and technology, goes up to 209 Ah and 0 A and costs €120.10 less. The difference shows on diesels and in hard winters; for a daily-driven petrol car the extra is not needed.

Solar battery Trojan SPRE 12 225 Solar Premium - Smart Carbon 204Ah 12V
For off-grid photovoltaic installations and storage systems, the Trojan SPRE 12 225 from the Solar Premium - Smart Carbon range stores 204 Ah with conventional lead-acid technology through daily charge and discharge cycles. It replaces the original battery without adaptation in off-grid PV systems with a 380 × 176 × 374 mm format: same 204 Ah capacity.
- Good tolerance to extreme temperatures.
- Long life on float and moderate cycling.
- Conventional lead-acid: the most proven and economical technology.
- Optimised for daily charge and discharge cycles.
Will it fit your current battery tray?

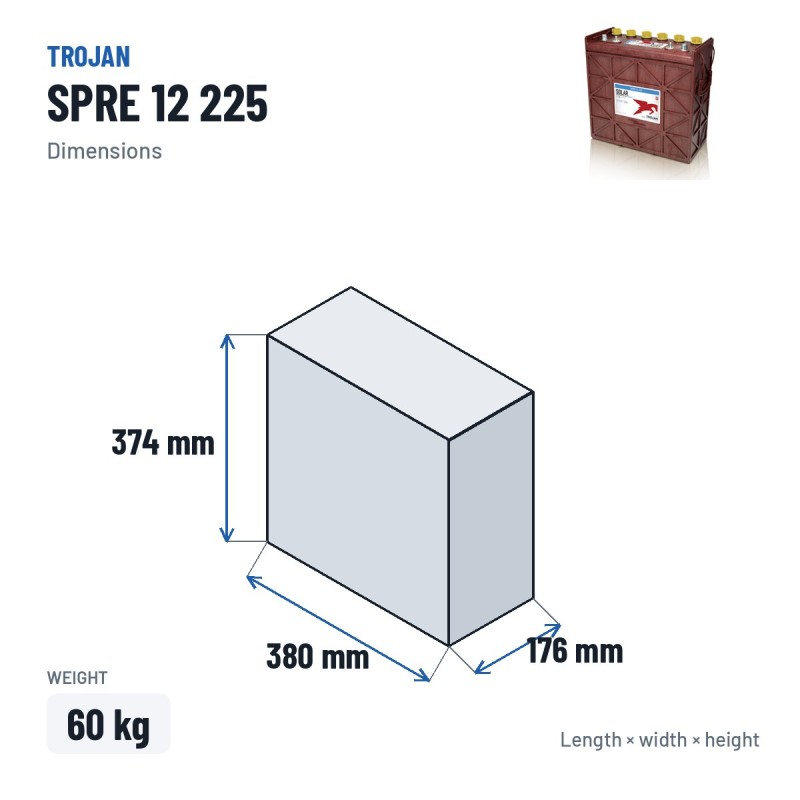

In terms of format, the Trojan SPRE 12 225 measures 380 × 176 × 374 mm (length × width × height) and weighs 60 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Trojan SPRE 12 225 is for
The Trojan SPRE 12 225 is designed for off-grid photovoltaic installations and storage systems. Size the capacity so as not to discharge more than 50% daily and you will greatly extend its life. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 60 kg.
The Trojan SPRE 12 225: Solar Premium - Smart Carbon range and conventional lead-acid technology
The Solar Premium - Smart Carbon is the Trojan range the SPRE 12 225 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
What Trojan does differently
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. We guarantee that every Trojan arrives new, charged and with the manufacturer's full warranty.
Manufacturer's warranty
The Trojan SPRE 12 225 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Size the installation so as not to discharge the battery more than 50% daily and set the controller to the battery technology.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

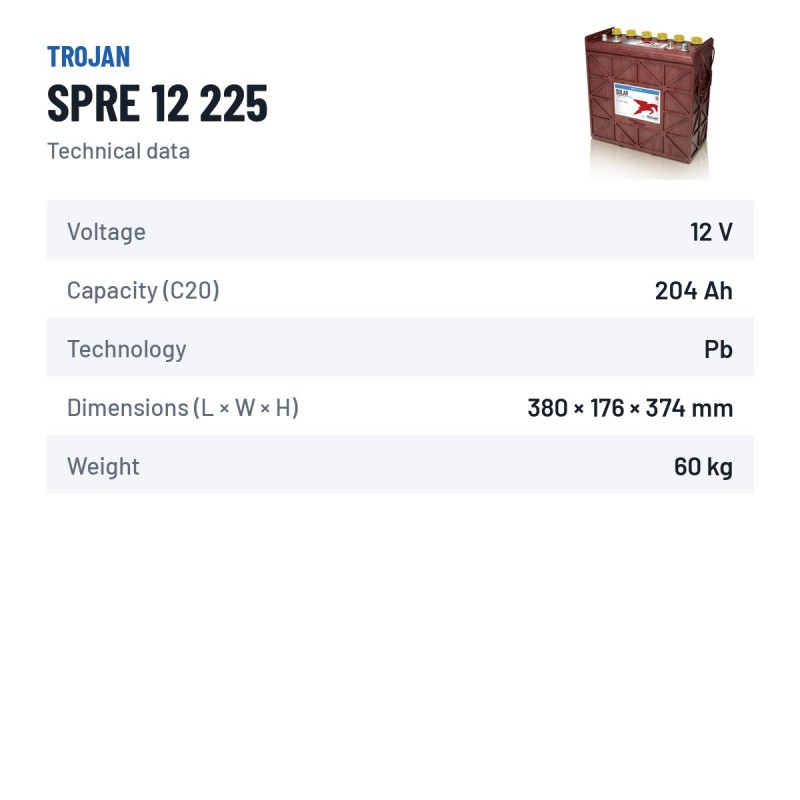

Data sheet
-
BrandTROJAN
-
ReferenceSPRE 12 225
-
ModelTROJAN SOLAR PREMIUM - SMART CARBON
-
Voltage (V)12
-
Length380.00 mm
-
Width176.00 mm
-
Height374.00 mm
-
Weight60 Kgs
-
TechnologyLead-acid
-
Capacity (C20)204Ah (c20)
-
Capacity (C10)179Ah (c10)
Specific References
-
MPNSPRE 12 225
Trojan SPRE 12 225: alternatives with the same dimensions
Batteries from our catalogue with the same dimensions, voltage and technology as the Trojan SPRE 12 225 and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Trojan
SPRE 12 225
This battery
|
12V 204Ah | Lead-acid | 941,30 € | |||||||||||||||||||||
Trojan
SSIG 12 230
Same size |
12V 209Ah | Lead-acid | 821,20 € −120,10 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| SPRE 12 225 | SSIG 12 230 | |
|---|---|---|
| Capacity | 204 Ah | 209 Ah |
| Cold cranking (EN) | — | — |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 380 × 176 × 374 | 380 × 176 × 373 |
| Positive terminal | — | — |
| Price | 941,30 € | 821,20 € |
Trojan
SSIG 12 255
Same size Trojan SPRE 12 225 vs Trojan SSIG 12 255
Same size · −25,80 €
It has the same dimensions, voltage and technology as the SPRE 12 225, although it is not a manufacturer-approved equivalent. Compared with the SPRE 12 225 it has 25 Ah more. It costs 25,80 € less. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.
| SPRE 12 225 | SSIG 12 255 | |
|---|---|---|
| Capacity | 204 Ah | 229 Ah |
| Cold cranking (EN) | — | — |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 380 × 176 × 374 | 380 × 176 × 373 |
| Positive terminal | — | — |
| Price | 941,30 € | 915,50 € |
Fullriver
DC215-12
Upgrade: AGM Trojan SPRE 12 225 vs Fullriver DC215-12
Upgrade: AGM · −257,40 €
It is the AGM of the same size: sealed, maintenance-free and with far more discharge cycles than the SPRE 12 225. Compared with the SPRE 12 225 it has 11 Ah more and 1000 A of cold cranking more. It costs 257,40 € less. Recommended for cyclic or stationary use, or when the equipment sits tilted; for occasional use the SPRE 12 225 does the job.
| SPRE 12 225 | DC215-12 | |
|---|---|---|
| Capacity | 204 Ah | 215 Ah |
| Cold cranking (EN) | — | 1000 A |
| Technology | Lead-acid | AGM |
| Dimensions (mm) | 380 × 176 × 374 | 381 × 178 × 372 |
| Positive terminal | — | — |
| Price | 941,30 € | 683,90 € |
Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.
Recommended accessories
Frequently asked questions
What size is this battery?
Check the room available in your device, because a single millimetre too much can stop the clamp from closing. Its dimensions are 380×176×374 mm, also written 380x176x374 mm; the height already includes the terminals.
Trojan SPRE 12 225 or Trojan SSIG 12 230: which one to choose?
Same case and same technology as the SPRE 12 225: an alternative by size, not an official equivalent. Compared with the SPRE 12 225 it has 5 Ah more. It costs 120,10 € less. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.
Trojan SPRE 12 225 or Trojan SSIG 12 255: which one to choose?
It has the same dimensions, voltage and technology as the SPRE 12 225, although it is not a manufacturer-approved equivalent. Compared with the SPRE 12 225 it has 25 Ah more. It costs 25,80 € less. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.
