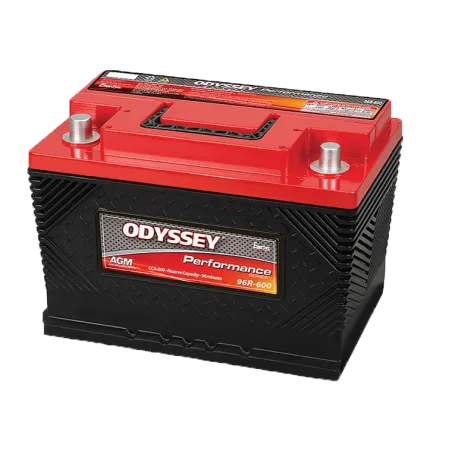

Odyssey ODP-AGM96R · Car battery 52Ah 600A AGM
Specifications
| Brand | ODYSSEY |
|---|---|
| Part number | ODP-AGM96R |
| Capacity (C20) | 52Ah (c20) |
| Capacity (C10) | 48Ah (c10) |
| Cold cranking amps (EN) | 600 |
| Technology | AGM |
| Length | 241 mm |
| Width | 175 mm |
| Height | 173 mm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Odyssey ODP-AGM96R 52Ah 600A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Where it fits: the Odyssey ODP-AGM96R is one of our car batteries, belongs to our Odyssey batteries and by capacity it sits among our 52Ah batteries.
I prefer to fill in the form
Request a quote for your Car battery Odyssey ODP-AGM96R 52Ah 600A AGM
- Reply in under 4 working hours
- Best price guaranteed
The Odyssey ODP-AGM96R in practice
When not to choose it
Technically it suits any car of its size, but it is only worth paying for if yours has Start-Stop, regenerative braking or heavy loads; in a simple car a conventional battery does the job for half.

Start-Stop battery Odyssey ODP-AGM96R ODP 52Ah 600A
The Odyssey ODP-AGM96R with AGM technology delivers the 52 Ah at V and 600 A of cold cranking current (EN) that cars with Start-Stop, regenerative braking and heavy electrical loads need. Measuring 241 × 175 × 173 mm and the positive terminal on the right, it is the direct replacement for Start-Stop cars fitted from the factory with a 52 Ah battery of this format.
In short: the Odyssey ODP-AGM96R (52 Ah, 600 A, 241 × 175 × 173 mm, positive terminal on the right). It is an AGM battery for cars with Start-Stop and regenerative braking; if your car came with AGM, always replace it with another AGM.
- Keeps comfort loads running with the engine off at the lights.
- Direct replacement for the original Start-Stop battery.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Fast recharge on the move thanks to low internal resistance.

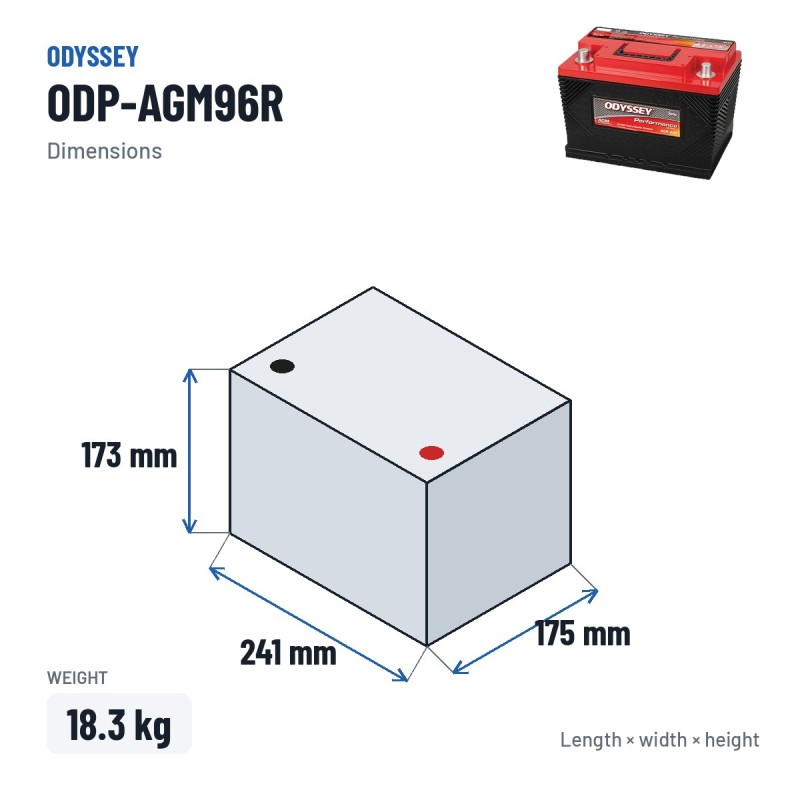

Size, terminals and hold-down of the Odyssey ODP-AGM96R
In terms of format, the Odyssey ODP-AGM96R measures 241 × 175 × 173 mm (length × width × height) and weighs 18.30 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses SAE terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Odyssey ODP-AGM96R is for
The Odyssey ODP-AGM96R is designed for cars with Start-Stop, regenerative braking and heavy electrical loads. If your car was fitted with an AGM or EFB battery, always replace it with the same technology: a conventional model would degrade within months. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 18.30 kg and SAE terminals.
The Odyssey ODP-AGM96R: ODP range and AGM technology
The ODP is the Odyssey range the ODP-AGM96R belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
What Odyssey does differently
Odyssey, part of the EnerSys group, makes thin-plate pure-lead (TPPL) batteries: extreme cranking, total vibration resistance and very long service life in motorsport, 4x4, marine and demanding vehicles. All the Odyssey batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Odyssey ODP-AGM96R comes with the manufacturer's official warranty. To keep it valid, always fit the same technology as the original battery (AGM or EFB) and register the replacement if your vehicle requires it.
Care and maintenance
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. If the vehicle only does very short trips, a periodic maintenance charge with an AGM/EFB-compatible charger greatly extends its life.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
Data sheet
-
BrandODYSSEY
-
ReferenceODP-AGM96R
-
ModelODP
-
Length241 mm
-
Width175 mm
-
Height173 mm
-
Weight18.30 Kgs
-
TechnologyAGM
-
Terminal layoutPositive terminal on the right
-
Terminal typeSAE
-
Cold cranking amps (EN)600
-
Capacity (C20)52Ah (c20)
-
Capacity (C10)48Ah (c10)
Specific References
-
UPC635241140767
-
MPNODP-AGM96R
Other 52Ah batteries: We stock 5 models of 52 Ah to compare by price, technology and cold cranking: see all 52Ah batteries.
Recommended accessories
Fitting it yourself? Step-by-step guide to replacing the battery →
Frequently asked questions
Is this battery AGM? What is it for?
Yes, it is AGM. In an AGM battery such as the ODP-AGM96R, the electrolyte is not free but absorbed in a glass-fibre mat inside a sealed lead-acid battery. It tolerates heat better and handles more cycles than a conventional battery, which is why it is the required technology with advanced Start-Stop and regenerative braking.
Is the ODP-AGM96R model suitable for Start-Stop cars?
AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. The Odyssey ODP-AGM96R is AGM, so yes, it is designed for Start-Stop cars. Basic Start-Stop: EFB. Start-Stop with regenerative braking: AGM, which withstands more cycles. Check the handbook for the technology the car manufacturer requires. Once fitted it is ready to go; registering it via OBD, advisable on most modern models, lets the alternator charge with the optimum profile.
How do I replace a Start-Stop car battery with the ODP-AGM96R?
Before you start, check the car handbook: the manufacturer's procedure always comes first. Our full step-by-step guide is on the blog. On most cars it is a 15-30 minute job needing only a 10 mm spanner (up to twice as long when the battery is under a seat or in the boot). The right order: engine off and key out; disconnect the negative (−) first, then the positive (+); release the hold-down clamp, lift out the old battery and seat the new one in the same position (positive on the right), keeping the polarity; reconnect the positive (+) first and the negative (−) last. If the car has Start-Stop or BMS: a) the technology must match the original (AGM or EFB) or be higher, because a conventional battery would fail within months; b) undo the negative cable at its nut, leaving the IBS sensor in place; c) it is advisable to register the battery via OBD so the alternator applies the proper charging profile.
How many years does this battery last?
As a rough estimate, the Odyssey ODP-AGM96R typically lasts 5 to 8 years in mild-climate car use with Start-Stop; it is a guide figure, not a guaranteed period. Many factors play a part: how it is used (lots of short trips, for example), temperature (cold makes every start harder and intense heat evaporates the electrolyte), the condition of the alternator and charging system, power drawn with the engine off and maintenance, as well as the type of car and whether it has Start-Stop.
What are the measurements of the ODP-AGM96R model?
Length × width × height: 241x175x173 mm (LB2 case). Height is measured to the top of the terminals. Measure your car's battery tray first; if the battery exceeds it by even a millimetre, the hold-down clamp may not close.
What polarity does the Odyssey ODP-AGM96R battery have?
Polarity of the Odyssey ODP-AGM96R: positive on the right. Seen from the front, terminals towards you, the positive (+) is the post with the red ring. A change of polarity from the original means longer cables or a reconfigured system and can cause a short circuit: check it before ordering.
Will the Odyssey ODP-AGM96R battery fit my car?
For your own vehicle: type your number plate into the finder (DGT/DVLA/KBA identify model and engine), check the "Compatible vehicles" tab below, listing vehicles verified by our technical team, or message us on WhatsApp with make, model, engine and year; we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). If our table and the car handbook disagree, go with what the manufacturer says.
What are the equivalents of the ODP-AGM96R model?
To replace the Odyssey ODP-AGM96R without modifications, the other battery must be identical in size (LB2 case), polarity, Ah and CCA. See the "Equivalents" section of this page for the recommended options at the same performance level. Mind the technology: in Start-Stop cars an EFB is not swapped for a conventional battery.
What advantages does the Odyssey ODP-AGM96R AGM battery offer over an EFB?
For regenerative braking systems such as BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO or Volvo i-Stop, AGM is the recommendation; it also copes better than an EFB with tilting, vibration and extreme temperatures. Many more charge/discharge cycles than a conventional battery and no leaks: that is what AGM technology brings, with the electrolyte absorbed in glass fibre. This ODP-AGM96R delivers 600 A cold cranking (EN).
Do I need to register the Odyssey ODP-AGM96R on the car after installation?
It is not strictly necessary on most cars, because the alternator detects the change and adapts the charge. The advisable step is to register it via OBD: the charging profile is optimum from the first minute and the battery lasts longer, especially on brands with sophisticated BMS (BMW, Mercedes, Audi, Volvo, Land Rover). Any garage with an OBD scanner can do it in a few minutes. If you prefer to do it yourself: VCDS / Carista (VAG), Bimmercode (BMW) or iCarsoft. Even if you do not register the Odyssey ODP-AGM96R, the car will start correctly; the profile adjusts within a few days.
