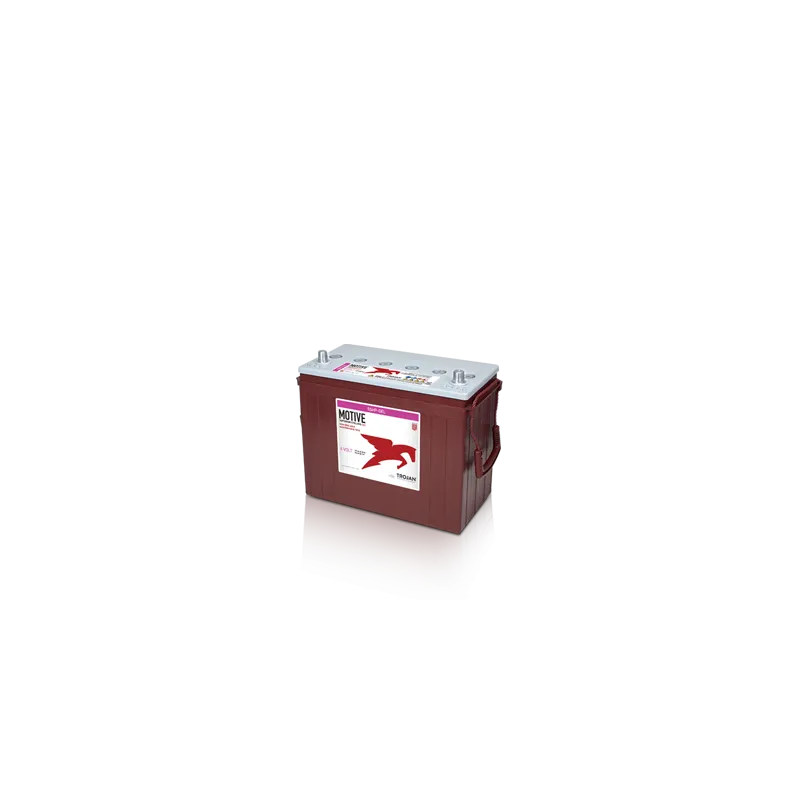

Trojan 5SHP-GEL · Solar battery 12V 125Ah GEL

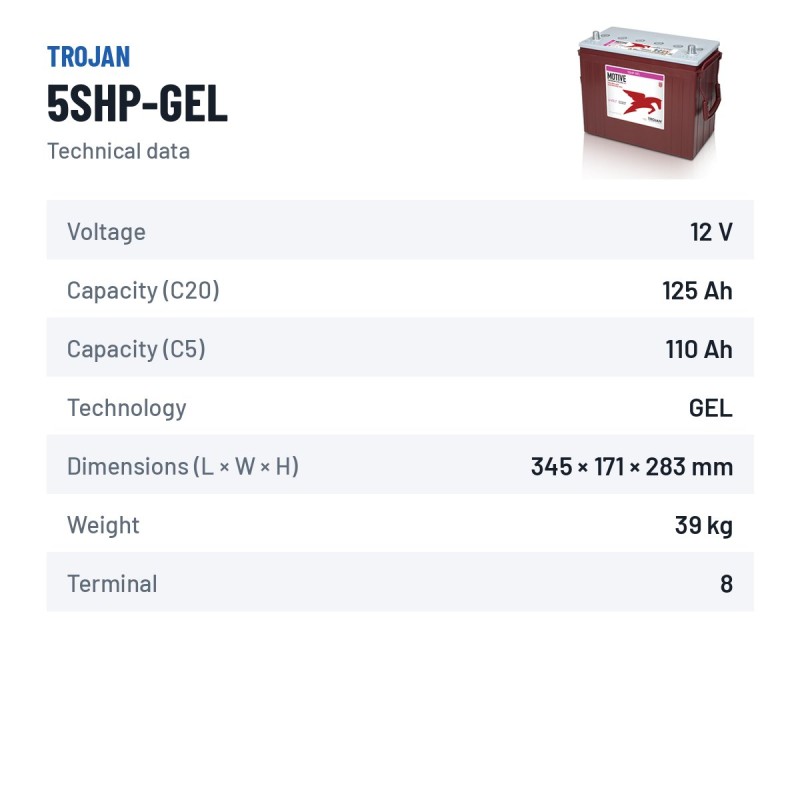

Specifications
| Brand | TROJAN |
|---|---|
| Part number | 5SHP-GEL |
| Voltage (V) | 12 |
| Capacity (C20) | 125Ah (c20) |
| Capacity (C5) | 110Ah (c5) |
| Technology | GEL |
| Length | 345.00 mm |
| Width | 171.00 mm |
| Height | 283.00 mm |
€944.20
VAT included
4,76/5★★★★★17 reviewsVerified purchases
- ★★★★★Jorge Rojas:
Todo perfecto. Gracias
- ★★★★★Ivan Vicente:
Gracias a baterias.com pude elegir la batería más adecudada para mi vehículo
- ★★★★★Carlos Fernandez:
Comprobé la fecha de fabricación de la batería y era reciente, tal y como me prometieron
Trojan 5SHP-GEL 12V 125Ah is a solar battery designed for PV systems with daily charge/discharge cycles. Tolerates extreme temperatures well, with low self-discharge during winter shutdowns or between stays at vacation homes.
Why this solar battery?
- Designed for solar systemsoptimised for daily charge/discharge cycles
- Handles extreme temperaturesin technical rooms or outdoor installs
- Minimal self-dischargewhen left idle over winter or holidays
Voltage
12 V
Capacity
125 Ah
Dimensions
345×171×283 mm
Technology
GEL
Weight
39 kg
Model
TROJAN GEL
Solar battery Trojan 5SHP-GEL 125Ah 12V
12VVoltage
125AhCapacity
39kgWeight
The 12 V, 125 Ah Trojan 5SHP-GEL solar battery with GEL technology is designed for off-grid photovoltaic installations and storage systems. Measuring 345 × 171 × 283 mm, it is the direct replacement for off-grid PV systems fitted from the factory with a 125 Ah battery of this format.
- Maintenance-free in off-grid installations.
- Compatible with common MPPT and PWM controllers.
- GEL: excellent resistance to deep discharge and long cycle life.
- Low self-discharge during the darker months.
Will it fit your current battery tray?
It has external dimensions of 345 × 171 × 283 mm and weighs 39 kg. It uses 8 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

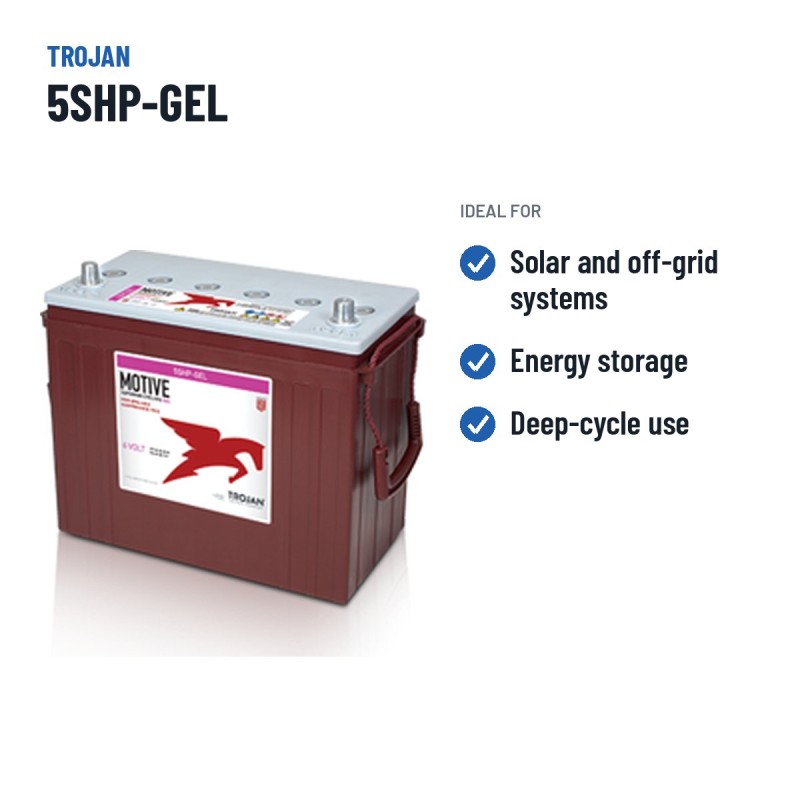

What the Trojan 5SHP-GEL is for
Designed for off-grid photovoltaic installations and storage systems, the Trojan 5SHP-GEL tolerates extreme temperatures and long periods of low activity. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 39 kg and 8 terminals.
Technology inside the Trojan 5SHP-GEL
The 5SHP-GEL is one of the Trojan references for this type of use; it shares the same manufacturing and quality-control criteria as the rest of the brand's catalogue.
In a GEL battery the electrolyte is gelled with silica: it is fully sealed, cannot spill and tolerates deep discharge very well. It is the preferred technology in electric mobility, marine service and heavy-cycling applications.
Why choose Trojan batteries
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. All the Trojan batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Trojan 5SHP-GEL comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte. In the darker months, check the voltage periodically and avoid full discharges.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-TROJAN-5SHP-GEL
Data sheet
- Brand
- TROJAN
- Reference
- 5SHP-GEL
- Model
- TROJAN GEL
- Voltage (V)
- 12
- Length
- 345.00 mm
- Width
- 171.00 mm
- Height
- 283.00 mm
- Weight
- 39 Kgs
- Technology
- GEL
- Terminal type
- 8
- Capacity (C20)
- 125Ah (c20)
- Capacity (C5)
- 110Ah (c5)
Specific References
- EAN13
- 8404653001308
- MPN
- 5SHP-GEL
4,76/5
Verified purchasesLatest verified reviews
★★★★★Jorge Rojas
06/06/2026Todo bien
Todo perfecto. Gracias
★★★★★Ivan Vicente
30/05/2026Muy buen asesoramiento
Gracias a baterias.com pude elegir la batería más adecudada para mi vehículo
★★★★★Carlos Fernandez
12/04/2026Ok
Comprobé la fecha de fabricación de la batería y era reciente, tal y como me prometieron
★★★★★Eduardo Castro
16/02/2026Gran asesoría
Gracias por asesorarme con la instalación de mi batería
★★★★★Oscar Lozano
25/01/2026100% recomendada
Tiene de los mejores precios de baterías online que he visto, pero si encima te atienden vía telefónica super bien, no hay más que buscar. Otros ni te cogen el teléfono
★★★★★Jaime Castillo
19/01/2026Buenos precios
Buen tiempo de entrega. Me urgía instalar la batería a mi coche. Gracias
★★★★★Alfonso Martinez
17/01/2026Me sacarón de un apuro, entrega en menos de 24 horas
MRW me entregó en menos de un día. Increíble
★★★★★Joan Leon
29/11/2025Excelente asesoramiento
Gracias a baterias.com pude elegir la bateria más adecudada para mi vehículo
Codes and references Trojan 5SHP-GEL
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN GEL |
| Manufacturer reference (MPN) | 5SHP-GEL |
| EAN-13 barcode | 8404653001308 |
| Dimensions (length × width × height) | 345 × 171 × 283 mm (345x171x283) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Trojan 5SHP-GEL a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I fit the 5SHP-GEL model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Trojan 5SHP-GEL battery last?
Expected lifespan of the Trojan 5SHP-GEL is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan 5SHP-GEL battery?
Dimensions (length × width × height) are 345×171×283 mm — also written as 345x171x283 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the 5SHP-GEL model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
