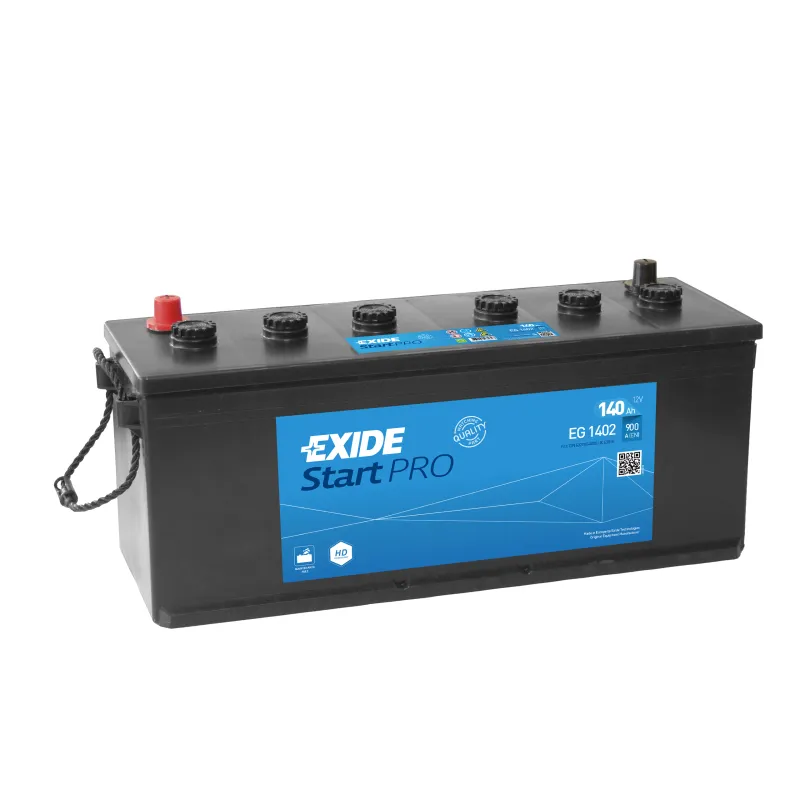

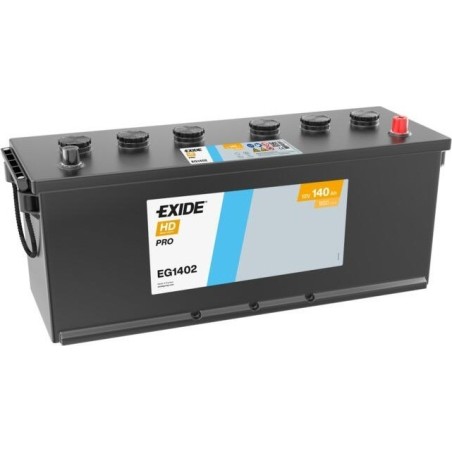

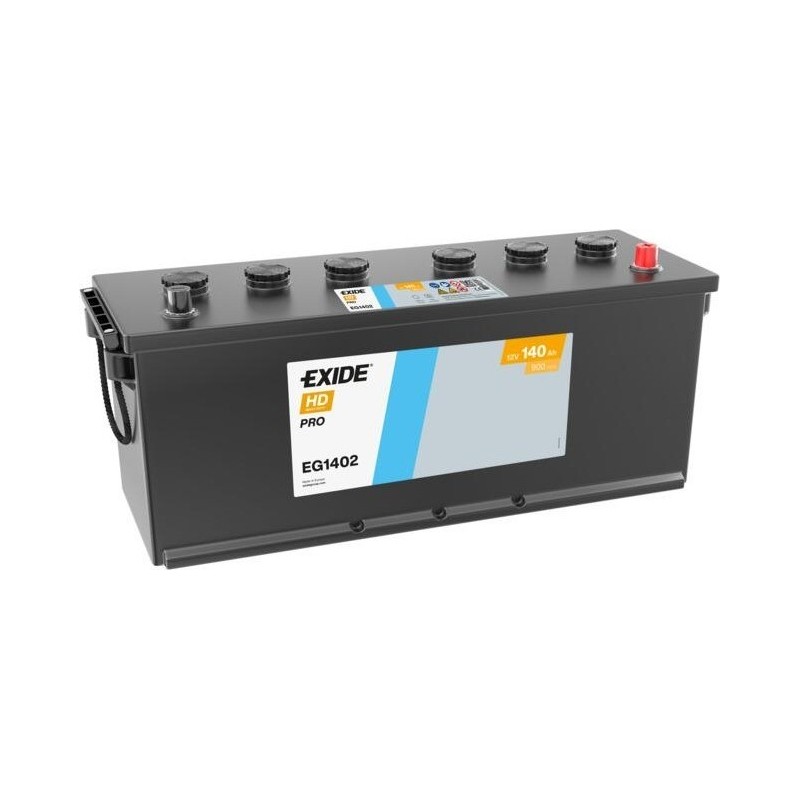

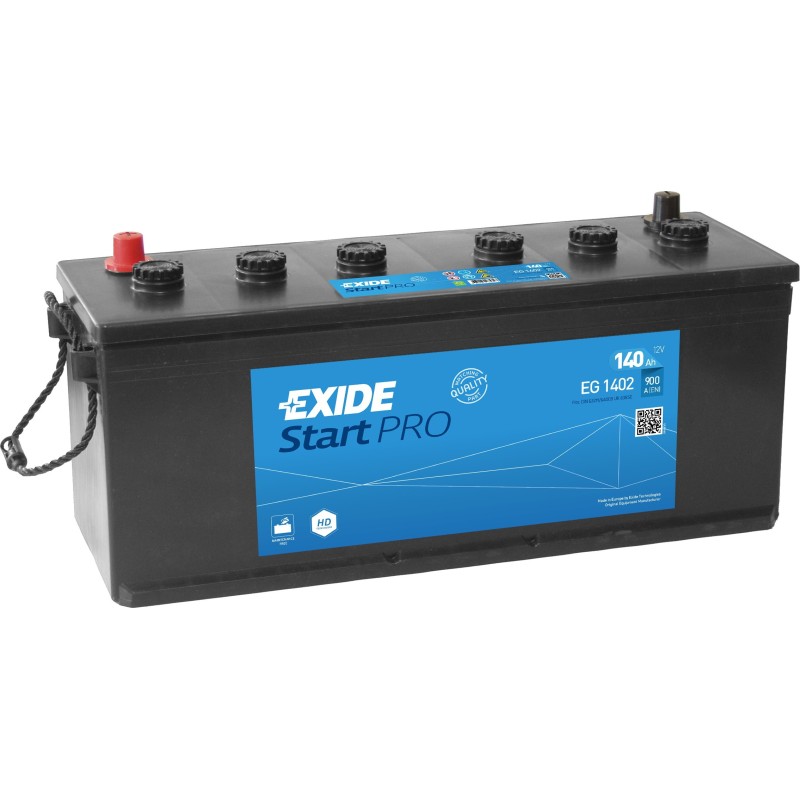

Exide EG1402 · Truck battery 12V 140Ah 900A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EG1402 |
| Voltage (V) | 12 |
| Capacity (C20) | 140Ah (c20) |
| Technology | Lead-acid |
| Length | 508.00 cm |
| Width | 175.00 cm |
| Height | 205.00 cm |
| Weight | 33.80 Kgs |
€255.80
VAT included
Exide EG1402 12V 140Ah 900A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
140 Ah
Cold cranking
900 A
Dimensions
508×175×205 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
33,8 kg
Model
EXIDE START PRO
Truck battery Exide EG1402 Start PRO 140Ah 900A 12V
12VVoltage
140AhCapacity
900ACold cranking
33.80kgWeight
With 140 Ah and 900 A of cold cranking current (EN), the Exide EG1402 from the Start PRO range is built for professional use in trucks, buses, tractors and heavy machinery. Its 508 × 175 × 205 mm and the positive terminal on the right make it the exact replacement for the 140 Ah battery fitted as standard to many trucks.
- Resistant to constant chassis vibration.
- Good balance of capacity, cranking power and price.
- Better tolerance to deep discharge than a conventional starter battery.
- Powers tachograph, fridge and heater during rest stops.
What the Exide EG1402 is for
The Exide EG1402 is designed for trucks, buses, tractors and heavy machinery. In 24 V installations with two batteries in series, replace both at the same time to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 33.80 kg.
Dimensions, polarity and mounting
The Exide EG1402 is made in the 508 × 175 × 205 mm format and weighs 33.80 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Exide EG1402: Start PRO range and conventional lead-acid technology
The Start PRO is the Exide range the EG1402 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
What Exide does differently
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Exide EG1402 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
Care and maintenance
In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-EXIDE-EG1402
Data sheet
- Brand
- EXIDE
- Reference
- EG1402
- Model
- EXIDE START PRO
- Voltage (V)
- 12
- Length
- 508.00 cm
- Width
- 175.00 cm
- Height
- 205.00 cm
- Weight
- 33.80 Kgs
- Technology
- Lead-acid
- Terminal layout
- Positive terminal on the right
- Cold cranking amps (EN)
- 900A
- Capacity (C20)
- 140Ah (c20)
Specific References
- EAN13
- 3661024035347
- MPN
- EG1402
Codes and references Exide EG1402
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE START PRO |
| Manufacturer reference (MPN) | EG1402 |
| EAN-13 barcode | 3661024035347 |
| Dimensions (length × width × height) | 508 × 175 × 205 mm (508x175x205) |
Comparison: Exide EG1402 vs equivalents
The Exide EG1402 is interchangeable with these equivalent references: TG1402 (Tudor).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EG1402
This battery
|
12V 140Ah 900A | Lead-acid | €255.80 |
Tudor
TG1402
|
12V 140Ah 900A | Lead-acid | €268.50 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Exide EG1402 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Exide EG1402 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 508×175×205 mm — also written as 508x175x205 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Exide EG1402 battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EG1402 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide EG1402?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
