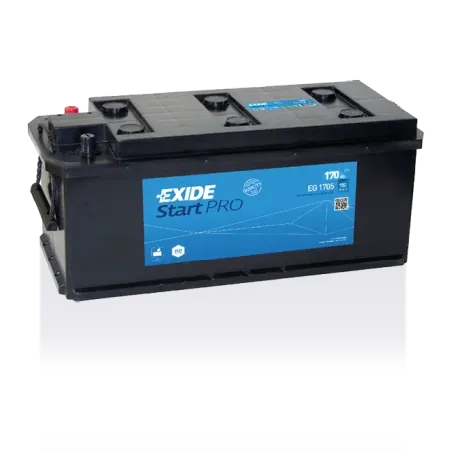

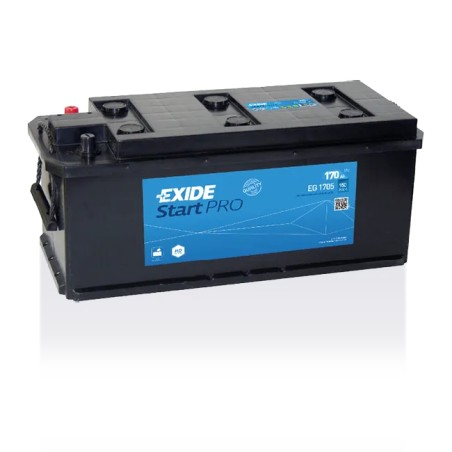

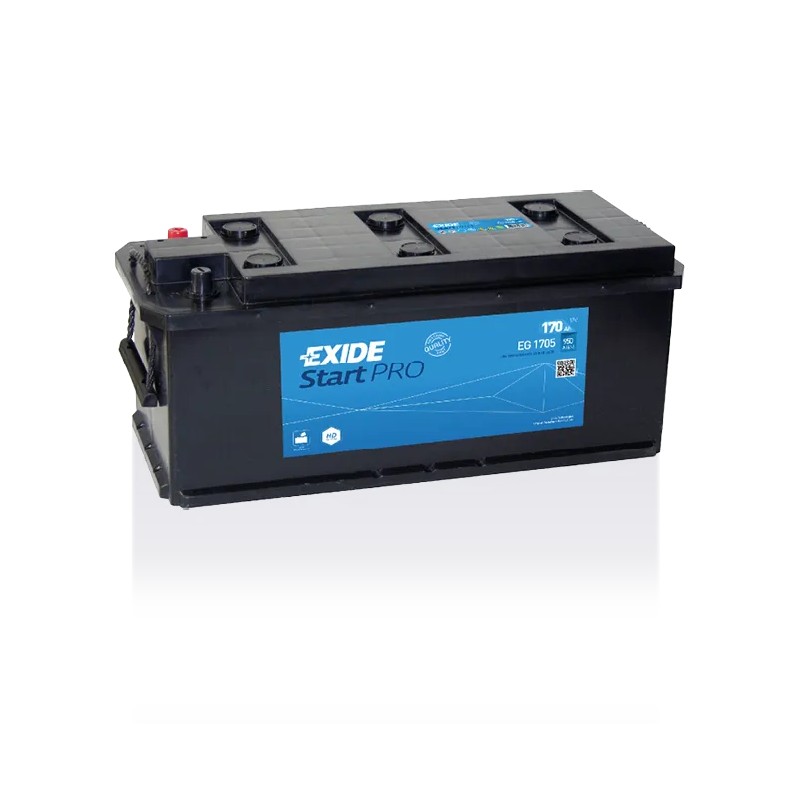

Exide EG1705 Start Pro · Truck battery 170Ah 950A

Truck battery Exide EG1705 Start PRO 170Ah 950A 12V

The Exide EG1705 truck battery is rated at 12 V, 170 Ah and 950 A of cold cranking current (EN) from the Start PRO range, and is prepared for trucks, buses, tractors and heavy machinery. It replaces the original battery without adaptation in trucks with a 514 × 218 × 210 mm format: same 170 Ah capacity and the positive terminal on the left.

• Powerful cold cranking for large-displacement diesel engines.
• Designed for 24 V installations with two batteries in series.
• Conventional lead-acid: the most proven and economical technology.
• Heavy Duty construction for intensive professional use.

Will it fit your current battery tray?

In terms of format, the Exide EG1705 measures 514 × 218 × 210 mm (length × width × height) and weighs 42.50 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B3 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

What the Exide EG1705 is for

Designed for trucks, buses, tractors and heavy machinery, the Exide EG1705 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 42.50 kg, EN taper post terminals and B3 hold-down.

The Exide EG1705: Start PRO range and conventional lead-acid technology

Within the Exide catalogue, the Start PRO series groups the references designed for this use. The EG1705 is the 170 Ah model of that family, with the same performance as its siblings in other sizes.

In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.

Exide: the maker behind the EG1705

With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Official warranty

The Exide EG1705 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

Usage and maintenance tips

Keep the terminals clean and tight and the battery firmly secured against chassis vibration. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
