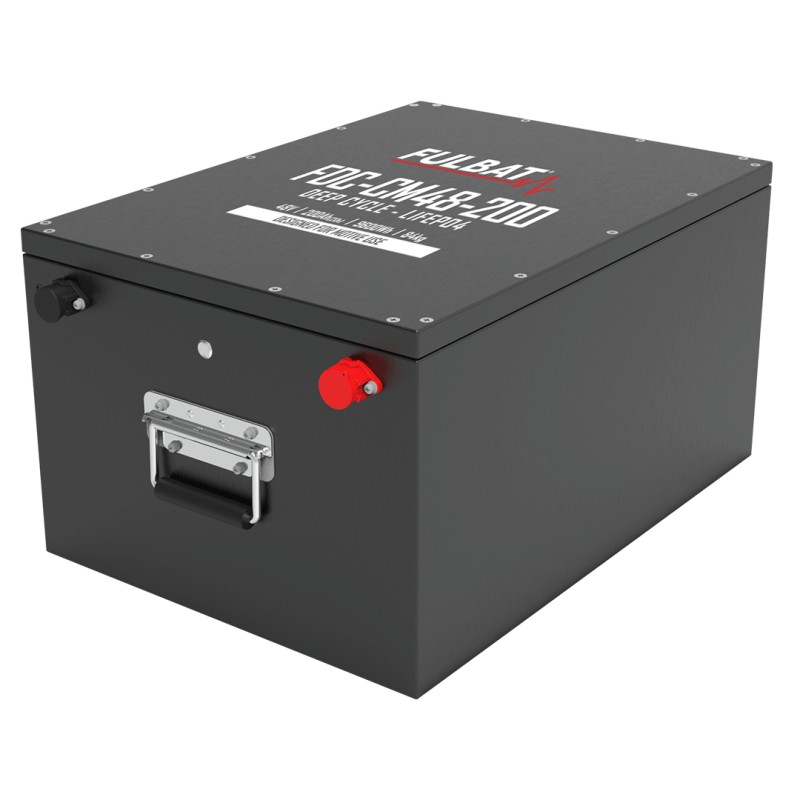

Fulbat FDC-CM48-200 · Floor scrubber battery 48V 200Ah LiFePO4
Specifications
| Brand | FULBAT |
|---|---|
| Part number | FDC-CM48-200 |
| Voltage (V) | 48V |
| Capacity (C20) | 200Ah |
| Technology | LiFePO4 |
| Length | 530mm |
| Width | 370mm |
| Height | 273mm |
| Terminal layout | Positive right |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Fulbat FDC-CM48-200 48V 200Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
48 V
Capacity
200 Ah
Dimensions
530×370×273 mm
Technology
Lithium (LiFePO4)
Polarity
Positive on the right
Free quote, no obligation
Request a quote for your Floor scrubber battery Fulbat FDC-CM48-200 48V 200Ah LiFePO4
- Reply in under 24 working hours
- Best price guaranteed
Floor cleaning machine battery Fulbat FDC-CM48-200 200Ah 48V
48VVoltage
200AhCapacity
The Fulbat FDC-CM48-200 with LiFePO4 lithium technology delivers 200 Ah at 48 V, shift after shift, in scrubber-dryers, sweepers and industrial cleaning machines. It replaces the original battery without adaptation in scrubbers and sweepers with a 530 × 370 × 273 mm format: same 200 Ah capacity and the positive terminal on the right.
- Sealed: no leaks in machines that tilt and turn.
- Long life under intensive cycling.
- LiFePO4 lithium: minimal weight and almost zero self-discharge.
- Ready for full working shifts.
What the Fulbat FDC-CM48-200 is for
With 200 Ah, the Fulbat FDC-CM48-200 powers brushes, vacuum and traction of scrubber-dryers, sweepers and industrial cleaning machines throughout the day. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has BOLT-M6 terminals.
Will it fit your current battery tray?
It has external dimensions of 530 × 370 × 273 mm. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses BOLT-M6 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Technology inside the Fulbat FDC-CM48-200
The FDC-CM48-200 is one of the Fulbat references for this type of use; it shares the same manufacturing and quality-control criteria as the rest of the brand's catalogue.
A LiFePO4 battery starts with the same nominal voltage as a lead-acid one but with far less weight and a service life several times longer. It requires a lithium-compatible charger.
What Fulbat does differently
French brand Fulbat is a European reference in motorcycle, garden and leisure batteries: compact ranges, clear JIS codes and a consistent quality that workshops know well. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Warranty and coverage
The Fulbat FDC-CM48-200 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
Store the battery at 50-70% charge if it will be unused for months. Recharge the machine at the end of each shift and avoid repeated full discharges.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-FULBAT-FDC-CM48-200
Data sheet
- Brand
- FULBAT
- Model
- FULBAT FDC Deep Cycle LiFePO4
- Voltage (V)
- 48V
- Length
- 530mm
- Width
- 370mm
- Height
- 273mm
- Technology
- LiFePO4
- Terminal layout
- Positive right
- Terminal type
- BOLT-M6
- Capacity (C20)
- 200Ah
Specific References
- MPN
- FDC-CM48-200
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Fulbat FDC-CM48-200 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Fulbat FDC-CM48-200 battery last?
Expected lifespan of the Fulbat FDC-CM48-200 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Fulbat FDC-CM48-200 battery?
Dimensions (length × width × height) are 530×370×273 mm — also written as 530x370x273 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the FDC-CM48-200 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
