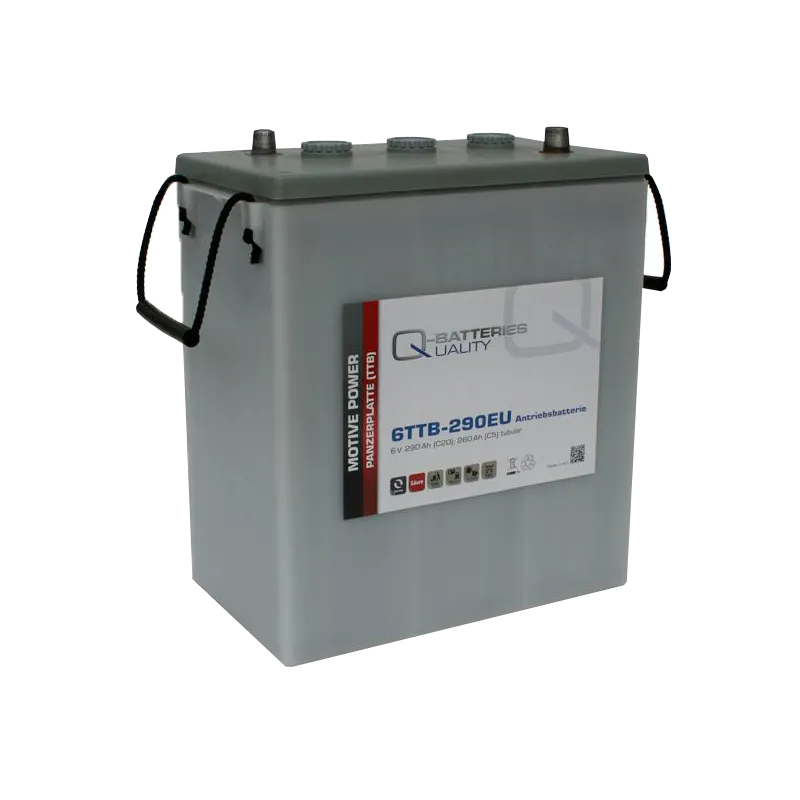

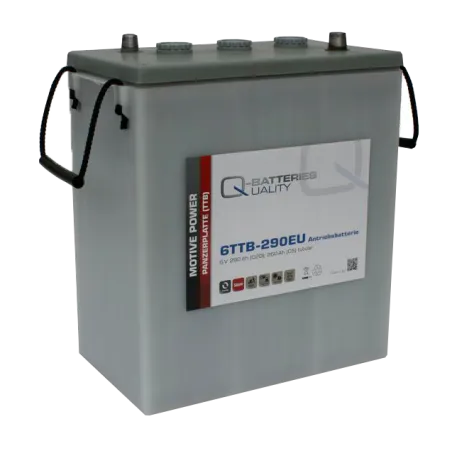

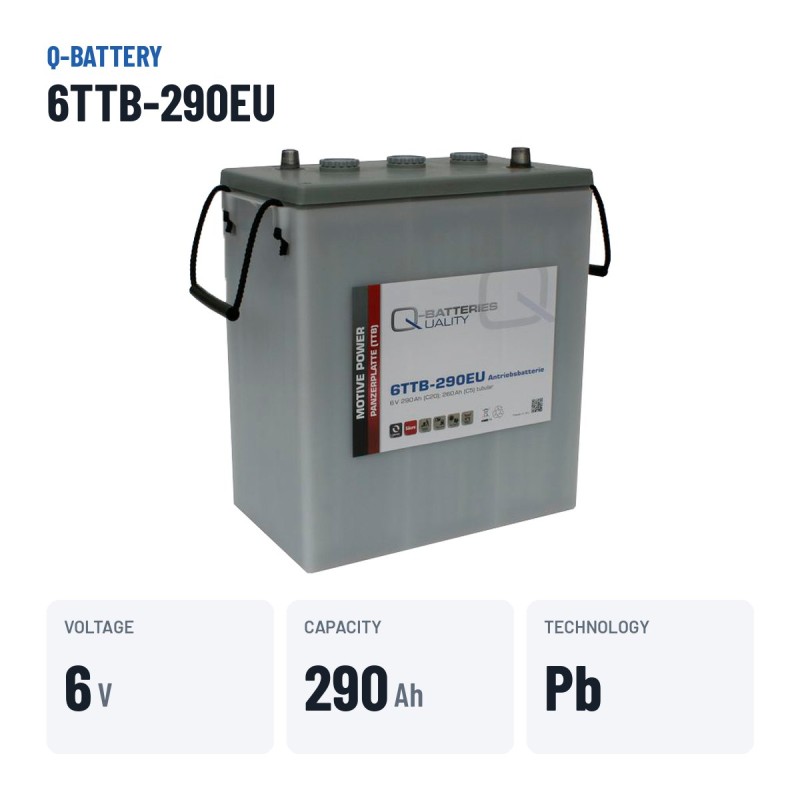

Q-battery 6TTB-290EU · Traction battery 6V 290Ah
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 6TTB-290EU |
| Voltage (V) | 6 |
| Capacity (C20) | 290Ah (c20) |
| Technology | Lead-acid |
| Length | 311.00 cm |
| Width | 181.00 cm |
| Height | 360.00 cm |
| Weight | 45.20 Kgs |
€650.60
VAT included
Q-battery 6TTB-290EU 6V 290Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
6 V
Capacity
290 Ah
Dimensions
311×181×360 mm
Technology
Lead-acid
Weight
45,2 kg
Model
TUBULAR PLATE BATTERY
Floor cleaning machine battery Q-Battery 6TTB-290EU Tubular Plate Battery 290Ah 6V
6VVoltage
290AhCapacity
45.20kgWeight
The Q-Battery 6TTB-290EU with conventional lead-acid technology delivers 290 Ah at 6 V, shift after shift, in scrubber-dryers, sweepers and industrial cleaning machines. Its 311 × 181 × 360 mm make it the exact replacement for the 290 Ah battery fitted as standard to many scrubbers and sweepers.
- Direct replacement for the machine's original battery.
- No maintenance, no water top-ups.
- Resistant to deep discharges and daily recharging.
- Good balance of capacity, cranking power and price.
What the Q-Battery 6TTB-290EU is for
With 290 Ah, the Q-Battery 6TTB-290EU powers brushes, vacuum and traction of scrubber-dryers, sweepers and industrial cleaning machines throughout the day. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 45.20 kg, A-Pole terminals and B0 hold-down.
The Q-Battery 6TTB-290EU: Tubular Plate Battery range and conventional lead-acid technology
The Tubular Plate Battery is the Q-Battery range the 6TTB-290EU belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.

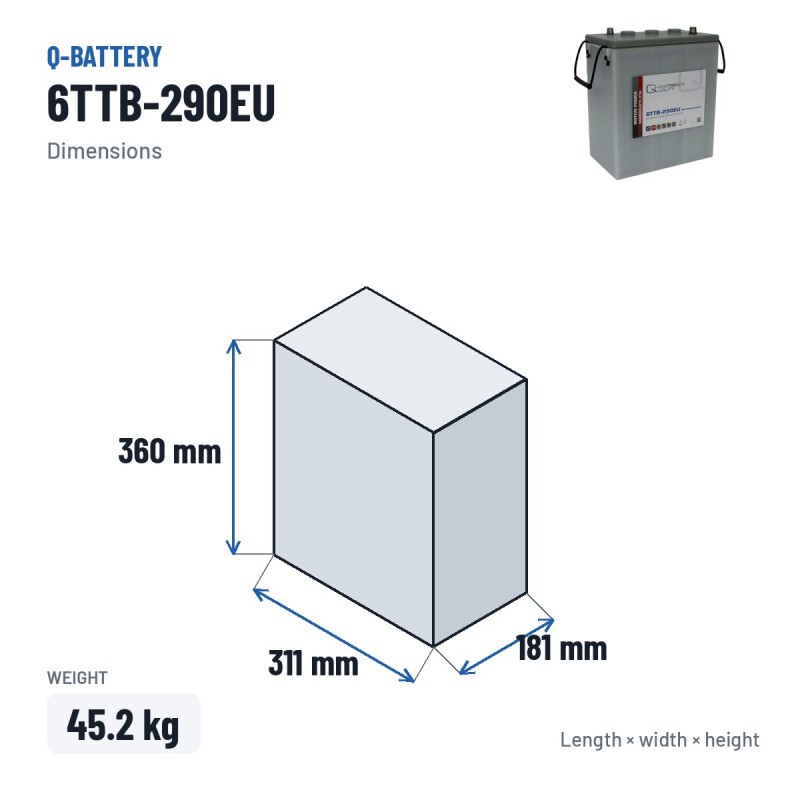

Size, terminals and hold-down of the Q-Battery 6TTB-290EU
The Q-Battery 6TTB-290EU is made in the 311 × 181 × 360 mm format and weighs 45.20 kg. It uses a B0 hold-down and A-Pole terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What Q-Battery does differently
Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. All the Q-Battery batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Care and maintenance
Check the electrolyte level if the battery allows it and replace the complete set when changing batteries. Recharge the machine at the end of each shift and avoid repeated full discharges.
Warranty and coverage
The Q-Battery 6TTB-290EU comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-Q-BATTERY-6TTB-290EU
Data sheet
- Brand
- Q-Battery
- Reference
- 6TTB-290EU
- Model
- TUBULAR PLATE BATTERY
- Voltage (V)
- 6
- Length
- 311.00 cm
- Width
- 181.00 cm
- Height
- 360.00 cm
- Weight
- 45.20 Kgs
- Technology
- Lead-acid
- Terminal type
- A-Pole
- Hold-down
- B0
- Capacity (C20)
- 290Ah (c20)
Specific References
- EAN13
- 4250889600495
- MPN
- 6TTB-290EU
Codes and references Q-battery 6TTB-290EU
| Brand | Q-battery |
|---|---|
| Manufacturer range | TUBULAR PLATE BATTERY |
| Manufacturer part number (MPN) | 6TTB-290EU |
| Also known as | 6TTB290EU · 6TTB 290EU |
| EAN-13 barcode | 4250889600495 |
| Dimensions (length × width × height) | 311 × 181 × 360 mm (311x181x360) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Q-battery 6TTB-290EU battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the 6TTB-290EU model?
Expected lifespan of the Q-battery 6TTB-290EU is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 311×181×360 mm — also written as 311x181x360 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Q-battery 6TTB-290EU?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
