Ritar EV8-200 · Golf cart battery 8V 200Ah 700A AGM

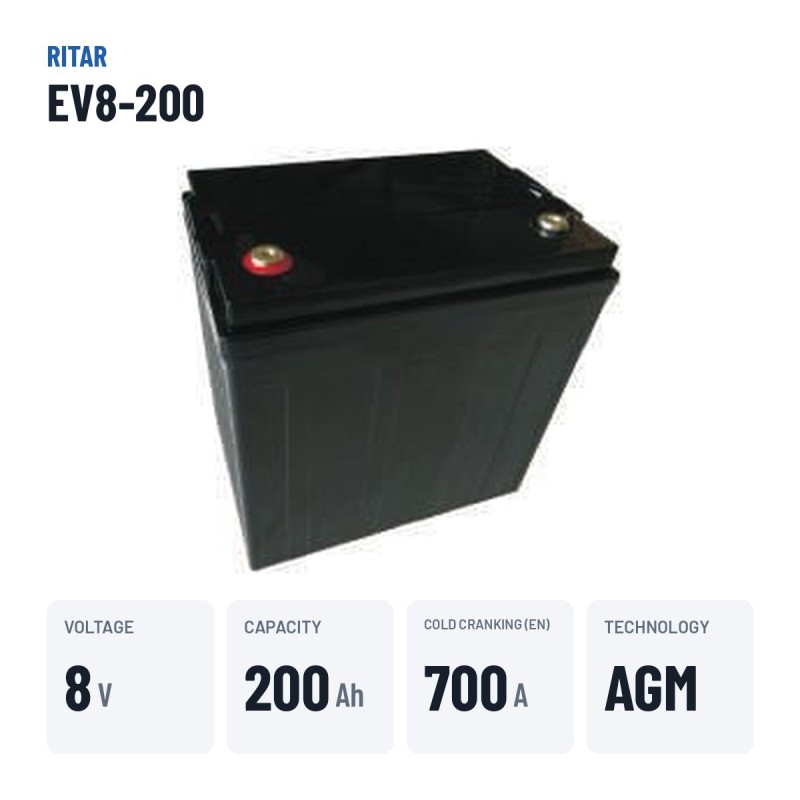

Specifications
| Brand | RITAR |
|---|---|
| Part number | EV8-200 |
| Voltage (V) | 8 |
| Capacity (C20) | 200Ah (c20) |
| Capacity (C5) | 174.5Ah (c5) |
| Technology | AGM |
| Length | 260.00 mm |
| Width | 182.00 mm |
| Height | 314.00 mm |
Ritar EV8-200 8V 200Ah 700A is a golf traction battery: thick plates and a high cycle count for daily course use. 260×182×314 mm case, 38 kg.
Why this golf cart battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Where it fits: the Ritar EV8-200 is one of our traction batteries, belongs to our Ritar batteries and by capacity it sits among our 200Ah batteries.

Battery RITAR EV8-200 200Ah 700A 8V EV
Why choose a ritar battery?
Ritar batteries provide durability, high energy and have had a cadmium-free manufacturing process and environmentally friendly since Ritar adopted ecological technology and facilities (Eco-Friendly), to minimize the environmental impact.Know more about the Ritar brand
Ritar Power is a professional battery manufacturer that is quoted in Nasdaq and produces a wide range of batteries in agm, gel, lithium, etc. technologies.Today Ritar covers the manufacture of batteries, the battery charger, the phone screen, etc.and has become a large -scale business group.It is a high -tech company based in the Nanshan district, Shenzhen in China and has more than 2000 employees, which produce a complete range of AGM, gel, deep cycle, lead carbon, OPZV, opzs, acid batteriesof traction (DIN / BS) and lithium batteries for all types of industrial applications such as solar systems, UPS, telecommunications, data centers, rail traffic, motor vehicles, etc.Ritar factories are equipped with advanced automatic production lines and adopt advanced test measures, including a series of innovative production technologies that have obtained national patents.Each production stage is well planned and controlled to minimize the percentage of defects.Strictly 100% inspection made by IQC, IPQC, OQC.
The Ritar EV series
Ritar’s EV series is designed for the frequent deep discharge of electric vehicles: a patented deep-cycle active material formula, strong Pb-Ca-Sn cadmium-free grids, thick plates and a high-performance AGM separator. Over 300 cycles at 100 % depth of discharge. Sealed (VRLA) and maintenance-free, with self-discharge below 3 % per month. The whole series at Ritar EV batteries.
This model
260×182×314 mm case, 38 kg. 8 V and 200 Ah, 700 A cold cranking (CCA) and a maximum discharge current of 2000 A for 5 seconds.

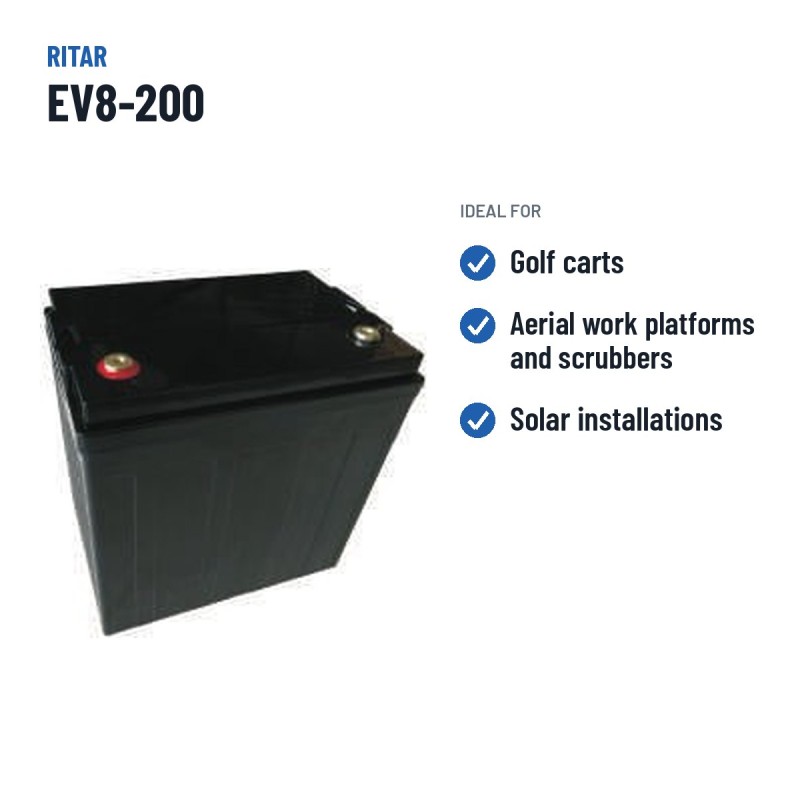

Ideal for
- Golf buggy
- Electric vehicle
- Floor scrubber and sweeper
- Aerial work platform
- Forklift and pallet truck

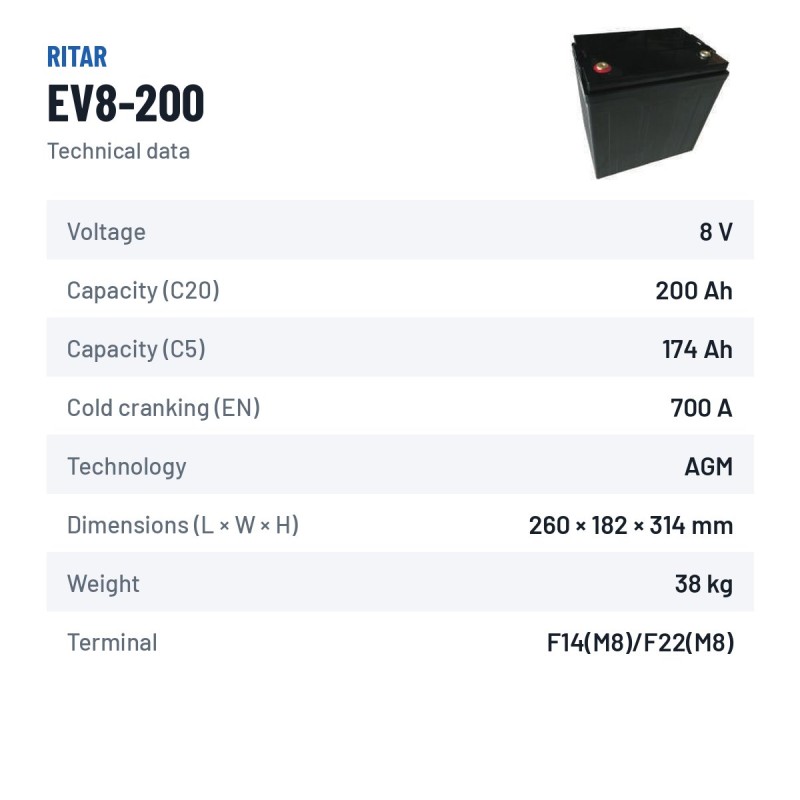

Technical data
| Brand | RITAR |
|---|---|
| Model | EV |
| Part no. | EV8-200 |
| Capacity | 200Ah |
| Voltage | 8V |
| Cold cranking (CCA) | 700A |
| Technology | AGM |
| Dimensions (mm) | 260x182x314 |
| Weight | 38.00 kg |
| Terminal type | BOLT-M8 |
| C20 capacity | 200 Ah |
| C10 capacity | 200 Ah |
| C5 capacity | 174.5 Ah |
| C3 capacity | 153.3 Ah |
| Internal resistance | 3 mΩ |
| Max. discharge (5 s) | 2000 A |
| Max. charging current | 60.0 A |
| Height without terminal | 295 mm |
| Terminal | F14(M8)/F22(M8) |
Other 200Ah batteries: We stock 22 models of 200 Ah to compare by price, technology and cold cranking: see all 200Ah batteries.
Recommended accessories
Frequently asked questions
Is the Ritar EV8-200 an AGM battery and what are the benefits of AGM?
Yes: the EV8-200 from Ritar uses AGM (Absorbent Glass Mat) technology, a sealed lead-acid battery whose electrolyte soaks a glass-fibre mat. Its advantages: more charge/discharge cycles than a conventional battery and better heat tolerance.

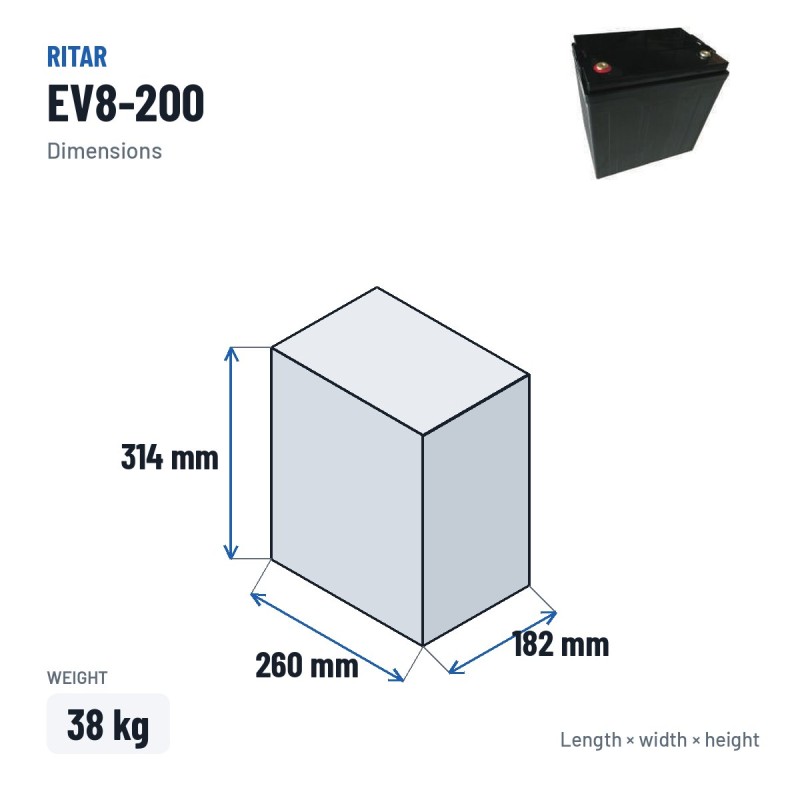

What are the dimensions of the Ritar EV8-200 battery?
Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close. It measures 260×182×314 mm in length × width × height, with the terminals included in the height.
