Ritar RA12-230 · Caravan battery 12V 244Ah AGM

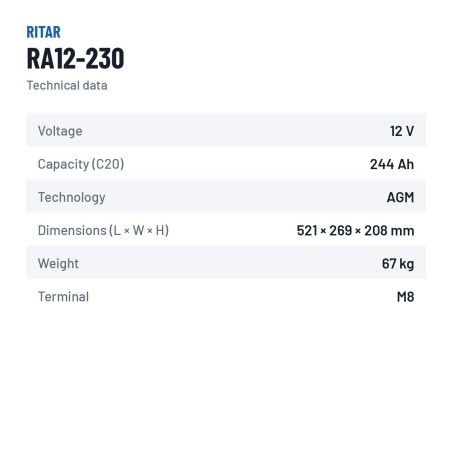

Specifications
| Brand | RITAR |
|---|---|
| Part number | RA12-230 |
| Voltage (V) | 12 |
| Capacity (C20) | 244Ah (c20) |
| Capacity (C10) | 230Ah (c10) |
| Technology | AGM |
| Length | 521.00 mm |
| Width | 269.00 mm |
| Height | 208.00 mm |
€681.20
VAT included
4,91/5★★★★★11 reviewsVerified purchases
- ★★★★★Felipe PeÑa:
Me ayudaron a elegir la batería más adecuada
- ★★★★★Mohamed Flores:
Necesitaba con urgencia una batería de coche y me llegó al día siguiente de pedirla
- ★★★★★Francisco Javier MuÑoz:
Al final fue facil la instalación gracias a su ayuda
Ritar RA12-230 12V 244Ah is a battery for auxiliary services in motorhomes, caravans and campers. Powers the fridge, interior lighting, water pump and sockets while parked, with no need for campsite mains. Withstands daily discharges throughout the season.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues
Voltage
12 V
Capacity
244 Ah
Dimensions
521×269×208 mm
Technology
AGM
Weight
67 kg
Model
RITAR RA
Leisure battery Ritar RA12-230 RA 244Ah 12V
12VVoltage
244AhCapacity
67kgWeight
The 12 V, 244 Ah Ritar RA12-230 battery from the RA range with AGM technology is designed for motorhomes, caravans and campers that need power off-grid. Measuring 521 × 269 × 208 mm, it is the direct replacement for motorhomes and caravans fitted from the factory with a 244 Ah battery of this format.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Withstands daily discharges throughout the season.
- Recharges from the alternator, a solar panel or a mains charger.
- Direct replacement for the original leisure battery.
What the Ritar RA12-230 is for
The Ritar RA12-230 is designed for motorhomes, caravans and campers that need power off-grid: it powers fridge, lights, pump and chargers for several days off-grid. Its 244 Ah capacity sets the available autonomy. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 67 kg and M8 terminals.

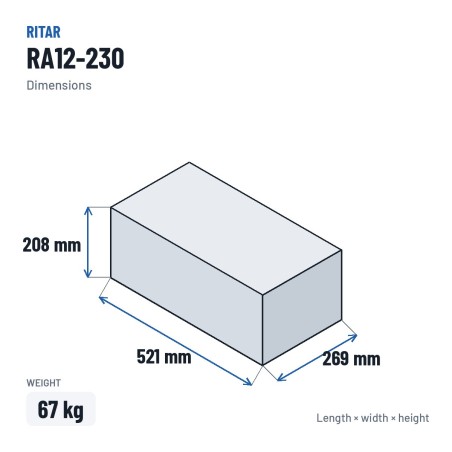

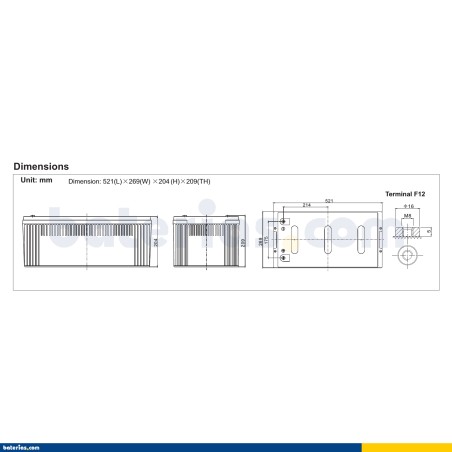

Dimensions, polarity and mounting
It has external dimensions of 521 × 269 × 208 mm and weighs 67 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Ritar: the maker behind the RA12-230
With more than twenty years making sealed lead batteries, Ritar offers general-purpose, long-life, high-rate and front-terminal ranges for every stationary application. All the Ritar batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
The Ritar RA12-230: RA range and AGM technology
Within the Ritar catalogue, the RA series groups the references designed for this use. The RA12-230 is the 244 Ah model of that family, with the same performance as its siblings in other sizes.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
How to make it last longer
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip.
Manufacturer's warranty
The Ritar RA12-230 comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-RITAR-RA12-230
Data sheet
- Brand
- RITAR
- Reference
- RA12-230
- Model
- RITAR RA
- Voltage (V)
- 12
- Length
- 521.00 mm
- Width
- 269.00 mm
- Height
- 208.00 mm
- Technology
- AGM
- Terminal type
- M8
- Capacity (C20)
- 244Ah (c20)
- Capacity (C10)
- 230Ah (c10)
Specific References
- MPN
- RA12-230
4,91/5
Verified purchasesLatest verified reviews
★★★★★Felipe PeÑa
28/06/2026Gracias por la ayuda
Me ayudaron a elegir la batería más adecuada
★★★★★Mohamed Flores
17/02/2026Encontré lo que buscaba
Necesitaba con urgencia una batería de coche y me llegó al día siguiente de pedirla
★★★★★Francisco Javier MuÑoz
10/02/2026Muy buena ayuda con la instalación
Al final fue facil la instalación gracias a su ayuda
★★★★★Cristian Torres
22/10/2025Su ayuda fue valiosa
Me ayudaron a elegir la bateria más adecuada
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
Is the Ritar RA12-230 an AGM battery and what are the benefits of AGM?
Yes. The RA12-230 from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Ritar RA12-230 battery installed in the vehicle?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Ritar RA12-230 battery last?
Expected lifespan of the Ritar RA12-230 is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the RA12-230 model?
Dimensions (length × width × height) are 521×269×208 mm — also written as 521x269x208 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Ritar RA12-230 battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The RA12-230 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Ritar RA12-230?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
