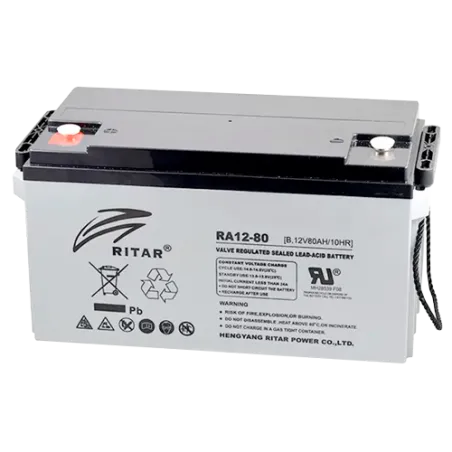

Ritar RA12-80A · Wheelchair battery 12V 85Ah AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | RA12-80A |
| Voltage (V) | 12 |
| Capacity (C20) | 85Ah (c20) |
| Capacity (C10) | 80Ah (c10) |
| Technology | AGM |
| Length | 350.00 mm |
| Width | 167.00 mm |
| Height | 183.00 mm |
€242.30
VAT included
4,79/5★★★★★29 reviewsVerified purchases
- ★★★★★Joan Fuentes:
Me ayudaron a elegir la batería más adecuada
- ★★★★★Tomas Lopez:
Necesitaba con urgencia una batería de coche y me llegó al día siguiente de pedirla
- ★★★★★Salvador Prieto:
Al final fue facil la instalación gracias a su ayuda
Ritar RA12-80A 12V 85Ah is a sealed AGM/GEL battery for daily mobility use: maintenance-free, no risk of spills, and thousands of useful cycles well beyond a starter battery.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
85 Ah
Dimensions
350×167×183 mm
Technology
AGM
Weight
21,5 kg
Model
RITAR RA
Leisure battery Ritar RA12-80A RA 85Ah 80A 12V
12VVoltage
85AhCapacity
80ACold cranking
21.50kgWeight
For motorhomes, caravans and campers that need power off-grid, the Ritar RA12-80A from the RA range provides 85 Ah of energy with AGM technology. It replaces the original battery without adaptation in motorhomes and caravans with a 350 × 167 × 183 mm format: same 85 Ah capacity.
- Sealed and gas-free: suitable for installation inside the living area.
- Low self-discharge during months of storage.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Power for fridge, lighting, water pump and USB off-grid.
Dimensions, polarity and mounting

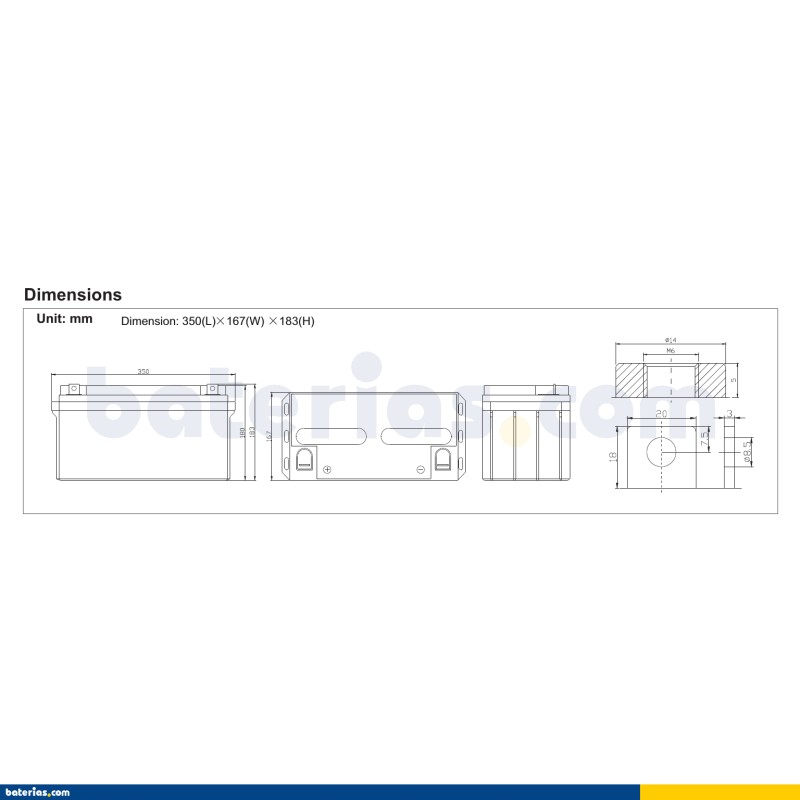

The Ritar RA12-80A is made in the 350 × 167 × 183 mm format and weighs 21.50 kg. It uses M6 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Ritar RA12-80A is for
With 85 Ah, the Ritar RA12-80A is the habitation battery for motorhomes, caravans and campers that need power off-grid. It recharges from the alternator, a solar panel or a mains charger. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 21.50 kg and M6 terminals.
The Ritar RA12-80A: RA range and AGM technology
The RA12-80A is part of the Ritar RA range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Why choose Ritar batteries
With more than twenty years making sealed lead batteries, Ritar offers general-purpose, long-life, high-rate and front-terminal ranges for every stationary application. All the Ritar batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Ritar RA12-80A comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-RITAR-RA12-80A
Data sheet
- Brand
- RITAR
- Reference
- RA12-80A
- Model
- RITAR RA
- Voltage (V)
- 12
- Length
- 350.00 mm
- Width
- 167.00 mm
- Height
- 183.00 mm
- Technology
- AGM
- Terminal type
- M6
- Capacity (C20)
- 85Ah (c20)
- Capacity (C10)
- 80Ah (c10)
Specific References
- MPN
- RA12-80A
4,79/5
Verified purchasesLatest verified reviews
★★★★★Joan Fuentes
25/06/2026Me asesoraron en la batería
Me ayudaron a elegir la batería más adecuada
★★★★★Tomas Lopez
17/02/2026Excelente opción
Necesitaba con urgencia una batería de coche y me llegó al día siguiente de pedirla
★★★★★Salvador Prieto
11/02/2026Gracias por ayudarme con la instalación
Al final fue facil la instalación gracias a su ayuda
★★★★★Gabriel Crespo
04/10/2025Resolvieron mis dudas
Me ayudaron a elegir la bateria más adecuada
Comparison: Ritar RA12-80A vs equivalents
The Ritar RA12-80A is interchangeable with these equivalent references: RA12-65B (Ritar), BATTERY-12LC-67 (Q-battery), BATTERY-12LC-80 (Q-battery).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Ritar
RA12-80A
This battery
|
12V 85Ah | AGM | €242.30 |
Ritar
RA12-65B
|
12V 69Ah | AGM | €218.60 |
Q-battery
BATTERY-12LC-67
|
12V 67Ah | AGM | €284.50 |
Q-battery
BATTERY-12LC-80
|
12V 80Ah | AGM | €300.80 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
Is the Ritar RA12-80A an AGM battery and what are the benefits of AGM?
Yes. The RA12-80A from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Ritar RA12-80A battery installed in the vehicle?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Ritar RA12-80A battery last?
Expected lifespan of the Ritar RA12-80A is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the RA12-80A model?
Dimensions (length × width × height) are 350×167×183 mm — also written as 350x167x183 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Ritar RA12-80A battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The RA12-80A typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Ritar RA12-80A?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
