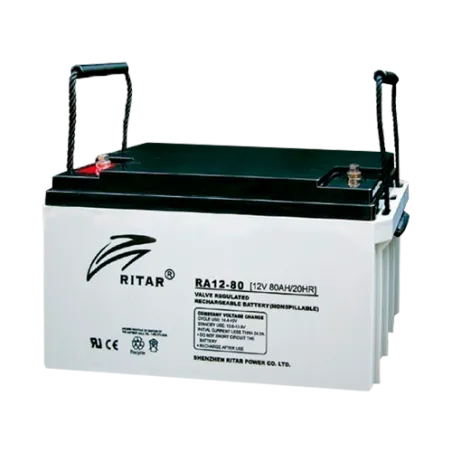

Ritar RA12-80S · Wheelchair battery 12V 85Ah AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | RA12-80S |
| Voltage (V) | 12 |
| Capacity (C20) | 85Ah (c20) |
| Capacity (C10) | 80Ah (c10) |
| Technology | AGM |
| Length | 260.00 mm |
| Width | 169.00 mm |
| Height | 235.00 mm |
€264.95
VAT included
Ritar RA12-80S 12V 85Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
85 Ah
Dimensions
260×169×235 mm
Technology
AGM
Weight
22 kg
Model
RITAR RA
Leisure battery Ritar RA12-80S RA 85Ah 12V
12VVoltage
85AhCapacity
22kgWeight
The 12 V, 85 Ah Ritar RA12-80S battery from the RA range with AGM technology is designed for motorhomes, caravans and campers that need power off-grid. It measures 260 × 169 × 235 mm, the format sought by anyone replacing a 85 Ah battery in motorhomes and caravans.
- Low self-discharge during months of storage.
- Sealed and gas-free: suitable for installation inside the living area.
- Power for fridge, lighting, water pump and USB off-grid.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
What the Ritar RA12-80S is for
With 85 Ah, the Ritar RA12-80S is the habitation battery for motorhomes, caravans and campers that need power off-grid. It recharges from the alternator, a solar panel or a mains charger. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 22 kg and M6 terminals.
The Ritar RA12-80S: RA range and AGM technology
Within the Ritar catalogue, the RA series groups the references designed for this use. The RA12-80S is the 85 Ah model of that family, with the same performance as its siblings in other sizes.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
Will it fit your current battery tray?
The Ritar RA12-80S is made in the 260 × 169 × 235 mm format and weighs 22 kg. It uses M6 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Ritar: the maker behind the RA12-80S
With more than twenty years making sealed lead batteries, Ritar offers general-purpose, long-life, high-rate and front-terminal ranges for every stationary application. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
How to make it last longer
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip.
Warranty and coverage
The Ritar RA12-80S comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-RITAR-RA12-80S
Data sheet
- Brand
- RITAR
- Reference
- RA12-80S
- Model
- RITAR RA
- Voltage (V)
- 12
- Length
- 260.00 mm
- Width
- 169.00 mm
- Height
- 235.00 mm
- Technology
- AGM
- Terminal type
- M6
- Capacity (C20)
- 85Ah (c20)
- Capacity (C10)
- 80Ah (c10)
Specific References
- MPN
- RA12-80S
Comparison: Ritar RA12-80S vs equivalents
The Ritar RA12-80S is interchangeable with these equivalent references: RA12-70S (Ritar).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Ritar
RA12-80S
This battery
|
12V 85Ah | AGM | €264.95 |
Ritar
RA12-70S
|
12V 74Ah | AGM | €235.70 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
Is the RA12-80S model AGM? What does this technology offer?
Yes. The RA12-80S from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Ritar RA12-80S battery installed in the vehicle?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Ritar RA12-80S battery last?
Expected lifespan of the Ritar RA12-80S is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the RA12-80S model?
Dimensions (length × width × height) are 260×169×235 mm — also written as 260x169x235 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Ritar RA12-80S battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The RA12-80S typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
