Ritar RA6-180 · Caravan battery 6V 190Ah AGM
Caravan battery Ritar RA6-180 6V 190Ah AGM images
Specifications
| Brand | RITAR |
|---|---|
| Part number | RA6-180 |
| Voltage (V) | 6 |
| Capacity (C20) | 190Ah (c20) |
| Capacity (C10) | 180Ah (c10) |
| Technology | AGM |
| Length | 306.00 mm |
| Width | 168.00 mm |
| Height | 227.00 mm |
Ritar RA6-180 6V 190Ah is a battery for auxiliary services in motorhomes, caravans and campers. Powers the fridge, interior lighting, water pump and sockets while parked, with no need for campsite mains. Withstands daily discharges throughout the season.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues
Leisure battery Ritar RA6-180 RA 190Ah 6V
The Ritar RA6-180 with AGM technology stores 190 Ah at 6 V: autonomy for motorhomes, caravans and campers that need power off-grid. Its 306 × 168 × 227 mm make it the exact replacement for the 190 Ah battery fitted as standard to many motorhomes and caravans.
- Withstands daily discharges throughout the season.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Direct replacement for the original leisure battery.
- Recharges from the alternator, a solar panel or a mains charger.
What the Ritar RA6-180 is for
The Ritar RA6-180 is designed for motorhomes, caravans and campers that need power off-grid: it powers fridge, lights, pump and chargers for several days off-grid. Its 190 Ah capacity sets the available autonomy. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 24.50 kg and M8 terminals.
The Ritar RA6-180: RA range and AGM technology
The RA6-180 is part of the Ritar RA range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.

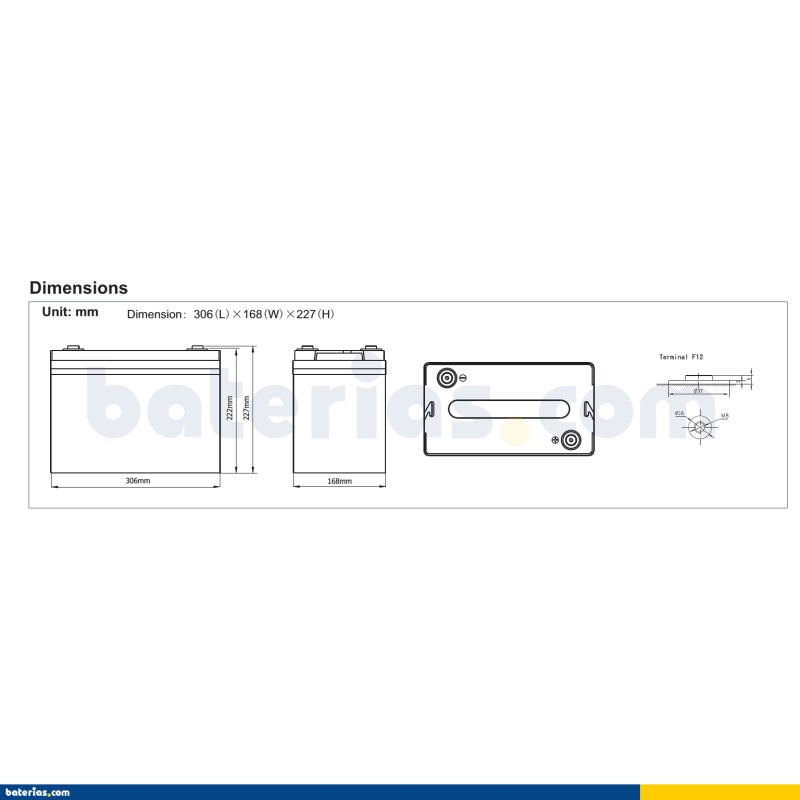

Dimensions, polarity and mounting
The Ritar RA6-180 is made in the 306 × 168 × 227 mm format and weighs 24.50 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Ritar batteries
With more than twenty years making sealed lead batteries, Ritar offers general-purpose, long-life, high-rate and front-terminal ranges for every stationary application. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Care and maintenance
Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip. During months of storage, keep it charged with a mains charger or a small solar panel; a battery left discharged for weeks loses capacity permanently.
Official warranty
The Ritar RA6-180 comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Shipping, delivery and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
-
-
ReferenceBCOM-RITAR-RA6-180
Data sheet
-
BrandRITAR
-
ReferenceRA6-180
-
ModelRITAR RA
-
Voltage (V)6
-
Length306.00 mm
-
Width168.00 mm
-
Height227.00 mm
-
TechnologyAGM
-
Terminal typeM8
-
Capacity (C20)190Ah (c20)
-
Capacity (C10)180Ah (c10)
Specific References
-
MPNRA6-180
Recommended accessories
Frequently asked questions
Is the Ritar RA6-180 an AGM battery and what are the benefits of AGM?
Yes. The RA6-180 from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I change this battery step by step?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Ritar RA6-180 battery last?
Expected lifespan of the Ritar RA6-180 is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the RA6-180 model?
Dimensions (length × width × height) are 306×168×227 mm — also written as 306x168x227 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Ritar RA6-180 battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The RA6-180 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Ritar RA6-180?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
