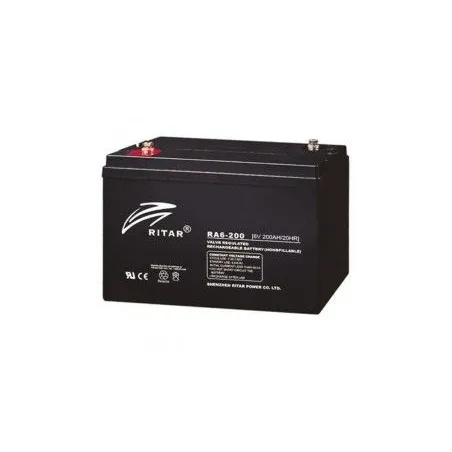

Ritar RA6-200S · Caravan battery 6V 212Ah AGM
Caravan battery Ritar RA6-200S 6V 212Ah AGM images
Specifications
| Brand | RITAR |
|---|---|
| Part number | RA6-200S |
| Voltage (V) | 6 |
| Capacity (C20) | 212Ah (c20) |
| Capacity (C10) | 200Ah (c10) |
| Technology | AGM |
| Length | 260.00 mm |
| Width | 180.00 mm |
| Height | 252.00 mm |
Ritar RA6-200S 6V 212Ah is a battery for auxiliary services in motorhomes, caravans and campers. Powers the fridge, interior lighting, water pump and sockets while parked, with no need for campsite mains. Withstands daily discharges throughout the season.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues
Leisure battery Ritar RA6-200S RA 212Ah 6V
The Ritar RA6-200S with AGM technology stores 212 Ah at 6 V: autonomy for motorhomes, caravans and campers that need power off-grid. It replaces the original battery without adaptation in motorhomes and caravans with a 260 × 180 × 252 mm format: same 212 Ah capacity.
- Sealed and gas-free: suitable for installation inside the living area.
- Low self-discharge during months of storage.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Power for fridge, lighting, water pump and USB off-grid.
What the Ritar RA6-200S is for
The Ritar RA6-200S is designed for motorhomes, caravans and campers that need power off-grid: it powers fridge, lights, pump and chargers for several days off-grid. Its 212 Ah capacity sets the available autonomy. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 26.50 kg and M8 terminals.

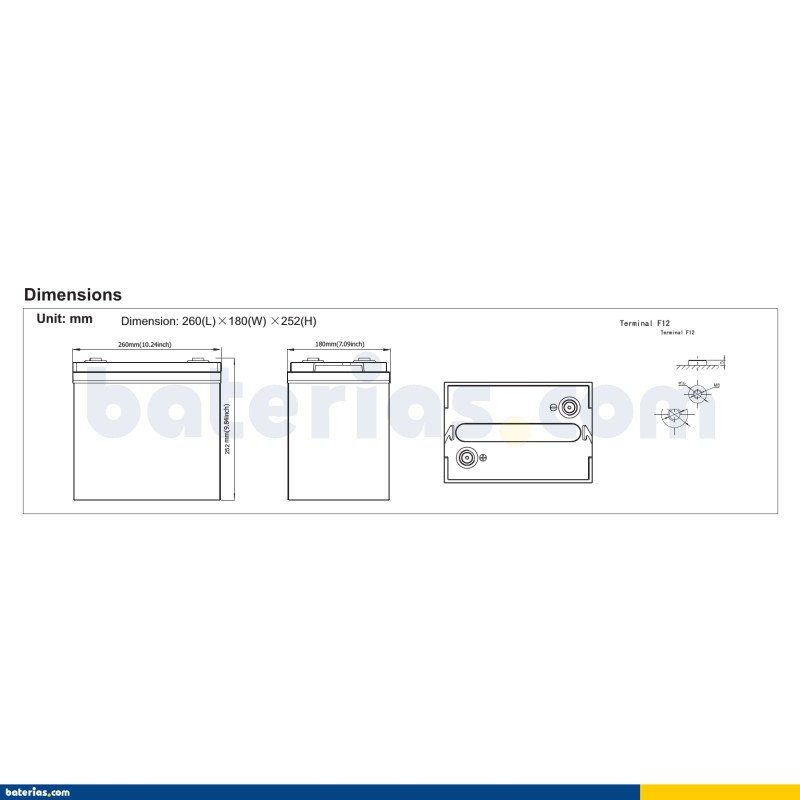

Size, terminals and hold-down of the Ritar RA6-200S
The Ritar RA6-200S is made in the 260 × 180 × 252 mm format and weighs 26.50 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Ritar: the maker behind the RA6-200S
With more than twenty years making sealed lead batteries, Ritar offers general-purpose, long-life, high-rate and front-terminal ranges for every stationary application. We guarantee that every Ritar arrives new, charged and with the manufacturer's full warranty.
The Ritar RA6-200S: RA range and AGM technology
The RA6-200S is part of the Ritar RA range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip.
Official warranty
The Ritar RA6-200S comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
-
-
ReferenceBCOM-RITAR-RA6-200S
Data sheet
-
BrandRITAR
-
ReferenceRA6-200S
-
ModelRITAR RA
-
Voltage (V)6
-
Length260.00 mm
-
Width180.00 mm
-
Height252.00 mm
-
TechnologyAGM
-
Terminal typeM8
-
Capacity (C20)212Ah (c20)
-
Capacity (C10)200Ah (c10)
Specific References
-
MPNRA6-200S
Recommended accessories
Frequently asked questions
Is the Ritar RA6-200S an AGM battery and what are the benefits of AGM?
Yes. The RA6-200S from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the RA6-200S model in my caravan?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the RA6-200S model?
Expected lifespan of the Ritar RA6-200S is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Ritar RA6-200S battery?
Dimensions (length × width × height) are 260×180×252 mm — also written as 260x180x252 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Ritar RA6-200S battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The RA6-200S typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the RA6-200S model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
