Trojan 30XHS · Golf cart battery 12V 130Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | 30XHS |
| Voltage (V) | 12 |
| Capacity (C20) | 130Ah (c20) |
| Capacity (C5) | 105Ah (c5) |
| Technology | Lead-acid |
| Length | 355.00 mm |
| Width | 171.00 mm |
| Height | 238.00 mm |
€459.10
VAT included
4,79/5★★★★★27 reviewsVerified purchases
- ★★★★★Juan Jose Parra:
Gracias a baterias.com pude elegir la batería más adecudada para mi vehículo
- ★★★★★Francisco Vidal:
Todo perfecto. Gracias
- ★★★★★Josep Cano:
Lo mejor de todo es la atención telefónica.

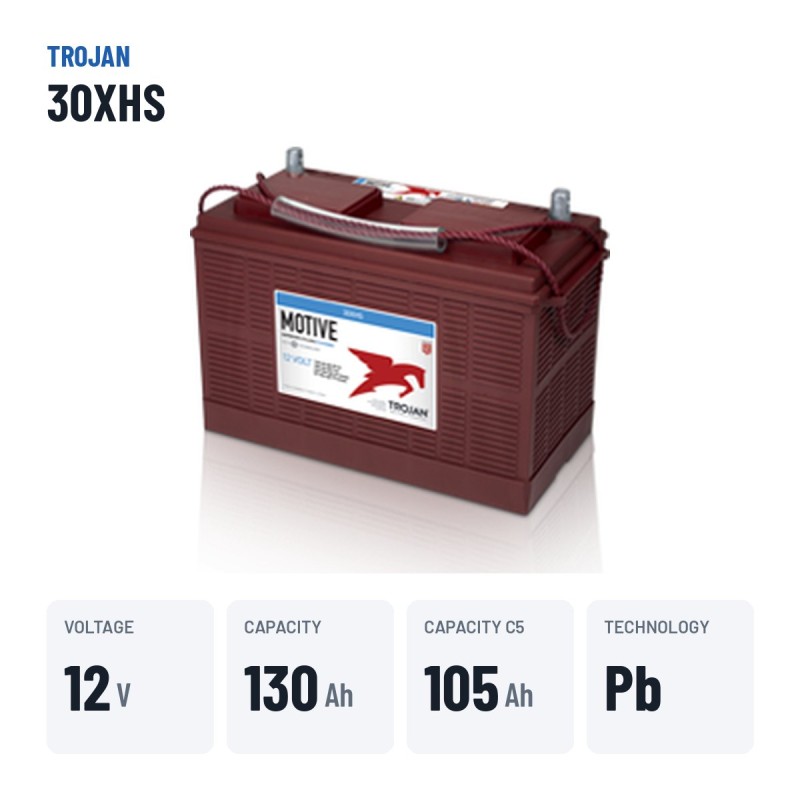

Trojan 30XHS 12V 130Ah is a deep-cycle battery for golf carts, sized to complete the round and recharge every night.
Why this golf cart battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
12 V
Capacity
130 Ah
Dimensions
355×171×238 mm
Technology
Lead-acid
Weight
30 kg
Model
TROJAN ciclo profundo - T2 Technology
Golf cart battery Trojan 30XHS ciclo profundo - T2 Technology 130Ah 12V
12VVoltage
130AhCapacity
30kgWeight
The 12 V, 130 Ah Trojan 30XHS from the ciclo profundo - T2 Technology range with conventional lead-acid technology is designed for golf carts and electric utility vehicles. Measuring 355 × 171 × 238 mm, it is the direct replacement for golf carts fitted from the factory with a 130 Ah battery of this format.
- Long service life in daily duty cycles.
- Standard format for golf carts and utility vehicles.
- Good balance of capacity, cranking power and price.
- Reinforced plate construction for intensive use.

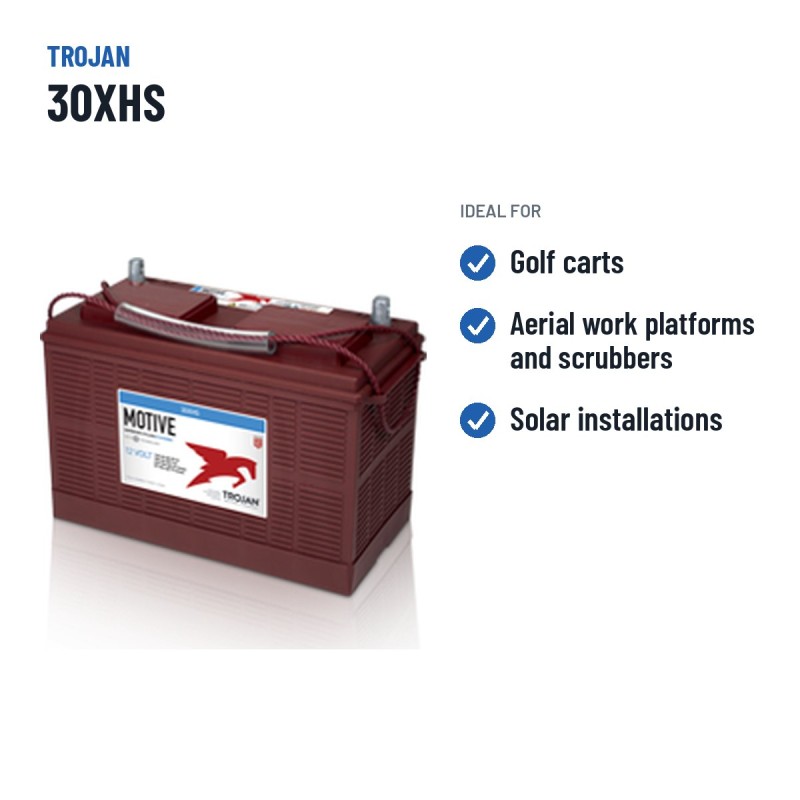

What the Trojan 30XHS is for
Designed for golf carts and electric utility vehicles, the Trojan 30XHS withstands intensive seasonal use with a reinforced plate construction. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 30 kg and 7 8 9 terminals.
The Trojan 30XHS: ciclo profundo - T2 Technology range and conventional lead-acid technology
The 30XHS is part of the Trojan ciclo profundo - T2 Technology range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.

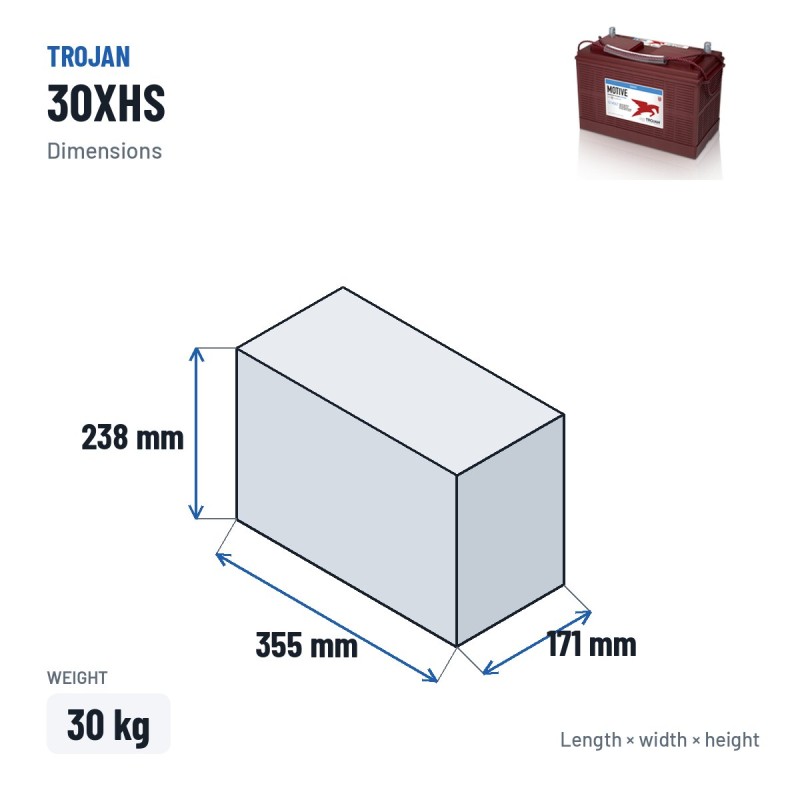

Dimensions, polarity and mounting
It has external dimensions of 355 × 171 × 238 mm and weighs 30 kg. It uses 7 8 9 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Trojan: the maker behind the 30XHS
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. All the Trojan batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Care and maintenance
Recharge the set fully after each round and avoid routine discharges below 20%. Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer.
Official warranty
The Trojan 30XHS comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Shipping, delivery and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-TROJAN-30XHS

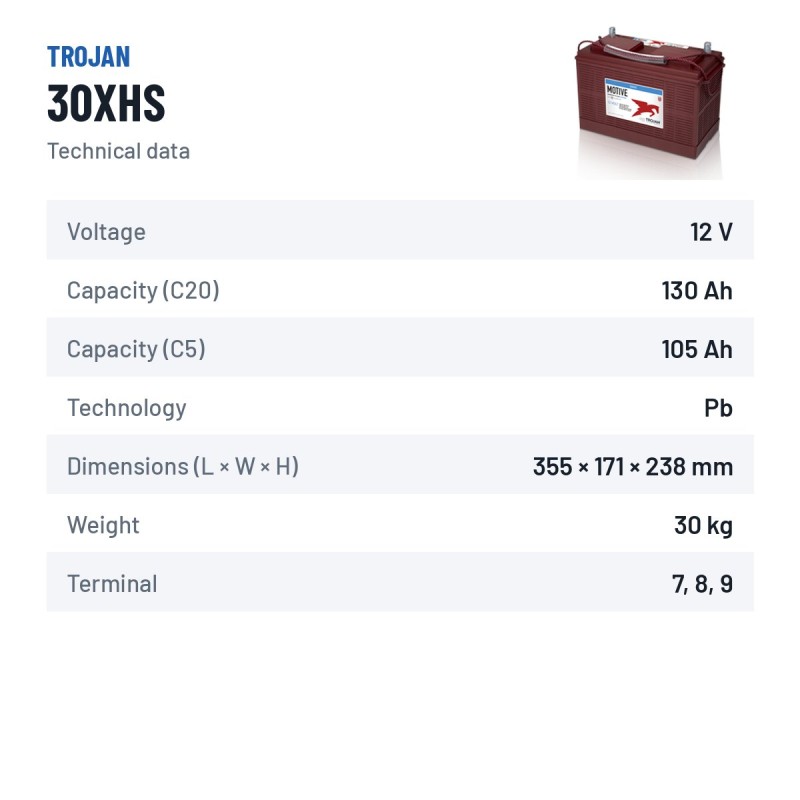

Data sheet
- Brand
- TROJAN
- Reference
- 30XHS
- Model
- TROJAN Deep Cycle - T2 Technology
- Voltage (V)
- 12
- Length
- 355.00 mm
- Width
- 171.00 mm
- Height
- 238.00 mm
- Weight
- 30 Kgs
- Technology
- Lead-acid
- Terminal type
- 7 8 9
- Capacity (C20)
- 130Ah (c20)
- Capacity (C5)
- 105Ah (c5)
Specific References
- EAN13
- 8404653001704
- MPN
- 30XHS
4,79/5
Verified purchasesLatest verified reviews
★★★★★Juan Jose Parra
01/07/2026Gracias por la ayuda
Gracias a baterias.com pude elegir la batería más adecudada para mi vehículo
★★★★★Francisco Vidal
26/05/2026Muy bien
Todo perfecto. Gracias
★★★★★Josep Cano
04/04/2026Buena atención al cliente
Lo mejor de todo es la atención telefónica.
★★★★★Ruben Medina
23/01/2026Buen sitio
Buen tiempo de entrega. Me urgía instalar la batería a mi coche. Gracias
★★★★★Emilio Martinez
21/01/2026Pude instalarla gracias a su asesoramiento
Gracias por asesorarme con la instalación de mi batería
★★★★★Tomas Gomez
11/01/2026Recibí al día siguiente
MRW me entregó en menos de un día. Increíble
★★★★★Ismael Suarez
05/01/2026La batería llegó a tiempo
Pedí la batería en Viernes y el Lunes ya la tenía aquí
★★★★★Samuel Fuentes
31/12/2025Buena relación precio-calidad-atención-tiempo de entrega
Tiene de los mejores precios de baterías online que he visto, pero si encima te atienden vía telefónica super bien, no hay más que buscar. Otros ni te cogen el teléfono
★★★★★Juan Antonio Iglesias
25/11/2025Su ayuda fue valiosa
Gracias a baterias.com pude elegir la bateria más adecudada para mi vehículo
Codes and references Trojan 30XHS
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer reference (MPN) | 30XHS |
| EAN-13 barcode | 8404653001704 |
| Dimensions (length × width × height) | 355 × 171 × 238 mm (355x171x238) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How do I fit the 30XHS model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Trojan 30XHS is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 355×171×238 mm — also written as 355x171x238 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the 30XHS model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
