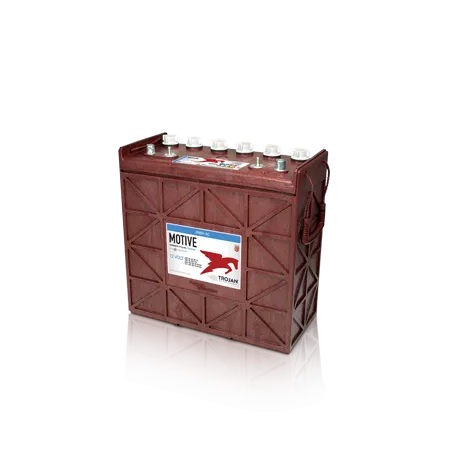

Trojan J185H-AC · Traction battery 12V 225Ah
Traction battery Trojan J185H-AC 12V 225Ah images
Specifications
| Brand | TROJAN |
|---|---|
| Part number | J185H-AC |
| Voltage (V) | 12 |
| Capacity (C20) | 225Ah (c20) |
| Capacity (C5) | 185Ah (c5) |
| Technology | Lead-acid |
| Length | 380.00 mm |
| Width | 176.00 mm |
| Height | 373.00 mm |
Trojan J185H-AC 12V 225Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Golf cart battery Trojan J185H-AC ciclo profundo - T2 Technology 225Ah 12V
The Trojan J185H-AC is a 225 Ah, 12 V deep-cycle battery for golf carts and electric utility vehicles. It measures 380 × 176 × 373 mm, the format sought by anyone replacing a 225 Ah battery in golf carts.
- Full recharge every night with the vehicle charger.
- Sealed and maintenance-free.
- Daily deep discharges without capacity loss.
- Conventional lead-acid: the most proven and economical technology.
Will it fit your current battery tray?
In terms of format, the Trojan J185H-AC measures 380 × 176 × 373 mm (length × width × height) and weighs 58 kg. It uses 6 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Trojan J185H-AC is for
The Trojan J185H-AC is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 58 kg and 6 terminals.
The Trojan J185H-AC: ciclo profundo - T2 Technology range and conventional lead-acid technology
The J185H-AC is part of the Trojan ciclo profundo - T2 Technology range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
What Trojan does differently
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. We guarantee that every Trojan arrives new, charged and with the manufacturer's full warranty.
Official warranty
The Trojan J185H-AC comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
-
-
ReferenceBCOM-TROJAN-J185H-AC
Data sheet
-
BrandTROJAN
-
ReferenceJ185H-AC
-
ModelTROJAN Deep Cycle - T2 Technology
-
Voltage (V)12
-
Length380.00 mm
-
Width176.00 mm
-
Height373.00 mm
-
Weight58 Kgs
-
TechnologyLead-acid
-
Terminal type6
-
Capacity (C20)225Ah (c20)
-
Capacity (C5)185Ah (c5)
Specific References
-
EAN138404653001780
-
MPNJ185H-AC
Codes and references Trojan J185H-AC
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer part number (MPN) | J185H-AC |
| Also known as | J185HAC · J185H AC |
| EAN-13 barcode | 8404653001780 |
| Dimensions (length × width × height) | 380 × 176 × 373 mm (380x176x373) |
Recommended accessories
Frequently asked questions
How is the Trojan J185H-AC battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the J185H-AC model?
Expected lifespan of the Trojan J185H-AC is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the J185H-AC model?
Dimensions (length × width × height) are 380×176×373 mm — also written as 380x176x373 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Trojan J185H-AC?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
