Trojan SAGM 06 315 · Solar battery 6V 315Ah AGM

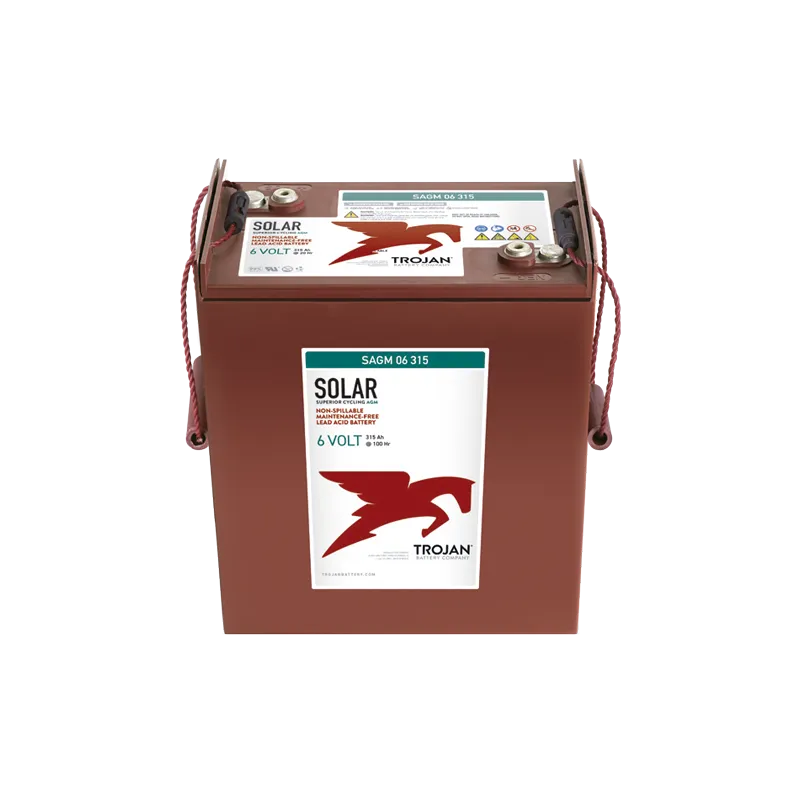

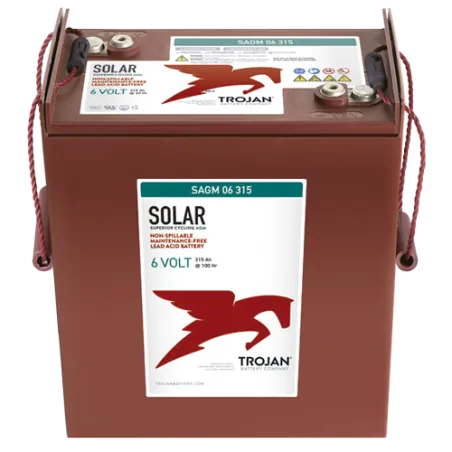

Solar battery Trojan SAGM 06 315 6V 315Ah AGM images
Specifications
| Brand | TROJAN |
|---|---|
| Part number | SAGM 06 315 |
| Voltage (V) | 6 |
| Capacity (C20) | 315Ah (c20) |
| Capacity (C10) | 279Ah (c10) |
| Technology | AGM |
| Length | 296.00 mm |
| Width | 176.00 mm |
| Height | 355.00 mm |
Trojan SAGM 06 315 6V 315Ah is a solar battery designed for PV systems with daily charge/discharge cycles. Tolerates extreme temperatures well, with low self-discharge during winter shutdowns or between stays at vacation homes.
Why this solar battery?
- Designed for solar systemsoptimised for daily charge/discharge cycles
- Handles extreme temperaturesin technical rooms or outdoor installs
- Minimal self-dischargewhen left idle over winter or holidays
Where it fits: the Trojan SAGM 06 315 is one of our batteries for solar applications and belongs to our Trojan batteries.
The Trojan SAGM 06 315 in practice
SAGM 06 315 vs Trojan J305-AGM
The Trojan SAGM 06 315 offers 315 Ah and 0 A cold cranking in a 296 × 176 × 355 mm case. The Trojan J305-AGM, same brand and technology, stays at 310 Ah and 0 A and costs €73.65 less. If you hesitate between the two at a similar price, take this one: more capacity in the same size never hurts.
Solar battery Trojan SAGM 06 315 Solar AGM - 1700 Ciclos 50% DOD 315Ah 6V
For off-grid photovoltaic installations and storage systems, the Trojan SAGM 06 315 from the Solar AGM - 1700 Ciclos 50% DOD range stores 315 Ah with AGM technology through daily charge and discharge cycles. It replaces the original battery without adaptation in off-grid PV systems with a 296 × 176 × 355 mm format: same 315 Ah capacity.
- Good tolerance to extreme temperatures.
- Long life on float and moderate cycling.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Optimised for daily charge and discharge cycles.
What the Trojan SAGM 06 315 is for
With 315 Ah, the Trojan SAGM 06 315 stores the energy from your panels for the night and cloudy days. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 43 kg.
Will it fit your current battery tray?
It has external dimensions of 296 × 176 × 355 mm and weighs 43 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Trojan: the maker behind the SAGM 06 315
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. All the Trojan batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
The Trojan SAGM 06 315: Solar AGM - 1700 Ciclos 50% DOD range and AGM technology
Within the Trojan catalogue, the Solar AGM - 1700 Ciclos 50% DOD series groups the references designed for this use. The SAGM 06 315 is the 315 Ah model of that family, with the same performance as its siblings in other sizes.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Size the installation so as not to discharge the battery more than 50% daily and set the controller to the battery technology.
Official warranty
The Trojan SAGM 06 315 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
-
-
ReferenceBCOM-TROJAN-SAGM 06 315
Data sheet
-
BrandTROJAN
-
ReferenceSAGM 06 315
-
ModelTROJAN SOLAR AGM - 1700 CYCLES 50% DOD
-
Voltage (V)6
-
Length296.00 mm
-
Width176.00 mm
-
Height355.00 mm
-
Weight43 Kgs
-
TechnologyAGM
-
Capacity (C20)315Ah (c20)
-
Capacity (C10)279Ah (c10)
Specific References
-
MPNSAGM 06 315
Trojan SAGM 06 315: alternatives with the same dimensions
Batteries from our catalogue with the same dimensions, voltage and technology as the Trojan SAGM 06 315 and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Trojan
SAGM 06 315
This battery
|
6V 315Ah | AGM | 891,95 € | |||||||||||||||||||||
Trojan
J305-AGM
Same size |
6V 310Ah | AGM | 818,30 € −73,65 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| SAGM 06 315 | J305-AGM | |
|---|---|---|
| Capacity | 315 Ah | 310 Ah |
| Cold cranking (EN) | — | — |
| Technology | AGM | AGM |
| Dimensions (mm) | 296 × 176 × 355 | 296 × 176 × 358 |
| Positive terminal | — | — |
| Price | 891,95 € | 818,30 € |
Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.
Recommended accessories
Frequently asked questions
Is the SAGM 06 315 model AGM? What does this technology offer?
Yes. The SAGM 06 315 from Trojan uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
What are the dimensions of the Trojan SAGM 06 315 battery?
Dimensions (length × width × height) are 296×176×355 mm — also written as 296x176x355 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Trojan SAGM 06 315 or Trojan J305-AGM: which one to choose?
It has the same dimensions, voltage and technology as the SAGM 06 315, although it is not a manufacturer-approved equivalent. Compared with the SAGM 06 315 it has 5 Ah less. It costs 73,65 € less. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.
