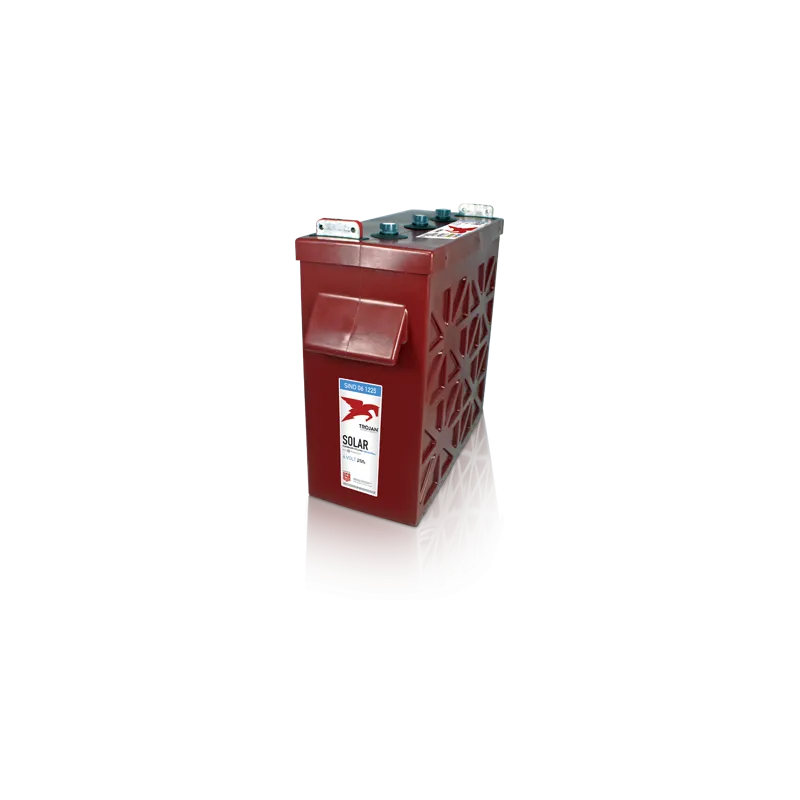

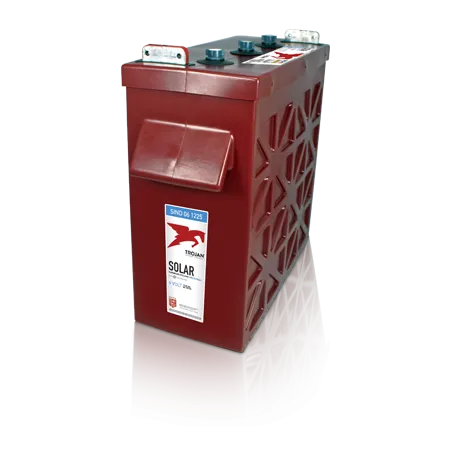

Trojan SIND 06 1225 · Solar battery 6V 942Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | SIND 06 1225 |
| Voltage (V) | 6 |
| Capacity (C20) | 942Ah (c20) |
| Capacity (C10) | 835Ah (c10) |
| Technology | Lead-acid |
| Length | 689.00 mm |
| Width | 265.00 mm |
| Height | 610.00 mm |
€2,732.20
VAT included
Trojan SIND 06 1225 6V 942Ah is a solar battery designed for PV systems with daily charge/discharge cycles. Tolerates extreme temperatures well, with low self-discharge during winter shutdowns or between stays at vacation homes.
Why this solar battery?
- Designed for solar systemsoptimised for daily charge/discharge cycles
- Handles extreme temperaturesin technical rooms or outdoor installs
- Minimal self-dischargewhen left idle over winter or holidays
Voltage
6 V
Capacity
942 Ah
Dimensions
689×265×610 mm
Technology
Lead-acid
Weight
188 kg
Model
TROJAN INDUSTRIAL ENERGIA RENOVABLE - SMART CAR
Solar battery Trojan SIND 06 1225 Industrial Energia Renovable - Smart Car 942Ah 6V
6VVoltage
942AhCapacity
188kgWeight
The Trojan SIND 06 1225 with conventional lead-acid technology stores 942 Ah at 6 V for off-grid photovoltaic installations and storage systems. Measuring 689 × 265 × 610 mm, it is the direct replacement for off-grid PV systems fitted from the factory with a 942 Ah battery of this format.
- Good balance of capacity, cranking power and price.
- Low self-discharge during the darker months.
- Maintenance-free in off-grid installations.
- Compatible with common MPPT and PWM controllers.
Size, terminals and hold-down of the Trojan SIND 06 1225
In terms of format, the Trojan SIND 06 1225 measures 689 × 265 × 610 mm (length × width × height) and weighs 188 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Trojan SIND 06 1225 is for
Designed for off-grid photovoltaic installations and storage systems, the Trojan SIND 06 1225 tolerates extreme temperatures and long periods of low activity. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 188 kg.
The Trojan SIND 06 1225: Industrial Energia Renovable - Smart Car range and conventional lead-acid technology
The Industrial Energia Renovable - Smart Car is the Trojan range the SIND 06 1225 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Why choose Trojan batteries
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. We guarantee that every Trojan arrives new, charged and with the manufacturer's full warranty.
Manufacturer's warranty
The Trojan SIND 06 1225 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Size the installation so as not to discharge the battery more than 50% daily and set the controller to the battery technology. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-TROJAN-SIND 06 1225
Data sheet
- Brand
- TROJAN
- Reference
- SIND 06 1225
- Model
- TROJAN INDUSTRIAL ENERGIA RENOVABLE - SMART CAR
- Voltage (V)
- 6
- Length
- 689.00 mm
- Width
- 265.00 mm
- Height
- 610.00 mm
- Weight
- 188 Kgs
- Technology
- Lead-acid
- Capacity (C20)
- 942Ah (c20)
- Capacity (C10)
- 835Ah (c10)
Specific References
- MPN
- SIND 06 1225
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Trojan SIND 06 1225 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Trojan SIND 06 1225 battery last?
Expected lifespan of the Trojan SIND 06 1225 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan SIND 06 1225 battery?
Dimensions (length × width × height) are 689×265×610 mm — also written as 689x265x610 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Trojan SIND 06 1225?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
