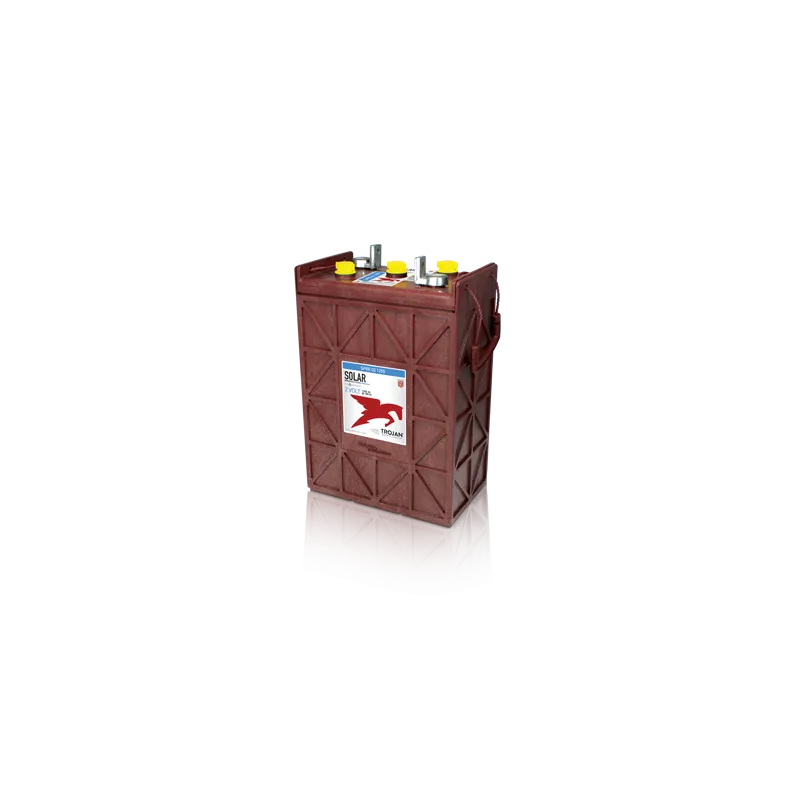

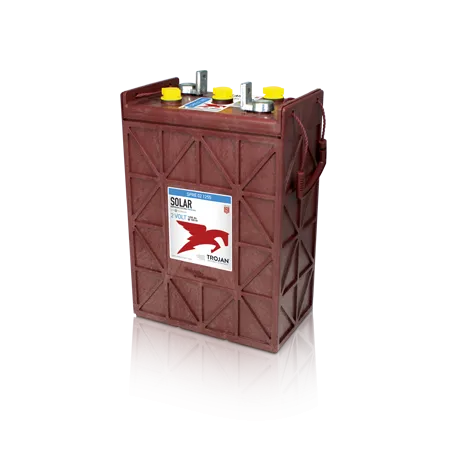

Trojan SPRE 02 1255 · Solar battery 2V 1130Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | SPRE 02 1255 |
| Voltage (V) | 2 |
| Capacity (C20) | 1130Ah (c20) |
| Capacity (C10) | 1039Ah (c10) |
| Technology | Lead-acid |
| Length | 296.00 mm |
| Width | 176.00 mm |
| Height | 446.00 mm |
€932.70
VAT included
4,78/5★★★★★11 reviewsVerified purchases
- ★★★★★Jose Ramon Carmona:
Tenía algunas dudas sobre la instalación de la batería y me la resolvieron
- ★★★★Roberto Vazquez:
Compre la TROJAN SPRE 02 1255 y llamé para que me ayudaran con la instalación. Muy buena asesoría
- ★★★★★Marc Castro:
Recibí en plazo. Todo ok
Trojan SPRE 02 1255 2V 1130Ah is a solar battery designed for PV systems with daily charge/discharge cycles. Tolerates extreme temperatures well, with low self-discharge during winter shutdowns or between stays at vacation homes.
Why this solar battery?
- Designed for solar systemsoptimised for daily charge/discharge cycles
- Handles extreme temperaturesin technical rooms or outdoor installs
- Minimal self-dischargewhen left idle over winter or holidays
Voltage
2 V
Capacity
1130 Ah
Dimensions
296×176×446 mm
Technology
Lead-acid
Weight
54 kg
Model
TROJAN SOLAR PREMIUM - SMART CARBON
Solar battery Trojan SPRE 02 1255 Solar Premium - Smart Carbon 1,130Ah 2V
2VVoltage
1,130AhCapacity
54kgWeight
For off-grid photovoltaic installations and storage systems, the Trojan SPRE 02 1255 from the Solar Premium - Smart Carbon range stores 1,130 Ah with conventional lead-acid technology through daily charge and discharge cycles. It measures 296 × 176 × 446 mm, the format sought by anyone replacing a 1,130 Ah battery in off-grid PV systems.
- Long life on float and moderate cycling.
- Good tolerance to extreme temperatures.
- Optimised for daily charge and discharge cycles.
- Conventional lead-acid: the most proven and economical technology.
What the Trojan SPRE 02 1255 is for
With 1,130 Ah, the Trojan SPRE 02 1255 stores the energy from your panels for the night and cloudy days. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 54 kg.
The Trojan SPRE 02 1255: Solar Premium - Smart Carbon range and conventional lead-acid technology
The SPRE 02 1255 is part of the Trojan Solar Premium - Smart Carbon range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Dimensions, polarity and mounting
It has external dimensions of 296 × 176 × 446 mm and weighs 54 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Why choose Trojan batteries
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. We guarantee that every Trojan arrives new, charged and with the manufacturer's full warranty.
How to make it last longer
In the darker months, check the voltage periodically and avoid full discharges. Size the installation so as not to discharge the battery more than 50% daily and set the controller to the battery technology.
Manufacturer's warranty
The Trojan SPRE 02 1255 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-TROJAN-SPRE 02 1255
Data sheet
- Brand
- TROJAN
- Reference
- SPRE 02 1255
- Model
- TROJAN SOLAR PREMIUM - SMART CARBON
- Voltage (V)
- 2
- Length
- 296.00 mm
- Width
- 176.00 mm
- Height
- 446.00 mm
- Weight
- 54 Kgs
- Technology
- Lead-acid
- Capacity (C20)
- 1130Ah (c20)
- Capacity (C10)
- 1039Ah (c10)
Specific References
- UPC
- 638264994942
- MPN
- SPRE 02 1255
4,78/5
Verified purchasesLatest verified reviews
★★★★★Jose Ramon Carmona
19/07/2026Gracias por sus indicaciones
Tenía algunas dudas sobre la instalación de la batería y me la resolvieron
★★★★★Roberto Vazquez
14/02/2026Mil gracias por la ayuda
Compre la TROJAN SPRE 02 1255 y llamé para que me ayudaran con la instalación. Muy buena asesoría
★★★★★Marc Castro
13/02/2026Efectivo
Recibí en plazo. Todo ok
★★★★★David Navarro
05/01/2026No tuve que esperar ni un día
Pedí la batería un jueves a las 5 y me llegó el viernes a las 7
★★★★★Samuel Esteban
18/11/2025Me indicaron cómo instalar la batería
Tenía algunas dudas sobre la instalación de la bateria y me la resolvieron
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How do I fit the SPRE 02 1255 model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the SPRE 02 1255 model?
Expected lifespan of the Trojan SPRE 02 1255 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 296×176×446 mm — also written as 296x176x446 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Trojan SPRE 02 1255?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
