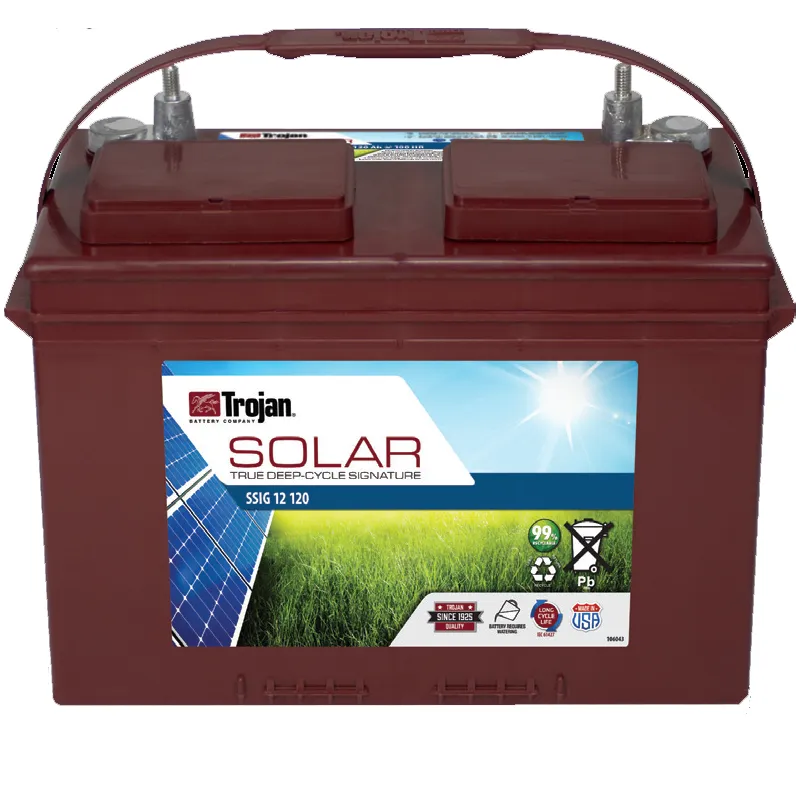

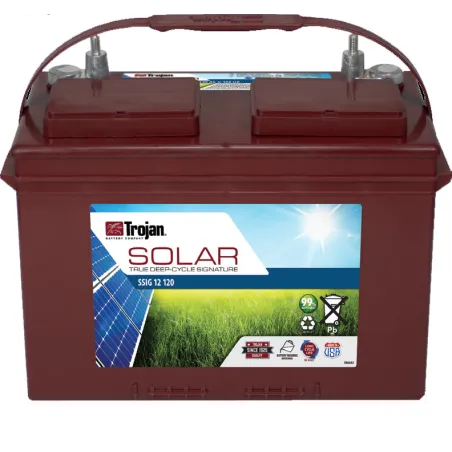

Trojan SSIG 12 120 · Solar battery 12V 107Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | SSIG 12 120 |
| Voltage (V) | 12 |
| Capacity (C20) | 107Ah (c20) |
| Capacity (C10) | 99Ah (c10) |
| Technology | Lead-acid |
| Length | 326.00 mm |
| Width | 168.00 mm |
| Height | 247.00 mm |
€438.30
VAT included
4,74/5★★★★★9 reviewsVerified purchases
- ★★★★★Mariano Gil:
Tenía algunas dudas sobre la instalación de la batería y me la resolvieron
- ★★★★Juan Cano:
Recibí en plazo. Todo ok
- ★★★★★Ruben Aguilar:
Pedí la batería un jueves a las 5 y me llegó el viernes a las 7
Trojan SSIG 12 120 12V 107Ah is a solar battery designed for PV systems with daily charge/discharge cycles. Tolerates extreme temperatures well, with low self-discharge during winter shutdowns or between stays at vacation homes.
Why this solar battery?
- Designed for solar systemsoptimised for daily charge/discharge cycles
- Handles extreme temperaturesin technical rooms or outdoor installs
- Minimal self-dischargewhen left idle over winter or holidays
Voltage
12 V
Capacity
107 Ah
Dimensions
326×168×247 mm
Technology
Lead-acid
Weight
25 kg
Model
TROJAN SOLAR SIGNATURE 600 CYCLES 50% DOD
Solar battery Trojan SSIG 12 120 Solar Signatura 600 Ciclos 50% DOD 107Ah 12V
12VVoltage
107AhCapacity
25kgWeight
The Trojan SSIG 12 120 with conventional lead-acid technology stores 107 Ah at 12 V for off-grid photovoltaic installations and storage systems. Its 326 × 168 × 247 mm make it the exact replacement for the 107 Ah battery fitted as standard to many off-grid PV systems.
- Low self-discharge during the darker months.
- Good balance of capacity, cranking power and price.
- Compatible with common MPPT and PWM controllers.
- Maintenance-free in off-grid installations.
What the Trojan SSIG 12 120 is for
With 107 Ah, the Trojan SSIG 12 120 stores the energy from your panels for the night and cloudy days. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 25 kg.
Dimensions, polarity and mounting
The Trojan SSIG 12 120 is made in the 326 × 168 × 247 mm format and weighs 25 kg. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Why choose Trojan batteries
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Trojan SSIG 12 120: Solar Signatura 600 Ciclos 50% DOD range and conventional lead-acid technology
Within the Trojan catalogue, the Solar Signatura 600 Ciclos 50% DOD series groups the references designed for this use. The SSIG 12 120 is the 107 Ah model of that family, with the same performance as its siblings in other sizes.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
How to make it last longer
In the darker months, check the voltage periodically and avoid full discharges. Size the installation so as not to discharge the battery more than 50% daily and set the controller to the battery technology.
Official warranty
The Trojan SSIG 12 120 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-TROJAN-SSIG 12 120
Data sheet
- Brand
- TROJAN
- Reference
- SSIG 12 120
- Model
- TROJAN SOLAR SIGNATURE 600 CYCLES 50% DOD
- Voltage (V)
- 12
- Length
- 326.00 mm
- Width
- 168.00 mm
- Height
- 247.00 mm
- Weight
- 25 Kgs
- Technology
- Lead-acid
- Capacity (C20)
- 107Ah (c20)
- Capacity (C10)
- 99Ah (c10)
Specific References
- MPN
- SSIG 12 120
4,74/5
Verified purchasesLatest verified reviews
★★★★★Mariano Gil
21/06/2026Me asesoraron en la instalación
Tenía algunas dudas sobre la instalación de la batería y me la resolvieron
★★★★★Juan Cano
13/02/2026Perfecto
Recibí en plazo. Todo ok
★★★★★Ruben Aguilar
30/12/2025La batería me llegó al día siguiente
Pedí la batería un jueves a las 5 y me llegó el viernes a las 7
★★★★★Jose Ramon Medina
26/12/2025Te asesoran gratis
Anímo a que llameís, la atención es gratuita y muy buena.
★★★★★Emilio Diaz
06/11/2025Asesoramiento gratis
Buen asesoramiento en la instalación
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Trojan SSIG 12 120 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the SSIG 12 120 model?
Expected lifespan of the Trojan SSIG 12 120 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan SSIG 12 120 battery?
Dimensions (length × width × height) are 326×168×247 mm — also written as 326x168x247 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
