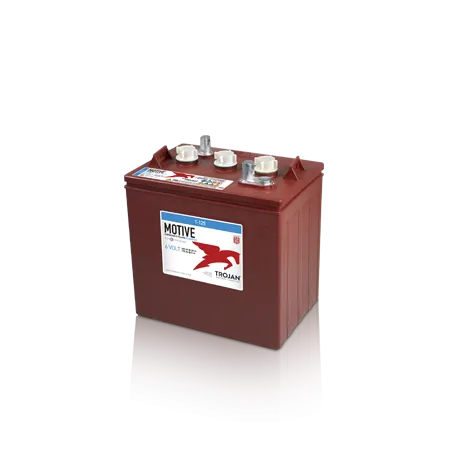

Trojan T-125 · Golf cart battery 6V 240Ah
Golf cart battery Trojan T-125 6V 240Ah images

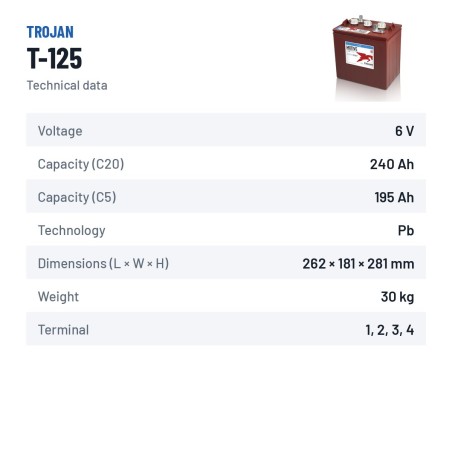

Specifications
| Brand | TROJAN |
|---|---|
| Part number | T-125 |
| Voltage (V) | 6 |
| Capacity (C20) | 240Ah (c20) |
| Capacity (C5) | 195Ah (c5) |
| Technology | Lead-acid |
| Length | 262.00 mm |
| Width | 181.00 mm |
| Height | 281.00 mm |

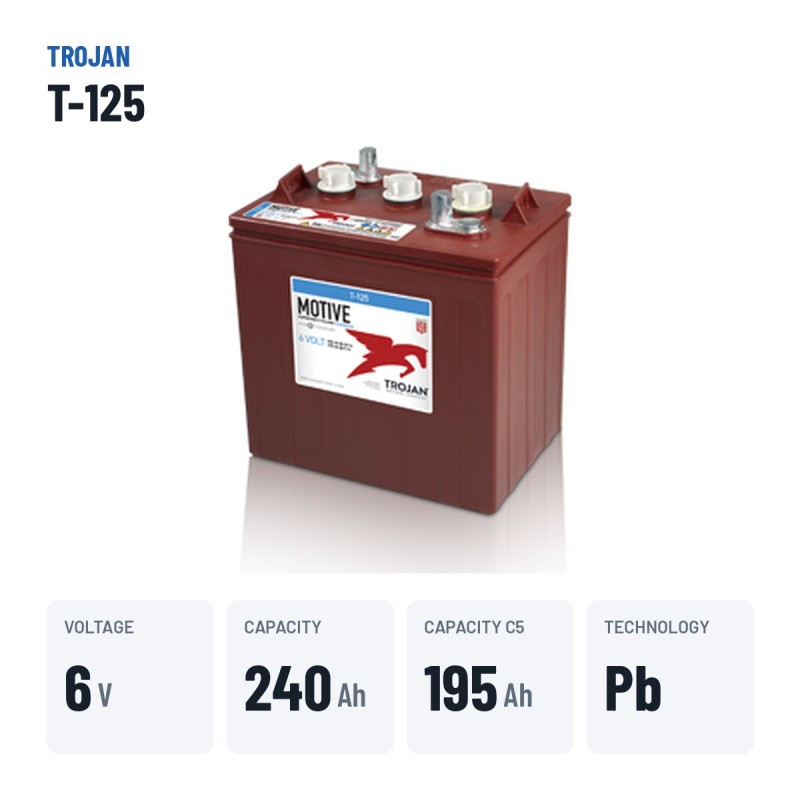

Trojan T-125 6V 240Ah is a deep-cycle battery for golf carts, sized to complete the round and recharge every night.
Why this golf cart battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Where it fits: the Trojan T-125 is one of our traction batteries, belongs to our Trojan batteries and by capacity it sits among our 240Ah batteries.
The Trojan T-125 in practice
T-125 vs Trojan SSIG 06 255
The Trojan T-125 offers 240 Ah and 0 A cold cranking in a 262 × 181 × 281 mm case. The Trojan SSIG 06 255, same brand and technology, stays at 229 Ah and 0 A and costs €166.60 more. If you hesitate between the two at a similar price, take this one: more capacity in the same size never hurts.
Golf cart battery Trojan T-125 ciclo profundo - T2 Technology 240Ah 6V
The 6 V, 240 Ah Trojan T-125 from the ciclo profundo - T2 Technology range with conventional lead-acid technology is designed for golf carts and electric utility vehicles. It replaces the original battery without adaptation in golf carts with a 262 × 181 × 281 mm format: same 240 Ah capacity.
- Sealed and maintenance-free.
- Full recharge every night with the vehicle charger.
- Conventional lead-acid: the most proven and economical technology.
- Daily deep discharges without capacity loss.

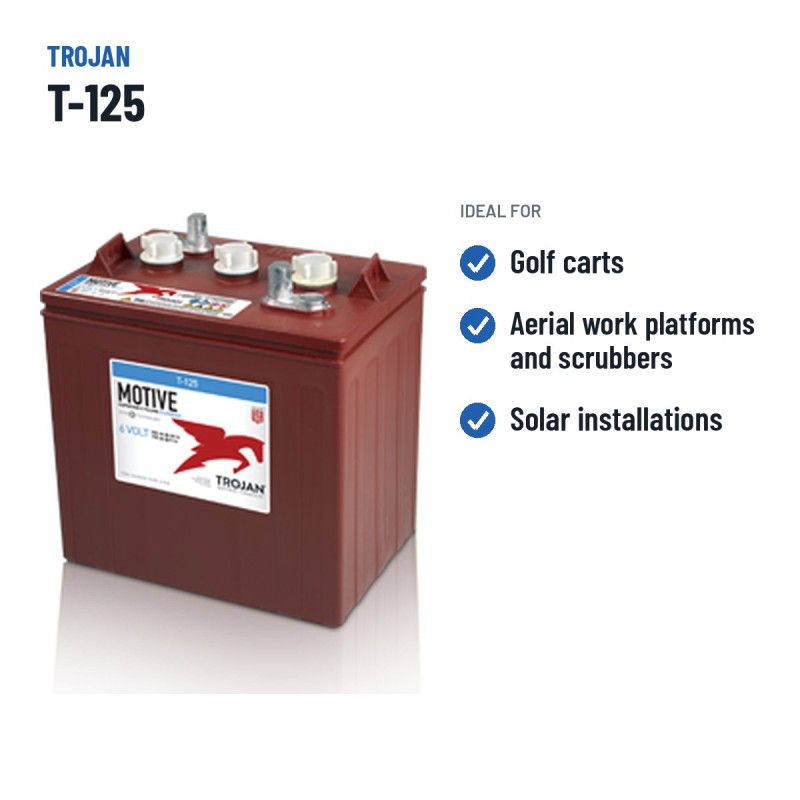

What the Trojan T-125 is for
The Trojan T-125 is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 30 kg and 1 2 3 4 terminals.

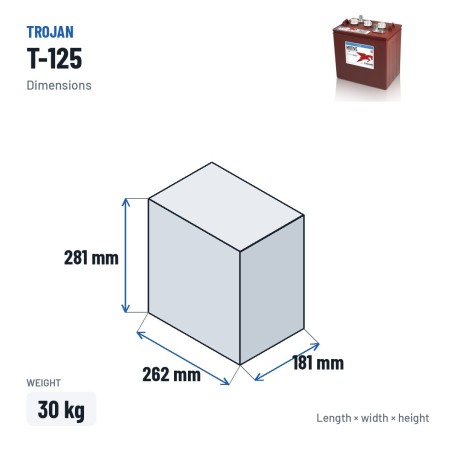

Will it fit your current battery tray?
It has external dimensions of 262 × 181 × 281 mm and weighs 30 kg. It uses 1 2 3 4 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
The Trojan T-125: ciclo profundo - T2 Technology range and conventional lead-acid technology
The T-125 is part of the Trojan ciclo profundo - T2 Technology range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Trojan: the maker behind the T-125
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Official warranty
The Trojan T-125 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Recharge the set fully after each round and avoid routine discharges below 20%. Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
-
-
ReferenceBCOM-TROJAN-T-125
Data sheet
-
BrandTROJAN
-
ReferenceT-125
-
ModelTROJAN Deep Cycle - T2 Technology
-
Voltage (V)6
-
Length262.00 mm
-
Width181.00 mm
-
Height281.00 mm
-
Weight30 Kgs
-
TechnologyLead-acid
-
Terminal type1 2 3 4
-
Capacity (C20)240Ah (c20)
-
Capacity (C5)195Ah (c5)
Specific References
-
EAN138717545592748
-
MPNT-125
Codes and references Trojan T-125
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer part number (MPN) | T-125 |
| Also known as | T125 · T 125 |
| EAN-13 barcode | 8717545592748 |
| Dimensions (length × width × height) | 262 × 181 × 281 mm (262x181x281) |
Trojan T-125: alternatives with the same dimensions
Batteries from our catalogue with the same dimensions, voltage and technology as the Trojan T-125 and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Trojan
T-125
This battery
|
6V 240Ah | Lead-acid | 234,70 € | |||||||||||||||||||||
Trojan
T-105
Same size |
6V 225Ah | Lead-acid | 204,04 € −30,66 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| T-125 | T-105 | |
|---|---|---|
| Capacity | 240 Ah | 225 Ah |
| Cold cranking (EN) | — | — |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 262 × 181 × 281 | 262 × 181 × 283 |
| Positive terminal | — | — |
| Price | 234,70 € | 204,04 € |
Fullriver
DC250-6
Upgrade: AGM Trojan T-125 vs Fullriver DC250-6
Upgrade: AGM · +164,50 €
It is the AGM of the same size: sealed, maintenance-free and with far more discharge cycles than the T-125. Compared with the T-125 it has 10 Ah more and 960 A of cold cranking more. It costs 164,50 € more. Recommended for cyclic or stationary use, or when the equipment sits tilted; for occasional use the T-125 does the job.
| T-125 | DC250-6 | |
|---|---|---|
| Capacity | 240 Ah | 250 Ah |
| Cold cranking (EN) | — | 960 A |
| Technology | Lead-acid | AGM |
| Dimensions (mm) | 262 × 181 × 281 | 262 × 181 × 283 |
| Positive terminal | — | — |
| Price | 234,70 € | 399,20 € |
Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.
Other 240Ah batteries: We stock 11 models of 240 Ah to compare by price, technology and cold cranking: see all 240Ah batteries. Same size (262 × 181 × 281 mm): batteries of 262 × 181 × 281 mm.
Recommended accessories
Compatible vehicles
The Trojan T-125 fits 87 vehicles. Most searched below:
Frequently asked questions
What are the dimensions of the Trojan T-125 battery?
Before buying, measure the space in your device: one extra millimetre can stop the hold-down clamp from closing. The Trojan T-125 takes up 262×181×281 mm (length, width and height, terminals included).
Trojan T-125 or Trojan T-105: which one to choose?
Same case and same technology as the T-125: an alternative by size, not an official equivalent. Compared with the T-125 it has 15 Ah less. It costs 30,66 € less. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.
Trojan T-125 or Fullriver DC250-6: which one to choose?
It is the AGM of the same size: sealed, maintenance-free and with far more discharge cycles than the T-125. Compared with the T-125 it has 10 Ah more and 960 A of cold cranking more. It costs 164,50 € more. Recommended for cyclic or stationary use, or when the equipment sits tilted; for occasional use the T-125 does the job.
