Trojan TE35 · Traction battery 6V 245Ah

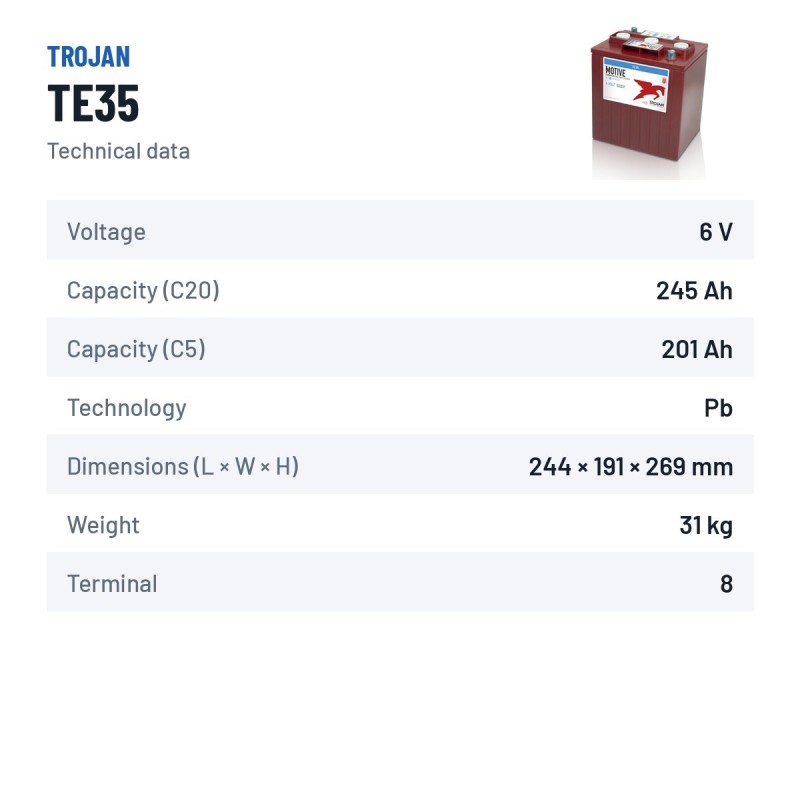

Specifications
| Brand | TROJAN |
|---|---|
| Part number | TE35 |
| Voltage (V) | 6 |
| Capacity (C20) | 245Ah (c20) |
| Capacity (C5) | 201Ah (c5) |
| Technology | Lead-acid |
| Length | 244.00 mm |
| Width | 191.00 mm |
| Height | 269.00 mm |
€380.80
VAT included
4,65/5★★★★★16 reviewsVerified purchases
- ★★★★★Jose Manuel Leon:
Gracias por el asesoramiento, al final resultó fácil instalar la batería
- ★★★★★Hugo Martin:
Gracias por el asesoramiento
- ★★★★★Mateo Medina:
Recibí la bateria de mi coche antes de lo previsto
Reviews originally written in Spanish

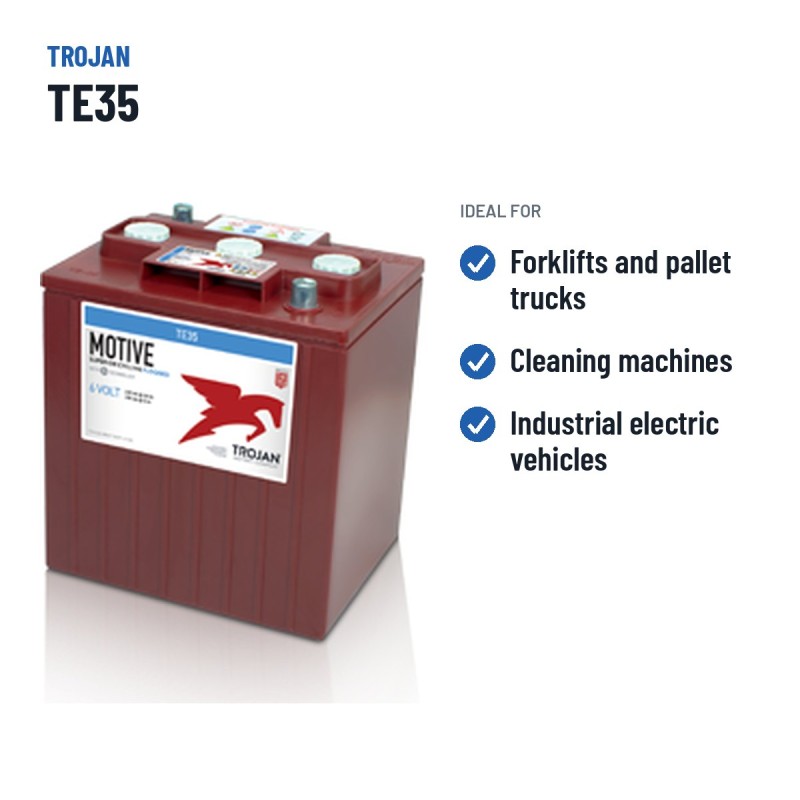

See all 16 reviewsTrojan TE35 6V 245Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
6 V
Capacity
245 Ah
Dimensions
244×191×269 mm
Technology
Lead-acid
Weight
31 kg
Model
TROJAN ciclo profundo - T2 Technology
Golf cart battery Trojan TE35 ciclo profundo - T2 Technology 245Ah 6V
6VVoltage
245AhCapacity
31kgWeight
The Trojan TE35 is a 245 Ah, 6 V deep-cycle battery for golf carts and electric utility vehicles. It measures 244 × 191 × 269 mm, the format sought by anyone replacing a 245 Ah battery in golf carts.
- Full recharge every night with the vehicle charger.
- Sealed and maintenance-free.
- Daily deep discharges without capacity loss.
- Conventional lead-acid: the most proven and economical technology.
What the Trojan TE35 is for
The Trojan TE35 is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 31 kg and 8 terminals.
The Trojan TE35: ciclo profundo - T2 Technology range and conventional lead-acid technology
The TE35 is part of the Trojan ciclo profundo - T2 Technology range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.

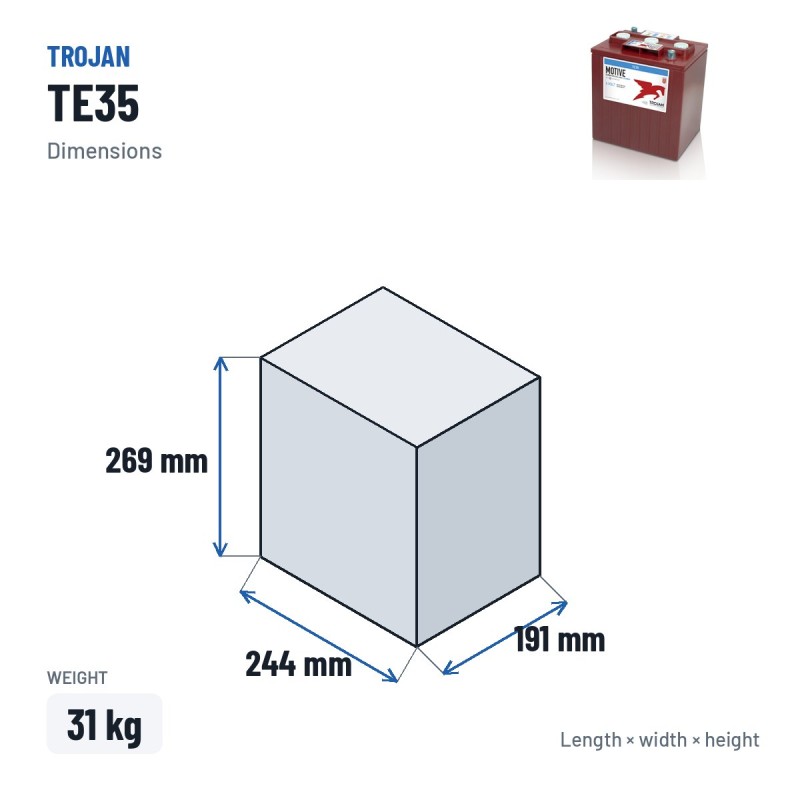

Size, terminals and hold-down of the Trojan TE35
In terms of format, the Trojan TE35 measures 244 × 191 × 269 mm (length × width × height) and weighs 31 kg. It uses 8 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Trojan: the maker behind the TE35
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. All the Trojan batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
How to make it last longer
Recharge the set fully after each round and avoid routine discharges below 20%. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Manufacturer's warranty
The Trojan TE35 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-TROJAN-TE35
Data sheet
- Brand
- TROJAN
- Reference
- TE35
- Model
- TROJAN Deep Cycle - T2 Technology
- Voltage (V)
- 6
- Length
- 244.00 mm
- Width
- 191.00 mm
- Height
- 269.00 mm
- Weight
- 31 Kgs
- Technology
- Lead-acid
- Terminal type
- 8
- Capacity (C20)
- 245Ah (c20)
- Capacity (C5)
- 201Ah (c5)
Specific References
- EAN13
- 8404653001353
- MPN
- TE35
4,65/5
Verified purchasesLatest verified reviews
Reviews originally written in Spanish
★★★★★Jose Manuel Leon
28/05/2026Gracias
Gracias por el asesoramiento, al final resultó fácil instalar la batería
★★★★★Hugo Martin
12/04/2026Buen servicio
Gracias por el asesoramiento
★★★★★Mateo Medina
18/02/2026Buenos precios
Recibí la bateria de mi coche antes de lo previsto
★★★★★Rafael Ramirez
31/01/2026Muy rápido
Pedí la batería en Viernes y el Lunes ya la tenía aquí
★★★★★Eduardo Ramirez
14/01/2026No tuve que esperar ni un día
Pedí la batería un miércoles a las 4 y me llegó el jueves a las 2
★★★★★Jose Antonio Duran
03/01/2026Mil gracias por la ayuda
Anímo a que llameís, la atención es gratuita y muy buena.
★★★★★Jorge Saez
28/12/2025100% recomendada
Creo que esta web es la mejor para adquirir tu batería, muy recomdable
★★★★★Mario NuÑez
07/10/2025Muy útil su ayuda
Gracias por el asesoramiento, al final resultó fácil instalar la bateria
Codes and references Trojan TE35
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer part number (MPN) | TE35 |
| EAN-13 barcode | 8404653001353 |
| Dimensions (length × width × height) | 244 × 191 × 269 mm (244x191x269) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Trojan TE35 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the TE35 model?
Expected lifespan of the Trojan TE35 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the TE35 model?
Dimensions (length × width × height) are 244×191×269 mm — also written as 244x191x269 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the TE35 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
