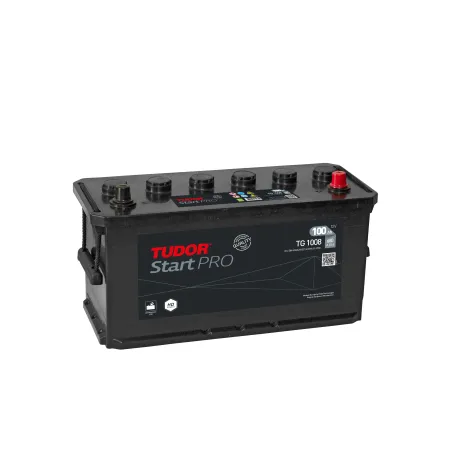

Tudor TG1008 · Truck battery 12V 100Ah 680A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TG1008 |
| Voltage (V) | 12 |
| Capacity (C20) | 100Ah (c20) |
| Technology | Lead-acid |
| Length | 413.00 mm |
| Width | 175.00 mm |
| Height | 220.00 mm |
| Terminal layout | Positive terminal on the right |
€180.10
VAT included
4,63/5★★★★★10 reviewsVerified purchases
- ★★★★Victor Manuel Fernandez:
Recibí la batería en menos de 13 horas. Una pasada
- ★★★★★Jorge Sanz:
Esta web tiene un gran servicio al cliente.
- ★★★★★Oscar Nieto:
Me ayudaron con la instalación de mi batería
Tudor TG1008 12V 100Ah 680A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
100 Ah
Cold cranking
680 A
Dimensions
413×175×220 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
25,6 kg
Model
TUDOR START PRO (HD)
Truck battery Tudor TG1008 Start PRO (Hd) 100Ah 680A 12V

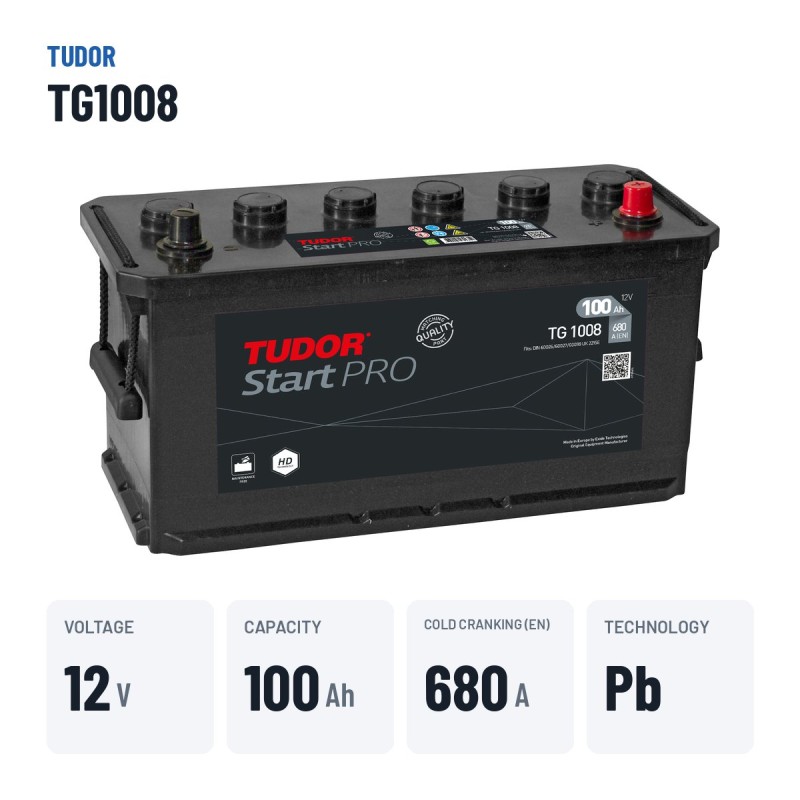

12VVoltage
100AhCapacity
680ACold cranking
25.60kgWeight
The Tudor TG1008 truck battery is rated at 12 V, 100 Ah and 680 A of cold cranking current (EN) from the Start PRO (Hd) range, and is prepared for trucks, buses, tractors and heavy machinery. It measures 413 × 175 × 220 mm and the positive terminal on the right, the format sought by anyone replacing a 100 Ah battery in trucks.
- Designed for 24 V installations with two batteries in series.
- Powerful cold cranking for large-displacement diesel engines.
- Heavy Duty construction for intensive professional use.
- Conventional lead-acid: the most proven and economical technology.

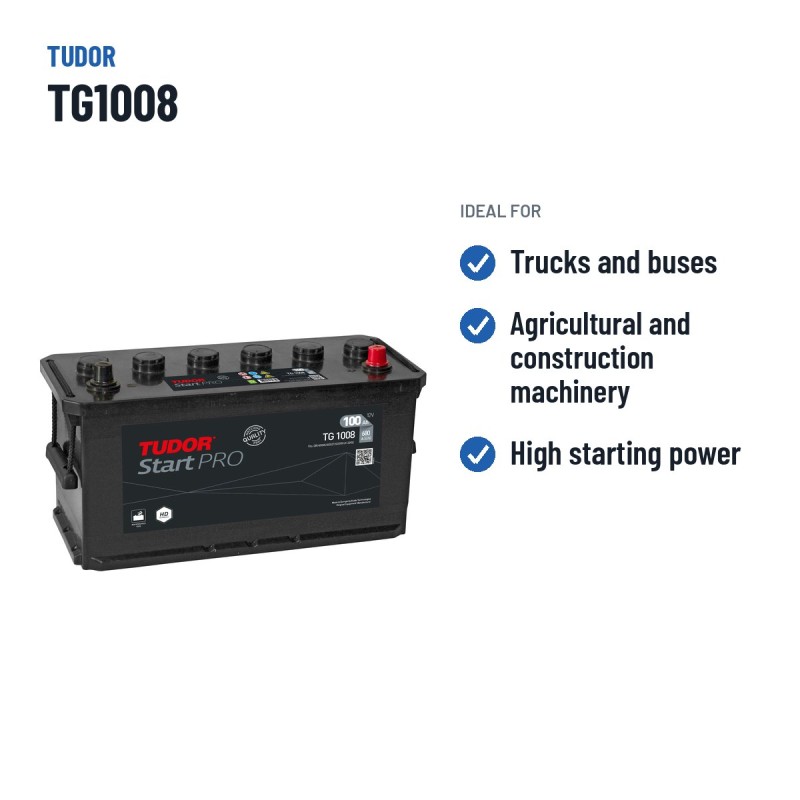

What the Tudor TG1008 is for
Designed for trucks, buses, tractors and heavy machinery, the Tudor TG1008 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 25.60 kg.

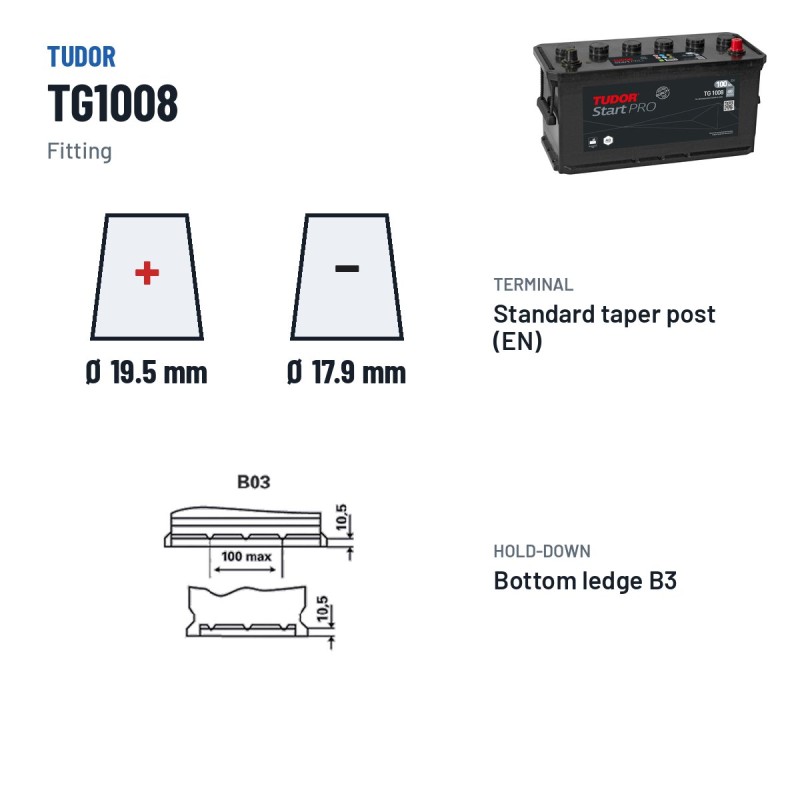

Size, terminals and hold-down of the Tudor TG1008

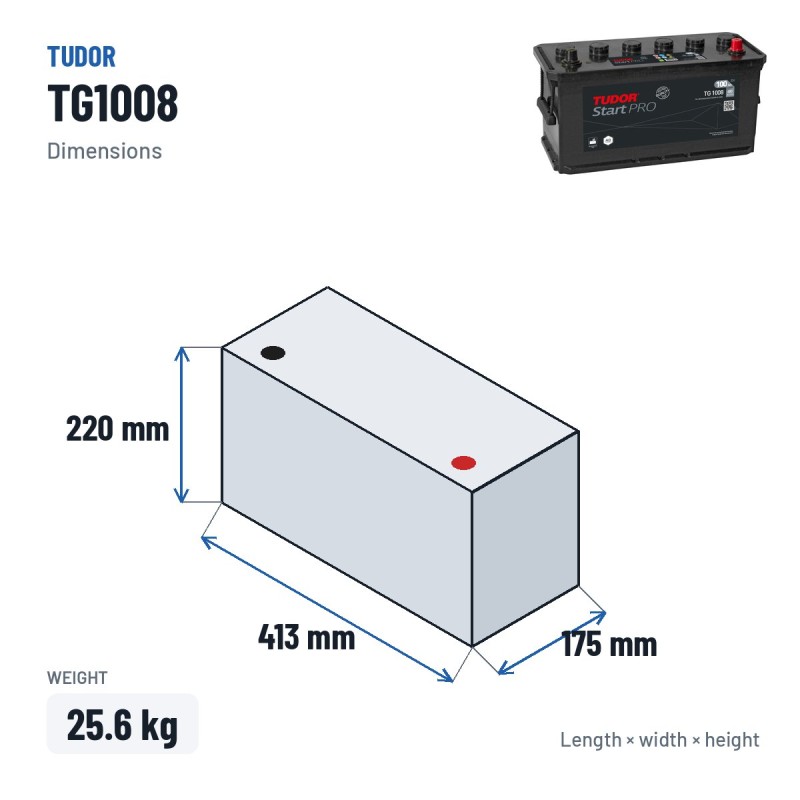

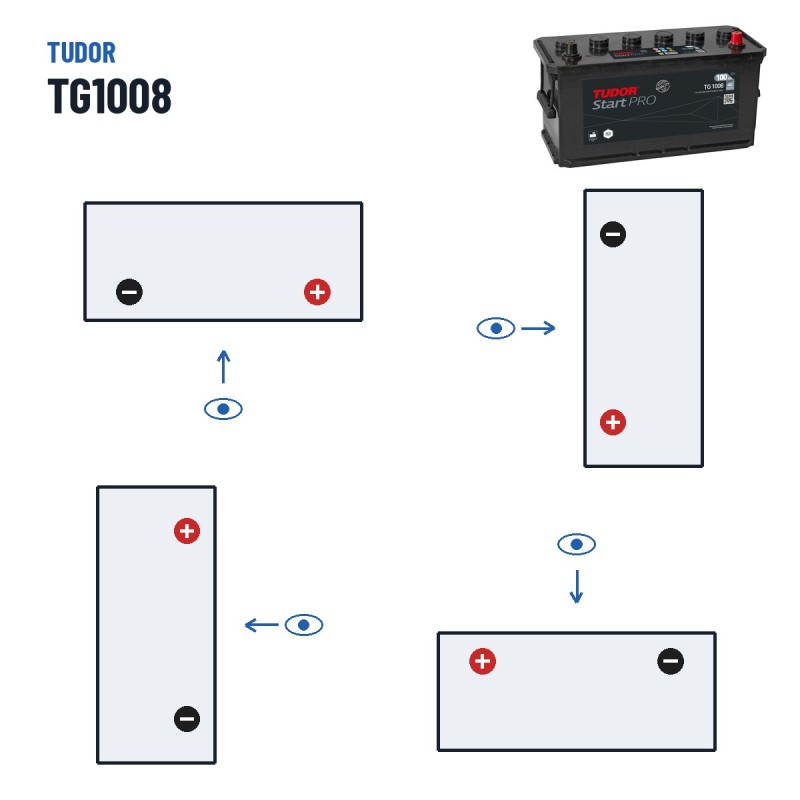

In terms of format, the Tudor TG1008 measures 413 × 175 × 220 mm (length × width × height) and weighs 25.60 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
The Tudor TG1008: Start PRO (Hd) range and conventional lead-acid technology
Within the Tudor catalogue, the Start PRO (Hd) series groups the references designed for this use. The TG1008 is the 100 Ah model of that family, with the same performance as its siblings in other sizes.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Tudor: the maker behind the TG1008
Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Manufacturer's warranty
The Tudor TG1008 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
How to make it last longer
During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-TUDOR-TG1008
Data sheet
- Brand
- TUDOR
- Reference
- TG1008
- Model
- TUDOR START PRO (HD)
- Voltage (V)
- 12
- Length
- 413.00 mm
- Width
- 175.00 mm
- Height
- 220.00 mm
- Technology
- Lead-acid
- EAN
- 3661024055352
- Terminal layout
- Positive terminal on the right
- Cold cranking amps (EN)
- 680A
- Capacity (C20)
- 100Ah (c20)
Specific References
- EAN13
- 3661024055352
- MPN
- TG1008
4,63/5
Verified purchasesLatest verified reviews
★★★★★Victor Manuel Fernandez
18/07/2026Batería entregada al día siguiente
Recibí la batería en menos de 13 horas. Una pasada
★★★★★Jorge Sanz
24/01/2026De los mejores servicios que me han tocado
Esta web tiene un gran servicio al cliente.
★★★★★Oscar Nieto
17/01/2026Todo correcto
Me ayudaron con la instalación de mi batería
★★★★★Pablo Saez
30/12/2025Muy agradecido
Buena atención telefónica, cosa que no se puede decir de muchos otros sitios
★★★★★Sergio Ruiz
13/11/2025La atención buena pero MRW regular
Recibí la bateria en menos de 13 horas. Una pasada
Codes and references Tudor TG1008
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR START PRO (HD) |
| Manufacturer reference (MPN) | TG1008 |
| EAN-13 barcode | 3661024055352 |
| Dimensions (length × width × height) | 413 × 175 × 220 mm (413x175x220) |
Comparison: Tudor TG1008 vs equivalents
The Tudor TG1008 is interchangeable with these equivalent references: EG1008 (Exide), H5 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TG1008
This battery
|
12V 100Ah 680A | Lead-acid | €180.10 |
Exide
EG1008
|
12V 100Ah 680A | Lead-acid | €171.50 |
Varta
H5
|
12V 100Ah 600A | Lead-acid | €159.90 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Tudor TG1008 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TG1008 battery last?
Expected lifespan of the Tudor TG1008 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the TG1008 model?
Dimensions (length × width × height) are 413×175×220 mm — also written as 413x175x220 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TG1008 battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TG1008 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the TG1008 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
