Tudor TG1406 Start Pro · Truck battery 140Ah 800A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TG1406 |
| Voltage (V) | 12 |
| Capacity (C20) | 140Ah (c20) |
| Cold cranking amps (EN) | 800A |
| Technology | Lead-acid |
| Length | 510.00 mm |
| Width | 175.00 mm |
| Height | 225.00 mm |
How do you want it in …?
Battery + installation
Service for one battery per order.

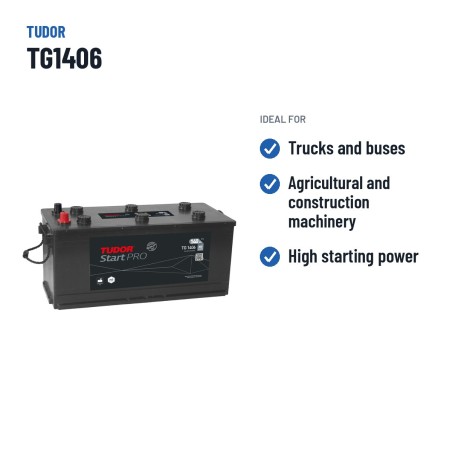

Tudor TG1406 12V 140Ah 800A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Where it fits: the Tudor TG1406 is one of our truck batteries, belongs to our Tudor batteries and by capacity it sits among our 140Ah batteries.
Truck battery Tudor TG1406 Start PRO (Hd) 140Ah 800A 12V

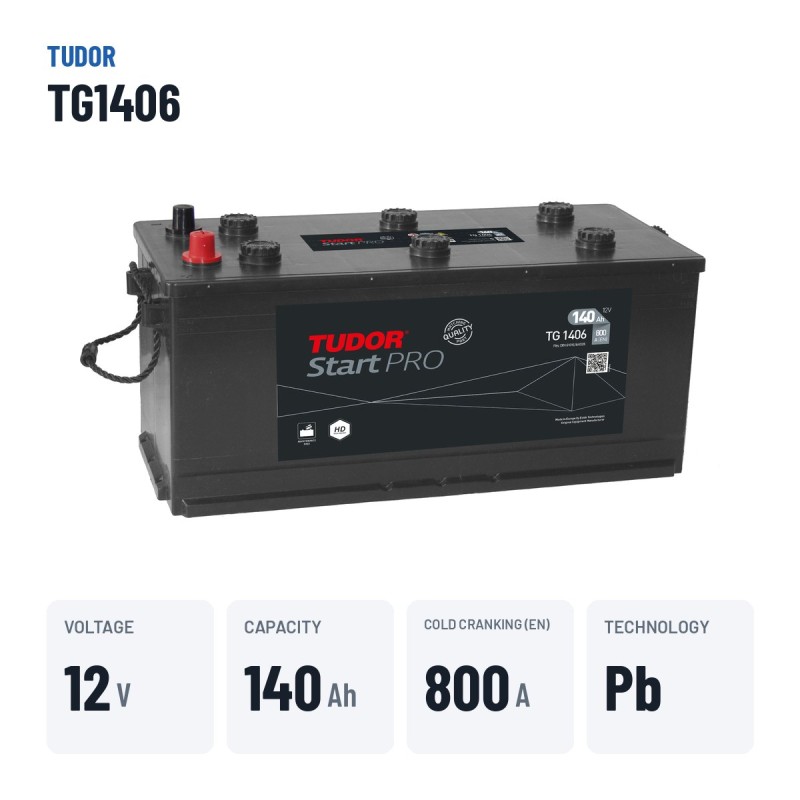

The Tudor TG1406 truck battery is rated at 12 V, 140 Ah and 800 A of cold cranking current (EN) from the Start PRO (Hd) range, and is prepared for trucks, buses, tractors and heavy machinery. Measuring 510 × 175 × 225 mm and the positive terminal on the right, it is the direct replacement for trucks fitted from the factory with a 140 Ah battery of this format.
- Good balance of capacity, cranking power and price.
- Resistant to constant chassis vibration.
- Powers tachograph, fridge and heater during rest stops.
- Better tolerance to deep discharge than a conventional starter battery.
What the Tudor TG1406 is for
With 140 Ah, the Tudor TG1406 cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 33.50 kg.
The Tudor TG1406: Start PRO (Hd) range and conventional lead-acid technology
The TG1406 is part of the Tudor Start PRO (Hd) range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

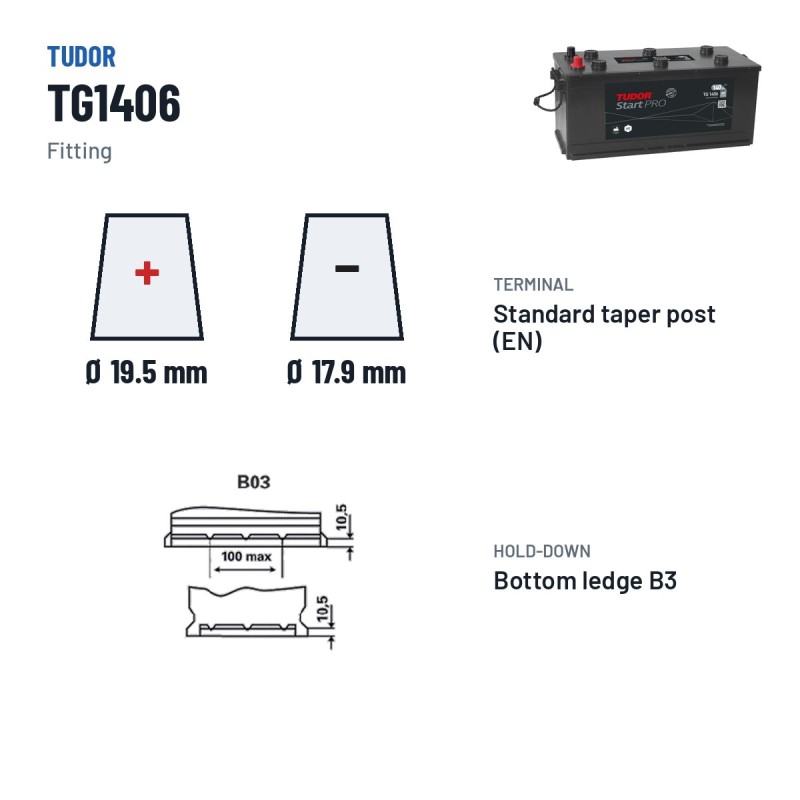

Size, terminals and hold-down of the Tudor TG1406
The Tudor TG1406 is made in the 510 × 175 × 225 mm format and weighs 33.50 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Why choose Tudor batteries
Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Care and maintenance
During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery. Keep the terminals clean and tight and the battery firmly secured against chassis vibration.
Manufacturer's warranty
The Tudor TG1406 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

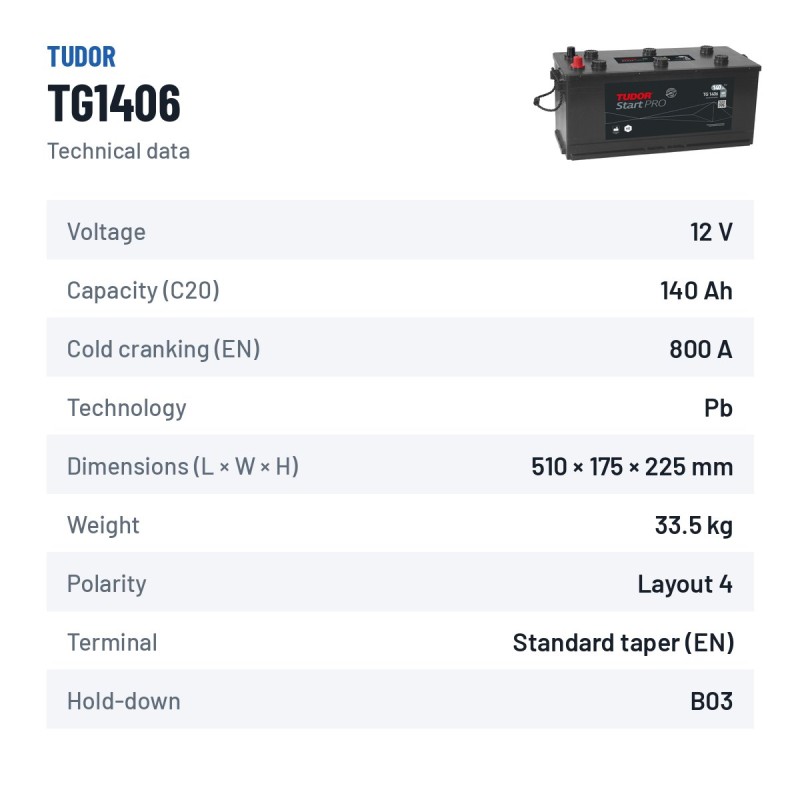

Data sheet
-
BrandTUDOR
-
ReferenceTG1406
-
ModelTUDOR START PRO (HD)
-
Voltage (V)12
-
Length510.00 mm
-
Width175.00 mm
-
Height225.00 mm
-
TechnologyLead-acid
-
EAN3661024055499
-
Terminal layoutPositive terminal on the right
-
Cold cranking amps (EN)800A
-
Capacity (C20)140Ah (c20)
Specific References
-
EAN133661024055499
-
MPNTG1406
Codes and references Tudor TG1406
| Brand | Tudor · see all Tudor batteries |
|---|---|
| Manufacturer range | TUDOR START PRO (HD) |
| Manufacturer part number (MPN) | TG1406 |
| EAN-13 barcode | 3661024055499 |
| Dimensions (length × width × height) | 510 × 175 × 225 mm (510x175x225) |
Tudor TG1406: best-selling equivalent or higher-spec batteries
The Tudor TG1406 is interchangeable with these equivalent references: EG1406 (Exide).
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tudor
TG1406
This battery
|
12V 140Ah 800A | Lead-acid | 193,90 € | |||||||||||||||||||||
Exide
EG1406
Exide equivalent |
12V 140Ah 800A | Lead-acid | 136,50 € −57,40 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| TG1406 | EG1406 | |
|---|---|---|
| Capacity | 140 Ah | 140 Ah |
| Cold cranking (EN) | 800 A | 800 A |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 510 × 175 × 225 | 510 × 175 × 225 |
| Positive terminal | Positive terminal on the right | Positive terminal on the right |
| Price | 193,90 € | 136,50 € |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Other 140Ah batteries: We stock 26 models of 140 Ah to compare by price, technology and cold cranking: see all 140Ah batteries. Same size (510 × 175 × 225 mm): batteries of 510 × 175 × 225 mm.
Recommended accessories
Frequently asked questions
Why does my lorry have two batteries?
Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.
How long does the Tudor TG1406 battery last?
Estimated lifespan of the Tudor TG1406: 4 to 6 years in normal lorry use. Treat it as an approximate guide, as every case is different. Actual lifespan varies with climate (cold starts, heat evaporating the electrolyte), with usage and short journeys, with the condition of the alternator and charging system, with power draw while parked and with maintenance; the type of truck and Start-Stop also count.

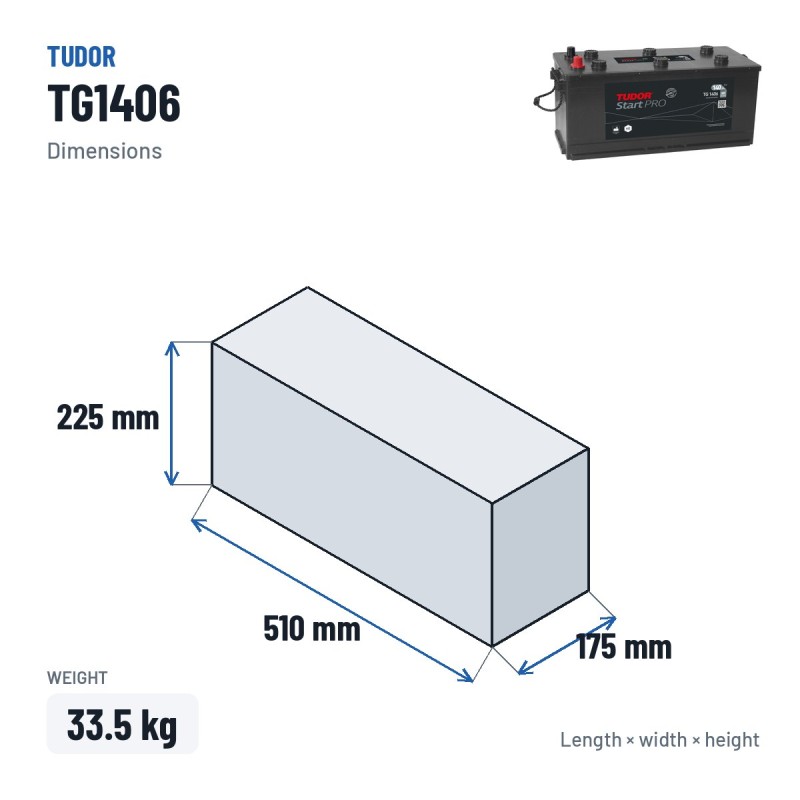

What are the dimensions of the Tudor TG1406 battery?
Measure your truck's battery tray first; if the battery exceeds it by even a millimetre, the hold-down clamp may not close. Length × width × height: 510x175x225 mm. Height is measured to the top of the terminals.

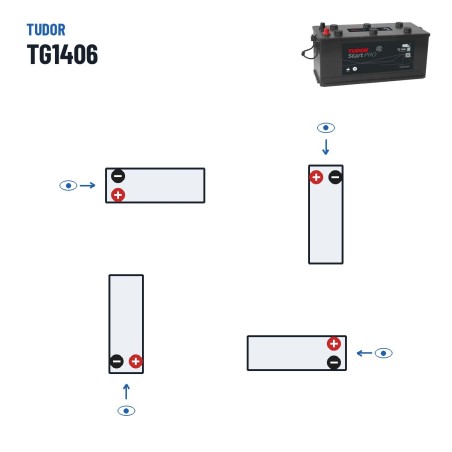

On which side is the positive of the TG1406 model?
The TG1406 has the positive on the right: that is its polarity. It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. Face the battery with its terminals nearest you and see which side the positive post (+, red ring) is on.
Is the TG1406 valid for my vehicle?
The quickest way is to enter your number plate in the finder: DGT/DVLA/KBA detect model and engine. You can also look at the "Compatible vehicles" tab, verified by our technical team, or send us make, model, engine and year on WhatsApp; we answer during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). If our table and the truck handbook disagree, go with what the manufacturer says. The TG1406 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the TG1406 model?
See the "Equivalents" section of this page for the recommended options at the same performance level. Mind the technology: in Start-Stop trucks an EFB is not swapped for a conventional battery. To replace the Tudor TG1406 without modifications, the other battery must be identical in size, polarity, Ah and CCA.
Tudor TG1406 or Exide EG1406: which one to choose?
Same case and same fitting as the TG1406, from Exide. Compared with the TG1406 it has the same Ah and cranking power. It costs 57,40 € less. If you want to save or the TG1406 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.
