Varta M10 · Truck battery 12V 190Ah 1200A

Battery VARTA M10 12V 190Ah 1200A
search
  • Battery VARTA M10 12V 190Ah 1200A
  • Battery VARTA M10 12V 190Ah 1200A
€264.30
VAT included
Quantity

  • 24-48h shipping
  • 14-day returns
  • Secure payment
  • +11,462 reviews

Brand VARTA Reference M10

4,85· 24 reseñas
Polarity: positive on the right. Check it matches your current battery before buying.

Varta M10 12V 190Ah 1200A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.

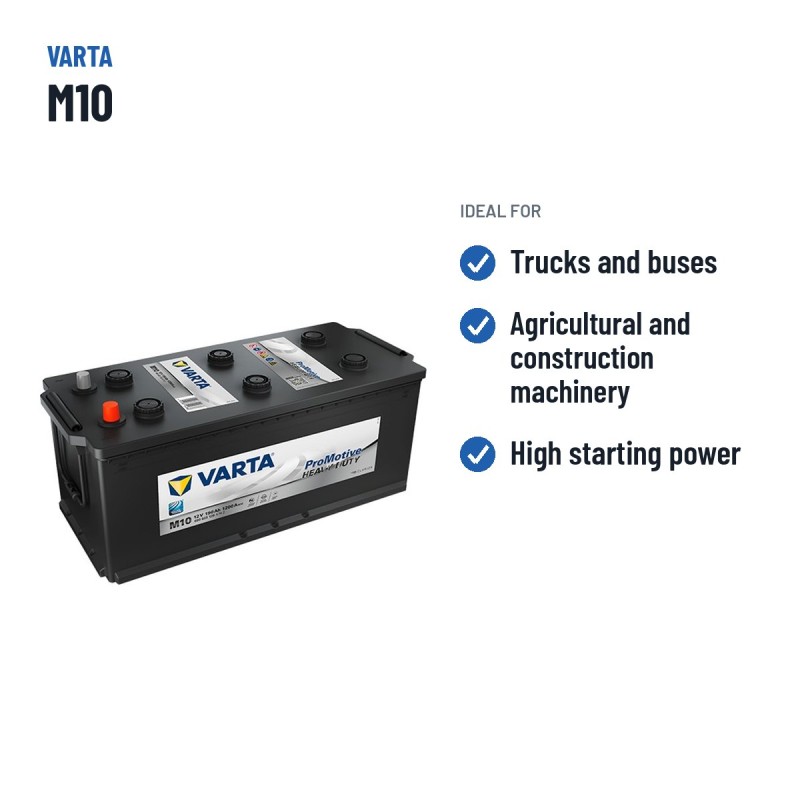

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off

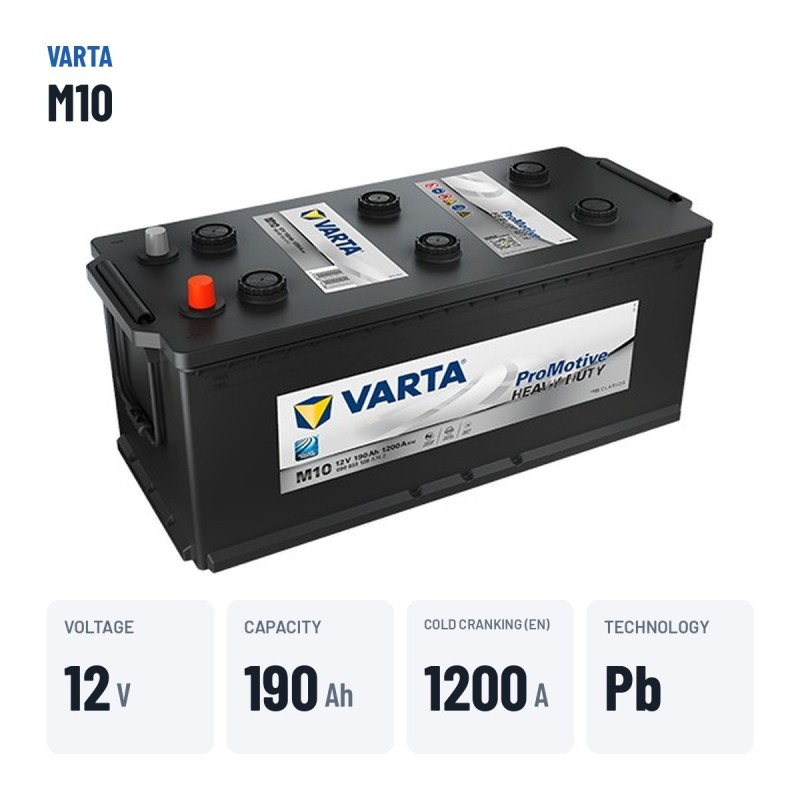

Voltage
12 V
Capacity
190 Ah C20
Cold cranking
1200 A EN-1
Dimensions
513×223×223 mm
Technology
Plomo-Ácido
Polarity
Positivo a la derecha
Weight
44,99 kg
Model
ProMotive HD
Logo Varta

Varta M10 ProMotive SLI (formerly ProMotive HD) 190Ah 1200A 12V Lorry Battery

12VVoltage
190AhCapacity
1200ACold cranking
44,99kgWeight

The Varta M10 lorry battery is the 12 V, 190 Ah model delivering 1200 A of cold cranking power (EN) from Varta's ProMotive SLI (formerly ProMotive HD) range, designed for lorries, buses, large vans and machinery. It replaces the original battery in lorries with the 513 × 223 × 223 mm format without any modifications: the same 190 Ah capacity and the same terminal layout (positive on the right).

  • Reinforced grids and casing for the severe demands of haulage.
  • Reliability through repeated starts and when powering cab equipment.
  • High cranking current for large-capacity diesel engines.
  • Tolerance of the vibration of thousands of kilometres on the road.

Vehicles compatible with the Varta M10 battery

According to our database, the Varta M10 is fitted to more than 119 vehicles from brands such as Fiat, Allis-Chalmers, Challenger, International-Harvester, Ama and Benati, among others. It is a go-to option when you need a Fiat battery, an Allis-Chalmers one or any other model built around this same format. The compatibility list also includes models from Agrifill Toselli, Case, P&h, New Holland, Caterpillar, Bröyt, Hough and åkerman-Volvo.

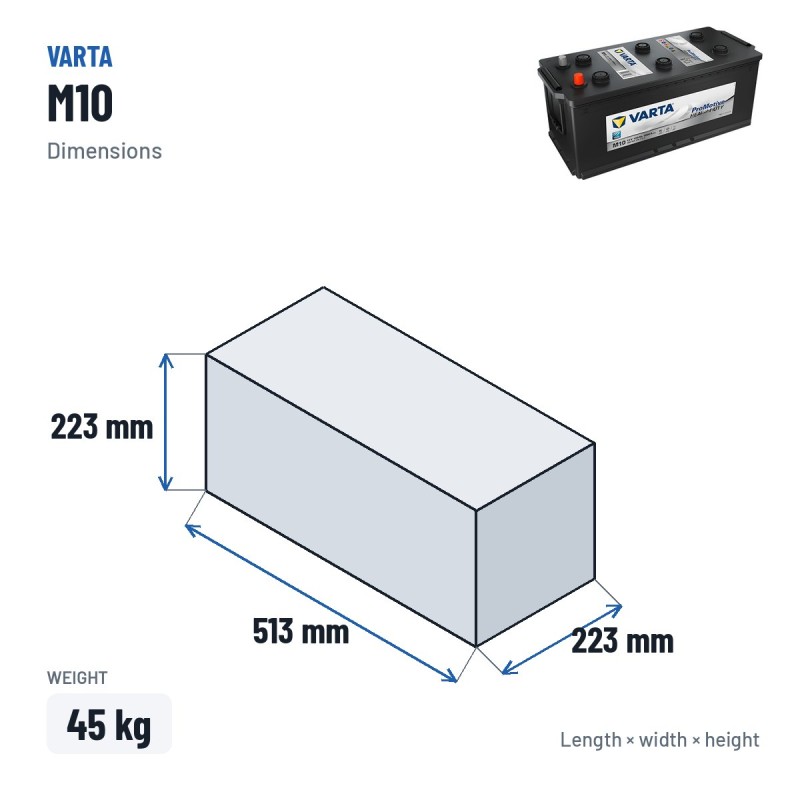

Size and fitting of the Varta M10

The Varta M10 is made in the 513 × 223 × 223 mm format and weighs 44,99 kg. The positive terminal on the right determines which side the cables run to: it is the detail that causes the most buying mistakes, so it is worth checking before ordering. It uses a B03 hold-down and a type 1 terminal, the system that anchors it to the vehicle's battery tray. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

The Varta M10 and the ProMotive SLI range

The ProMotive SLI range is Varta's starter line for industrial vehicles — lorries, buses and machinery — which in the new portfolio unifies the former ProMotive HD (Heavy Duty) and SHD (Super Heavy Duty). It offers a high cranking current for large-capacity diesel engines and a reinforced construction.

Its reinforced grids and separators cope with the vibration and cycling of long-distance haulage and of the most severe use, aiming for maximum service life and starting reliability in fleets that work long hours.

Compared with a passenger-car battery, this range is calibrated for severe, continuous use: greater mechanical strength and more tolerance of cycling and of the knocks of the road. It is the correct replacement for a lorry, bus or machine putting in long days. This battery used to belong to Varta's ProMotive HD or ProMotive SHD range; following the brand's commercial renaming (2025), it forms part of the new ProMotive SLI series.

Why choose a Varta battery

When a workshop recommends Varta it is not down to marketing: it is one of the brands with the lowest return rates in the sector, with an application coverage spanning practically the whole European vehicle parc, from the city car to the industrial vehicle.

Behind Varta is Clarios, one of the largest manufacturers of starter batteries in the world and a supplier to the assembly lines of numerous car brands. That German engineering heritage translates into reliable starting year after year.

More than 100 manufacturing parameters are checked on every Varta battery before it leaves the plant, a level of rigour that explains why so many workshops and manufacturers trust the brand as their first-choice replacement.

Manufacturer's warranty

The Varta M10 battery comes with a 1-year official warranty from the manufacturer. One important warning for industrial vehicles: most lorries carry two batteries wired in series (a 24 V installation). If you replace only one, the new battery ends up working alongside the old one — which has already lost capacity and has higher internal resistance; that imbalance leaves one overcharged and the other short, shortens the life of the new unit, and the manufacturer may treat it as misuse and void the warranty. That is why it is always advisable to change both batteries at the same time.

Care and maintenance

In professional use, checking the state of charge and the battery hold-down regularly prevents breakdowns on the road. Vibration and the high temperatures of the engine bay are the factors that shorten its life the most, so secure mounting is key. Keeping the terminals clean and tight and checking the charging system extends battery life in vehicles that clock up long hours. A well-maintained battery reduces the risk of downtime caused by a no-start.

Technical sheet

Download the official technical sheet for this battery with all the manufacturer data.

Download technical sheet (PDF)

BCOM-VARTA-M10

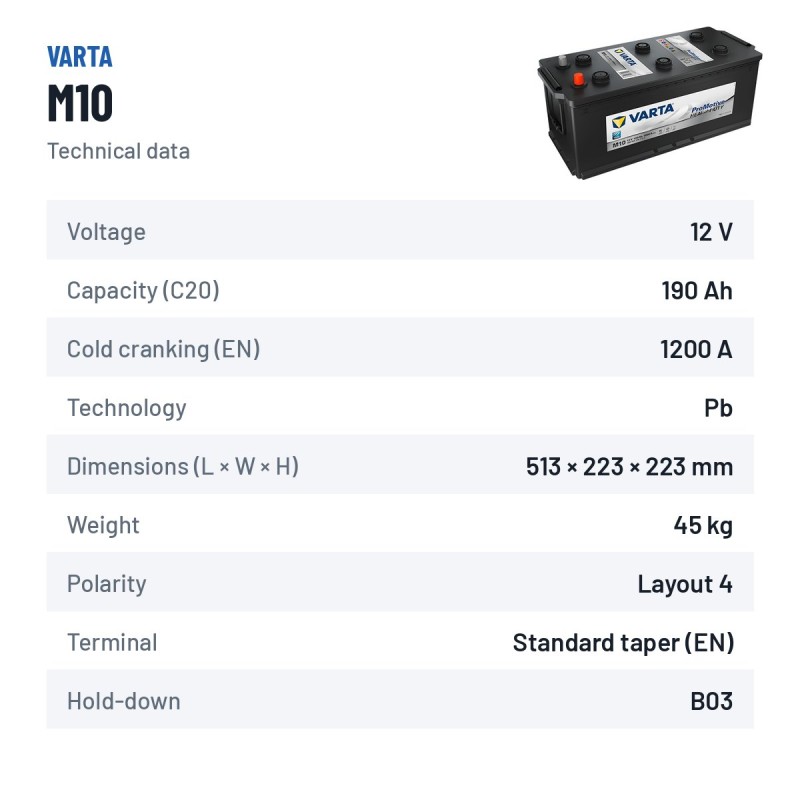

Data sheet

Brand
VARTA
Reference
M10
Model
Varta ProMotive SLI
Volts
12
Ah
190Ah (c20)
Length
513.00 mm
Width
223.00 mm
Height
223.00 mm
Weight
44.99 Kgs
Technology
PLOMO/ACIDO
EAN
4016987166284

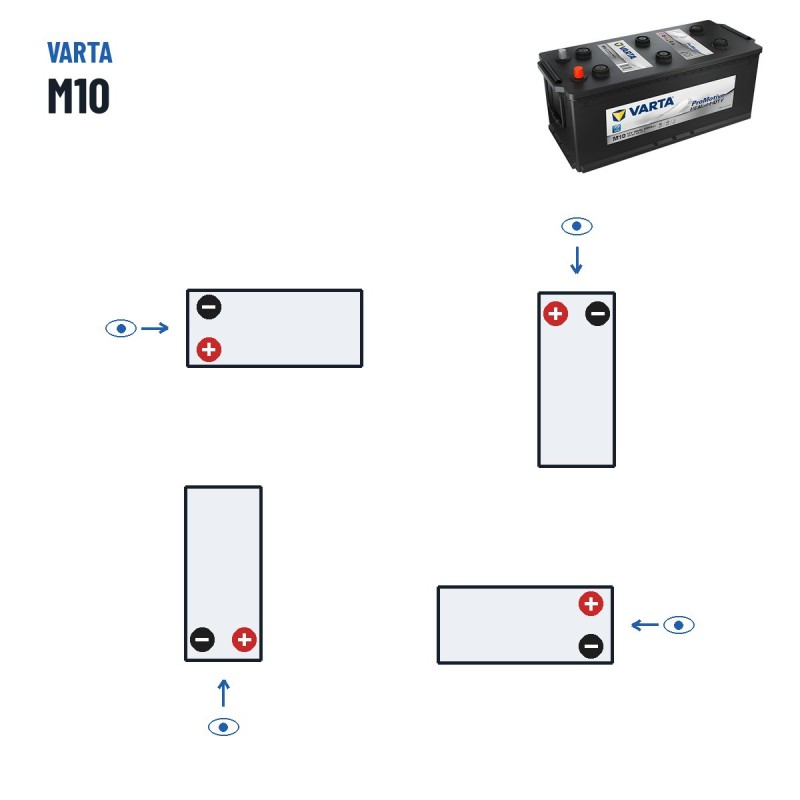

Scheme
Positive terminal on the right

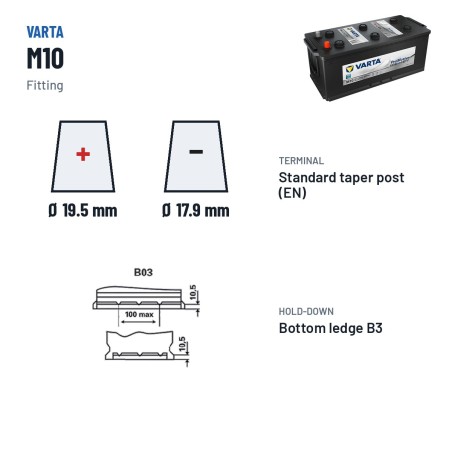

Terminal
1
Subjection
B03
CCA (EN)
1200
Ah (c20)
190
ETN
690033120A742

Specific References

EAN13
4016987166284
MPN
M10

Codes and references Varta M10

Brand Varta · see all batteries Varta
Manufacturer range ProMotive SLI (formerly ProMotive HD)
Manufacturer reference (MPN) M10
ETN code 690033120A742
EAN-13 barcode 4016987166284
Dimensions (length × width × height) 513 × 223 × 223 mm (513x223x223)

Recommended accessories — complement the Varta M10 with a charger or tester

Compatible vehicles

The Varta M10 fits 119 vehicles. Most searched below:

See all 119 compatible vehicles

How to change the battery

Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.

⏱ 30-60 min🛠 Tools: 13 mm or 17 mm wrench (depending on make) · Protective gloves
  1. Step 1. Prepare the vehicle

    Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.

  2. Step 2. Locate the battery

    Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.

  3. Step 3. Disconnect the negative (−) terminal

    Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery (two people)

    Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.

  6. Step 6. Install the new battery

    Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.

  7. Step 7. Connect the cables

    Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.

  8. Step 8. Verify the engine starts

    Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.

Frequently asked questions

How do I know if the M10 model fits my truck?

Three ways: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team for the M10; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 9:00–18:00 CET).

How is the Varta M10 battery installed in the vehicle?

In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

What warranty does the Varta M10 truck battery have?

This battery includes 1 year of official manufacturer warranty against manufacturing defects. It covers internal electrical failures and abnormal capacity drops. It does NOT cover misuse (sulfation from heavy duty without proper recharge, alternator overcharge, etc.). On confirmed defect after technical inspection, we replace the M10 at no cost.

When will I receive the M10 model?

In mainland Spain and Portugal it arrives in 24 h if you order before 17:00 and the battery is in stock — it leaves the same day and arrives the next business day. Afternoon or weekend orders ship the next business day. For Balearics, Canaries and other EU destinations, allow 2-5 days. Shipping cost is calculated in the cart based on destination and service (standard, express, cash on delivery). Tracking number is sent by email + SMS as soon as the parcel ships.

How do I return the M10 model if it doesn't fit?

Yes. You have 14 days from delivery to return it. In mainland Spain and Portugal returns are FREE — we cover the return shipping cost via prepaid label. In other EU countries the return shipping cost is the customer's. It must arrive in its original packaging with no signs of installation. If it was defective, the warranty covers replacement even after the 14-day period.

What is the price of the M10 model?

The current price at baterias.com is €264.30 (VAT included; €218.43 excl. VAT), updated every 24 hours. The applicable VAT may vary with the destination country and is confirmed in the cart. Shipping cost is calculated in the cart based on destination and chosen service (standard, express, cash on delivery).

Where can I buy the Varta M10 battery?

At baterias.com — authorised distributor with real stock, 24h delivery in mainland Spain and Portugal if you order before 17:00, and full manufacturer warranty. Shipping cost is calculated in the cart based on destination and chosen service (standard, express, cash on delivery). Secure payment by card, Bizum, PayPal or bank transfer. If you choose at-home installation, our technician will take the used battery and dispose of it through an authorised collection point.

What is the service life of the M10 model?

Expected lifespan of the Varta M10 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What are the measurements of the M10 model?

Dimensions (length × width × height) are 513×223×223 mm — also written as 513x223x223 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

What is the weight of the M10 model?

It weighs 45 kg. Most of the weight is lead. If you plan to fit it yourself, use gloves and a carrying strap (AGM batteries are slightly heavier than conventional due to the absorbent glass-mat fibre).

How many amps does the Varta M10 battery have?

Nominal capacity 190 Ah[?cca: and [cold-cranking amps 1200 A]] at 12 V. Ah measure the total energy available (autonomy); CCA (also written A in cold or EN under the European standard) measure the instantaneous power to crank the starter motor. A battery with more CCA starts better in winter; one with more Ah keeps accessories on for longer.

Does this battery fit my truck?

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 9:00–18:00 CET). The M10 fits 119 verified vehicle versions in our database.

Which interchangeable batteries are there for this one?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.

Is this battery a better choice than another equivalent?

This battery and its equivalents from Bosch, Tudor or Exide are technically comparable: same dimensions, same voltage and same capacity. The differences are warranty (Varta and Bosch: 2 years; Tudor and Exide: 2 years on the equivalent line), manufacturing plant (Varta and Bosch share origin in the Clarios Group; Tudor and Exide belong to Exide Technologies) and price. For private use any of these brands will give 4-6 years of life. Compare them in the "Equivalents" section.

What reviews does the M10 model have?

The average rating of the Varta M10 on baterias.com is 4.85/5 from 24 verified customer reviews. The product rating, when available, is shown on the product page next to the stars. You can also check our public Trustpilot profile at shop level (4.5/5 from 11,462+ verified reviews). Most-praised points: reliable cold start, lifespan above 5 years and fast delivery; most common complaints mention BMS-equipped trucks that need OBD registration after fitting.
