Kronobat DP-60-AGM · Caravan battery 12V 60Ah 680A AGM

Batería Kronobat DP-60-AGM 60Ah - 1
search
  • Batería Kronobat DP-60-AGM 60Ah - 1

Specifications

BrandKRONOBAT
Part numberDP-60-AGM
Voltage (V)12
Capacity (C20)60Ah (c20)
TechnologyAGM
Length242.00 mm
Width175.00 mm
Height190.00 mm
Weight17.50 Kgs
See the full specifications →
€109.80
VAT included
Quantity

  • 24-48h delivery
  • 14-day returns
  • Secure payment
  • +11,900 reviews

Brand KRONOBAT Reference DP-60-AGM

4,85· 23 reseñas

Kronobat DP-60-AGM 12V 60Ah 680A is a battery for auxiliary services in motorhomes, caravans and campers. Powers the fridge, interior lighting, water pump and sockets while parked, with no need for campsite mains. Withstands daily discharges throughout the season.

Why this caravan battery?

  • Real off-grid autonomyno campsite hookup needed
  • Lasts the whole seasonhandles daily discharges without capacity loss
  • Powers it all at oncefridge, water pump, LED and USB without issues
Voltage
12 V
Capacity
60 Ah C20
Cold cranking
680 A EN-1
Dimensions
242×175×190 mm
Technology
AGM
Polarity
Positive on the right
Weight
17,5 kg
Model
DUAL PURPOSE AGM
Logo Kronobat

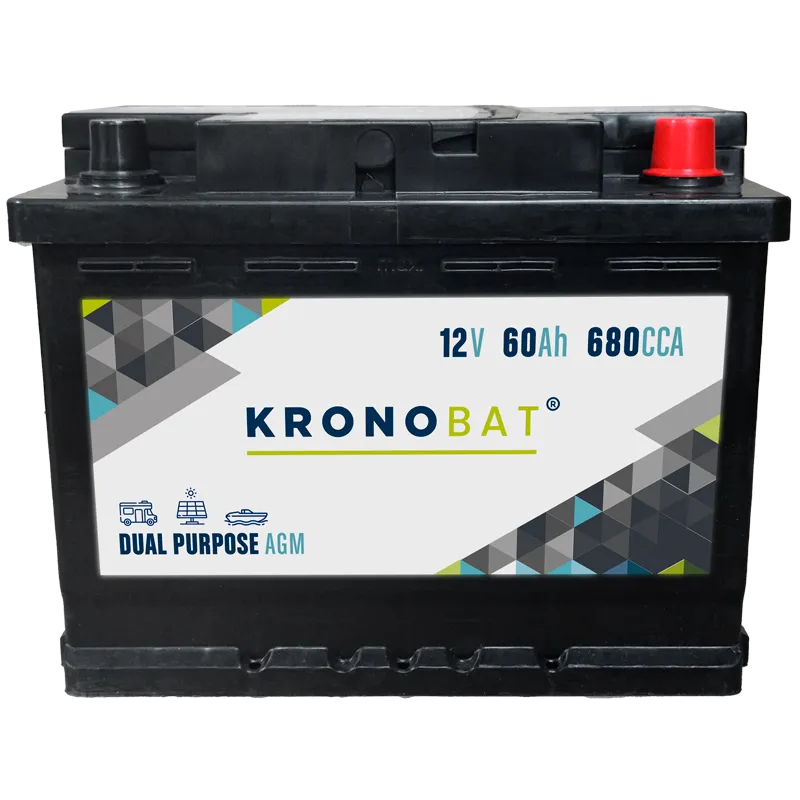

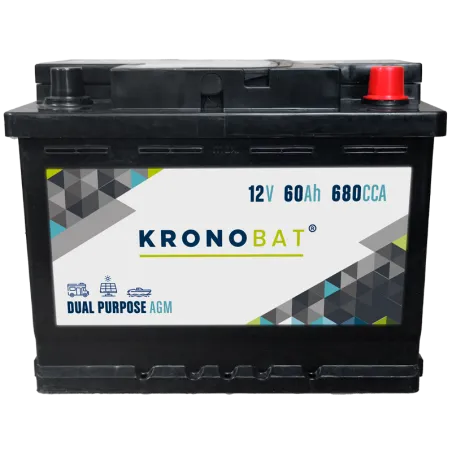

Leisure battery Kronobat DP-60-AGM Dual Purpose AGM 60Ah 680A 12V

12VVoltage
60AhCapacity
680ACold cranking
17.50kgWeight

For motorhomes, caravans and campers that need power off-grid, the Kronobat DP-60-AGM from the Dual Purpose AGM range provides 60 Ah of energy with AGM technology. It measures 242 × 175 × 190 mm and the positive terminal on the right, the format sought by anyone replacing a 60 Ah battery in motorhomes and caravans.

  • Power for fridge, lighting, water pump and USB off-grid.
  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
  • Low self-discharge during months of storage.
  • Sealed and gas-free: suitable for installation inside the living area.

Dimensions, polarity and mounting

It has external dimensions of 242 × 175 × 190 mm and weighs 17.50 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses 1.0 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

What the Kronobat DP-60-AGM is for

As a leisure battery, the Kronobat DP-60-AGM is discharged and recharged every travelling day; avoid discharges below 50% to extend its life. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 17.50 kg and 1.0 terminals.

The Kronobat DP-60-AGM: Dual Purpose AGM range and AGM technology

The Dual Purpose AGM is the Kronobat range the DP-60-AGM belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.

Why choose Kronobat batteries

With Kronobat we offer an own-brand alternative without compromising on quality: European manufacturing, original-equipment controls and the direct backing of baterias.com for warranty and advice. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

Manufacturer's warranty

The Kronobat DP-60-AGM comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.

Care and maintenance

Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip.

Shipping, delivery and returns

Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

BCOM-KRONOBAT-DP-60-AGM

Data sheet

Reference
DP-60-AGM
Model
DUAL PURPOSE AGM
Voltage (V)
12
Length
242.00 mm
Width
175.00 mm
Height
190.00 mm
Weight
17.50 Kgs
Technology
AGM
Terminal layout
Positive terminal on the right
Terminal type
1.0
Cold cranking amps (EN)
680A
Capacity (C20)
60Ah (c20)

Specific References

MPN
DP-60-AGM

Recommended accessories — complement the Kronobat DP-60-AGM with a charger or tester

🔌 Charger
Absaar PRO8-8AMP-12V-24V
Absaar Battery charger ABSAAR Pro8.0 12/24V 8A Smart Charger €70.60
🔌 Charger
Absaar PRO4-4AMP-6V-12V
Absaar Battery charger ABSAAR Pro4.0 6/12V 4A Smart Charger €50.60
🧪 Tester
Motobatt MB-VM
Motobatt MOTOBATT MB-VM €59.95

How to change the battery

Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.

⏱ 15-25 min🛠 Tools: 10 mm or 13 mm wrench · Protective gloves

  1. Step 1. Switch off 12V equipment and unplug shore power

    Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.

  2. Step 2. Locate the leisure battery compartment

    On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.

  3. Step 3. Disconnect the negative (−) terminal

    Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery

    Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.

  6. Step 6. Install the new battery

    Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.

  7. Step 7. Connect the cables

    Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.

  8. Step 8. Verify the charger and auxiliary services

    After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.

Frequently asked questions

Is the Kronobat DP-60-AGM an AGM battery and what are the benefits of AGM?

Yes. The DP-60-AGM from Kronobat uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.

How is the Kronobat DP-60-AGM battery installed in the vehicle?

In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

How long does the Kronobat DP-60-AGM battery last?

Expected lifespan of the Kronobat DP-60-AGM is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What are the measurements of the DP-60-AGM model?

Dimensions (length × width × height) are 242×175×190 mm — also written as 242x175x190 mm and correspond to the European L2 case size — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

Will the Kronobat DP-60-AGM battery fit my caravan?

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The DP-60-AGM typically fits a wide range of European vehicles thanks to its standard DIN case format.

Which interchangeable batteries are there for this one?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
