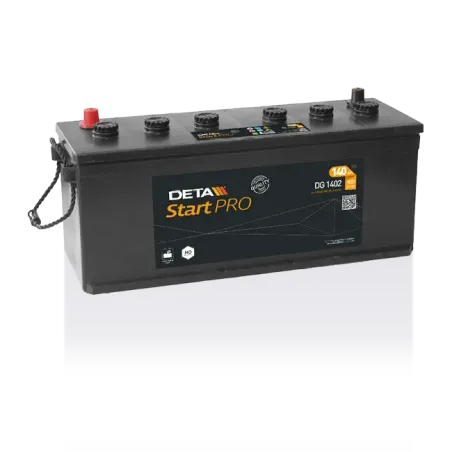

Deta DG1402 · Truck battery 12V 140Ah 900A
Specifications
| Brand | Deta |
|---|---|
| Part number | DG1402 |
| Voltage (V) | 12 |
| Capacity (C20) | 140Ah (c20) |
| Technology | Lead-acid |
| Length | 508 mm |
| Width | 175 mm |
| Height | 205 mm |
| Weight | 33.80 Kgs |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Deta DG1402 12V 140Ah 900A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
140 Ah
Cold cranking
900 A
Dimensions
508×175×205 mm
Technology
Lead-acid
Weight
33,8 kg
Model
DETA StartPRO
Free quote, no obligation
Request a quote for your Truck battery Deta DG1402 12V 140Ah 900A
- Reply in under 24 working hours
- Best price guaranteed

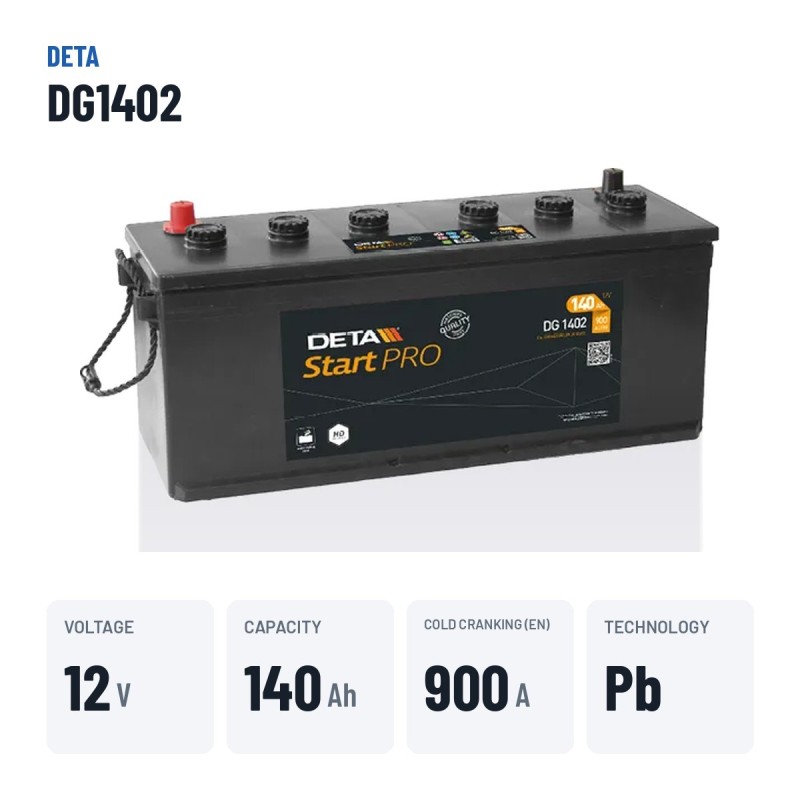

Truck battery Deta DG1402 StartPRO 140Ah 900A 12V
12VVoltage
140AhCapacity
900ACold cranking
33.80kgWeight
The Deta DG1402 truck battery is rated at 12 V, 140 Ah and 900 A of cold cranking current (EN) from the StartPRO range, and is prepared for trucks, buses, tractors and heavy machinery. It measures 508 × 175 × 205 mm, the format sought by anyone replacing a 140 Ah battery in trucks.
- Heavy Duty construction for intensive professional use.
- Conventional lead-acid: the most proven and economical technology.
- Designed for 24 V installations with two batteries in series.
- Powerful cold cranking for large-displacement diesel engines.
What the Deta DG1402 is for
With 140 Ah, the Deta DG1402 cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 33.80 kg and B01 hold-down.

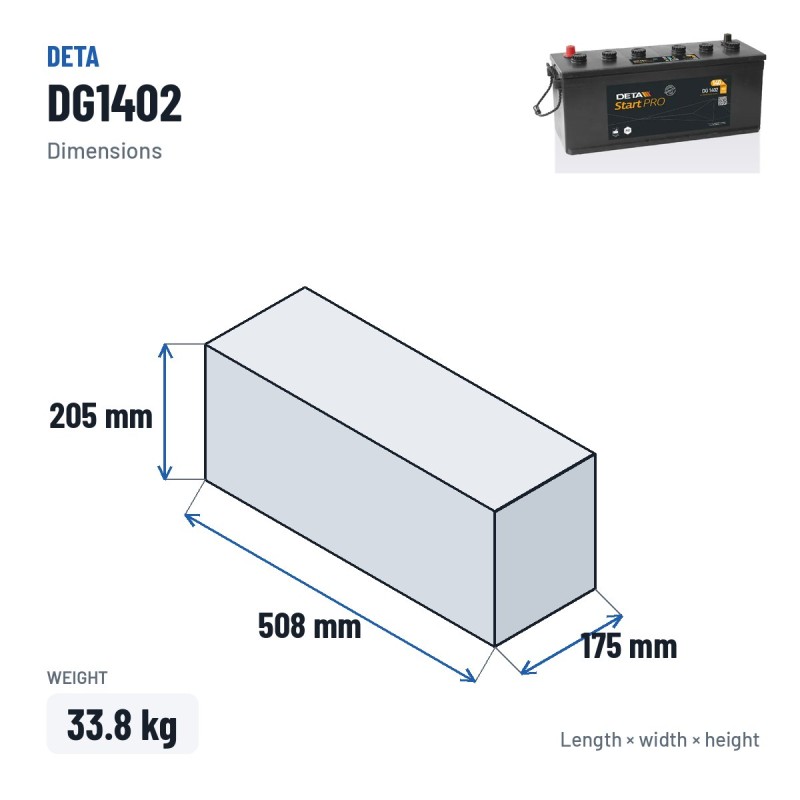

Size, terminals and hold-down of the Deta DG1402
In terms of format, the Deta DG1402 measures 508 × 175 × 205 mm (length × width × height) and weighs 33.80 kg. It uses a B01 hold-down, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Deta DG1402: StartPRO range and conventional lead-acid technology
The DG1402 is part of the Deta StartPRO range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
What Deta does differently
Deta is the German brand of the Exide group: batteries built with original-equipment technology and a very complete range for cars, Start-Stop, trucks, motorcycles and leisure. We guarantee that every Deta arrives new, charged and with the manufacturer's full warranty.
Warranty and coverage
The Deta DG1402 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
Usage and maintenance tips
During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-DETA-DG1402
Data sheet
- Brand
- DETA
- Reference
- DG1402
- Model
- DETA StartPRO
- Voltage (V)
- 12
- Length
- 508 mm
- Width
- 175 mm
- Height
- 205 mm
- Weight
- 33.80 Kgs
- Technology
- Lead-acid
- EAN
- 3661024025348
- Terminal layout
- 9
- Hold-down
- B01
- Cold cranking amps (EN)
- 900A
- Capacity (C20)
- 140Ah (c20)
- Case type
- ATM
Specific References
- EAN13
- 3661024025348
- MPN
- DG1402
Codes and references Deta DG1402
| Brand | Deta |
|---|---|
| Manufacturer range | DETA StartPRO |
| Manufacturer reference (MPN) | DG1402 |
| EAN-13 barcode | 3661024025348 |
| Dimensions (length × width × height) | 508 × 175 × 205 mm (508x175x205) |
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I fit the DG1402 model in my truck?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Deta DG1402 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the DG1402 model?
Dimensions (length × width × height) are 508×175×205 mm — also written as 508x175x205 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Deta DG1402 battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The DG1402 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the DG1402 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
