Deta DG1406 · Truck battery 12V 140Ah 800A

Batería Deta DG1406 140Ah - 1
search
  • Batería Deta DG1406 140Ah - 1

Specifications

BrandDeta
Part numberDG1406
Voltage (V)12
Capacity (C20)140Ah (c20)
TechnologyLead-acid
Length510 mm
Width175 mm
Height225 mm
Weight33.50 Kgs
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Polarity: positive on the right. Check it matches your current battery before buying.

Deta DG1406 12V 140Ah 800A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
140 Ah C20
Cold cranking
800 A EN-1
Dimensions
510×175×225 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
33,5 kg
Model
DETA StartPRO
Free quote, no obligation

Request a quote for your Truck battery Deta DG1406 12V 140Ah 800A

  • Reply in under 24 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Deta

Truck battery Deta DG1406 StartPRO 140Ah 800A 12V

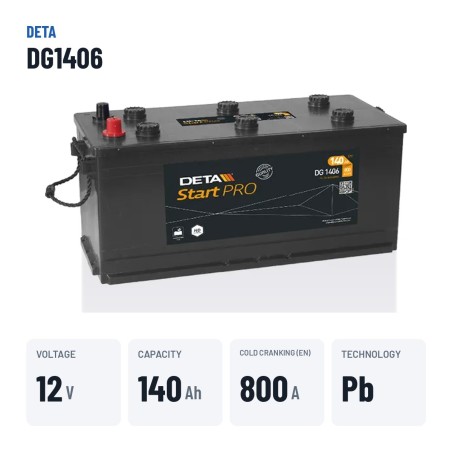

12VVoltage
140AhCapacity
800ACold cranking
33.50kgWeight

With 140 Ah and 800 A of cold cranking current (EN), the Deta DG1406 from the StartPRO range is built for professional use in trucks, buses, tractors and heavy machinery. It measures 510 × 175 × 225 mm and the positive terminal on the right, the format sought by anyone replacing a 140 Ah battery in trucks.

  • Heavy Duty construction for intensive professional use.
  • Conventional lead-acid: the most proven and economical technology.
  • Designed for 24 V installations with two batteries in series.
  • Powerful cold cranking for large-displacement diesel engines.

What the Deta DG1406 is for

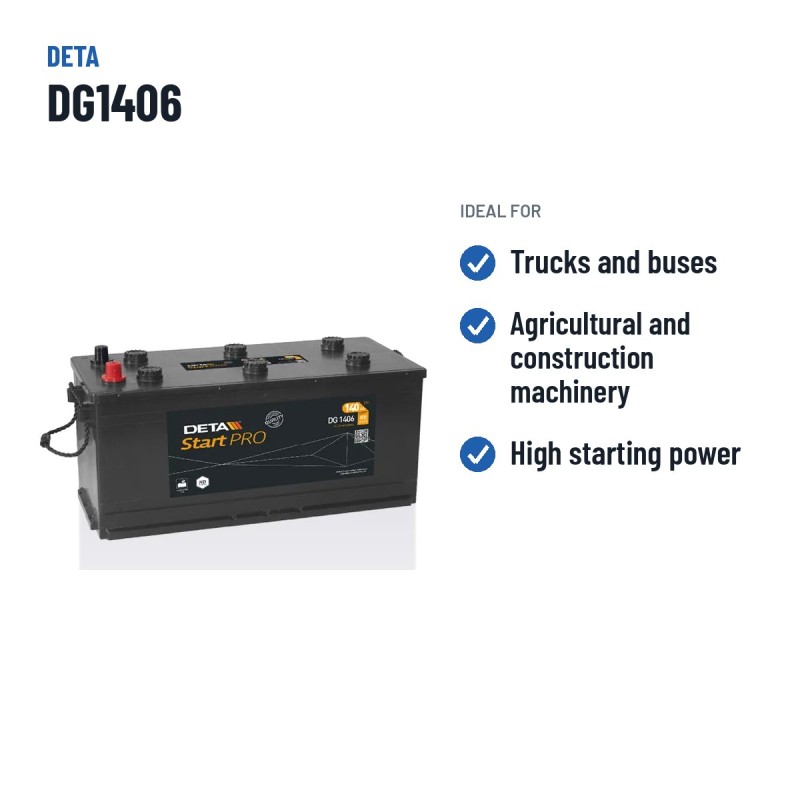

Designed for trucks, buses, tractors and heavy machinery, the Deta DG1406 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 33.50 kg and B03 hold-down.

Dimensions, polarity and mounting

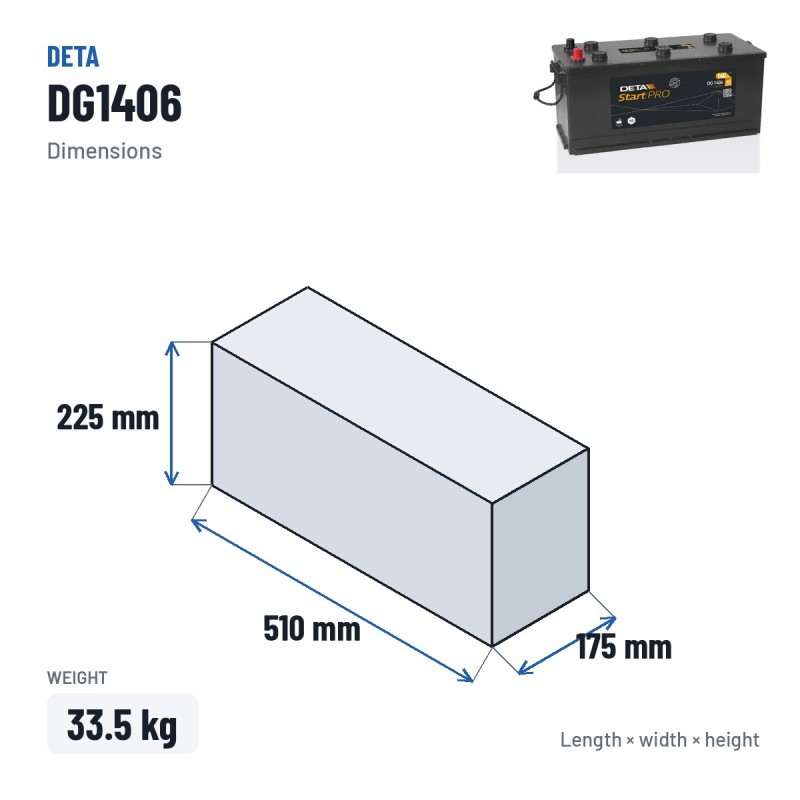

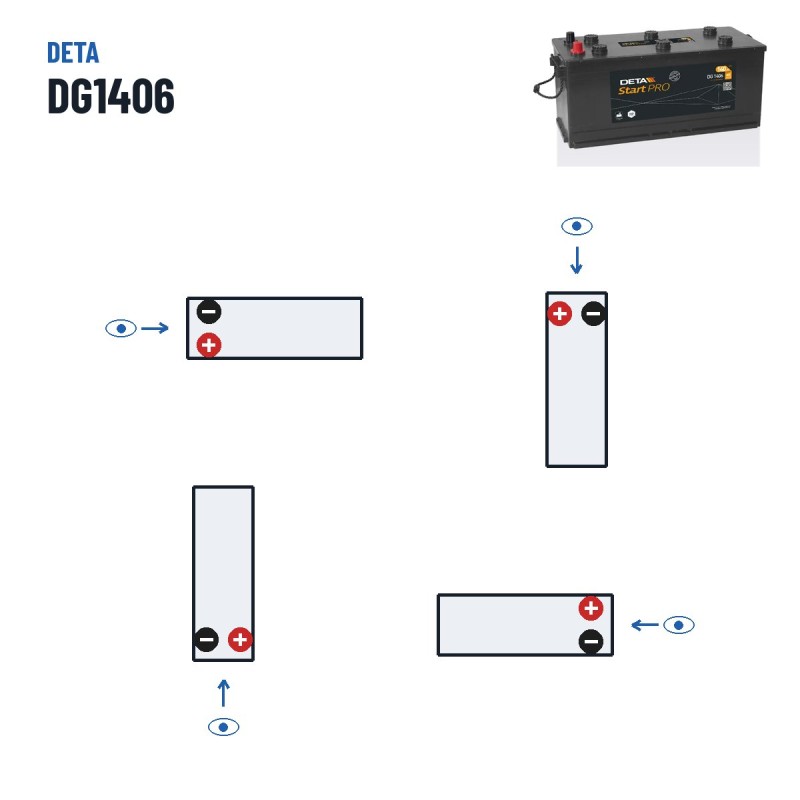

In terms of format, the Deta DG1406 measures 510 × 175 × 225 mm (length × width × height) and weighs 33.50 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B03 hold-down, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

Deta: the maker behind the DG1406

Deta is the German brand of the Exide group: batteries built with original-equipment technology and a very complete range for cars, Start-Stop, trucks, motorcycles and leisure. All the Deta batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

The Deta DG1406: StartPRO range and conventional lead-acid technology

The DG1406 is part of the Deta StartPRO range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.

The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

How to make it last longer

During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery. Keep the terminals clean and tight and the battery firmly secured against chassis vibration.

Warranty and coverage

The Deta DG1406 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

Shipping, delivery and returns

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

BCOM-DETA-DG1406

Data sheet

Brand
DETA
Reference
DG1406
Model
DETA StartPRO
Voltage (V)
12
Length
510 mm
Width
175 mm
Height
225 mm
Weight
33.50 Kgs
Technology
Lead-acid
EAN
3661024025492
Terminal layout
Positive terminal on the right

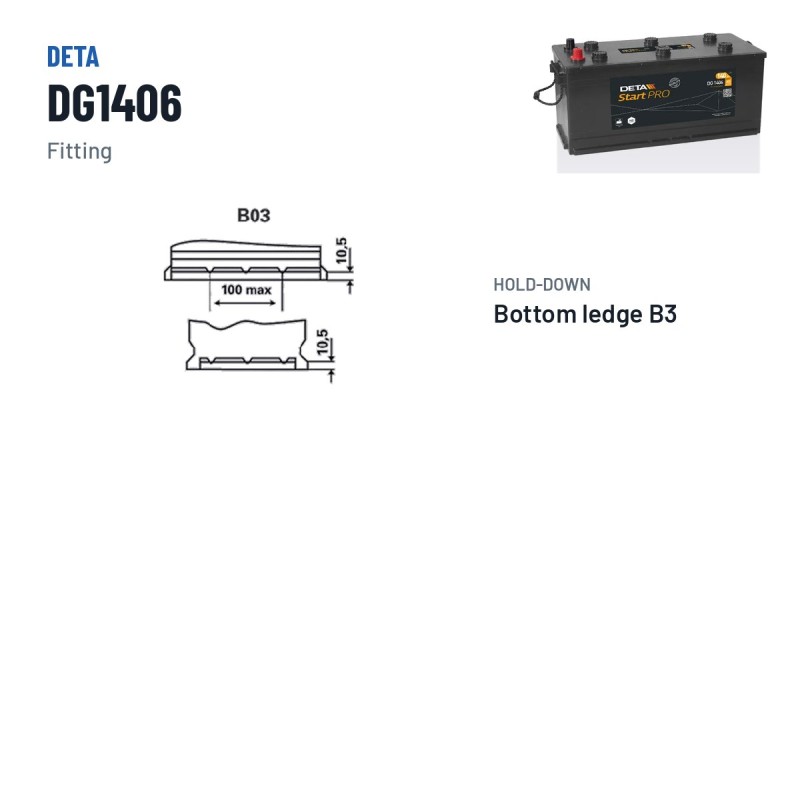

Hold-down
B03
Cold cranking amps (EN)
800A
Capacity (C20)
140Ah (c20)
Case type
D08

Specific References

EAN13
3661024025492
MPN
DG1406

Codes and references Deta DG1406

Brand Deta
Manufacturer range DETA StartPRO
Manufacturer reference (MPN) DG1406
EAN-13 barcode 3661024025492
Dimensions (length × width × height) 510 × 175 × 225 mm (510x175x225)

Comparison: Deta DG1406 vs equivalents — alternatives with the same dimensions, Ah and CCA

The Deta DG1406 is interchangeable with these equivalent references: TG1406 (Tudor), EG1406 (Exide).

Product Specifications Technology Price
Deta DG1406 Deta DG1406 This battery 12V 140Ah 800A Lead-acid
Tudor TG1406 Tudor TG1406 ★ 4,8 12V 140Ah 800A Lead-acid €193.90
Exide EG1406 Exide EG1406 ★ 4,8 12V 140Ah 800A Lead-acid €136.50

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Recommended accessories — complement the Deta DG1406 with a charger or tester

How to change the battery

Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.

⏱ 30-60 min🛠 Tools: 13 mm or 17 mm wrench (depending on make) · Protective gloves
  1. Step 1. Prepare the vehicle

    Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.

  2. Step 2. Locate the battery

    Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.

  3. Step 3. Disconnect the negative (−) terminal

    Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery (two people)

    Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.

  6. Step 6. Install the new battery

    Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.

  7. Step 7. Connect the cables

    Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.

  8. Step 8. Verify the engine starts

    Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.

Frequently asked questions

How do I fit the DG1406 model in my truck?

In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

How long does the Deta DG1406 battery last?

Expected lifespan of the Deta DG1406 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What are the dimensions of the Deta DG1406 battery?

Dimensions (length × width × height) are 510×175×225 mm — also written as 510x175x225 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

Does this battery fit my truck?

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The DG1406 typically fits a wide range of European vehicles thanks to its standard DIN case format.

Which batteries are equivalent to the Deta DG1406?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
