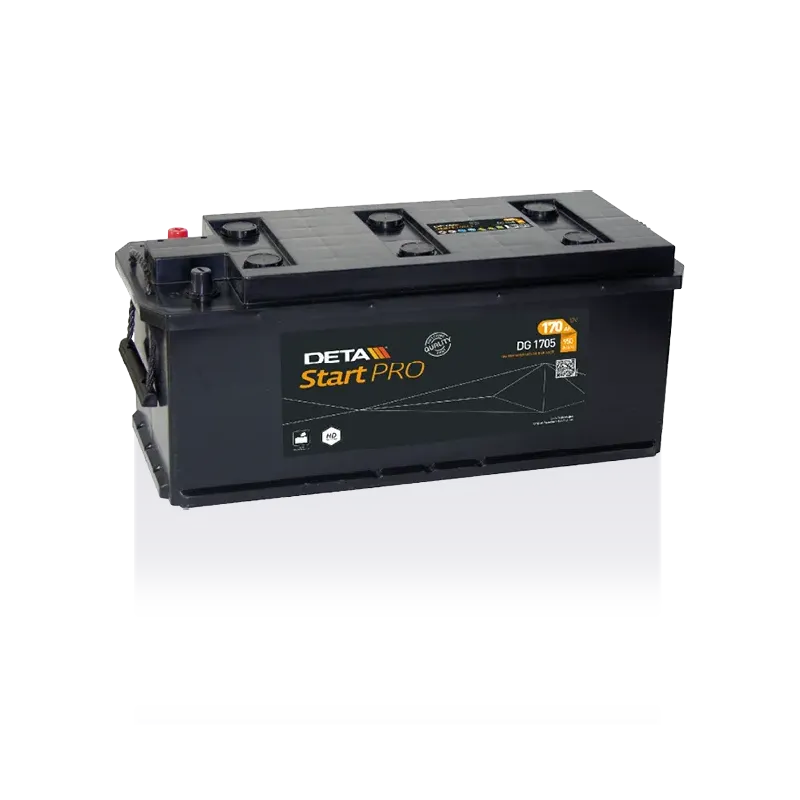

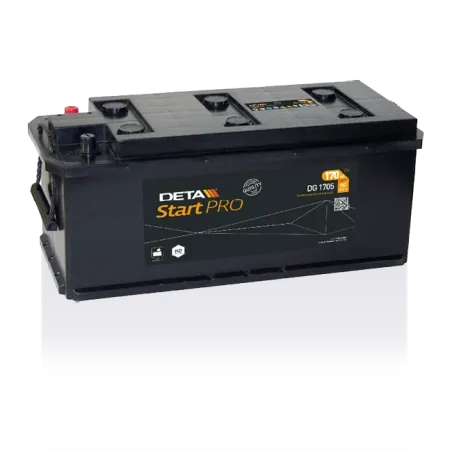

Deta DG1705 · Truck battery 12V 170Ah 950A
Specifications
| Brand | Deta |
|---|---|
| Part number | DG1705 |
| Voltage (V) | 12 |
| Capacity (C20) | 170Ah (c20) |
| Technology | Lead-acid |
| Length | 514 mm |
| Width | 218 mm |
| Height | 210 mm |
| Weight | 42.50 Kgs |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Deta DG1705 12V 170Ah 950A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
170 Ah
Cold cranking
950 A
Dimensions
514×218×210 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
42,5 kg
Model
DETA StartPRO
Free quote, no obligation
Request a quote for your Truck battery Deta DG1705 12V 170Ah 950A
- Reply in under 24 working hours
- Best price guaranteed
Truck battery Deta DG1705 StartPRO 170Ah 950A 12V
12VVoltage
170AhCapacity
950ACold cranking
42.50kgWeight
The Deta DG1705 truck battery is rated at 12 V, 170 Ah and 950 A of cold cranking current (EN) from the StartPRO range, and is prepared for trucks, buses, tractors and heavy machinery. Measuring 514 × 218 × 210 mm and the positive terminal on the left, it is the direct replacement for trucks fitted from the factory with a 170 Ah battery of this format.
- Powers tachograph, fridge and heater during rest stops.
- Better tolerance to deep discharge than a conventional starter battery.
- Good balance of capacity, cranking power and price.
- Resistant to constant chassis vibration.
Size, terminals and hold-down of the Deta DG1705
The Deta DG1705 is made in the 514 × 218 × 210 mm format and weighs 42.50 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B03 hold-down, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Deta DG1705 is for
Designed for trucks, buses, tractors and heavy machinery, the Deta DG1705 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 42.50 kg and B03 hold-down.
The Deta DG1705: StartPRO range and conventional lead-acid technology
The DG1705 is part of the Deta StartPRO range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
What Deta does differently
Deta combines German engineering with Exide's industrial capacity. Its Power, Senator and PowerPRO series cover everything from urban cars to construction machinery. All the Deta batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Deta DG1705 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
How to make it last longer
In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing. Keep the terminals clean and tight and the battery firmly secured against chassis vibration.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-DETA-DG1705
Data sheet
- Brand
- DETA
- Reference
- DG1705
- Model
- DETA StartPRO
- Voltage (V)
- 12
- Length
- 514 mm
- Width
- 218 mm
- Height
- 210 mm
- Weight
- 42.50 Kgs
- Technology
- Lead-acid
- EAN
- 3661024025539
- Terminal layout
- Positive terminal on the left
- Hold-down
- B03
- Cold cranking amps (EN)
- 950A
- Capacity (C20)
- 170Ah (c20)
- Case type
- DB9
Specific References
- EAN13
- 3661024025539
- MPN
- DG1705
Codes and references Deta DG1705
| Brand | Deta |
|---|---|
| Manufacturer range | DETA StartPRO |
| Manufacturer reference (MPN) | DG1705 |
| EAN-13 barcode | 3661024025539 |
| Dimensions (length × width × height) | 514 × 218 × 210 mm (514x218x210) |
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Deta DG1705 battery last?
Expected lifespan of the Deta DG1705 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 514×218×210 mm — also written as 514x218x210 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the DG1705 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The DG1705 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Deta DG1705?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
