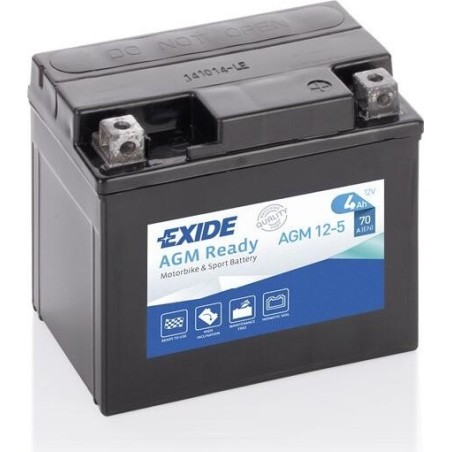

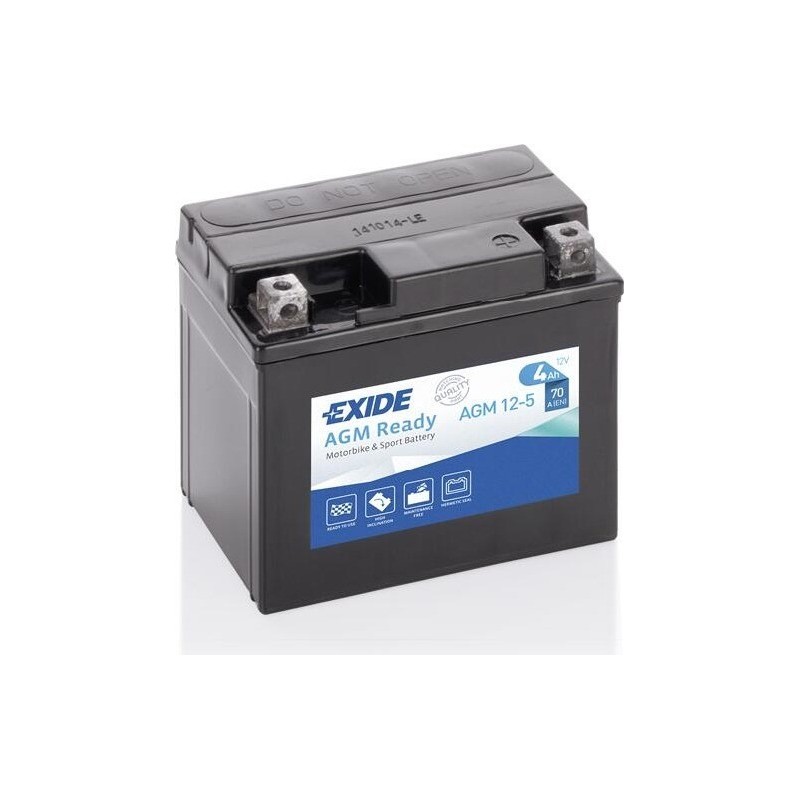

Exide AGM12-5 · Motorcycle battery 12V 4Ah 70A AGM
Specifications
| Brand | EXIDE |
|---|---|
| Part number | AGM12-5 |
| Voltage (V) | 12 |
| Capacity (C20) | 4Ah (c20) |
| Capacity (C10) | 4Ah (c10) |
| Cold cranking amps (EN) | 70A |
| Technology | AGM |
| Length | 115.00 cm |
| Width | 70.00 cm |
€25.60
VAT included
4,76/5★★★★★25 reviewsVerified purchases
- ★★★★Carlos Serrano:
Pedí la bateria un miércoles a las 5 y me llegó el jueves a las 8
- ★★★★Vicente Alonso:
Pedí la batería un miércoles a las 5 y me llegó el jueves a las 6
- ★★★★★Ruben Reyes:
En general todo bien
Reviews originally written in Spanish
See all 25 reviewsExide AGM12-5 12V 4Ah 70A is a sealed motorcycle battery ready to fit, with the JIS reference your mechanic recognises at a glance. Vibration-resistant, keeps voltage during the winter off-season and cranks first time when you take it out for a ride.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
Voltage
12 V
Capacity
4 Ah
Cold cranking
70 A
Dimensions
115×70×105 mm
Technology
AGM
Polarity
Positive on the right
Weight
1,8 kg
Model
EXIDE MOTO AGM 12V
Mfr. reference
AGM12-5
Motorcycle battery Exide AGM12-5 Moto AGM 4Ah 70A 12V
12VVoltage
4AhCapacity
70ACold cranking
1.80kgWeight
The Exide AGM12-5 from the Moto AGM range is a motorcycle battery with 4 Ah and 70 A of cold cranking current (EN), designed for motorcycles, scooters, quads and personal watercraft. It replaces the original battery without adaptation in motorcycles with a 115 × 70 × 105 mm format: same 4 Ah capacity and the positive terminal on the right.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Same JIS code as the original battery: fits first time.
- Resistant to the vibration typical of two wheels.
- Energetic cranking for high-compression engines.
What the Exide AGM12-5 is for
The Exide AGM12-5 is a common replacement in motorcycles, scooters, quads and personal watercraft. If your bike spends the winter standing, a trickle charger stops it reaching spring flat. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 1.80 kg, M04 terminals and B0 hold-down.
Will it fit your current battery tray?
It has external dimensions of 115 × 70 × 105 mm and weighs 1.80 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and M04 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Exide AGM12-5: Moto AGM range and AGM technology
The AGM12-5 is part of the Exide Moto AGM range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
What Exide does differently
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Official warranty
The Exide AGM12-5 comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Care and maintenance
Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-EXIDE-AGM12-5
Data sheet
- Brand
- EXIDE
- Reference
- AGM12-5
- Model
- EXIDE MOTO AGM 12V
- Voltage (V)
- 12
- Length
- 115.00 cm
- Width
- 70.00 cm
- Height
- 105.00 cm
- Weight
- 1.80 Kgs
- Technology
- AGM
- EAN
- 3661024033961
- Terminal layout
- Positive terminal on the right
- Terminal type
- M04
- Hold-down
- B0
- Cold cranking amps (EN)
- 70A
- Capacity (C20)
- 4Ah (c20)
- Capacity (C10)
- 4Ah (c10)
Specific References
- EAN13
- 3661024033961
- MPN
- AGM12-5
4,76/5
Verified purchasesLatest verified reviews
Reviews originally written in Spanish
★★★★★Carlos Serrano
18/09/2026Rapidez en la entrega
Pedí la bateria un miércoles a las 5 y me llegó el jueves a las 8
★★★★★Vicente Alonso
17/06/2026Entrega muy rápida
Pedí la batería un miércoles a las 5 y me llegó el jueves a las 6
★★★★★Ruben Reyes
15/02/2026Gracias por todo
En general todo bien
★★★★★Miguel Prieto
15/02/2026Trato correcto
Ya me había quedado con esta web por la variedad de sus productos, pero es que he llamado para unas dudas que tenía y me han atendido de maravilla.
★★★★★Mariano Lorenzo
02/01/2026Servicio extraordinario
Precios buenos y un gran servicio. 100% recomendado
Codes and references Exide AGM12-5
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer range | EXIDE MOTO AGM 12V |
| Manufacturer reference (MPN) | AGM12-5 |
| Also known as | AGM125 · AGM12 5 |
| EAN-13 barcode | 3661024033961 |
| Dimensions (length × width × height) | 115 × 70 × 105 mm (115x70x105) |
Comparison: Exide AGM12-5 vs equivalents
The Exide AGM12-5 is interchangeable with these equivalent references: ETX5L-BS (Exide), 504012003 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
AGM12-5
This battery
|
12V 4Ah 70A | AGM | €25.60 |
Exide
ETX5L-BS
|
12V 4Ah 70A | AGM | €22.20 |
Varta
504012003
|
12V 4Ah 80A | AGM | €22.30 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
Is the AGM12-5 model AGM? What does this technology offer?
Yes. The AGM12-5 from Exide uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for motorcycles with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the AGM12-5 model in my motorcycle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide AGM12-5 battery last?
Expected lifespan of the Exide AGM12-5 is 5 to 8 years in mild-climate motorcycle use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide AGM12-5 battery?
Dimensions (length × width × height) are 115×70×105 mm — also written as 115x70x105 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Exide AGM12-5 battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The AGM12-5 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide AGM12-5?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
