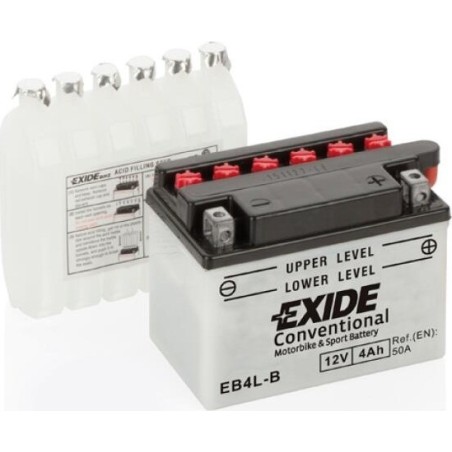

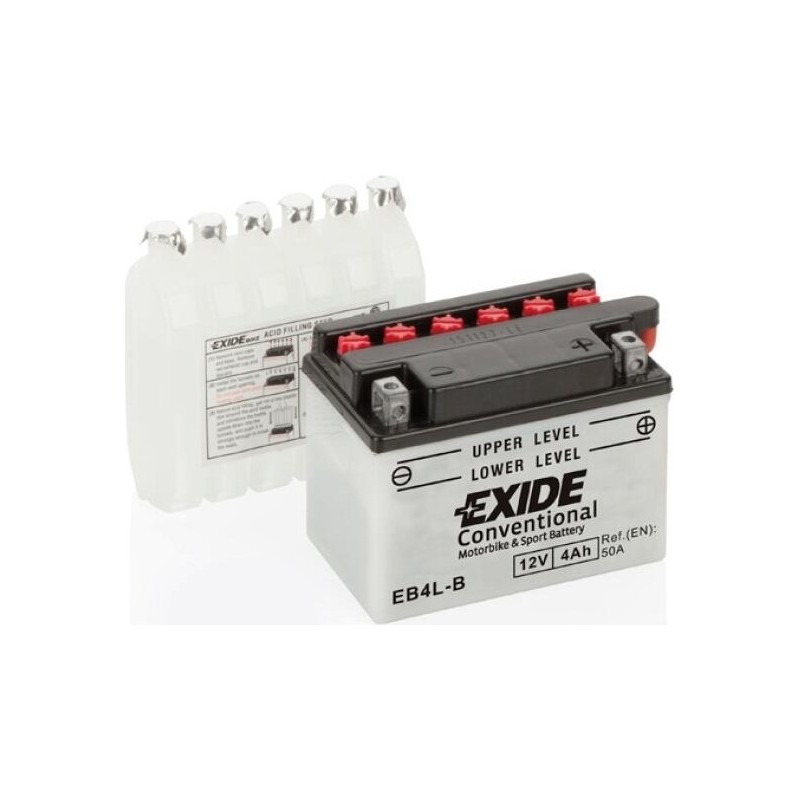

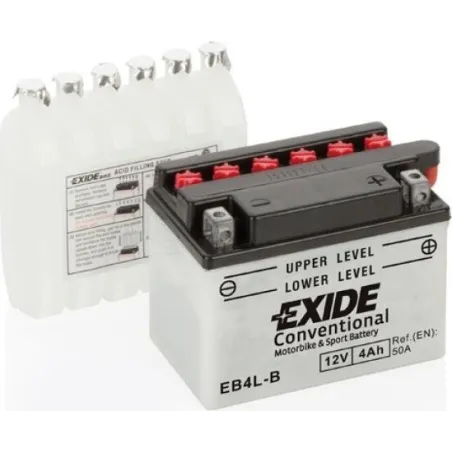

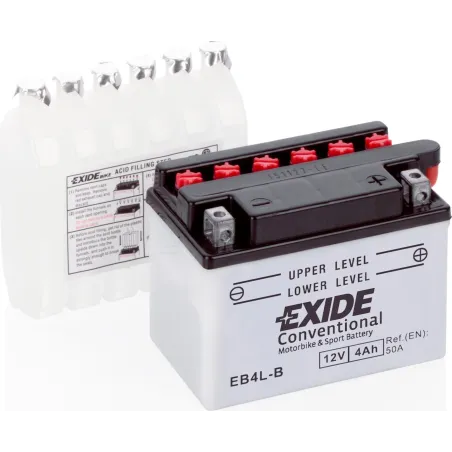

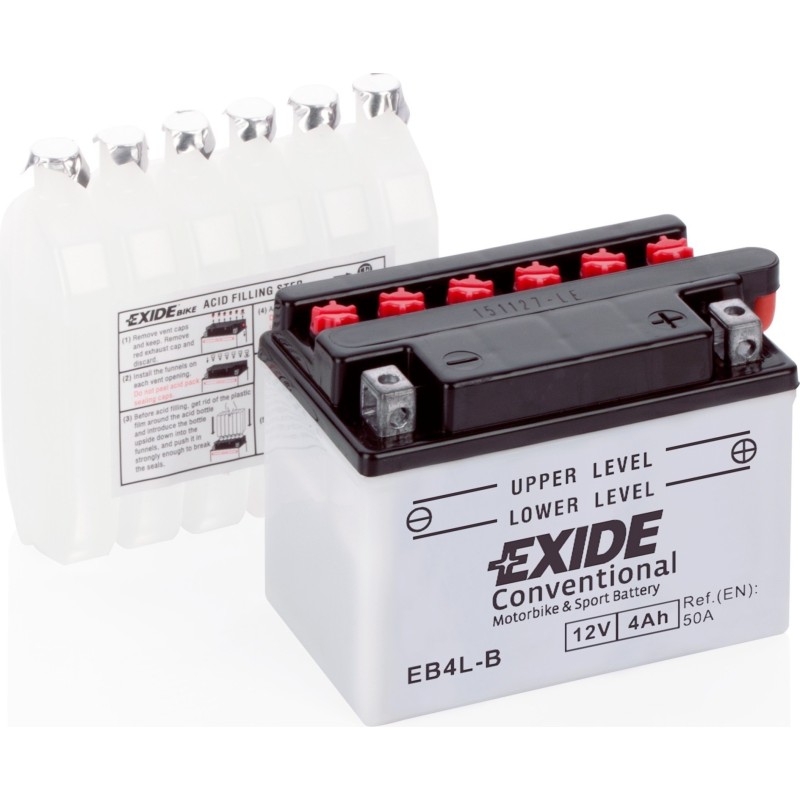

Exide EB4L-B · Motorcycle battery 12V 4Ah 50A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EB4L-B |
| Voltage (V) | 12 |
| Capacity (C20) | 4Ah (c20) |
| Technology | Lead-acid |
| Length | 120.00 cm |
| Width | 70.00 cm |
| Height | 95.00 cm |
| Weight | 1.60 Kgs |
€32.80
VAT included
Exide EB4L-B 12V 4Ah 50A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
JIS code
EB4L-B
Voltage
12 V
Capacity
4 Ah
Cold cranking
50 A
Dimensions
120×70×95 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
1,6 kg
Model
EXIDE MOTO CONVENTIONAL 12V
Mfr. reference
EB4L-B
Motorcycle battery Exide EB4L-B Moto Convencional 4Ah 50A 12V
12VVoltage
4AhCapacity
50ACold cranking
1.60kgWeight
The Exide EB4L-B motorcycle battery is rated at 12 V, 4 Ah and 50 A of cold cranking current (EN) from the Moto Convencional range, and is designed for motorcycles, scooters, quads and personal watercraft. Measuring 120 × 70 × 95 mm and the positive terminal on the right, it is the direct replacement for motorcycles fitted from the factory with a 4 Ah battery of this format.
- Holds its charge through winter storage.
- Compact and lightweight format.
- Good balance of capacity, cranking power and price.
- Sealed and ready to fit, no acid handling.
What the Exide EB4L-B is for
With 4 Ah, the Exide EB4L-B covers the starting of motorcycles, scooters, quads and personal watercraft. The JIS code on your current battery label is the safest way to confirm equivalence. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 1.60 kg, M04 terminals and B0 hold-down.
Dimensions, polarity and mounting

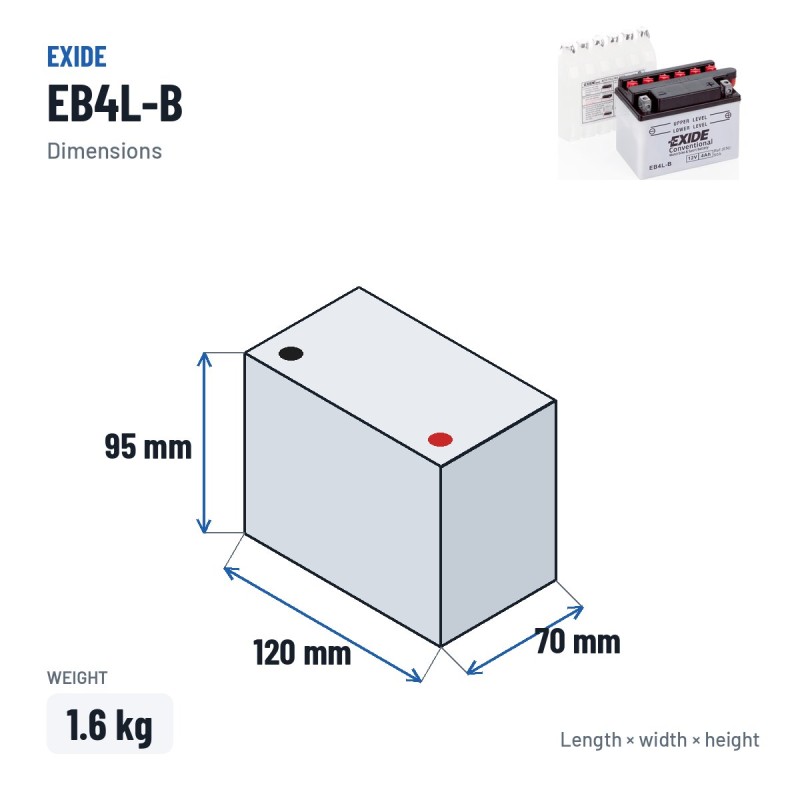

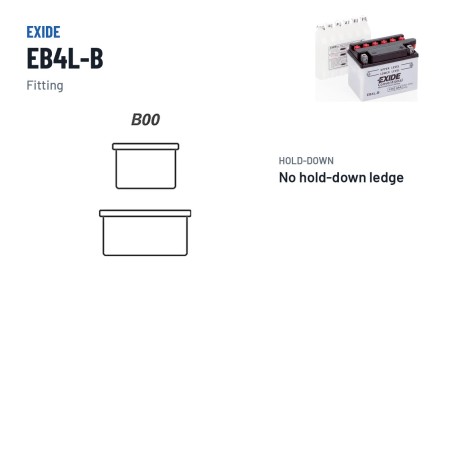

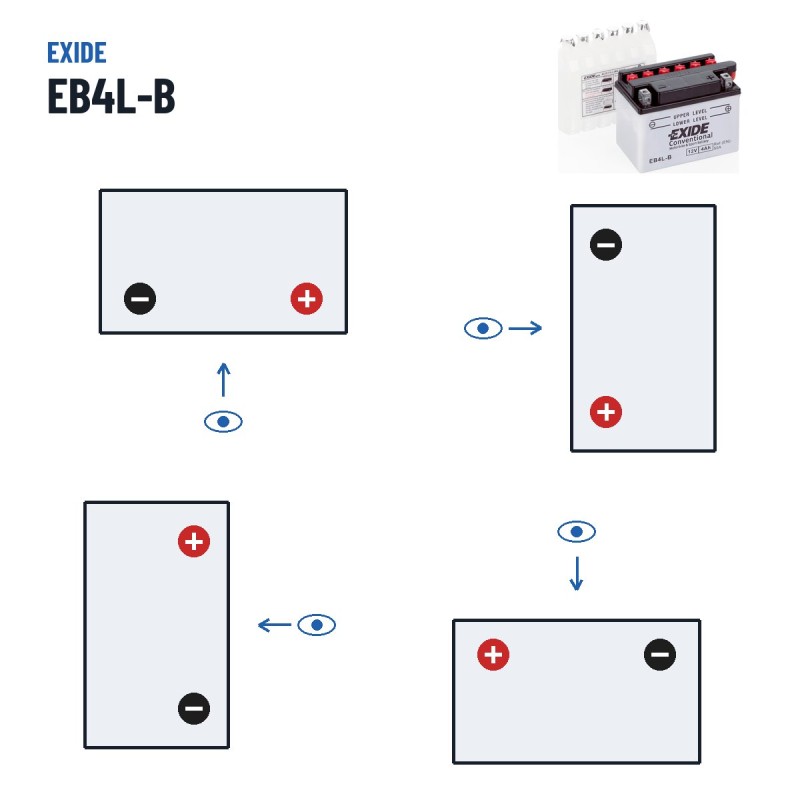

In terms of format, the Exide EB4L-B measures 120 × 70 × 95 mm (length × width × height) and weighs 1.60 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and M04 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Exide EB4L-B: Moto Convencional range and conventional lead-acid technology
The EB4L-B is part of the Exide Moto Convencional range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Exide: the maker behind the EB4L-B
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.
Official warranty
The Exide EB4L-B comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Usage and maintenance tips
Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-EB4L-B
Data sheet
- Brand
- EXIDE
- Reference
- EB4L-B
- Model
- EXIDE MOTO CONVENCIONAL 12V
- Voltage (V)
- 12
- Length
- 120.00 cm
- Width
- 70.00 cm
- Height
- 95.00 cm
- Weight
- 1.60 Kgs
- Technology
- Lead-acid
- EAN
- 3661024033145
- Terminal layout
- Positive terminal on the right
- Terminal type
- M04
- Hold-down
- B0
- Cold cranking amps (EN)
- 50A
- Capacity (C20)
- 4Ah (c20)
Specific References
- EAN13
- 3661024033145
- MPN
- EB4L-B
Codes and references Exide EB4L-B
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MOTO CONVENCIONAL 12V |
| Manufacturer reference (MPN) | EB4L-B |
| EAN-13 barcode | 3661024033145 |
| Dimensions (length × width × height) | 120 × 70 × 95 mm (120x70x95) |
Comparison: Exide EB4L-B vs equivalents
The Exide EB4L-B is interchangeable with these equivalent references: 504011002 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EB4L-B
This battery
|
12V 4Ah 50A | Lead-acid | €32.80 |
Varta
504011002
|
12V 4Ah 50A | Lead-acid | €98.80 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I fit the EB4L-B model in my motorcycle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide EB4L-B battery last?
Expected lifespan of the Exide EB4L-B is 4 to 6 years in regular motorcycle use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the EB4L-B model?
Dimensions (length × width × height) are 120×70×95 mm — also written as 120x70x95 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Does this battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EB4L-B typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the EB4L-B model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
