Exide EB505 Excell · Car battery 50Ah 360A
Car battery Exide EB505 Excell 12V 50Ah 360A images
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EB505 |
| Voltage (V) | 12 |
| Capacity (C20) | 50Ah (c20) |
| Cold cranking amps (EN) | 360A |
| Technology | Lead-acid |
| Length | 200 mm |
| Width | 173 mm |
| Height | 222 mm |
Exide EB505 12V 50Ah 360A is a starter battery with OEM-equivalent quality, designed for modern passenger cars. Delivers reliable cold-cranks even after weeks of inactivity and supports stable auxiliary loads (lights, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Where it fits: the Exide EB505 is one of our car batteries, belongs to our Exide batteries and by capacity it sits among our 50Ah batteries.
The Exide EB505 in practice
When not to choose it
It is a conventional battery: not for Start-Stop cars, which need EFB or AGM depending on what they left the factory with. Never go below the original capacity and cranking either.
Car battery Exide EB505 Excell 50Ah 360A 12V
With 50 Ah at 12 V and 360 A of cold cranking current (EN), the Exide EB505 from the Excell range is a starter battery built for passenger cars with conventional starting, without a Start-Stop system. It measures 200 × 173 × 222 mm and the positive terminal on the left, the format sought by anyone replacing a 50 Ah battery in cars.
In short: the Exide EB505 (50 Ah, 360 A, 200 × 173 × 222 mm, positive terminal on the left). It is a conventional battery for cars without Start-Stop: if yours has Start-Stop, it needs an EFB or AGM battery of the same size.
- Reliable cold starts, even after weeks without driving.
- Conventional lead-acid: the most proven and economical technology.
- Original-equipment build quality without the dealership price.
- Direct replacement for the original battery in size and terminals.
What the Exide EB505 is for
With 50 Ah, the Exide EB505 is sized for passenger cars with conventional starting, without a Start-Stop system. It is a direct replacement for the original battery as long as dimensions and terminals match. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 13 kg.
The Exide EB505: Excell range and conventional lead-acid technology
Within the Exide catalogue, the Excell series groups the references designed for this use. The EB505 is the 50 Ah model of that family, with the same performance as its siblings in other sizes.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Size, terminals and hold-down of the Exide EB505

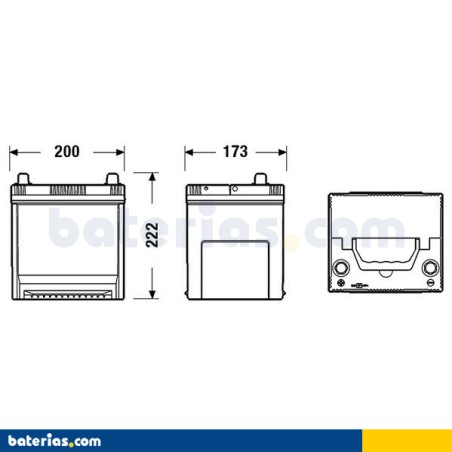

It has external dimensions of 200 × 173 × 222 mm and weighs 13 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What Exide does differently
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Care and maintenance
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge.
Official warranty
The Exide EB505 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
-
-
ReferenceBCOM-EXIDE-EB505
Data sheet
-
BrandEXIDE
-
ReferenceEB505
-
ModelEXIDE EXCELL
-
Voltage (V)12
-
Length200 mm
-
Width173 mm
-
Height222 mm
-
Weight13.00 Kgs
-
TechnologyLead-acid
-
EAN3661024034395
-
Terminal layoutPositive terminal on the left
-
Cold cranking amps (EN)360A
-
Capacity (C20)50Ah (c20)
-
Case typeD20
Specific References
-
EAN133661024034395
-
MPNEB505
Codes and references Exide EB505
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer range | EXIDE EXCELL |
| Manufacturer part number (MPN) | EB505 |
| EAN-13 barcode | 3661024034395 |
| Dimensions (length × width × height) | 200 × 173 × 222 mm (200x173x222) |
Exide EB505: best-selling equivalent or higher-spec batteries
The Exide EB505 is interchangeable with these equivalent references: TB505 (Tudor).
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Exide
EB505
This battery
|
12V 50Ah 360A | Lead-acid | 97,10 € | |||||||||||||||||||||
Tudor
TB505
Tudor equivalent |
12V 50Ah 360A | Lead-acid | 103,70 € +6,60 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| EB505 | TB505 | |
|---|---|---|
| Capacity | 50 Ah | 50 Ah |
| Cold cranking (EN) | 360 A | 360 A |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 200 × 173 × 222 | 200 × 173 × 222 |
| Positive terminal | Positive terminal on the left | Positive terminal on the left |
| Price | 97,10 € | 103,70 € |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Other 50Ah batteries: We stock 41 models of 50 Ah to compare by price, technology and cold cranking: see all 50Ah batteries. Same size (200 × 173 × 222 mm): batteries of 200 × 173 × 222 mm.
Recommended accessories
Fitting it yourself? Step-by-step guide to replacing the battery →
Frequently asked questions
How do I change this battery step by step?
For the detail, read our guide to replacing the car battery and, if in doubt, the owner's handbook or a main dealer. Allow 15-30 minutes and a 10 mm spanner. If the car keeps its battery in the boot or under a seat, it can take up to twice as long. What matters most is the terminal order: removing, negative (−) before positive (+); refitting, positive (+) before negative (−). In between, with the engine off and the key out, release the clamp and fit the new battery the same way round as the original, positive on the left (polarity).
How long does the Exide EB505 battery last?
Estimated lifespan of the Exide EB505: 4 to 6 years in regular car use without Start-Stop. Treat it as an approximate guide, as every case is different. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the car itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.
What are the dimensions of the Exide EB505 battery?
Before buying, measure the space in your car: one extra millimetre can stop the hold-down clamp from closing. The Exide EB505 takes up 200×173×222 mm (length, width and height, terminals included).
What polarity does the Exide EB505 battery have?
The EB505 has the positive on the left: that is its polarity. Face the battery with its terminals nearest you and see which side the positive post (+, red ring) is on. Compare it with the battery you are replacing: if it does not match, cables must be lengthened or the system reconfigured, with a risk of short circuit.
Will the Exide EB505 battery fit my car?
Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your car is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The car manufacturer's specifications always take priority over our tables.
Which batteries are equivalent to the Exide EB505?
To replace the Exide EB505 without modifications, the other battery must be identical in size, polarity, Ah and CCA. Not just any technology will do: an EFB cannot be replaced with a conventional battery in Start-Stop cars. The "Equivalents" section further down lists the recommended alternatives.
Exide EB505 or Tudor TB505: which one to choose?
Same case and same fitting as the EB505, from Tudor. Compared with the EB505 it has the same Ah and cranking power. It costs 6,60 € more. If you want to save or the EB505 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.
