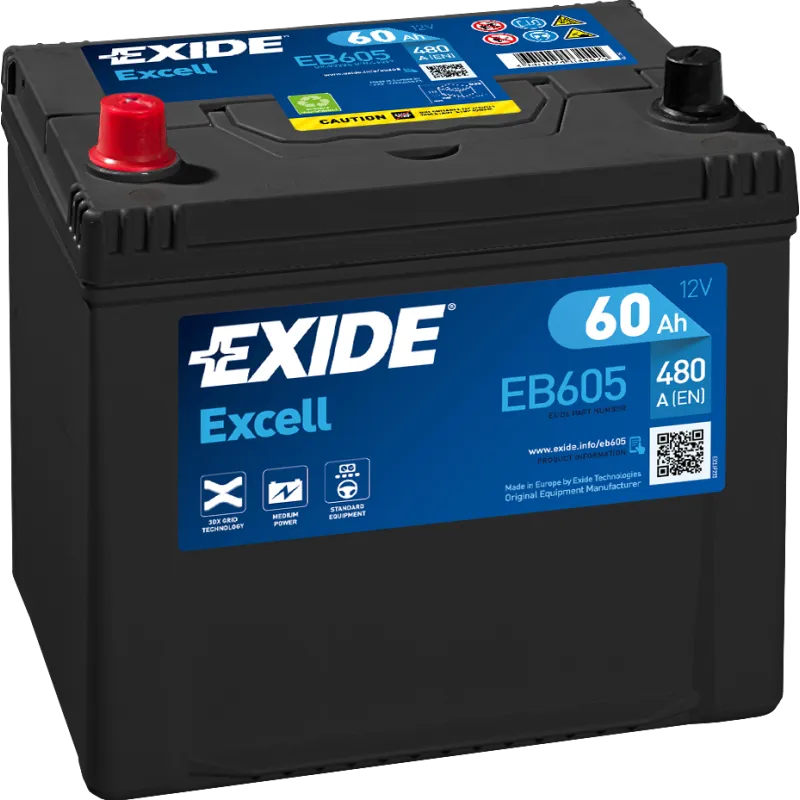

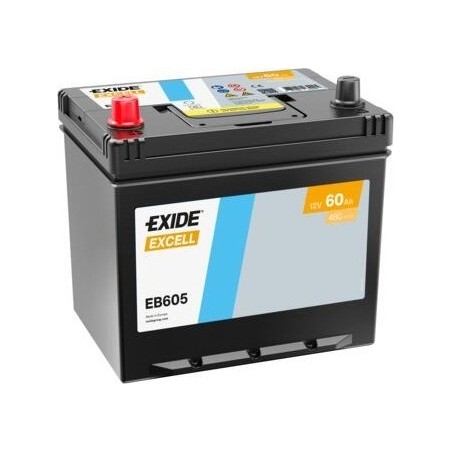

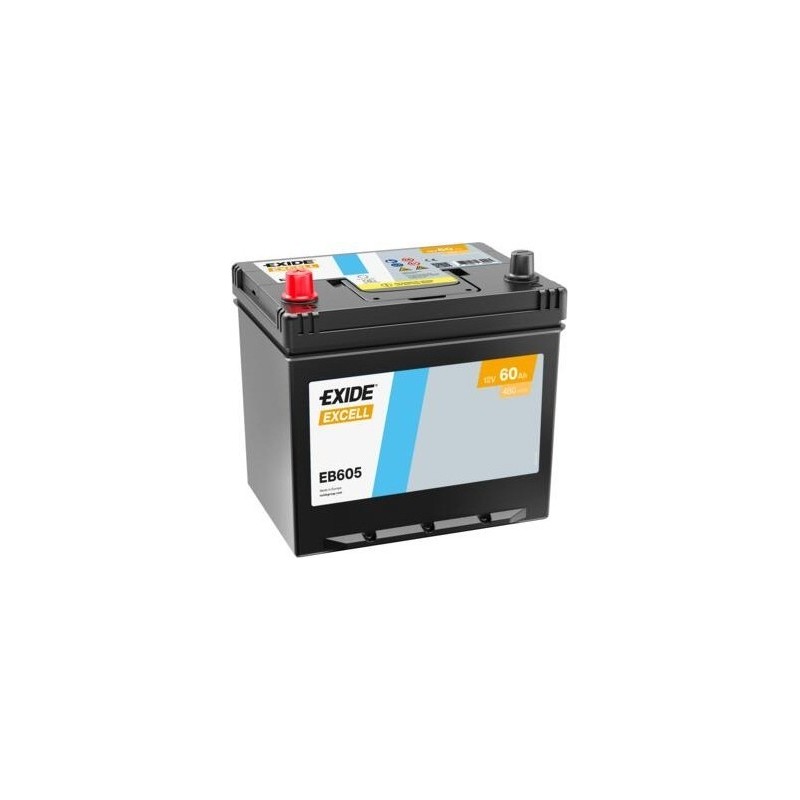

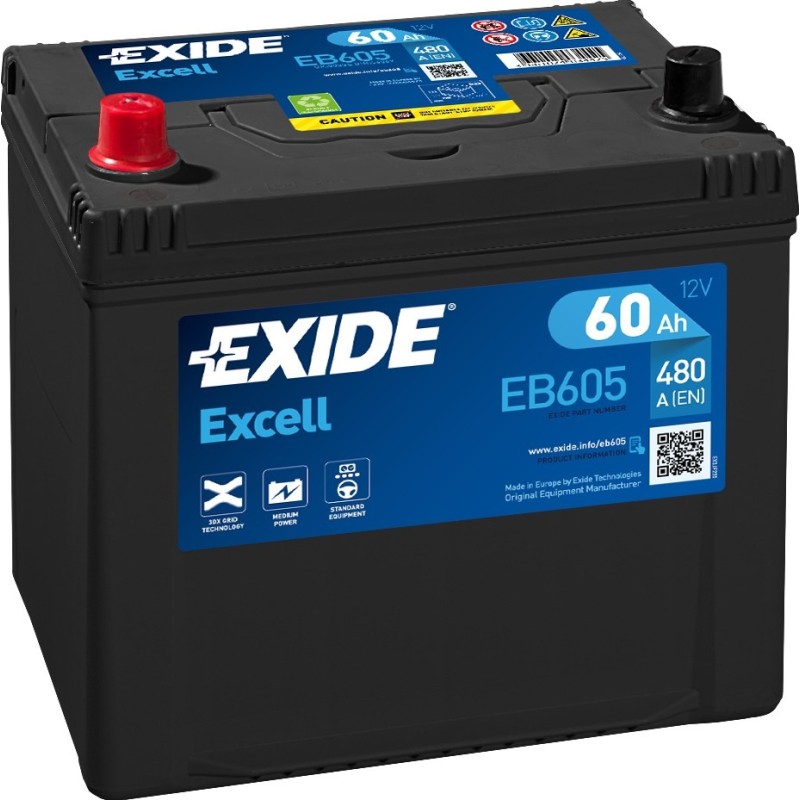

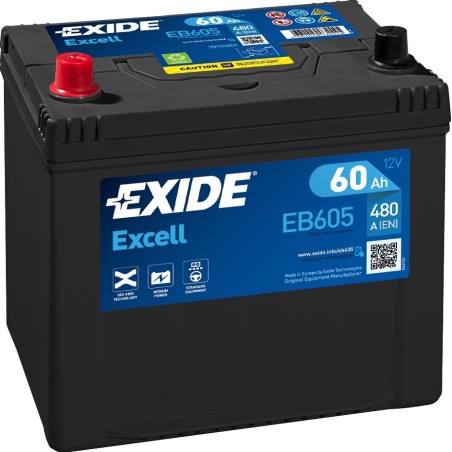

Exide EB605 · Car battery 12V 60Ah 480A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EB605 |
| Voltage (V) | 12 |
| Capacity (C20) | 60Ah (c20) |
| Technology | Lead-acid |
| Length | 230.00 cm |
| Width | 173.00 cm |
| Height | 222.00 cm |
| Weight | 15.00 Kgs |
€107.60
VAT included
Polarity: positive on the left. Check it matches your current battery before buying.
Exide EB605 12V 60Ah 480A is a ready-to-use passenger car battery, sealed and maintenance-free. Delivers the cranking amps the engine needs in cold weather and keeps stable voltage for modern car loads (ECU, sensors, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
60 Ah
Cold cranking
480 A
Dimensions
230×173×222 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
14,2 kg
Model
EXIDE Excell
Car battery Exide EB605 Excell 60Ah 480A 12V
12VVoltage
60AhCapacity
480ACold cranking
15kgWeight
The Exide EB605 car battery is rated at 12 V, 60 Ah and 480 A of cold cranking current (EN) from the Excell range, and is designed for passenger cars with conventional starting, without a Start-Stop system. Measuring 230 × 173 × 222 mm and the positive terminal on the left, it is the direct replacement for cars fitted from the factory with a 60 Ah battery of this format.
- Good balance of capacity, cranking power and price.
- Stable voltage for the vehicle electronics (ECU, sensors, climate control).
- Low self-discharge: copes with long stops without losing charge.
- Designed to last several years under normal daily use.
What the Exide EB605 is for
Designed for passenger cars with conventional starting, without a Start-Stop system, the Exide EB605 is the direct replacement when your vehicle uses a 60 Ah battery of this format. Before buying, compare dimensions, terminals and capacity with the battery you are replacing. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 15 kg.
Will it fit your current battery tray?
The Exide EB605 is made in the 230 × 173 × 222 mm format and weighs 15 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
The Exide EB605: Excell range and conventional lead-acid technology
The EB605 is part of the Exide Excell range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Why choose Exide batteries
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.
Manufacturer's warranty
The Exide EB605 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
How to make it last longer
Avoid leaving lights or accessories on with the engine off: most batteries fail not through defects but through repeated deep discharges. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-EXIDE-EB605
Data sheet
- Brand
- EXIDE
- Reference
- EB605
- Model
- EXIDE EXCELL
- Voltage (V)
- 12
- Length
- 230.00 cm
- Width
- 173.00 cm
- Height
- 222.00 cm
- Weight
- 15.00 Kgs
- Technology
- Lead-acid
- EAN
- 3661024034425
- Terminal layout
- Positive terminal on the left
- Cold cranking amps (EN)
- 480A
- Capacity (C20)
- 60Ah (c20)
Specific References
- EAN13
- 3661024034425
- MPN
- EB605
Codes and references Exide EB605
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE EXCELL |
| Manufacturer reference (MPN) | EB605 |
| EAN-13 barcode | 3661024034425 |
| Dimensions (length × width × height) | 230 × 173 × 222 mm (230x173x222) |
Comparison: Exide EB605 vs equivalents
The Exide EB605 is interchangeable with these equivalent references: TB605 (Tudor), D48 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EB605
This battery
|
12V 60Ah 480A | Lead-acid | €107.60 |
Tudor
TB605
|
12V 60Ah 480A | Lead-acid | €69.50 |
Varta
D48
|
12V 60Ah 540A | Lead-acid | €64.80 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Exide EB605 battery installed in the vehicle?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the EB605 model?
Expected lifespan of the Exide EB605 is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide EB605 battery?
Dimensions (length × width × height) are 230×173×222 mm — also written as 230x173x222 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Exide EB605 battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EB605 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the EB605 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
