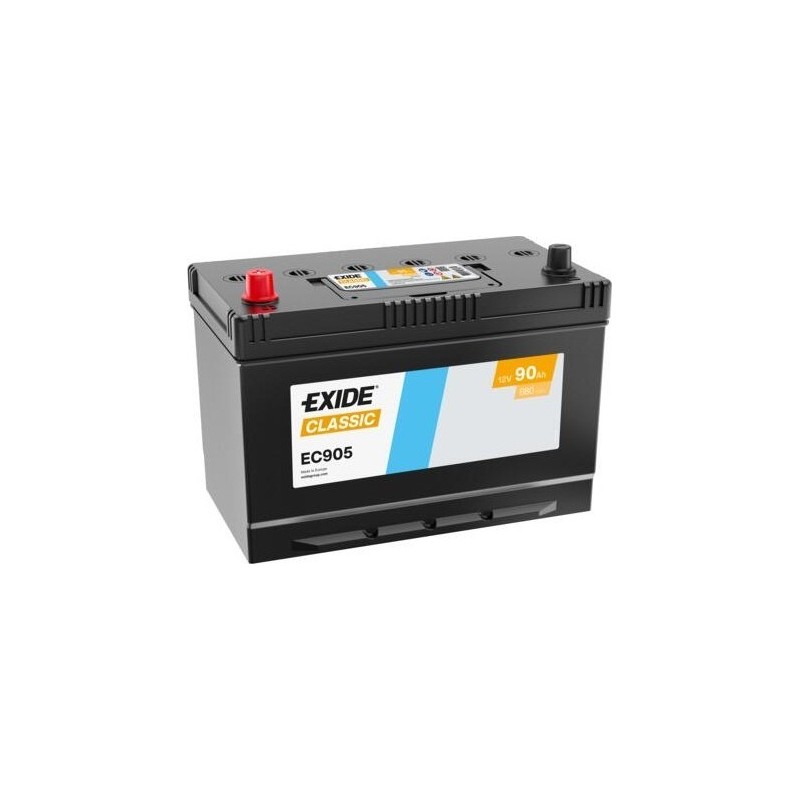

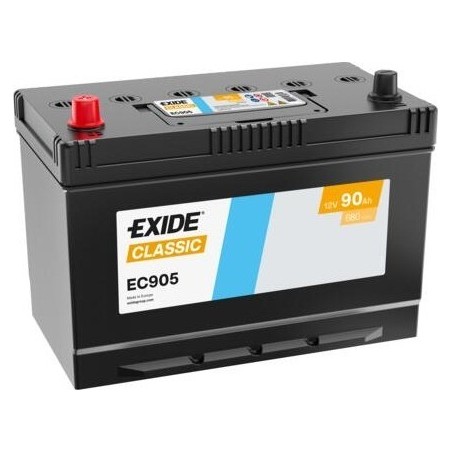

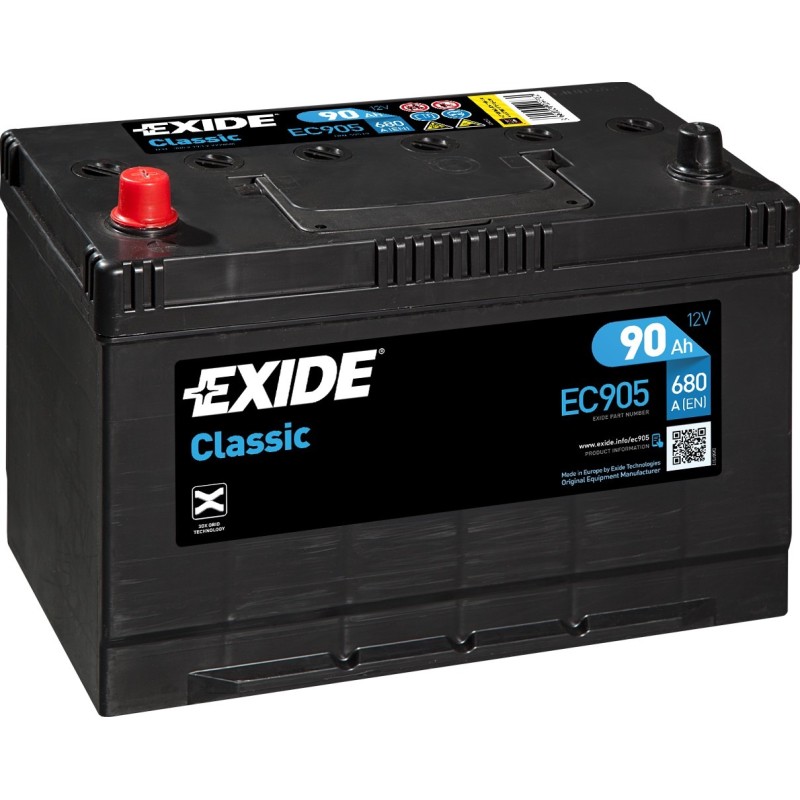

Exide EC905 Classic · Car battery 90Ah 680A

Specifications

BrandEXIDE
Part numberEC905
Voltage (V)12
Capacity (C20)90Ah (c20)
Cold cranking amps (EN)680A
TechnologyLead-acid
Length306 mm
Width173 mm
Height222 mm
See the full specifications →
Price: €103.70
VAT included
Quantity

Brand: EXIDE batteries Part number: EC905

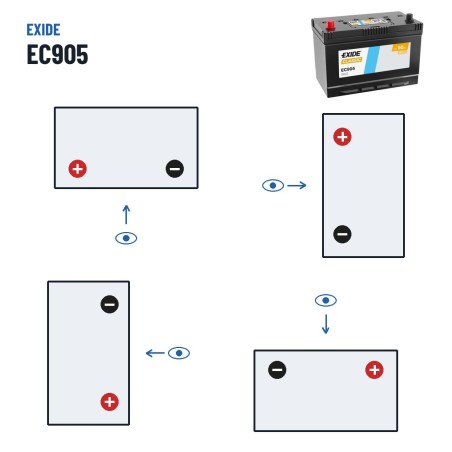

Polarity: positive on the left. Check it matches your current battery before buying.

Exide EC905 12V 90Ah 680A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.

Why this car battery?

  • Original-equipment qualitywithout dealership prices
  • Lasts 4 to 6 yearsbuy once instead of twice
  • Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
90 Ah C20
Cold cranking
680 A EN-1
Dimensions
306×173×222 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
19,9 kg
Model
EXIDE CLASSIC

Where it fits: the Exide EC905 is one of our car batteries, belongs to our Exide batteries and by capacity it sits among our 90Ah batteries.

The Exide EC905 in practice

When not to choose it

Not for Start-Stop or regenerative braking; those need EFB or AGM. Nor if the original had more capacity or cranking: never downwards.

Logo Exide

Classic car battery Exide EC905 Classic 90Ah 680A 12V

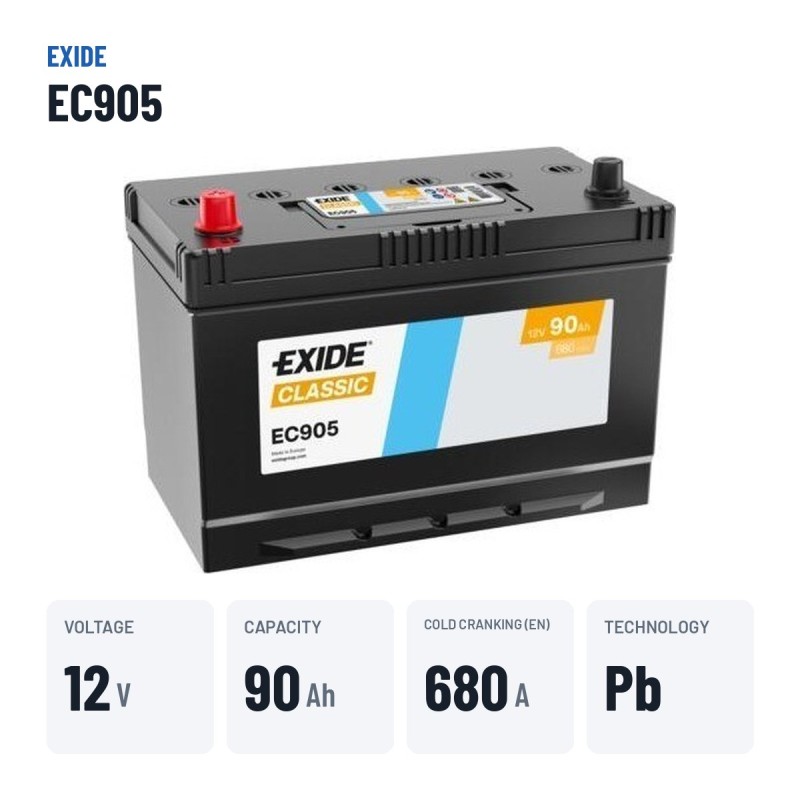

12VVoltage
90AhCapacity
680ACold cranking
19.90kgWeight

The Exide EC905 from the Classic range is rated at 12 V, 90 Ah and 680 A of cold cranking current (EN), a common choice for classic and vintage cars with their original electrical system. Its 306 × 173 × 222 mm and the positive terminal on the left make it the exact replacement for the 90 Ah battery fitted as standard to many classic cars.

In short: the Exide EC905 (90 Ah, 680 A, 306 × 173 × 222 mm, positive terminal on the left). Verified equivalent alternatives: Tudor TC905 and Tudor TA955.

  • Behaves well after long periods without use.
  • Good balance of capacity, cranking power and price.
  • Low self-discharge for cars that rarely leave the garage.
  • Safe starting for carburettor engines and classic ignition.

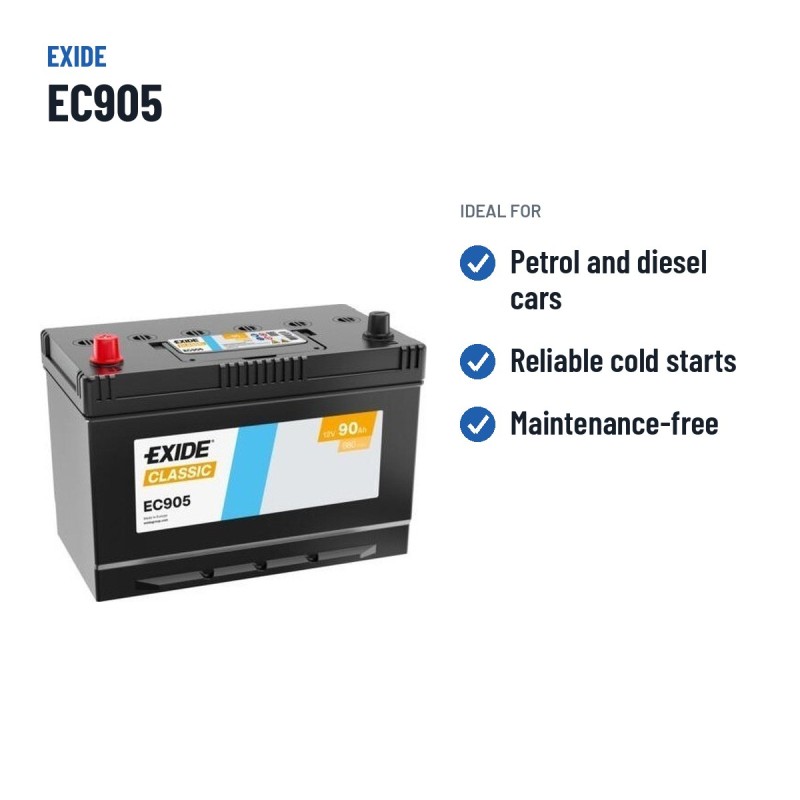

What the Exide EC905 is for

The Exide EC905 is designed for classic and vintage cars with their original electrical system: a format compatible with period trays and a stable voltage for original ignition and wiring. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 19.90 kg.

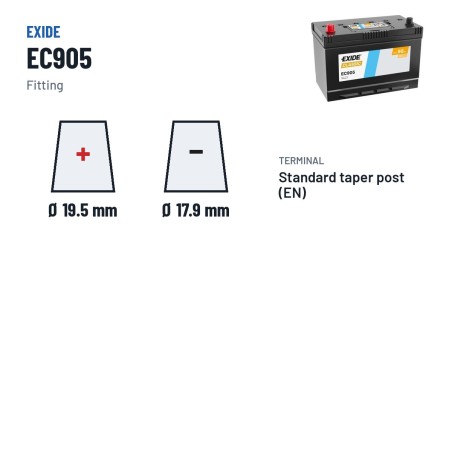

Size, terminals and hold-down of the Exide EC905

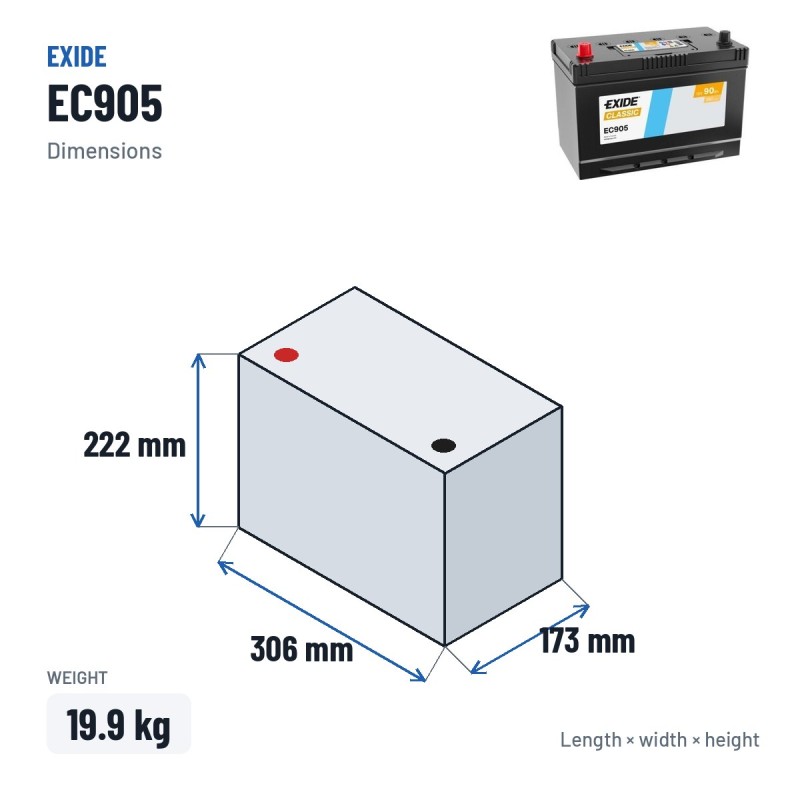

It has external dimensions of 306 × 173 × 222 mm and weighs 19.90 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

What Exide does differently

Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

The Exide EC905: Classic range and conventional lead-acid technology

The EC905 is part of the Exide Classic range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.

Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.

Usage and maintenance tips

On batteries with filler caps, check the electrolyte level and top up only with distilled water. Check the resting voltage and terminals periodically; corrosion in old wiring is the most frequent cause of weak starts.

Manufacturer's warranty

The Exide EC905 comes with the manufacturer's official warranty against manufacturing defects. The warranty does not cover deep discharge through inactivity: in a classic, a trickle charger is the best protection.

Delivery times and returns

Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

  • Reference
    BCOM-EXIDE-EC905

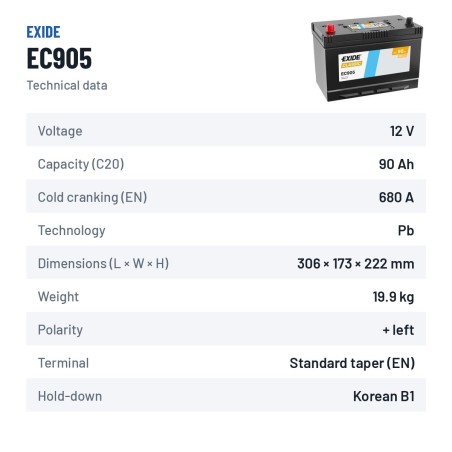

Data sheet

  • Brand
    EXIDE
  • Reference
    EC905
  • Model
    EXIDE CLASSIC
  • Voltage (V)
    12
  • Length
    306 mm
  • Width
    173 mm
  • Height
    222 mm
  • Weight
    19.90 Kgs
  • Technology
    Lead-acid
  • EAN
    3661024034760
  • Terminal layout
    Positive terminal on the left
  • Cold cranking amps (EN)
    680A
  • Capacity (C20)
    90Ah (c20)
  • Case type
    D31

Specific References

  • EAN13
    3661024034760
  • MPN
    EC905

Download

Datasheet Exide EC905

PDF datasheet of the Exide EC905 battery

Download (128.32KB)

Codes and references Exide EC905

Brand Exide · see all Exide batteries
Manufacturer range EXIDE CLASSIC
Manufacturer part number (MPN) EC905
EAN-13 barcode 3661024034760
Dimensions (length × width × height) 306 × 173 × 222 mm (306x173x222)

Exide EC905: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Exide EC905 is interchangeable with these equivalent references: TC905 (Tudor), TA955 (Tudor), TB955 (Tudor), EA955 (Exide), EB955 (Exide). Higher-technology alternatives that can replace it: EL954 (Exide), N85 (Varta).

Product Specifications Technology Price
Exide EC905 Exide EC905 This battery 12V 90Ah 680A Lead-acid 103,70 €
Exide EB955 Exide EB955 Bigger sister ★ 5,0 12V 95Ah 760A Lead-acid 82,99 € −20,71 €

Exide EC905 vs Exide EB955

Bigger sister · −20,71 €

Same family as the EC905, one step up in performance. Compared with the EC905 it has 5 Ah more and 80 A of cold cranking more. It costs 20,71 € less. Worth it if your car originally had more capacity, is a diesel or cranks lazily in winter; otherwise the EC905 does the job.

EC905EB955
Capacity90 Ah95 Ah
Cold cranking (EN)680 A760 A
TechnologyLead-acidLead-acid
Dimensions (mm)306 × 173 × 222306 × 173 × 222
Positive terminalPositive terminal on the leftPositive terminal on the left
Price103,70 €82,99 €
Exide EA955 Exide EA955 Bigger sister ★ 2,0 12V 95Ah 800A Lead-acid 102,99 € −0,71 €

Exide EC905 vs Exide EA955

Bigger sister · −0,71 €

Same family as the EC905, one step up in performance. Compared with the EC905 it has 5 Ah more and 120 A of cold cranking more. It costs 0,71 € less. Worth it if your car originally had more capacity, is a diesel or cranks lazily in winter; otherwise the EC905 does the job.

EC905EA955
Capacity90 Ah95 Ah
Cold cranking (EN)680 A800 A
TechnologyLead-acidLead-acid
Dimensions (mm)306 × 173 × 222306 × 173 × 222
Positive terminalPositive terminal on the leftPositive terminal on the left
Price103,70 €102,99 €
Exide EL954 Exide EL954 Upgrade: EFB 12V 95Ah 800A EFB Upgrade 140,60 € +36,90 €

Exide EC905 vs Exide EL954

Upgrade: EFB · +36,90 €

It is the EFB version of the same case: it withstands far more start cycles than the EC905. Compared with the EC905 it has 5 Ah more and 120 A of cold cranking more. It costs 36,90 € more. You need it if the original battery label says EFB; in a car without Start-Stop the EC905 does the job and EFB only adds service life.

EC905EL954
Capacity90 Ah95 Ah
Cold cranking (EN)680 A800 A
TechnologyLead-acidEFB
Dimensions (mm)306 × 173 × 222306 × 173 × 222
Positive terminalPositive terminal on the leftPositive terminal on the right
Price103,70 €140,60 €
Varta N85 Varta N85 Upgrade: EFB ★ 4,8 12V 85Ah 800A EFB Upgrade 130,99 € +27,29 €

Exide EC905 vs Varta N85

Upgrade: EFB · +27,29 €

The EFB of this size, built for the simple Start-Stop that a conventional battery like the EC905 cannot take. Compared with the EC905 it has 5 Ah less and 120 A of cold cranking more. It costs 27,29 € more. Essential if your car has basic Start-Stop or came with EFB; without Start-Stop it is a durability upgrade you can skip.

EC905N85
Capacity90 Ah85 Ah
Cold cranking (EN)680 A800 A
TechnologyLead-acidEFB
Dimensions (mm)306 × 173 × 222306 × 173 × 225
Positive terminalPositive terminal on the leftPositive terminal on the right
Price103,70 €130,99 €
Tudor TB955 Tudor TB955 Tudor equivalent ★ 5,0 12V 95Ah 760A Lead-acid 81,99 € −21,71 €

Exide EC905 vs Tudor TB955

Tudor equivalent · −21,71 €

It is the verified Tudor equivalent for the EC905 tray. Compared with the EC905 it has 5 Ah more and 80 A of cold cranking more. It costs 21,71 € less. Decide by price, brand preference and availability: both fit and crank the same.

EC905TB955
Capacity90 Ah95 Ah
Cold cranking (EN)680 A760 A
TechnologyLead-acidLead-acid
Dimensions (mm)306 × 173 × 222306 × 173 × 222
Positive terminalPositive terminal on the leftPositive terminal on the left
Price103,70 €81,99 €
Tudor TC905 Tudor TC905 Tudor equivalent 12V 90Ah 680A Lead-acid 97,80 € −5,90 €
Tudor TA955 Tudor TA955 Tudor equivalent ★ 5,0 12V 95Ah 800A Lead-acid 100,70 € −3,00 €

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 90Ah batteries: We stock 18 models of 90 Ah to compare by price, technology and cold cranking: see all 90Ah batteries. Same size (306 × 173 × 222 mm): batteries of 306 × 173 × 222 mm.

Recommended accessories — complement the Exide EC905 with a charger or tester

Fitting it yourself? Step-by-step guide to replacing the battery →

Frequently asked questions

How do I fit the EC905 model in my car?

On most cars it is a 15-30 minute job needing only a 10 mm spanner (up to twice as long when the battery is under a seat or in the boot). Before you start, check the car handbook: the manufacturer's procedure always comes first. Our full step-by-step guide is on the blog. The right order: engine off and key out; disconnect the negative (−) first, then the positive (+); release the hold-down clamp, lift out the old battery and seat the new one in the same position (positive on the left), keeping the polarity; reconnect the positive (+) first and the negative (−) last.

What is the service life of the EC905 model?

There is no exact figure: for a battery such as the Exide EC905 (conventional), a reasonable guide is 4 to 6 years in regular car use without Start-Stop. Actual lifespan varies with climate (cold starts, heat evaporating the electrolyte), with usage and short journeys, with the condition of the alternator and charging system, with power draw while parked and with maintenance; the type of car and Start-Stop also count.

What are the dimensions of the Exide EC905 battery?

Its dimensions are 306×173×222 mm, also written 306x173x222 mm; the height already includes the terminals. Check the room available in your car, because a single millimetre too much can stop the clamp from closing.

On which side is the positive of the EC905 model?

It has the positive on the left (polarity). Put it in front of you, terminals towards you: the post with the red ring and the + sign is the positive. A change of polarity from the original means longer cables or a reconfigured system and can cause a short circuit: check it before ordering.

Is the EC905 valid for my vehicle?

The quickest way is to enter your number plate in the finder: DGT/DVLA/KBA detect model and engine. You can also look at the "Compatible vehicles" tab, verified by our technical team, or send us make, model, engine and year on WhatsApp; we answer during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The EC905 typically fits a wide range of European vehicles thanks to its standard DIN case format. Always cross-check with what the car manufacturer states in the owner's handbook.

Which batteries are equivalent to the Exide EC905?

See the "Equivalents" section of this page for the recommended options at the same performance level. Mind the technology: in Start-Stop cars an EFB is not swapped for a conventional battery. Interchangeable means the same dimensions, same polarity, same Ah and same CCA; for the EC905, 90 Ah (680 A cranking).

Exide EC905 or Exide EB955: which one to choose?

Same family as the EC905, one step up in performance. Compared with the EC905 it has 5 Ah more and 80 A of cold cranking more. It costs 20,71 € less. Worth it if your car originally had more capacity, is a diesel or cranks lazily in winter; otherwise the EC905 does the job.

Exide EC905 or Exide EA955: which one to choose?

Same family as the EC905, one step up in performance. Compared with the EC905 it has 5 Ah more and 120 A of cold cranking more. It costs 0,71 € less. Worth it if your car originally had more capacity, is a diesel or cranks lazily in winter; otherwise the EC905 does the job.
