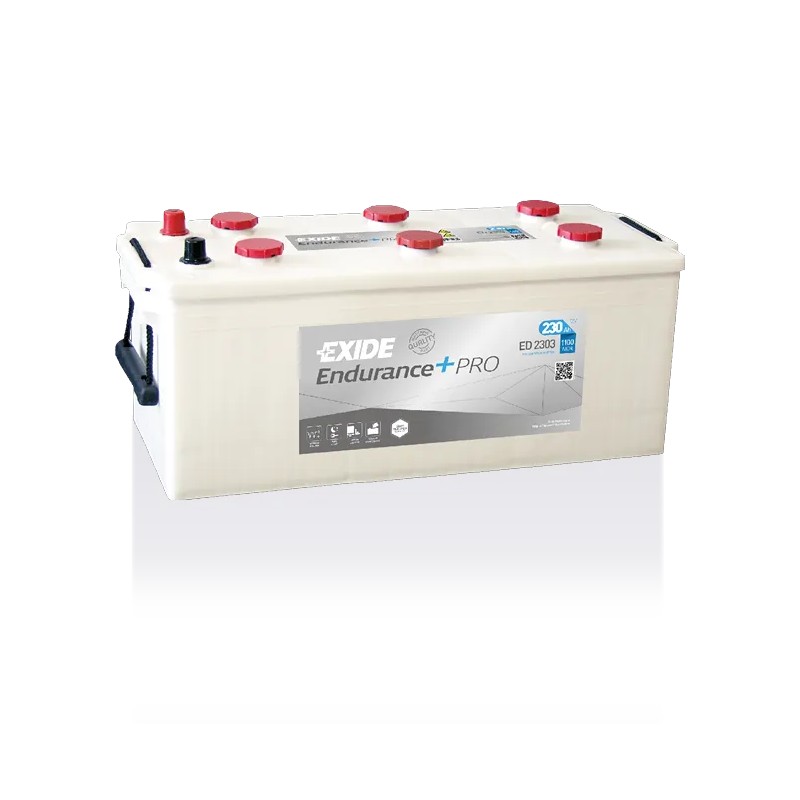

Exide ED2303 Endurance+PRO · Truck battery 230Ah 1100A

Specifications

BrandEXIDE
Part numberED2303
Voltage (V)12
Capacity (C20)230Ah (c20)
Cold cranking amps (EN)1100A
TechnologyFlooded
Length518.00 mm
Width274.00 mm
Height240.00 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Exide ED2303 12V 230Ah 1100A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
230 Ah C20
Cold cranking
1100 A EN-1
Dimensions
518×274×240 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
64,8 kg
Model
EXIDE Endurance+PRO Gel

Where it fits: the Exide ED2303 is one of our truck batteries, belongs to our Exide batteries and by capacity it sits among our 230Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Truck battery Exide ED2303 12V 230Ah 1100A

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Exide

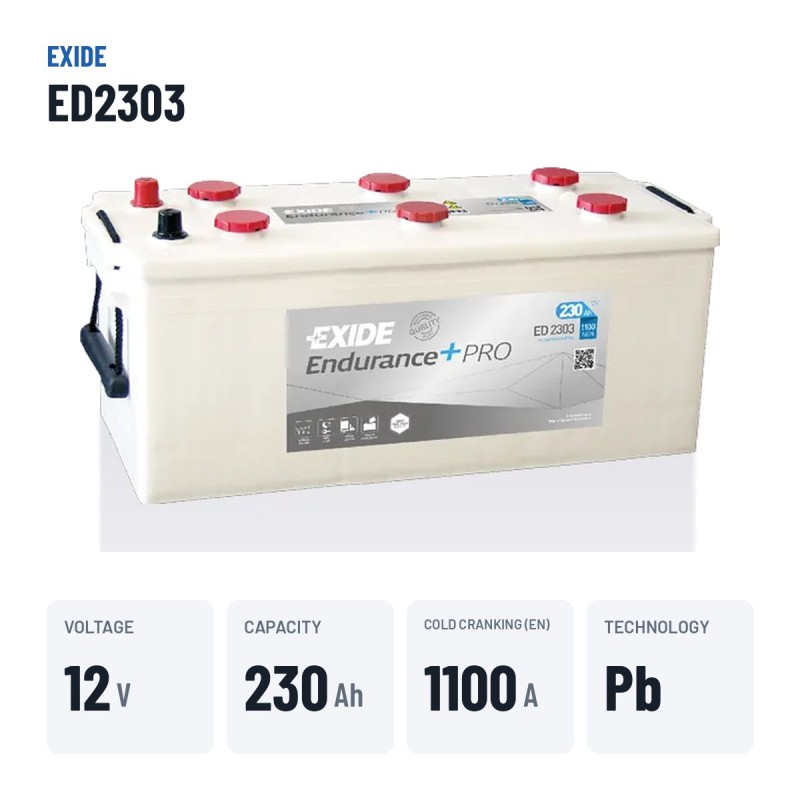

Truck battery Exide ED2303 Endurance+PRO 230Ah 1,100A 12V

12VVoltage
230AhCapacity
1,100ACold cranking
64.80kgWeight

The Exide ED2303 with conventional lead-acid technology delivers 230 Ah at 12 V and 1,100 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. Its 518 × 274 × 240 mm and the positive terminal on the left make it the exact replacement for the 230 Ah battery fitted as standard to many trucks.

In short: the Exide ED2303 (230 Ah, 1100 A, 518 × 274 × 240 mm, positive terminal on the left). Verified equivalent alternatives: Tudor TF2353 and Exide EF2353.

  • Better tolerance to deep discharge than a conventional starter battery.
  • Powers tachograph, fridge and heater during rest stops.
  • Resistant to constant chassis vibration.
  • Good balance of capacity, cranking power and price.

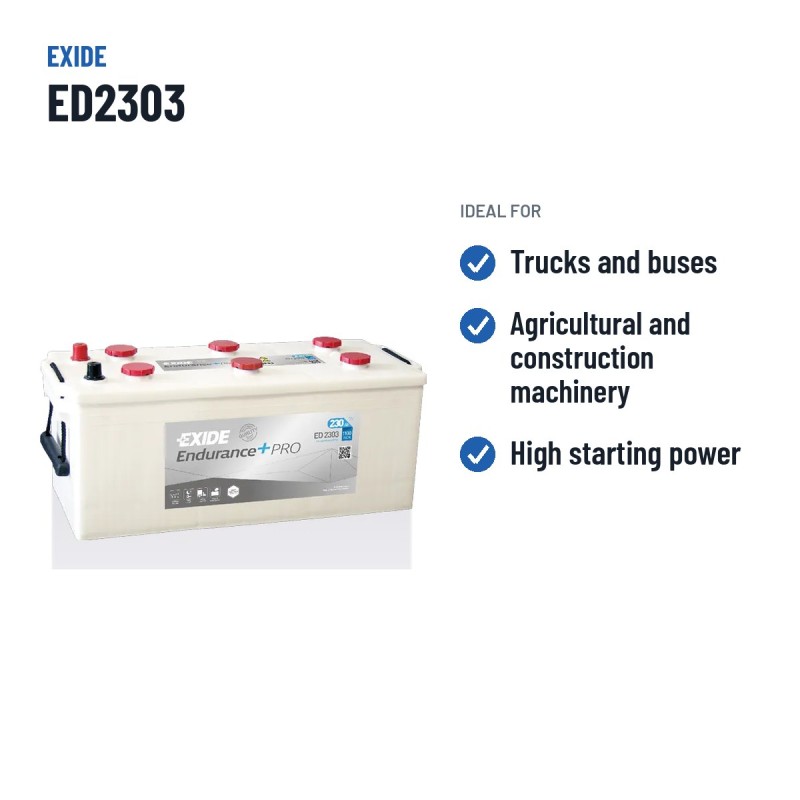

What the Exide ED2303 is for

Designed for trucks, buses, tractors and heavy machinery, the Exide ED2303 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 64.80 kg, EN taper post terminals and B0 hold-down.

The Exide ED2303: Endurance+PRO range and conventional lead-acid technology

The Endurance+PRO is the Exide range the ED2303 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

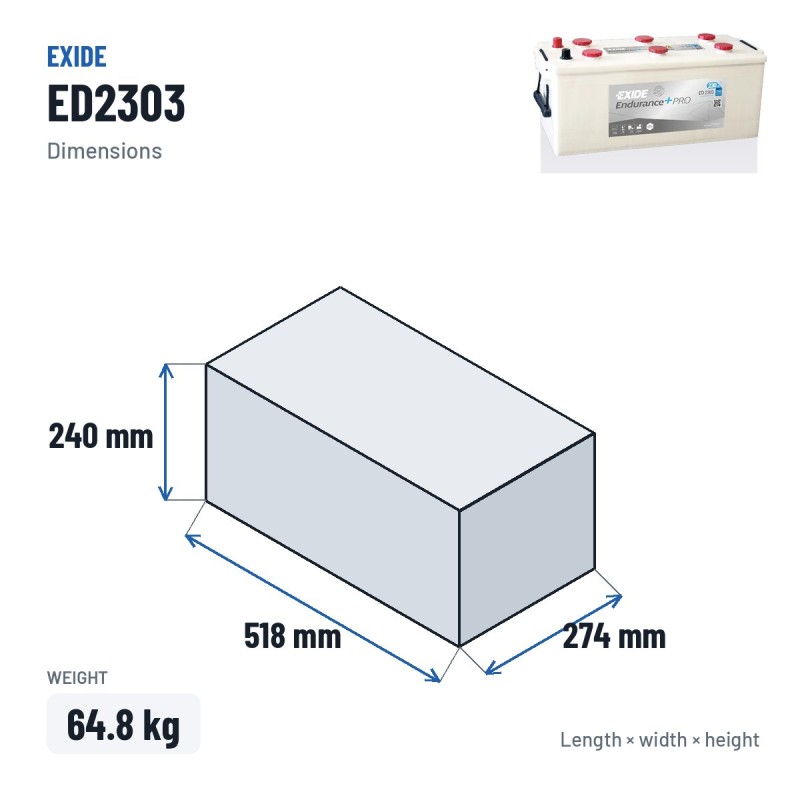

Dimensions, polarity and mounting

In terms of format, the Exide ED2303 measures 518 × 274 × 240 mm (length × width × height) and weighs 64.80 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

Exide: the maker behind the ED2303

Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.

How to make it last longer

On batteries with filler caps, check the electrolyte level and top up only with distilled water. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.

Official warranty

The Exide ED2303 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

Delivery times and returns

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-EXIDE-ED2303

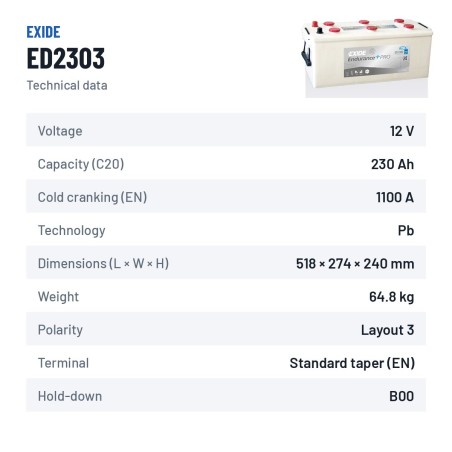

Data sheet

  • Brand
    EXIDE
  • Reference
    ED2303
  • Model
    EXIDE Endurance+PRO
  • Voltage (V)
    12
  • Length
    518.00 mm
  • Width
    274.00 mm
  • Height
    240.00 mm
  • Weight
    64.80 Kgs
  • Technology
    Flooded
  • EAN
    3661024035231

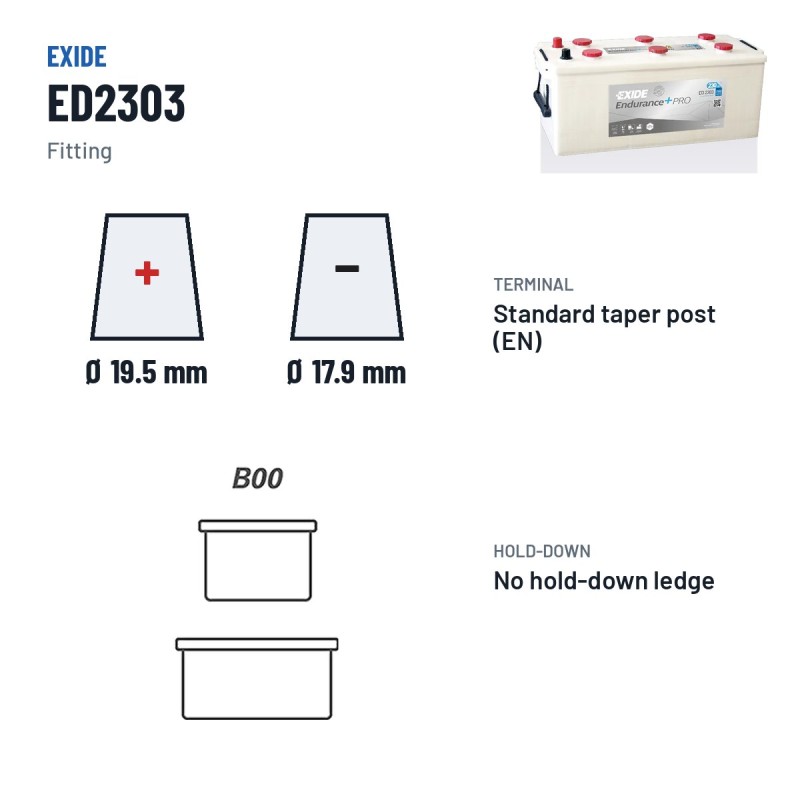

  • Terminal layout
    Positive terminal on the left
  • Terminal type
    EN taper post
  • Hold-down
    B0
  • Cold cranking amps (EN)
    1100A
  • Capacity (C20)
    230Ah (c20)
  • Case type
    D06

Specific References

  • EAN13
    3661024035231
  • MPN
    ED2303

Download

Datasheet Exide ED2303 (English)

PDF datasheet of the Exide ED2303 battery – English

Download (165.45KB)

Codes and references Exide ED2303

Brand Exide · see all Exide batteries
Manufacturer range EXIDE Endurance+PRO
Manufacturer part number (MPN) ED2303
EAN-13 barcode 3661024035231
Dimensions (length × width × height) 518 × 274 × 240 mm (518x274x240)

Exide ED2303: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Exide ED2303 is interchangeable with these equivalent references: TF2353 (Tudor), EF2353 (Exide), LFD230 (Varta). Higher-technology alternatives that can replace it: TE2353 (Tudor), C40 (Varta), EE2353 (Exide), EX2253 (Exide), TX2253 (Tudor).

Product Specifications Technology Price
Exide ED2303 Exide ED2303 This battery 12V 230Ah 1100A Lead-acid
Exide EE2353 Exide EE2353 Upgrade: EFB 12V 235Ah 1200A EFB Upgrade €331.80 +€331.80

Exide ED2303 vs Exide EE2353

Upgrade: EFB · +€331.80

It is the EFB version of the same case: it withstands far more partial discharges than the ED2303. Compared with the ED2303 it has 5 Ah more and 100 A of cold cranking more. It costs €331.80 more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the ED2303 does the job and EFB only adds service life.

ED2303EE2353
Capacity230 Ah235 Ah
Cold cranking (EN)1100 A1200 A
TechnologyLead-acidEFB
Dimensions (mm)518 × 274 × 240518 × 274 × 240
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€331.80
Exide EF2353 Exide EF2353 Bigger sister 12V 235Ah 1300A Lead-acid €279.60 +€279.60

Exide ED2303 vs Exide EF2353

Bigger sister · +€279.60

The next step up from the ED2303 in the same range and the same case. Compared with the ED2303 it has 5 Ah more and 200 A of cold cranking more. It costs €279.60 more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the ED2303 does the job.

ED2303EF2353
Capacity230 Ah235 Ah
Cold cranking (EN)1100 A1300 A
TechnologyLead-acidLead-acid
Dimensions (mm)518 × 274 × 240518 × 274 × 240
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€279.60
Exide EX2253 Exide EX2253 Upgrade: EFB 12V 225Ah 1100A EFB Upgrade €311.20 +€311.20

Exide ED2303 vs Exide EX2253

Upgrade: EFB · +€311.20

It is the EFB version of the same case: it withstands far more partial discharges than the ED2303. Compared with the ED2303 it has 5 Ah less. It costs €311.20 more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the ED2303 does the job and EFB only adds service life.

ED2303EX2253
Capacity230 Ah225 Ah
Cold cranking (EN)1100 A1100 A
TechnologyLead-acidEFB
Dimensions (mm)518 × 274 × 240518 × 274 × 240
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€311.20
Varta C40 Varta C40 Upgrade: EFB 12V 240Ah 1200A EFB Upgrade €300.60 +€300.60

Exide ED2303 vs Varta C40

Upgrade: EFB · +€300.60

It is the EFB version of the same case: it withstands far more partial discharges than the ED2303. Compared with the ED2303 it has 10 Ah more and 100 A of cold cranking more. It costs €300.60 more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the ED2303 does the job and EFB only adds service life.

ED2303C40
Capacity230 Ah240 Ah
Cold cranking (EN)1100 A1200 A
TechnologyLead-acidEFB
Dimensions (mm)518 × 274 × 240518 × 276 × 242
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€300.60
Varta LFD230 Varta LFD230 Varta equivalent 12V 230Ah 1150A Lead-acid €289.30 +€289.30

Exide ED2303 vs Varta LFD230

Varta equivalent · +€289.30

It is the verified Varta equivalent for the ED2303 tray. Compared with the ED2303 it has 50 A of cold cranking more. It costs €289.30 more. Decide by price, brand preference and availability: both fit and crank the same.

ED2303LFD230
Capacity230 Ah230 Ah
Cold cranking (EN)1100 A1150 A
TechnologyLead-acidLead-acid
Dimensions (mm)518 × 274 × 240518 × 276 × 242
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€289.30
Tudor TE2353 Tudor TE2353 Upgrade: EFB 12V 235Ah 1200A EFB Upgrade €348.30 +€348.30
Tudor TF2353 Tudor TF2353 Tudor equivalent 12V 235Ah 1300A Lead-acid €293.60 +€293.60
Tudor TX2253 Tudor TX2253 Upgrade: EFB 12V 225Ah 1150A EFB Upgrade €326.70 +€326.70

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 230Ah batteries: We stock 4 models of 230 Ah to compare by price, technology and cold cranking: see all 230Ah batteries. Same size (518 × 274 × 240 mm): batteries of 518 × 274 × 240 mm.

Recommended accessories — complement the Exide ED2303 with a charger or tester

Compatible vehicles

The Exide ED2303 fits 355 vehicles. Most searched below:

See all 355 compatible vehicles

Frequently asked questions

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

How long does the Exide ED2303 battery last?

Estimated lifespan of the Exide ED2303: 4 to 6 years in normal lorry use. Treat it as an approximate guide, as every case is different. Many factors play a part: how it is used (lots of short trips, for example), temperature (cold makes every start harder and intense heat evaporates the electrolyte), the condition of the alternator and charging system, power drawn with the engine off and maintenance, as well as the type of truck and whether it has Start-Stop.

What are the dimensions of the Exide ED2303 battery?

Check the room available in your truck, because a single millimetre too much can stop the clamp from closing. Its dimensions are 518×274×240 mm, also written 518x274x240 mm; the height already includes the terminals.

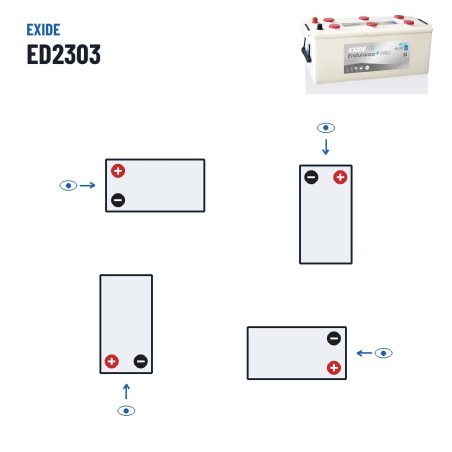

On which side is the positive of the ED2303 model?

The ED2303 has the positive on the left: that is its polarity. If your current battery has its positive on the other side, this one is not suitable without longer cables or a reconfigured system (short-circuit risk). Face the battery with its terminals nearest you and see which side the positive post (+, red ring) is on.

Does this battery fit my truck?

For your own vehicle: type your number plate into the finder (DGT/DVLA/KBA identify model and engine), check the "Compatible vehicles" tab below, listing vehicles verified by our technical team, or message us on WhatsApp with make, model, engine and year; we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). Always cross-check with what the truck manufacturer states in the owner's handbook. According to our data, 355 verified vehicle versions are compatible with the ED2303.

Which batteries are equivalent to the Exide ED2303?

To replace the Exide ED2303 without modifications, the other battery must be identical in size, polarity, Ah and CCA. Technology matters too: in Start-Stop trucks, an EFB cannot be replaced with a conventional battery. The options at the same level are in the "Equivalents" section of this page.
