Exide EX2253 Strong Pro · Truck battery 225Ah 1100A EFB

Specifications

BrandEXIDE
Part numberEX2253
Voltage (V)12
Capacity (C20)225Ah (c20)
Cold cranking amps (EN)1100A
TechnologyEFB
Length518 mm
Width279 mm
Height240 mm
See the full specifications →
Price: €311.20
VAT included
Quantity

Brand: EXIDE batteries Part number: EX2253

Exide EX2253 12V 225Ah 1100A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
225 Ah C20
Cold cranking
1100 A EN-1
Dimensions
518×274×240 mm
Technology
EFB
Polarity
Positive on the left
Weight
60,1 kg
Model
EXIDE STRONG PRO

Where it fits: the Exide EX2253 is one of our truck batteries, belongs to our Exide batteries and by capacity it sits among our 225Ah batteries.

Logo Exide

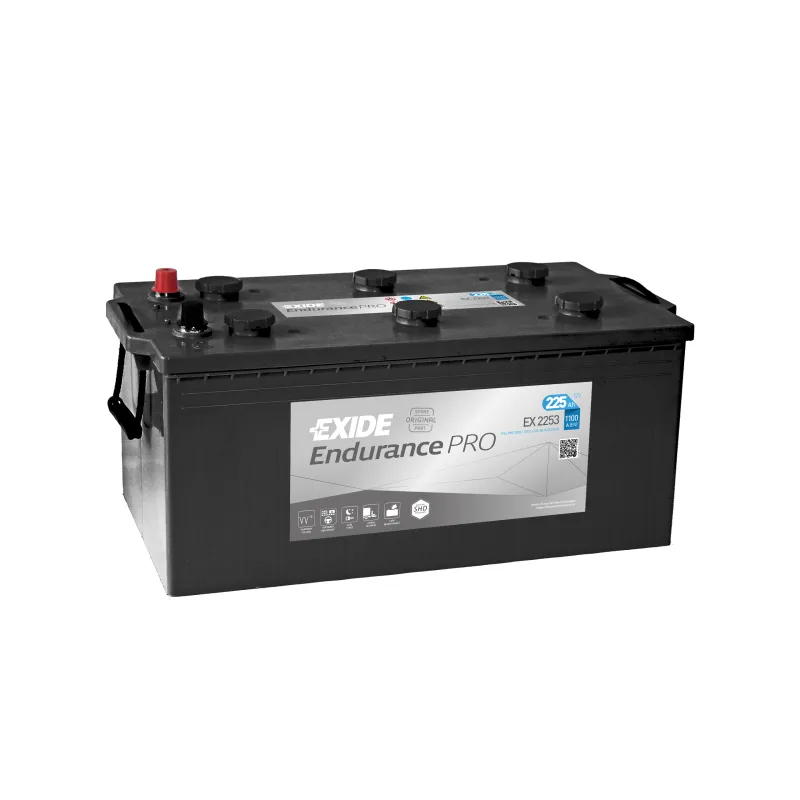

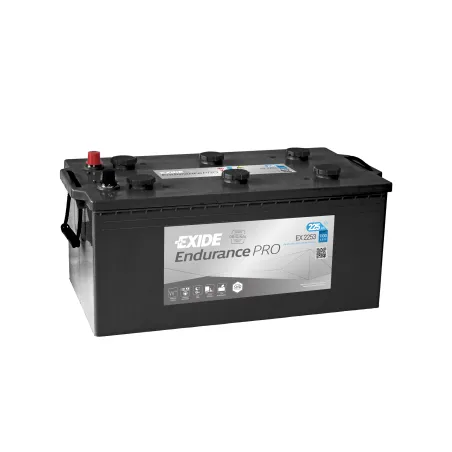

Truck battery Exide EX2253 Strong PRO 225Ah 1,100A 12V

12VVoltage
225AhCapacity
1,100ACold cranking
60.10kgWeight

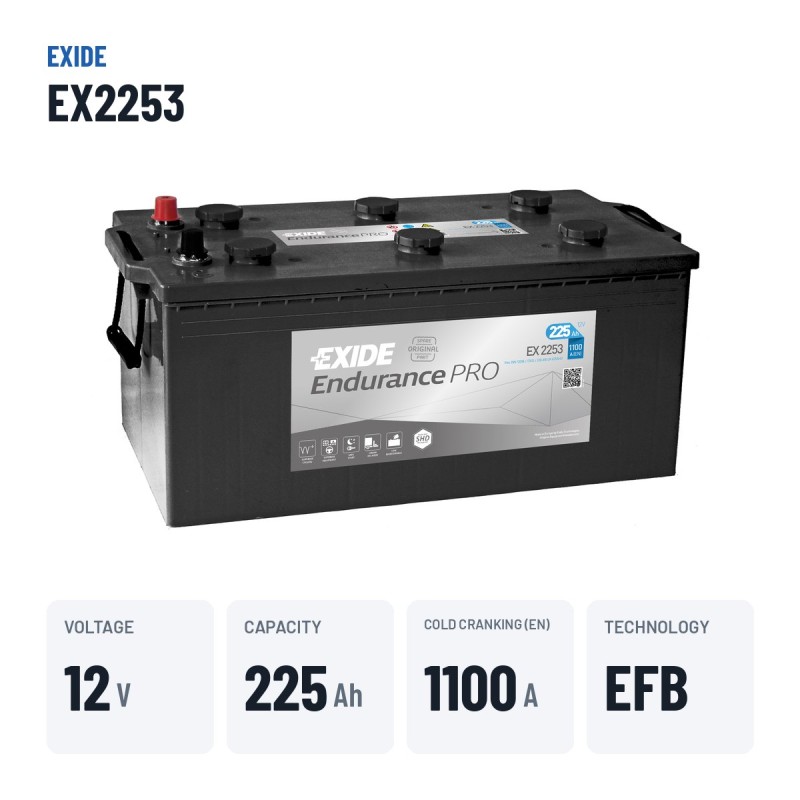

The Exide EX2253 truck battery is rated at 12 V, 225 Ah and 1,100 A of cold cranking current (EN) from the Strong PRO range, and is prepared for trucks, buses, tractors and heavy machinery. Measuring 518 × 279 × 240 mm and the positive terminal on the left, it is the direct replacement for trucks fitted from the factory with a 225 Ah battery of this format.

In short: the Exide EX2253 (225 Ah, 1100 A, 518 × 274 × 240 mm, positive terminal on the left). Verified equivalent alternatives: Tudor TX2253 and Tudor TE2353.

  • EFB: the evolution of the conventional battery for basic Start-Stop cars.
  • Resistant to constant chassis vibration.
  • Powers tachograph, fridge and heater during rest stops.
  • Better tolerance to deep discharge than a conventional starter battery.

What the Exide EX2253 is for

With 225 Ah, the Exide EX2253 cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 60.10 kg, 1 terminals and B0 hold-down.

Will it fit your current battery tray?

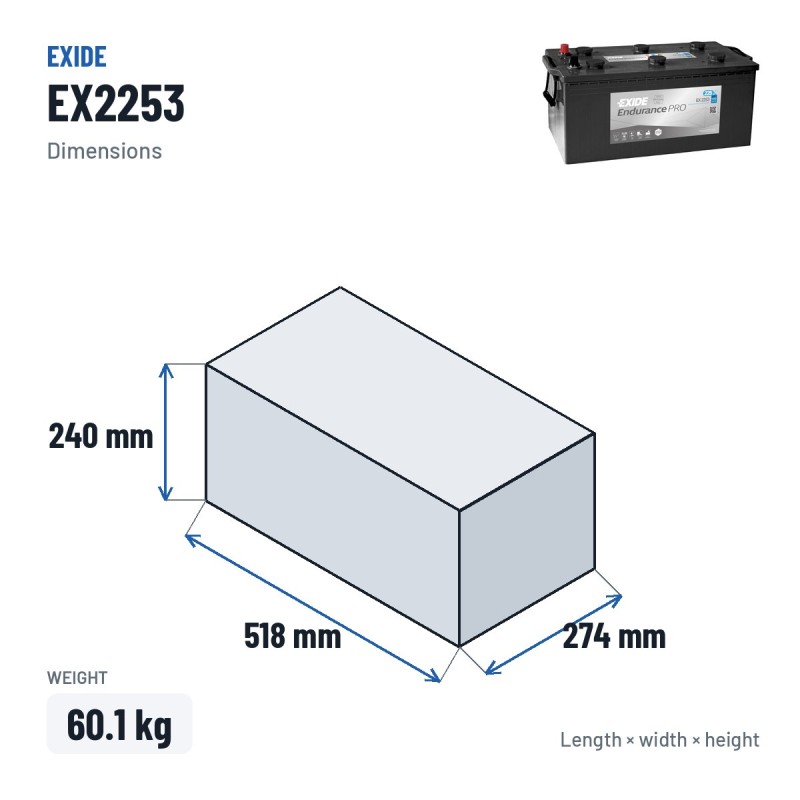

It has external dimensions of 518 × 279 × 240 mm and weighs 60.10 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

Exide: the maker behind the EX2253

With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

The Exide EX2253: Strong PRO range and EFB technology

The Strong PRO is the Exide range the EX2253 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

EFB combines the robustness of the flooded battery with improved plates and separators. The result is a clearly longer service life in vehicles that start and stop constantly.

Care and maintenance

Keep the terminals clean and tight and the battery firmly secured against chassis vibration. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.

Warranty and coverage

The Exide EX2253 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

When you get it and how to return it

Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

  • Reference
    BCOM-EXIDE-EX2253

Data sheet

  • Brand
    EXIDE
  • Reference
    EX2253
  • Model
    EXIDE STRONG PRO
  • Voltage (V)
    12
  • Length
    518 mm
  • Width
    279 mm
  • Height
    240 mm
  • Weight
    60.10 Kgs
  • Technology
    EFB
  • EAN
    3661024036702

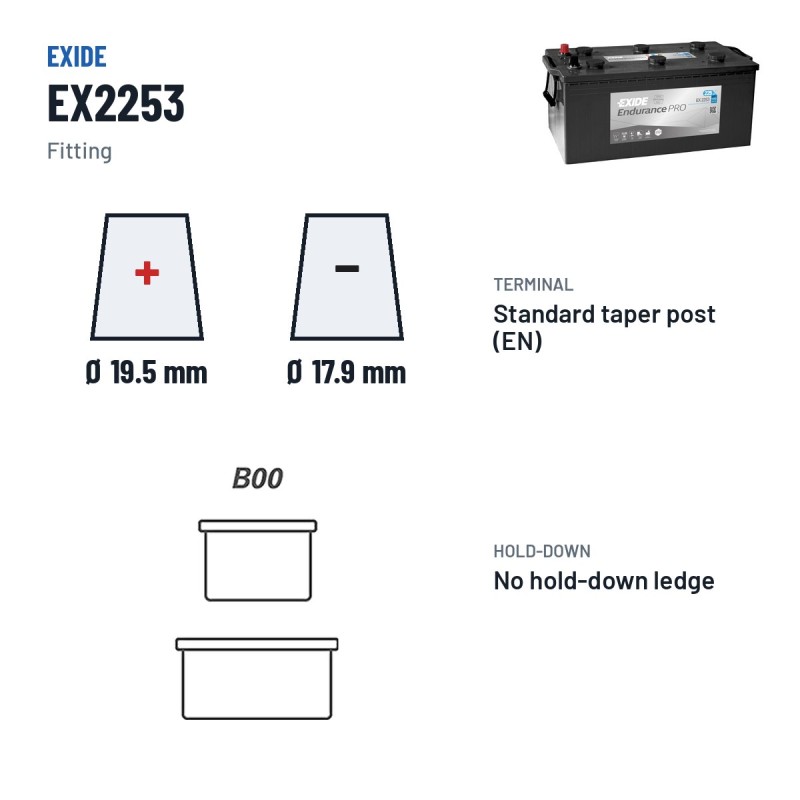

  • Terminal layout
    Positive terminal on the left
  • Terminal type
    1
  • Hold-down
    B0
  • Cold cranking amps (EN)
    1100A
  • Capacity (C20)
    225Ah (c20)
  • Case type
    C

Specific References

  • EAN13
    3661024036702
  • MPN
    EX2253

Download

Datasheet Exide EX2253 (English)

PDF datasheet of the Exide EX2253 battery – English

Download (175.54KB)

Codes and references Exide EX2253

Brand Exide · see all Exide batteries
Manufacturer range EXIDE STRONG PRO
Manufacturer part number (MPN) EX2253
EAN-13 barcode 3661024036702
Dimensions (length × width × height) 518 × 274 × 240 mm (518x274x240)

Exide EX2253: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Exide EX2253 is interchangeable with these equivalent references: TX2253 (Tudor), TE2353 (Tudor), C40 (Varta), EE2353 (Exide). Higher-technology alternatives that can replace it: EP2100 (Exide).

Product Specifications Technology Price
Exide EX2253 Exide EX2253 This battery 12V 225Ah 1100A EFB 311,20 €
Exide EP2100 Exide EP2100 Upgrade: AGM 12V 240Ah 1200A AGM Upgrade 384,80 € +73,60 €

Exide EX2253 vs Exide EP2100

Upgrade: AGM · +73,60 €

It is the AGM of the same case: more cycles, more cranking and better resistance to power draw at standstill than the EX2253. Compared with the EX2253 it has 15 Ah more and 100 A of cold cranking more. It costs 73,60 € more. Essential if the vehicle requires AGM from the factory or draws a lot with the engine off; in conventional use the EX2253 does the job and AGM adds service life.

EX2253EP2100
Capacity225 Ah240 Ah
Cold cranking (EN)1100 A1200 A
TechnologyEFBAGM
Dimensions (mm)518 × 274 × 240518 × 274 × 240
Positive terminalPositive terminal on the leftPositive terminal on the left
Price311,20 €384,80 €
Exide EE2353 Exide EE2353 Bigger sister 12V 235Ah 1200A EFB 331,80 € +20,60 €

Exide EX2253 vs Exide EE2353

Bigger sister · +20,60 €

It is the bigger sister of the EX2253 in the same Exide range. Compared with the EX2253 it has 10 Ah more and 100 A of cold cranking more. It costs 20,60 € more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the EX2253 does the job.

EX2253EE2353
Capacity225 Ah235 Ah
Cold cranking (EN)1100 A1200 A
TechnologyEFBEFB
Dimensions (mm)518 × 274 × 240518 × 274 × 240
Positive terminalPositive terminal on the leftPositive terminal on the left
Price311,20 €331,80 €
Varta C40 Varta C40 Varta equivalent 12V 240Ah 1200A EFB 300,60 € −10,60 €

Exide EX2253 vs Varta C40

Varta equivalent · −10,60 €

The Varta alternative that fits where the EX2253 goes, with the same polarity. Compared with the EX2253 it has 15 Ah more and 100 A of cold cranking more. It costs 10,60 € less. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

EX2253C40
Capacity225 Ah240 Ah
Cold cranking (EN)1100 A1200 A
TechnologyEFBEFB
Dimensions (mm)518 × 274 × 240518 × 276 × 242
Positive terminalPositive terminal on the leftPositive terminal on the left
Price311,20 €300,60 €
Tudor TX2253 Tudor TX2253 Tudor equivalent 12V 225Ah 1150A EFB 326,70 € +15,50 €

Exide EX2253 vs Tudor TX2253

Tudor equivalent · +15,50 €

It is the verified Tudor equivalent for the EX2253 tray. Compared with the EX2253 it has 50 A of cold cranking more. It costs 15,50 € more. Decide by price, brand preference and availability: both fit and crank the same.

EX2253TX2253
Capacity225 Ah225 Ah
Cold cranking (EN)1100 A1150 A
TechnologyEFBEFB
Dimensions (mm)518 × 274 × 240518 × 274 × 240
Positive terminalPositive terminal on the leftPositive terminal on the left
Price311,20 €326,70 €
Tudor TE2353 Tudor TE2353 Tudor equivalent 12V 235Ah 1200A EFB 348,30 € +37,10 €

Exide EX2253 vs Tudor TE2353

Tudor equivalent · +37,10 €

The Tudor alternative that fits where the EX2253 goes, with the same polarity. Compared with the EX2253 it has 10 Ah more and 100 A of cold cranking more. It costs 37,10 € more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

EX2253TE2353
Capacity225 Ah235 Ah
Cold cranking (EN)1100 A1200 A
TechnologyEFBEFB
Dimensions (mm)518 × 274 × 240518 × 274 × 240
Positive terminalPositive terminal on the leftPositive terminal on the left
Price311,20 €348,30 €

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 225Ah batteries: We stock 20 models of 225 Ah to compare by price, technology and cold cranking: see all 225Ah batteries. Same size (518 × 274 × 240 mm): batteries of 518 × 274 × 240 mm.

Recommended accessories — complement the Exide EX2253 with a charger or tester

Compatible vehicles

The Exide EX2253 fits 355 vehicles. Most searched below:

See all 355 compatible vehicles

Frequently asked questions

Is the Exide EX2253 an EFB battery? When is EFB used?

Yes. The Exide EX2253 uses EFB (Enhanced Flooded Battery) technology, that is, flooded lead-acid with plates reinforced by additives. More affordable than an equivalent AGM and with more cycles than a conventional battery (though fewer than AGM), it is what trucks with basic Start-Stop use, without regenerative braking.

Is the Exide EX2253 battery suitable for Start-Stop?

EFB batteries cover basic Start-Stop (no regenerative braking). The Exide EX2253 is EFB, so yes, it is designed for Start-Stop trucks. It needs nothing to work, though on most modern trucks registering it via OBD is advisable so the alternator adjusts its charging profile. The general recommendation is EFB for basic Start-Stop and AGM where there is regenerative braking (it handles more cycles), unless the truck manufacturer says otherwise.

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

How long does the Exide EX2253 battery last?

As a rough estimate, the Exide EX2253 typically lasts 5 to 7 years in lorry use, even with high power draw while parked; it is a guide figure, not a guaranteed period. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the truck itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

What are the measurements of the EX2253 model?

Before buying, measure the space in your truck: one extra millimetre can stop the hold-down clamp from closing. The Exide EX2253 takes up 518×274×240 mm (length, width and height, terminals included).

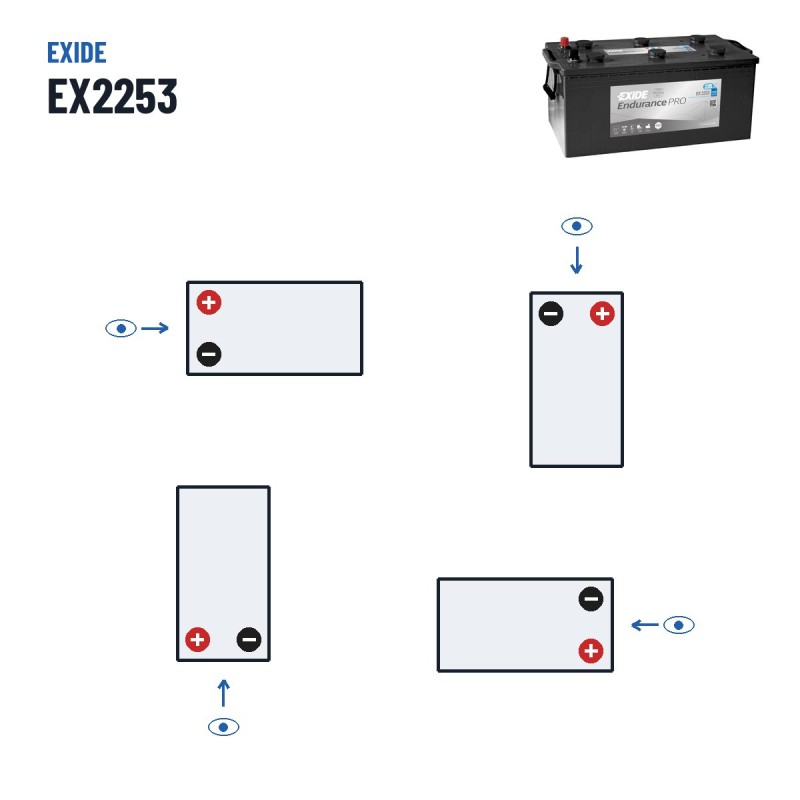

What polarity does the Exide EX2253 battery have?

Polarity of the Exide EX2253: positive on the left. It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. Seen from the front, terminals towards you, the positive (+) is the post with the red ring.

Will the Exide EX2253 battery fit my truck?

Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your truck is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The truck manufacturer's specifications always take priority over our tables. The compatibility list for the EX2253 runs to 355 verified vehicle versions.

Which interchangeable batteries are there for this one?

Interchangeable means the same dimensions, same polarity, same Ah and same CCA; for the EX2253, 225 Ah (1100 A cranking). Technology matters too: in Start-Stop trucks, an EFB cannot be replaced with a conventional battery. The options at the same level are in the "Equivalents" section of this page.

Exide EX2253 or Exide EP2100: which one to choose?

It is the AGM of the same case: more cycles, more cranking and better resistance to power draw at standstill than the EX2253. Compared with the EX2253 it has 15 Ah more and 100 A of cold cranking more. It costs 73,60 € more. Essential if the vehicle requires AGM from the factory or draws a lot with the engine off; in conventional use the EX2253 does the job and AGM adds service life.

Exide EX2253 or Exide EE2353: which one to choose?

It is the bigger sister of the EX2253 in the same Exide range. Compared with the EX2253 it has 10 Ah more and 100 A of cold cranking more. It costs 20,60 € more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the EX2253 does the job.

What exactly is an EFB battery like the Exide EX2253?

Rule of thumb: truck with an EFB from new, EFB (AGM is an optional, marginal upgrade); truck with an AGM from new, AGM. The EFB (Enhanced Flooded Battery) is a reinforced flooded battery: plates with carbon and polyethylene additives and thicker grids, giving it more cycles than a conventional one; for cycles and deep discharges it still sits below an AGM. Many basic Start-Stop systems (no regenerative braking) come with it from the factory, such as Renault Energy TCe, Peugeot/Citroën PureTech, Fiat MultiAir, Hyundai/Kia ISG and Ford EcoBoost.

Is there anything to do after replacing a Start-Stop battery?

It is not strictly necessary on most trucks, because the alternator detects the change and adapts the charge. The advisable step is to register it via OBD: the charging profile is optimum from the first minute and the battery lasts longer, especially on brands with sophisticated BMS (BMW, Mercedes, Audi, Volvo, Land Rover). Any garage with an OBD scanner can do it in a few minutes. If you prefer to do it yourself: VCDS / Carista (VAG), Bimmercode (BMW) or iCarsoft. Even if you do not register the Exide EX2253, the truck will start correctly; the profile adjusts within a few days.
