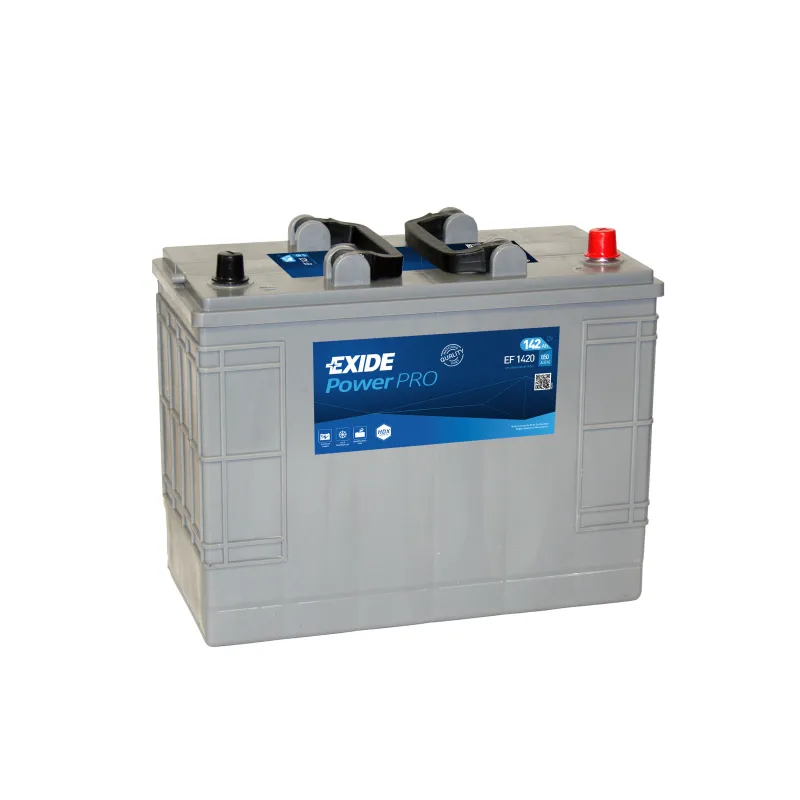

Exide EF1420 · Truck battery 12V 142Ah 850A

Batería Exide EF1420 142Ah - 1
search
  • Batería Exide EF1420 142Ah - 1
  • Batería Exide EF1420 142Ah - 2

Specifications

BrandEXIDE
Part numberEF1420
Voltage (V)12
Capacity (C20)142Ah (c20)
TechnologyLead-acid
Length349.00 cm
Width175.00 cm
Height290.00 cm
Weight35.10 Kgs
See the full specifications →
€246.95
VAT included
Quantity

  • 24-48h delivery
  • 14-day returns
  • Secure payment
  • +11,700 reviews

Brand EXIDE Reference EF1420

4,81· 25 reseñas

Exide EF1420 12V 142Ah 850A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
142 Ah C20
Cold cranking
850 A EN-1
Dimensions
349×175×290 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
35,1 kg
Model
EXIDE Power Pro (HDX)
Logo Exide

Truck battery Exide EF1420 Power PRO 142Ah 850A 12V

12VVoltage
142AhCapacity
850ACold cranking
35.10kgWeight

The Exide EF1420 with conventional lead-acid technology delivers 142 Ah at 12 V and 850 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. Measuring 349 × 175 × 290 mm and the positive terminal on the right, it is the direct replacement for trucks fitted from the factory with a 142 Ah battery of this format.

  • Powers tachograph, fridge and heater during rest stops.
  • Better tolerance to deep discharge than a conventional starter battery.
  • Good balance of capacity, cranking power and price.
  • Resistant to constant chassis vibration.

What the Exide EF1420 is for

The Exide EF1420 is designed for trucks, buses, tractors and heavy machinery. In 24 V installations with two batteries in series, replace both at the same time to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 35.10 kg, 1 terminals and B0 hold-down.

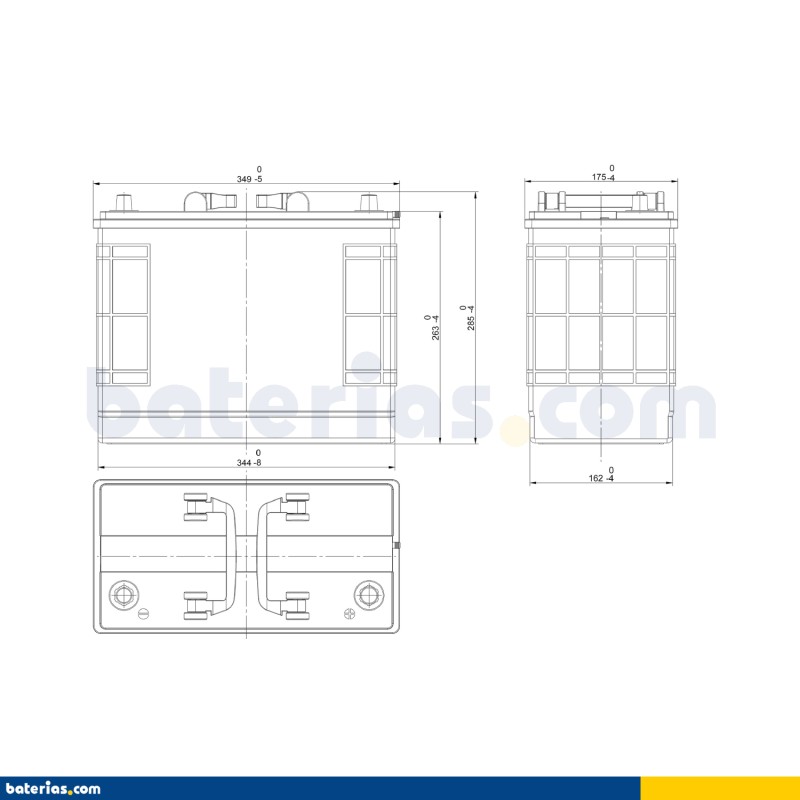

Size, terminals and hold-down of the Exide EF1420

It has external dimensions of 349 × 175 × 290 mm and weighs 35.10 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

The Exide EF1420: Power PRO range and conventional lead-acid technology

The Power PRO is the Exide range the EF1420 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

What Exide does differently

Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Warranty and coverage

The Exide EF1420 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

Care and maintenance

On batteries with filler caps, check the electrolyte level and top up only with distilled water. During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery.

When you get it and how to return it

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

BCOM-EXIDE-EF1420

Data sheet

Brand
EXIDE
Reference
EF1420
Model
EXIDE POWER PRO
Voltage (V)
12
Length
349.00 cm
Width
175.00 cm
Height
290.00 cm
Weight
35.10 Kgs
Technology
Lead-acid
EAN
3661024035286
Terminal layout
Positive terminal on the right
Terminal type
1
Hold-down
B0
Cold cranking amps (EN)
850A
Capacity (C20)
142Ah (c20)
Case type
D03

Specific References

EAN13
3661024035286
MPN
EF1420

Codes and references Exide EF1420

Brand Exide · see all batteries Exide
Manufacturer range EXIDE POWER PRO
Manufacturer reference (MPN) EF1420
EAN-13 barcode 3661024035286
Dimensions (length × width × height) 349 × 175 × 290 mm (349x175x290)

Comparison: Exide EF1420 vs equivalents — alternatives with the same dimensions, Ah and CCA

The Exide EF1420 is interchangeable with these equivalent references: J1 (Varta), EG1250 (Exide), EF1250 (Exide), TF1250 (Tudor), TG1250 (Tudor).

Product Specifications Technology Price
Exide EF1420 Exide EF1420 This battery ★ 4,8 12V 142Ah 850A Lead-acid €246.95
Varta J1 Varta J1 ★ 4,7 12V 125Ah 720A Lead-acid €120.40
Exide EG1250 Exide EG1250 ★ 4,8 12V 125Ah 760A Lead-acid €140.95
Exide EF1250 Exide EF1250 12V 125Ah 850A Lead-acid €218.30
Tudor TF1250 Tudor TF1250 ★ 4,8 12V 125Ah 850A Lead-acid €119.50
Tudor TG1250 Tudor TG1250 ★ 4,8 12V 125Ah 760A Lead-acid €125.40

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Recommended accessories — complement the Exide EF1420 with a charger or tester

How to change the battery

Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.

⏱ 30-60 min🛠 Tools: 13 mm or 17 mm wrench (depending on make) · Protective gloves
  1. Step 1. Prepare the vehicle

    Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.

  2. Step 2. Locate the battery

    Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.

  3. Step 3. Disconnect the negative (−) terminal

    Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery (two people)

    Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.

  6. Step 6. Install the new battery

    Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.

  7. Step 7. Connect the cables

    Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.

  8. Step 8. Verify the engine starts

    Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.

Frequently asked questions

How is the Exide EF1420 battery installed in the vehicle?

In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

How long does the Exide EF1420 battery last?

Expected lifespan of the Exide EF1420 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What are the dimensions of the Exide EF1420 battery?

Dimensions (length × width × height) are 349×175×290 mm — also written as 349x175x290 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

Is the EF1420 valid for my vehicle?

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EF1420 typically fits a wide range of European vehicles thanks to its standard DIN case format.

Which interchangeable batteries are there for this one?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
