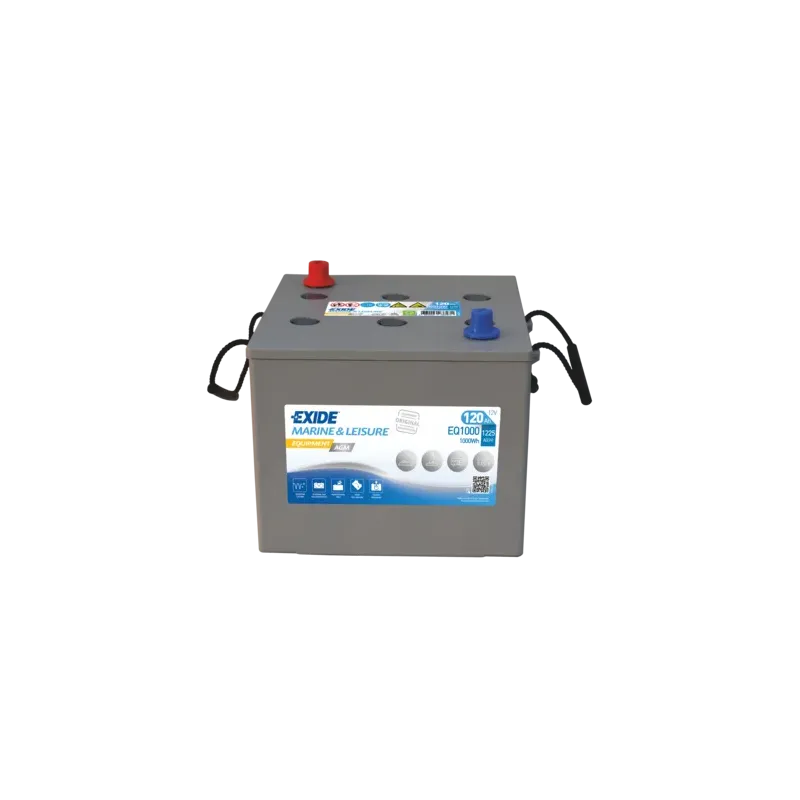

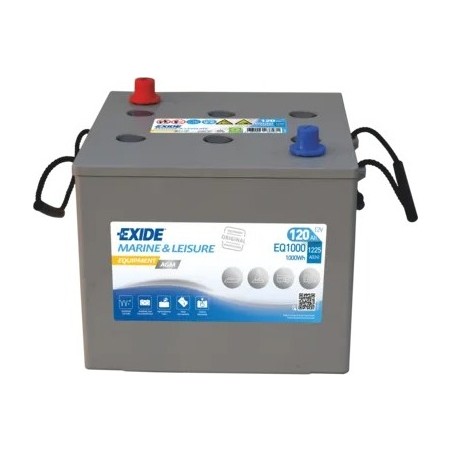

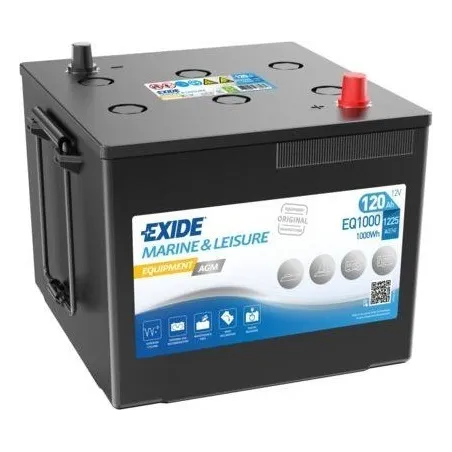

Exide EQ1000 · Marine battery 12V 120Ah 1225A AGM
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EQ1000 |
| Voltage (V) | 12 |
| Capacity (C20) | 120Ah (c20) |
| Technology | AGM |
| Length | 286.00 mm |
| Width | 269.00 mm |
| Height | 230.00 mm |
| Weight | 40.00 Kgs |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Exide EQ1000 12V 120Ah 1225A is a marine battery with reinforced anti-vibration case for moorings and offshore use. Tolerates the typical daily cycles on a boat (engine start + night-time services such as lights, sonar, fridge) and holds voltage even when the hull is rolling in open sea.
Why this marine battery?
- Marine designbuilt for boat swell and vibration
- Dual functionstarts the engine and powers onboard services
- Sealed and safemaintenance-free even when the boat rolls
Voltage
12 V
Capacity
120 Ah
Cold cranking
1225 A
Dimensions
286×269×230 mm
Technology
AGM
Weight
40 kg
Model
EXIDE Equipment AGM
Free quote, no obligation
Request a quote for your Marine battery Exide EQ1000 12V 120Ah 1225A AGM
- Reply in under 24 working hours
- Best price guaranteed
Marine battery Exide EQ1000 Equipment AGM 120Ah 1,225A 12V
12VVoltage
120AhCapacity
1,225ACold cranking
40kgWeight
The Exide EQ1000 marine battery offers 12 V, 120 Ah and 1,225 A of cold cranking current (EN) from the Equipment AGM range with AGM technology, designed for motor and sailing boats, both for engine starting and onboard services. It measures 286 × 269 × 230 mm, the format sought by anyone replacing a 120 Ah battery in boats.
- Reinforced case against vibration and swell.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Tolerates the daily cycling of a boat in season.
- Powers onboard services: lights, sounder, GPS, fridge.
What the Exide EQ1000 is for
On board, the Exide EQ1000 provides 120 Ah with a case reinforced against vibration and swell. Keep the terminals clean and protected from salt humidity. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 40 kg, EN taper post terminals and B0 hold-down.
The Exide EQ1000: Equipment AGM range and AGM technology
Within the Exide catalogue, the Equipment AGM series groups the references designed for this use. The EQ1000 is the 120 Ah model of that family, with the same performance as its siblings in other sizes.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
Size, terminals and hold-down of the Exide EQ1000
In terms of format, the Exide EQ1000 measures 286 × 269 × 230 mm (length × width × height) and weighs 40 kg. It uses a B0 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What Exide does differently
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Care and maintenance
At the end of the season, charge the battery fully and, if possible, keep it on a charger over the winter lay-up. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Official warranty
The Exide EQ1000 comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-EQ1000
Data sheet
- Brand
- EXIDE
- Reference
- EQ1000
- Model
- EXIDE Equipment AGM
- Voltage (V)
- 12
- Length
- 286.00 mm
- Width
- 269.00 mm
- Height
- 230.00 mm
- Weight
- 40.00 Kgs
- Technology
- AGM
- EAN
- 3661024037471
- Terminal layout
- 2
- Terminal type
- EN taper post
- Hold-down
- B0
- Cold cranking amps (EN)
- 1225A
- Capacity (C20)
- 120Ah (c20)
- Case type
- D07
- Energy (Wh)
- 1000
Specific References
- EAN13
- 3661024037471
- MPN
- EQ1000
Codes and references Exide EQ1000
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE Equipment AGM |
| Manufacturer reference (MPN) | EQ1000 |
| EAN-13 barcode | 3661024037471 |
| Dimensions (length × width × height) | 286 × 269 × 230 mm (286x269x230) |
Recommended accessories
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
Is this battery AGM? What is it for?
Yes. The EQ1000 from Exide uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for boats with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I change this battery step by step?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the EQ1000 model?
Expected lifespan of the Exide EQ1000 is 5 to 8 years in mild-climate boat use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide EQ1000 battery?
Dimensions (length × width × height) are 286×269×230 mm — also written as 286x269x230 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the EQ1000 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EQ1000 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the EQ1000 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
