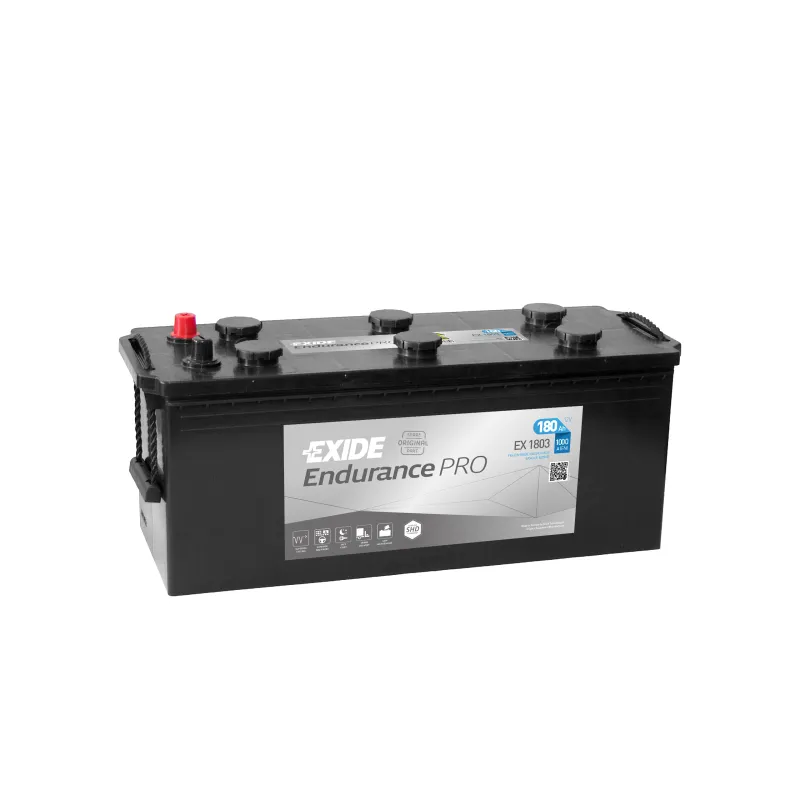

Exide EX1803 Strong Pro · Truck battery 180Ah 1000A EFB

Specifications

BrandEXIDE
Part numberEX1803
Voltage (V)12
Capacity (C20)180Ah (c20)
Cold cranking amps (EN)1000A
TechnologyEFB
Length513 mm
Width223 mm
Height223 mm
See the full specifications →
Price: €249.60
VAT included
Quantity

Brand: EXIDE batteries Part number: EX1803

Exide EX1803 12V 180Ah 1000A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
180 Ah C20
Cold cranking
1000 A EN-1
Dimensions
513×223×223 mm
Technology
EFB
Polarity
Positive on the left
Weight
46,1 kg
Model
EXIDE STRONG PRO

Where it fits: the Exide EX1803 is one of our truck batteries, belongs to our Exide batteries and by capacity it sits among our 180Ah batteries.

Logo Exide

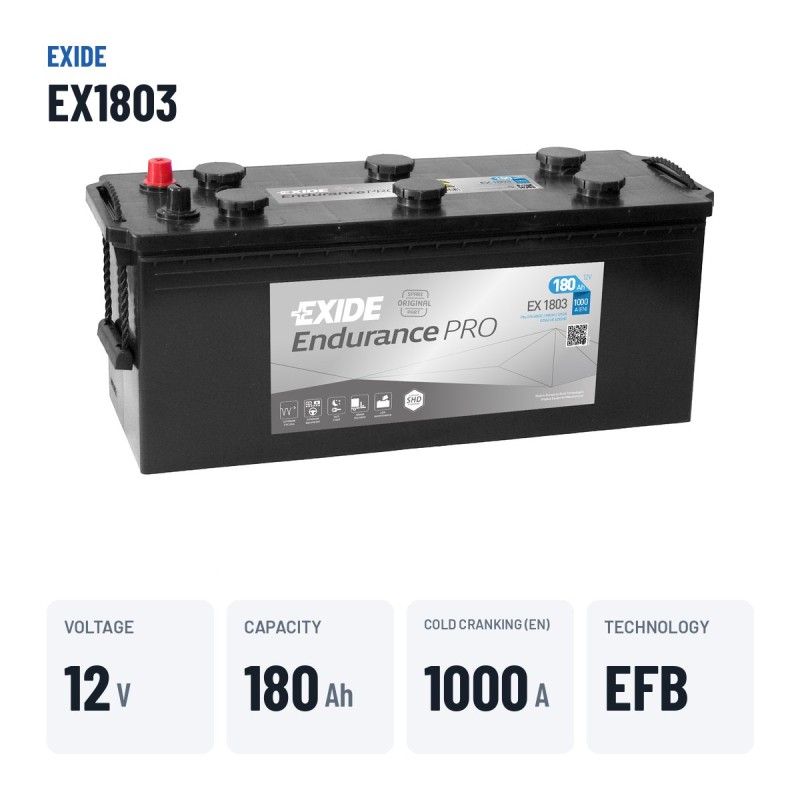

Truck battery Exide EX1803 Strong PRO 180Ah 1,000A 12V

12VVoltage
180AhCapacity
1,000ACold cranking
46.10kgWeight

The Exide EX1803 with EFB technology delivers 180 Ah at 12 V and 1,000 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. Measuring 513 × 223 × 223 mm and the positive terminal on the left, it is the direct replacement for trucks fitted from the factory with a 180 Ah battery of this format.

In short: the Exide EX1803 (180 Ah, 1000 A, 513 × 223 × 223 mm, positive terminal on the left). Verified equivalent alternatives: Tudor TX1803 and Tudor TE1853.

  • EFB: the evolution of the conventional battery for basic Start-Stop cars.
  • Resistant to constant chassis vibration.
  • Powers tachograph, fridge and heater during rest stops.
  • Better tolerance to deep discharge than a conventional starter battery.

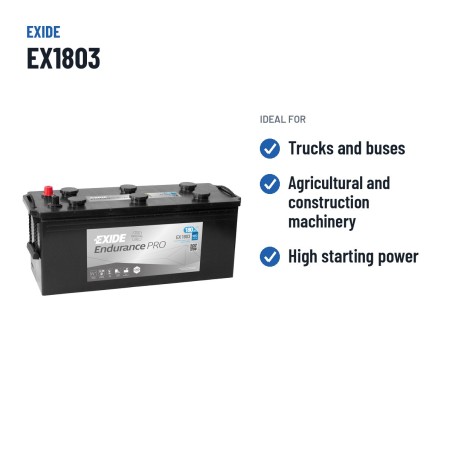

What the Exide EX1803 is for

The Exide EX1803 is designed for trucks, buses, tractors and heavy machinery. In 24 V installations with two batteries in series, replace both at the same time to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 46.10 kg, 1 terminals and B0 hold-down.

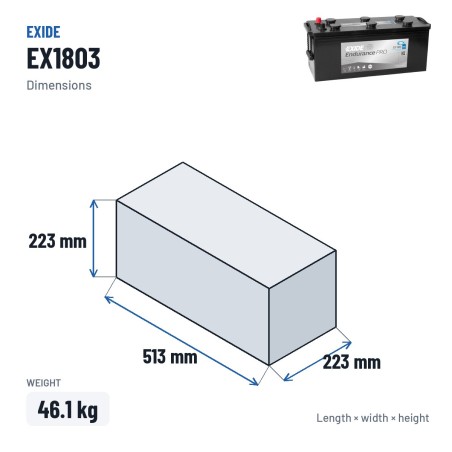

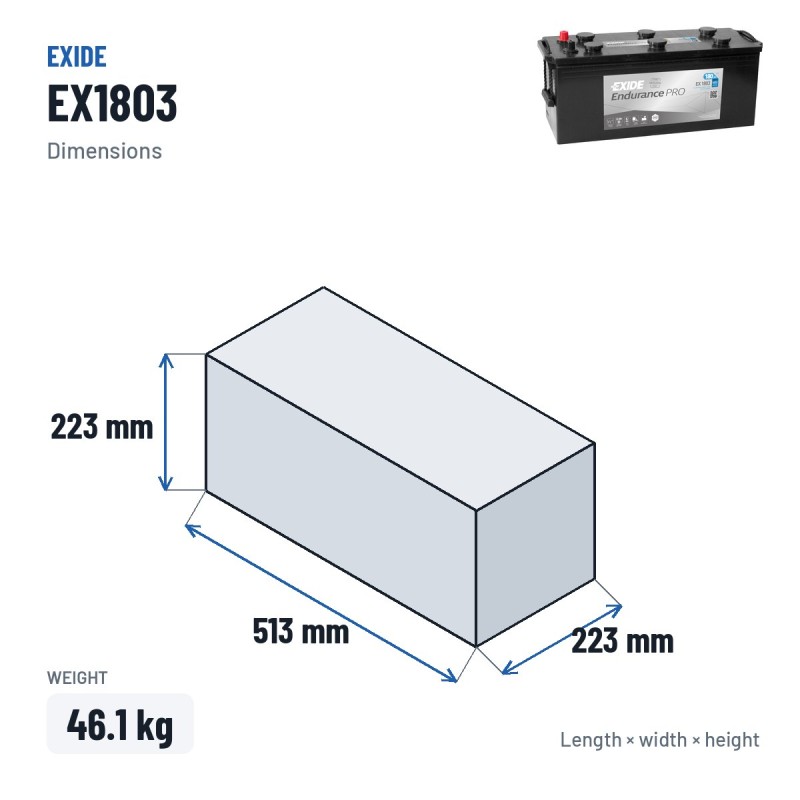

Dimensions, polarity and mounting

In terms of format, the Exide EX1803 measures 513 × 223 × 223 mm (length × width × height) and weighs 46.10 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

Why choose Exide batteries

Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

The Exide EX1803: Strong PRO range and EFB technology

Within the Exide catalogue, the Strong PRO series groups the references designed for this use. The EX1803 is the 180 Ah model of that family, with the same performance as its siblings in other sizes.

EFB combines the robustness of the flooded battery with improved plates and separators. The result is a clearly longer service life in vehicles that start and stop constantly.

Usage and maintenance tips

A charger with an EFB or smart conventional mode is enough; avoid the high-voltage modes intended for AGM. Keep the terminals clean and tight and the battery firmly secured against chassis vibration.

Warranty and coverage

The Exide EX1803 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

Delivery times and returns

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-EXIDE-EX1803

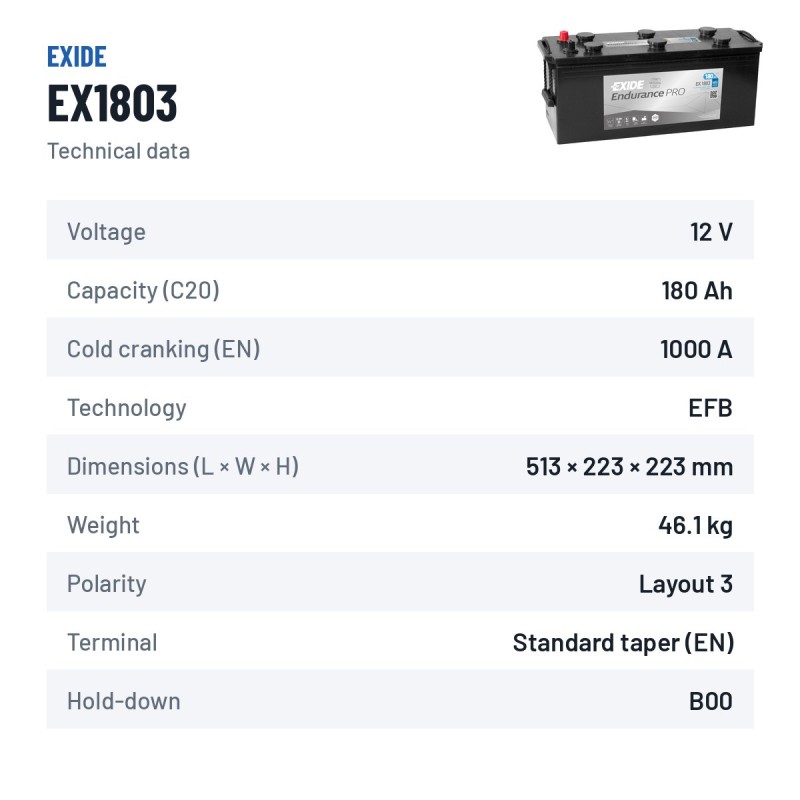

Data sheet

  • Brand
    EXIDE
  • Reference
    EX1803
  • Model
    EXIDE STRONG PRO
  • Voltage (V)
    12
  • Length
    513 mm
  • Width
    223 mm
  • Height
    223 mm
  • Weight
    46.10 Kgs
  • Technology
    EFB
  • EAN
    3661024036696

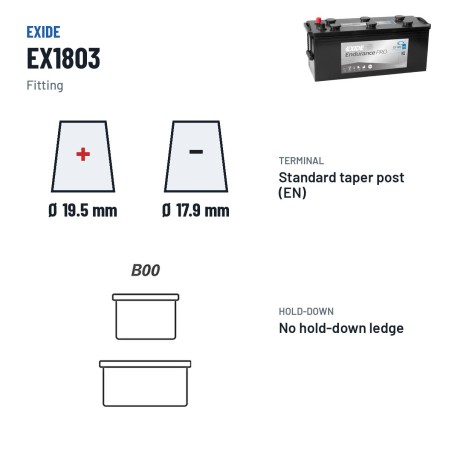

  • Terminal layout
    Positive terminal on the left
  • Terminal type
    1
  • Hold-down
    B0
  • Cold cranking amps (EN)
    1000A
  • Capacity (C20)
    180Ah (c20)
  • Case type
    B

Specific References

  • EAN13
    3661024036696
  • MPN
    EX1803

Download

Datasheet Exide EX1803 (English)

PDF datasheet of the Exide EX1803 battery – English

Download (163.14KB)

Codes and references Exide EX1803

Brand Exide · see all Exide batteries
Manufacturer range EXIDE STRONG PRO
Manufacturer part number (MPN) EX1803
EAN-13 barcode 3661024036696
Dimensions (length × width × height) 513 × 223 × 223 mm (513x223x223)

Exide EX1803: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Exide EX1803 is interchangeable with these equivalent references: TX1803 (Tudor), TE1853 (Tudor), B90 (Varta), EE1853 (Exide). Higher-technology alternatives that can replace it: FT1250-4DLT (Fullriver).

Product Specifications Technology Price
Exide EX1803 Exide EX1803 This battery 12V 180Ah 1000A EFB 249,60 €
Exide EE1853 Exide EE1853 Bigger sister 12V 185Ah 1100A EFB 293,20 € +43,60 €

Exide EX1803 vs Exide EE1853

Bigger sister · +43,60 €

Same family as the EX1803, one step up in performance. Compared with the EX1803 it has 5 Ah more and 100 A of cold cranking more. It costs 43,60 € more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the EX1803 does the job.

EX1803EE1853
Capacity180 Ah185 Ah
Cold cranking (EN)1000 A1100 A
TechnologyEFBEFB
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price249,60 €293,20 €
Varta B90 Varta B90 Varta equivalent 12V 190Ah 1050A EFB 209,60 € −40,00 €

Exide EX1803 vs Varta B90

Varta equivalent · −40,00 €

Same case and same fitting as the EX1803, from Varta. Compared with the EX1803 it has 10 Ah more and 50 A of cold cranking more. It costs 40,00 € less. If you want to save or the EX1803 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

EX1803B90
Capacity180 Ah190 Ah
Cold cranking (EN)1000 A1050 A
TechnologyEFBEFB
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price249,60 €209,60 €
Fullriver FT1250-4DLT Fullriver FT1250-4DLT Upgrade: AGM 12V 175Ah 1250A AGM Upgrade 773,40 € +523,80 €

Exide EX1803 vs Fullriver FT1250-4DLT

Upgrade: AGM · +523,80 €

It is the AGM of the same case: more cycles, more cranking and better resistance to power draw at standstill than the EX1803. Compared with the EX1803 it has 5 Ah less and 250 A of cold cranking more. It costs 523,80 € more. Essential if the vehicle requires AGM from the factory or draws a lot with the engine off; in conventional use the EX1803 does the job and AGM adds service life.

EX1803FT1250-4DLT
Capacity180 Ah175 Ah
Cold cranking (EN)1000 A1250 A
TechnologyEFBAGM
Dimensions (mm)513 × 223 × 223513 × 223 × 222
Positive terminalPositive terminal on the left—
Price249,60 €773,40 €
Tudor TX1803 Tudor TX1803 Tudor equivalent 12V 180Ah 1000A EFB 261,95 € +12,35 €

Exide EX1803 vs Tudor TX1803

Tudor equivalent · +12,35 €

Same case and same fitting as the EX1803, from Tudor. Compared with the EX1803 it has the same Ah and cranking power. It costs 12,35 € more. If you want to save or the EX1803 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

EX1803TX1803
Capacity180 Ah180 Ah
Cold cranking (EN)1000 A1000 A
TechnologyEFBEFB
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price249,60 €261,95 €
Tudor TE1853 Tudor TE1853 Tudor equivalent 12V 185Ah 1100A EFB 293,20 € +43,60 €

Exide EX1803 vs Tudor TE1853

Tudor equivalent · +43,60 €

It is the verified Tudor equivalent for the EX1803 tray. Compared with the EX1803 it has 5 Ah more and 100 A of cold cranking more. It costs 43,60 € more. Decide by price, brand preference and availability: both fit and crank the same.

EX1803TE1853
Capacity180 Ah185 Ah
Cold cranking (EN)1000 A1100 A
TechnologyEFBEFB
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price249,60 €293,20 €

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 180Ah batteries: We stock 21 models of 180 Ah to compare by price, technology and cold cranking: see all 180Ah batteries. Same size (513 × 223 × 223 mm): batteries of 513 × 223 × 223 mm.

Recommended accessories — complement the Exide EX1803 with a charger or tester

Compatible vehicles

The Exide EX1803 fits 141 vehicles. Most searched below:

See all 141 compatible vehicles

Frequently asked questions

Is the Exide EX1803 an EFB battery? When is EFB used?

Yes: the EX1803 (180 Ah) is an EFB, an evolution of the flooded lead-acid battery with additives that strengthen the plates. More affordable than an equivalent AGM and with more cycles than a conventional battery (though fewer than AGM), it is what trucks with basic Start-Stop use, without regenerative braking.

Is the Exide EX1803 battery suitable for Start-Stop?

EFB batteries cover basic Start-Stop (no regenerative braking). The Exide EX1803 is EFB, so yes, it is designed for Start-Stop trucks. Basic Start-Stop: EFB. Start-Stop with regenerative braking: AGM, which withstands more cycles. Check the handbook for the technology the truck manufacturer requires. It works once fitted; on most modern trucks, registering it via OBD is advisable so the alternator applies the optimum charging profile.

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

How many years does this battery last?

As a rough estimate, the Exide EX1803 typically lasts 5 to 7 years in lorry use, even with high power draw while parked; it is a guide figure, not a guaranteed period. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the truck itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

What are the dimensions of the Exide EX1803 battery?

It measures 513×223×223 mm in length × width × height, with the terminals included in the height. Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close.

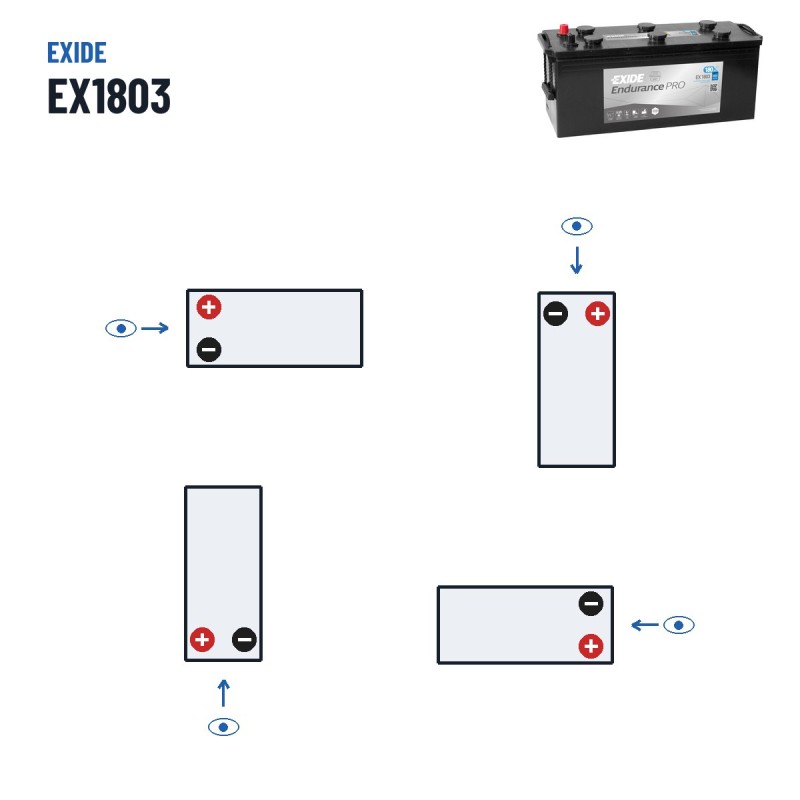

Which side is the positive terminal on this battery?

Polarity of the Exide EX1803: positive on the left. Seen from the front, terminals towards you, the positive (+) is the post with the red ring. Compare it with the battery you are replacing: if it does not match, cables must be lengthened or the system reconfigured, with a risk of short circuit.

Will the Exide EX1803 battery fit my truck?

The compatibility list for the EX1803 runs to 141 verified vehicle versions. Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your truck is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). In every case, the truck manufacturer's specifications (owner's handbook) take precedence.

What are the equivalents of the EX1803 model?

Interchangeable means the same dimensions, same polarity, same Ah and same CCA; for the EX1803, 180 Ah (1000 A cranking). Not just any technology will do: an EFB cannot be replaced with a conventional battery in Start-Stop trucks. The "Equivalents" section further down lists the recommended alternatives.

Exide EX1803 or Exide EE1853: which one to choose?

Same family as the EX1803, one step up in performance. Compared with the EX1803 it has 5 Ah more and 100 A of cold cranking more. It costs 43,60 € more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the EX1803 does the job.

Exide EX1803 or Varta B90: which one to choose?

Same case and same fitting as the EX1803, from Varta. Compared with the EX1803 it has 10 Ah more and 50 A of cold cranking more. It costs 40,00 € less. If you want to save or the EX1803 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

What exactly is an EFB battery like the Exide EX1803?

Rule of thumb: truck with an EFB from new, EFB (AGM is an optional, marginal upgrade); truck with an AGM from new, AGM. An EFB (Enhanced Flooded Battery) is flooded lead-acid, but reinforced: carbon and polyethylene additives in the plates and thicker grids. It handles more cycles than a conventional battery and copes better with deep discharges, though less well than an AGM. Many basic Start-Stop systems (no regenerative braking) come with it from the factory, such as Renault Energy TCe, Peugeot/Citroën PureTech, Fiat MultiAir, Hyundai/Kia ISG and Ford EcoBoost.

Is there anything to do after replacing a Start-Stop battery?

It is not strictly necessary on most trucks, because the alternator detects the change and adapts the charge. The advisable step is to register it via OBD: the charging profile is optimum from the first minute and the battery lasts longer, especially on brands with sophisticated BMS (BMW, Mercedes, Audi, Volvo, Land Rover). Any garage with an OBD scanner can do it in a few minutes. If you prefer to do it yourself: VCDS / Carista (VAG), Bimmercode (BMW) or iCarsoft. Even if you do not register the Exide EX1803, the truck will start correctly; the profile adjusts within a few days.
