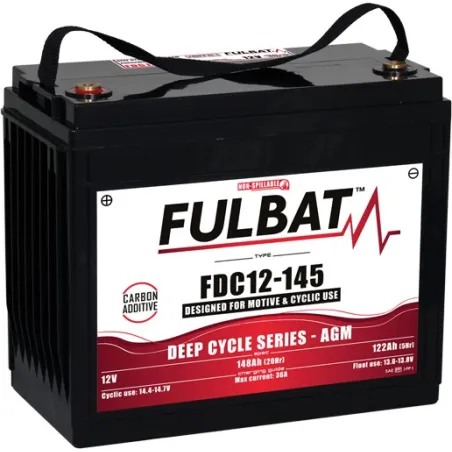

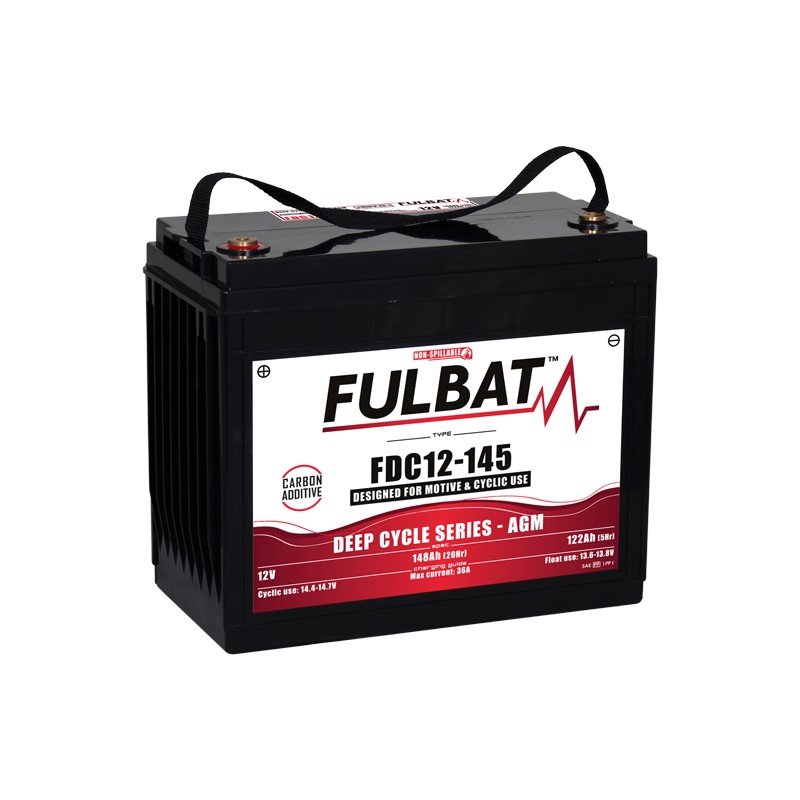

Fulbat FDC12-145 AGM · Traction battery 12V 122Ah AGM
Specifications
| Brand | FULBAT |
|---|---|
| Part number | FDC12-145 AGM |
| Voltage (V) | 12V |
| Capacity (C20) | 122Ah |
| Technology | AGM |
| Length | 340mm |
| Width | 172mm |
| Height | 286mm |
| Terminal layout | Positive left |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Fulbat FDC12-145 AGM 12V 122Ah is a leisure battery for campers, motorhomes and caravans. Designed to power the entire interior kit (fridge, heater, water pump, USB, LED lighting) for several days off-grid, with no need to plug into a campsite hookup.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues
Voltage
12 V
Capacity
122 Ah
Dimensions
340×172×286 mm
Technology
AGM
Polarity
Positive on the left
Free quote, no obligation
Request a quote for your Traction battery Fulbat FDC12-145 AGM 12V 122Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Leisure battery Fulbat FDC12-145 122Ah 12V
12VVoltage
122AhCapacity
For motorhomes, caravans and campers that need power off-grid, the Fulbat FDC12-145 provides 122 Ah of energy with AGM technology. It replaces the original battery without adaptation in motorhomes and caravans with a 340 × 172 × 286 mm format: same 122 Ah capacity and the positive terminal on the left.
- Sealed and gas-free: suitable for installation inside the living area.
- Low self-discharge during months of storage.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Power for fridge, lighting, water pump and USB off-grid.
What the Fulbat FDC12-145 is for
The Fulbat FDC12-145 is designed for motorhomes, caravans and campers that need power off-grid: it powers fridge, lights, pump and chargers for several days off-grid. Its 122 Ah capacity sets the available autonomy. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has BOLT-M6 terminals.
Will it fit your current battery tray?
It has external dimensions of 340 × 172 × 286 mm. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses BOLT-M6 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What Fulbat does differently
French brand Fulbat is a European reference in motorcycle, garden and leisure batteries: compact ranges, clear JIS codes and a consistent quality that workshops know well. All the Fulbat batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Technology inside the Fulbat FDC12-145
The FDC12-145 is one of the Fulbat references for this type of use; it shares the same manufacturing and quality-control criteria as the rest of the brand's catalogue.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Usage and maintenance tips
During months of storage, keep it charged with a mains charger or a small solar panel; a battery left discharged for weeks loses capacity permanently. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Manufacturer's warranty
The Fulbat FDC12-145 comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-FULBAT-FDC12-145 AGM
Data sheet
- Brand
- FULBAT
- Model
- FULBAT FDC Deep Cycle AGM Carbon
- Voltage (V)
- 12V
- Length
- 340mm
- Width
- 172mm
- Height
- 286mm
- Technology
- AGM
- Terminal layout
- Positive left
- Terminal type
- BOLT-M6
- Capacity (C20)
- 122Ah
Specific References
- MPN
- FDC12-145 AGM
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
How is the Fulbat FDC12-145 AGM battery installed in the vehicle?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Fulbat FDC12-145 AGM battery last?
Expected lifespan of the Fulbat FDC12-145 AGM is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Fulbat FDC12-145 AGM battery?
Dimensions (length × width × height) are 340×172×286 mm — also written as 340x172x286 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Fulbat FDC12-145 AGM battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The FDC12-145 AGM typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the FDC12-145 AGM model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
