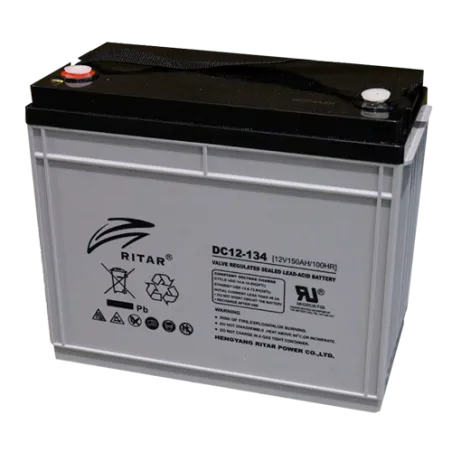

Ritar RA12-134 · Caravan battery 142Ah AGM

Specifications

BrandRITAR
Part numberRA12-134
Voltage (V)12
Capacity (C20)142Ah (c20)
Capacity (C10)134Ah (c10)
TechnologyAGM
Length340.00 mm
Width173.00 mm
Height285.00 mm
See the full specifications →
Price: €439.20
VAT included
Quantity

Brand: Ritar batteries Part number: RA12-134

Ritar RA12-134 12V 142Ah is a battery for auxiliary services in motorhomes, caravans and campers. Powers the fridge, interior lighting, water pump and sockets while parked, with no need for campsite mains. Withstands daily discharges throughout the season.

Why this caravan battery?

  • Real off-grid autonomyno campsite hookup needed
  • Lasts the whole seasonhandles daily discharges without capacity loss
  • Powers it all at oncefridge, water pump, LED and USB without issues
Voltage
12 V
Capacity
142 Ah C20
Dimensions
340×173×285 mm
Technology
AGM
Weight
39 kg
Model
RITAR RA

Where it fits: the Ritar RA12-134 is one of our batteries for caravans, belongs to our Ritar batteries and by capacity it sits among our 142Ah batteries.

The Ritar RA12-134 in practice

RA12-134 vs Ritar RA12-145

The Ritar RA12-134 offers 142 Ah and 0 A cold cranking in a 340 × 173 × 285 mm case. The Ritar RA12-145, same brand and technology, goes up to 153 Ah and 0 A and costs €42.40 more. Going up is only worth it if the tray allows it and the car cranks lazily in the cold; in normal use this one is plenty.

Logo Ritar

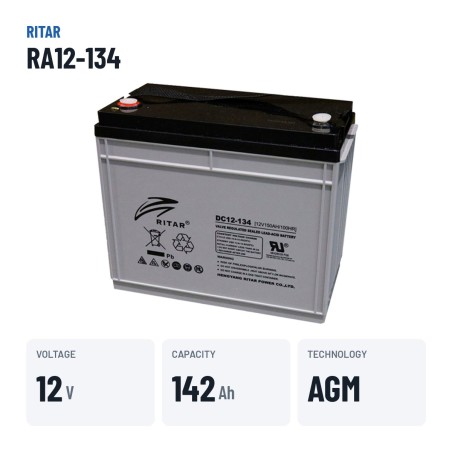

Leisure battery Ritar RA12-134 RA 142Ah 12V

12VVoltage
142AhCapacity
39kgWeight

The Ritar RA12-134 with AGM technology stores 142 Ah at 12 V: autonomy for motorhomes, caravans and campers that need power off-grid. It measures 340 × 173 × 285 mm, the format sought by anyone replacing a 142 Ah battery in motorhomes and caravans.

  • Power for fridge, lighting, water pump and USB off-grid.
  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
  • Low self-discharge during months of storage.
  • Sealed and gas-free: suitable for installation inside the living area.

What the Ritar RA12-134 is for

With 142 Ah, the Ritar RA12-134 is the habitation battery for motorhomes, caravans and campers that need power off-grid. It recharges from the alternator, a solar panel or a mains charger. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 39 kg and M8 terminals.

Dimensions, polarity and mounting

In terms of format, the Ritar RA12-134 measures 340 × 173 × 285 mm (length × width × height) and weighs 39 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

Ritar: the maker behind the RA12-134

With more than twenty years making sealed lead batteries, Ritar offers general-purpose, long-life, high-rate and front-terminal ranges for every stationary application. All the Ritar batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

The Ritar RA12-134: RA range and AGM technology

The RA is the Ritar range the RA12-134 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.

Usage and maintenance tips

Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip. During months of storage, keep it charged with a mains charger or a small solar panel; a battery left discharged for weeks loses capacity permanently.

Manufacturer's warranty

The Ritar RA12-134 comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.

When you get it and how to return it

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-RITAR-RA12-134

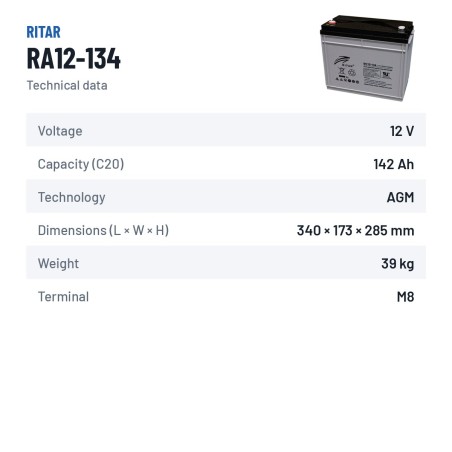

Data sheet

  • Brand
    RITAR
  • Reference
    RA12-134
  • Model
    RITAR RA
  • Voltage (V)
    12
  • Length
    340.00 mm
  • Width
    173.00 mm
  • Height
    285.00 mm
  • Technology
    AGM
  • Terminal type
    M8
  • Capacity (C20)
    142Ah (c20)
  • Capacity (C10)
    134Ah (c10)

Specific References

  • MPN
    RA12-134

Download

Datasheet Ritar RA12-134 (English)

PDF datasheet of the Ritar RA12-134 battery – English

Download (412.23KB)

Ritar RA12-134: alternatives with the same dimensions — alternatives with the same dimensions, Ah and CCA

Batteries from our catalogue with the same dimensions, voltage and technology as the Ritar RA12-134 and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.

Product Specifications Technology Price
Ritar RA12-134 Ritar RA12-134 This battery 12V 142Ah AGM 439,20 €
Ritar RA12-145 Ritar RA12-145 Same size 12V 153Ah AGM 481,95 € +42,75 €

Ritar RA12-134 vs Ritar RA12-145

Same size · +42,75 €

It has the same dimensions, voltage and technology as the RA12-134, although it is not a manufacturer-approved equivalent. Compared with the RA12-134 it has 11 Ah more. It costs 42,75 € more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

RA12-134RA12-145
Capacity142 Ah153 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)340 × 173 × 285340 × 173 × 285
Positive terminal——
Price439,20 €481,95 €

Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.

Other 142Ah batteries: We stock 3 models of 142 Ah to compare by price, technology and cold cranking: see all 142Ah batteries. Same size (340 × 173 × 285 mm): batteries of 340 × 173 × 285 mm.

Recommended accessories — complement the Ritar RA12-134 with a charger or tester

Frequently asked questions

Is the RA12-134 model AGM? What does this technology offer?

Yes: the RA12-134 from Ritar uses AGM (Absorbent Glass Mat) technology, a sealed lead-acid battery whose electrolyte soaks a glass-fibre mat. It tolerates heat better and handles more cycles than a conventional battery.

How much energy does this battery give a caravan?

It stores about 1,704 Wh. To make it last, it should not be discharged below half, so you have about 852 Wh usable: for example, an average load of 50 W for about 17 hours.

Can it be charged with solar panels?

Yes, with a charge controller (PWM or MPPT) set for AGM. It can also be charged by the vehicle alternator (ideally with a DC-DC charger) and by the 230 V charger when you are on hook-up at the campsite.

What are the measurements of the RA12-134 model?

It measures 340×173×285 mm in length × width × height, with the terminals included in the height. Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close.

Ritar RA12-134 or Ritar RA12-145: which one to choose?

It has the same dimensions, voltage and technology as the RA12-134, although it is not a manufacturer-approved equivalent. Compared with the RA12-134 it has 11 Ah more. It costs 42,75 € more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.
