Fullriver FT230D · Marine battery 12V 22Ah 180A AGM

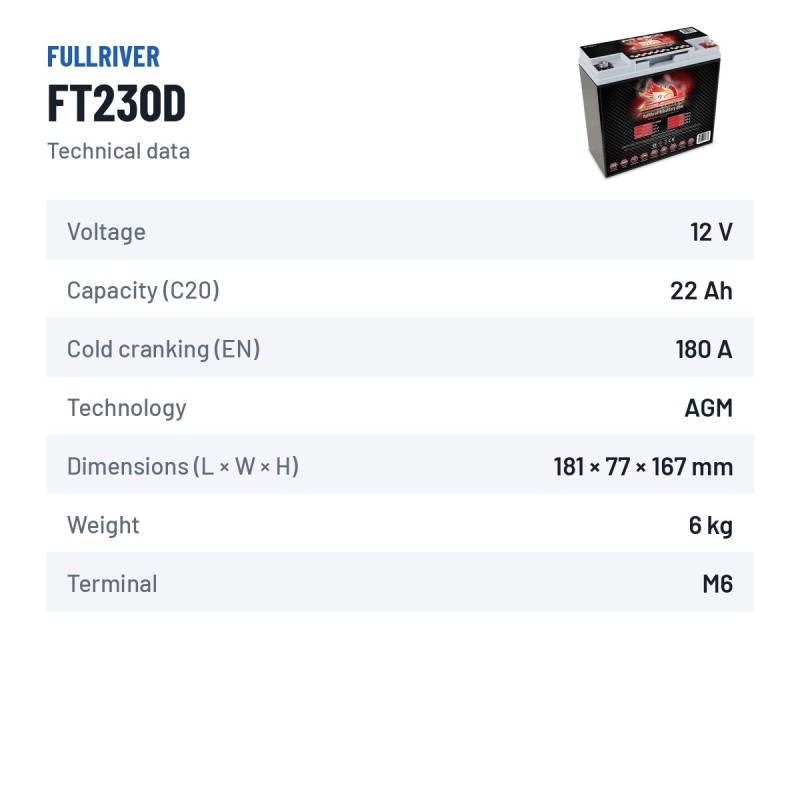

Specifications
| Brand | FULLRIVER |
|---|---|
| Part number | FT230D |
| Voltage (V) | 12 |
| Capacity (C20) | 22 |
| Technology | AGM |
| Length | 181.00 cm |
| Width | 77.00 cm |
| Height | 167.00 cm |
| Weight | 6.00 Kgs |
€155.80
VAT included
Fullriver FT230D 12V 22Ah 180A is a marine battery, vibration- and deep-discharge resistant, suitable both for outboard engine starting and for onboard auxiliary services (navigation lights, GPS, sonar, fridge). Sealed and maintenance-free.
Why this marine battery?
- Marine designbuilt for boat swell and vibration
- Dual functionstarts the engine and powers onboard services
- Sealed and safemaintenance-free even when the boat rolls

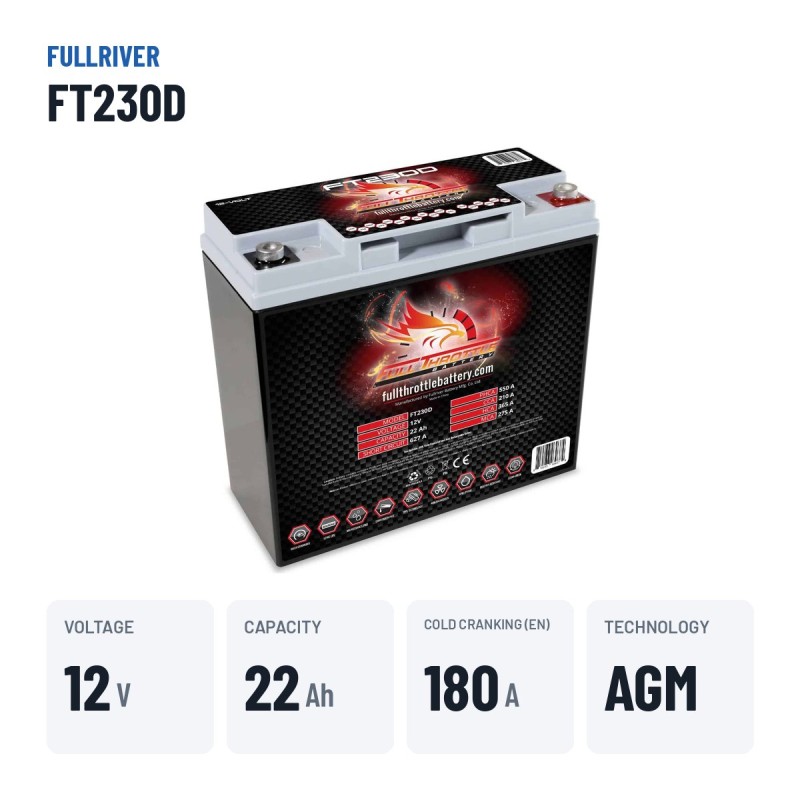

Voltage
12 V
Capacity
22 Ah
Cold cranking
180 A
Dimensions
181×77×167 mm
Technology
AGM
Weight
6 kg
Model
Full Throttle Series
Marine battery Fullriver FT230D Full Throttle Series 22Ah 180A 12V
12VVoltage
22AhCapacity
180ACold cranking
6kgWeight
With 22 Ah at 12 V and 180 A of cold cranking current (EN), the Fullriver FT230D from the Full Throttle Series range is built for motor and sailing boats, both for engine starting and onboard services. Its 181 × 77 × 167 mm make it the exact replacement for the 22 Ah battery fitted as standard to many boats.
- Ready for starting outboard and inboard engines.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Resistant to humidity and salt air.
- Sealed: no spills or gases in the locker.

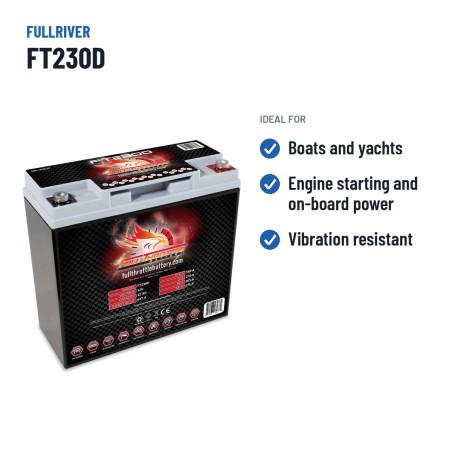

What the Fullriver FT230D is for
With 22 Ah, the Fullriver FT230D covers motor and sailing boats, both for engine starting and onboard services. At the end of the season, charge it fully before winter storage. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 6 kg and M6 terminals.
Will it fit your current battery tray?

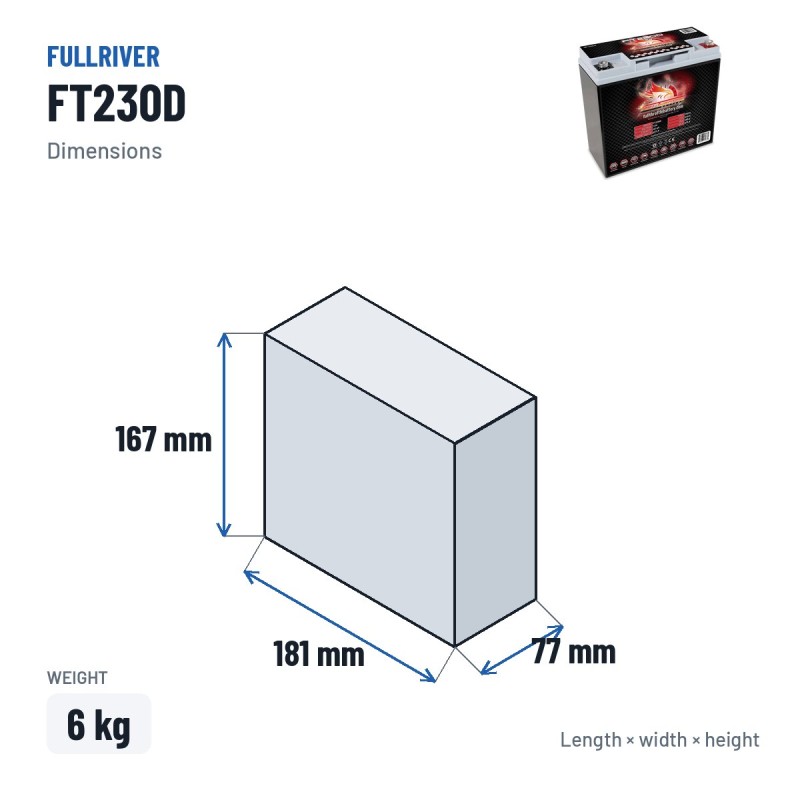

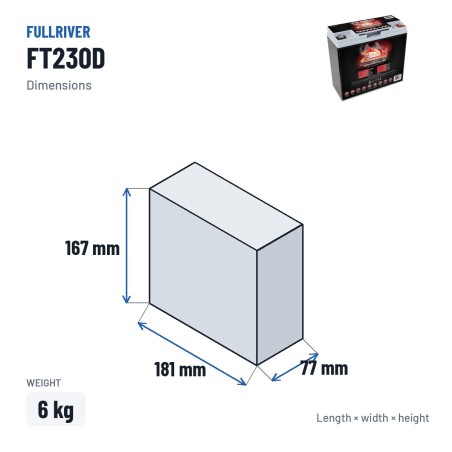

In terms of format, the Fullriver FT230D measures 181 × 77 × 167 mm (length × width × height) and weighs 6 kg. It uses M6 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What Fullriver does differently
Fullriver specialises in deep-cycle AGM batteries for mobility, marine, solar and traction. Its DC and HC series are known for their tolerance to deep discharge and long cycle life. All the Fullriver batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
The Fullriver FT230D: Full Throttle Series range and AGM technology
The Full Throttle Series is the Fullriver range the FT230D belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Care and maintenance
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Protect the terminals with dielectric grease and check the fixing: vibration and swell loosen connections.
Warranty and coverage
The Fullriver FT230D comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-FULLRIVER-FT230D
Data sheet
- Brand
- FULLRIVER
- Reference
- FT230D
- Model
- Full Throttle Series
- Voltage (V)
- 12
- Length
- 181.00 cm
- Width
- 77.00 cm
- Height
- 167.00 cm
- Weight
- 6.00 Kgs
- Technology
- AGM
- EAN
- 810233030374
- Terminal type
- M6
- Cold cranking amps (EN)
- 180
- Capacity (C20)
- 22
- Case type
- BT19BL-BS
Specific References
- UPC
- 810233030374
- MPN
- FT230D
Comparison: Fullriver FT230D vs equivalents
The Fullriver FT230D is interchangeable with these equivalent references: FT230 (Fullriver), FT230L (Fullriver).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Fullriver
FT230D
This battery
|
12V 22Ah 180A | AGM | €155.80 |
Fullriver
FT230
|
12V 20Ah 230A | AGM | €176.10 |
Fullriver
FT230L
|
12V 20Ah 230A | AGM | €229.95 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
Is the Fullriver FT230D an AGM battery and what are the benefits of AGM?
Yes. The FT230D from Fullriver uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for boats with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I change this battery step by step?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the FT230D model?
Expected lifespan of the Fullriver FT230D is 5 to 8 years in mild-climate boat use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the FT230D model?
Dimensions (length × width × height) are 181×77×167 mm — also written as 181x77x167 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Fullriver FT230D battery fit my boat?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The FT230D typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Fullriver FT230D?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
