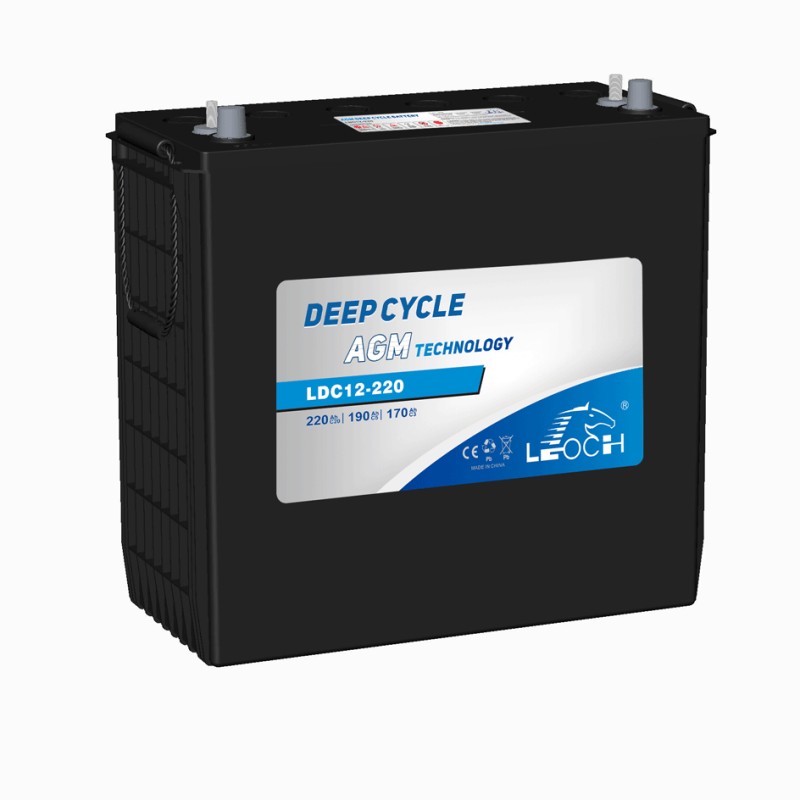

Leoch LDC12-220 · Caravan battery 12V 220Ah AGM
Caravan battery Leoch LDC12-220 12V 220Ah AGM images

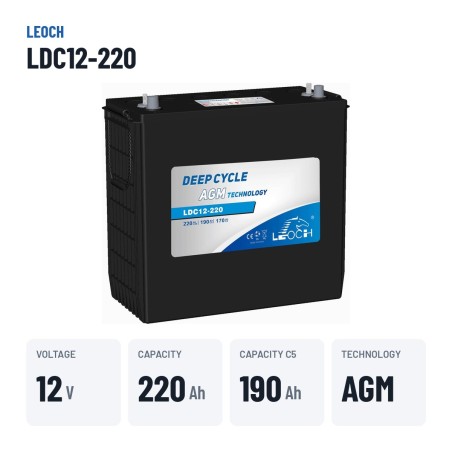

Specifications
| Brand | Leoch |
|---|---|
| Part number | LDC12-220 |
| Voltage (V) | 12 |
| Capacity (C20) | 220Ah (c20) |
| Capacity (C5) | 190Ah (c5) |
| Technology | AGM |
| Length | 387.00 mm |
| Width | 180.00 mm |
| Height | 368.00 mm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Leoch LDC12-220 12V 220Ah is a leisure battery for campers, motorhomes and caravans. Designed to power the entire interior kit (fridge, heater, water pump, USB, LED lighting) for several days off-grid, with no need to plug into a campsite hookup. DT dual terminal.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues
Request a quote for your Caravan battery Leoch LDC12-220 12V 220Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Leisure battery Leoch LDC12-220 Deep Cycle LDC Series 220Ah 12V
The 12 V, 220 Ah Leoch LDC12-220 battery from the Deep Cycle LDC Series range with AGM technology is designed for motorhomes, caravans and campers that need power off-grid. Its 387 × 180 × 368 mm make it the exact replacement for the 220 Ah battery fitted as standard to many motorhomes and caravans.
- Direct replacement for the original leisure battery.
- Recharges from the alternator, a solar panel or a mains charger.
- Withstands daily discharges throughout the season.
- AGM: faster recharging and better cycle resistance than a conventional battery.
What the Leoch LDC12-220 is for
The Leoch LDC12-220 is designed for motorhomes, caravans and campers that need power off-grid: it powers fridge, lights, pump and chargers for several days off-grid. Its 220 Ah capacity sets the available autonomy. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 59.74 kg and DT terminals.
The Leoch LDC12-220: Deep Cycle LDC Series range and AGM technology
Within the Leoch catalogue, the Deep Cycle LDC Series series groups the references designed for this use. The LDC12-220 is the 220 Ah model of that family, with the same performance as its siblings in other sizes.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Dimensions, polarity and mounting

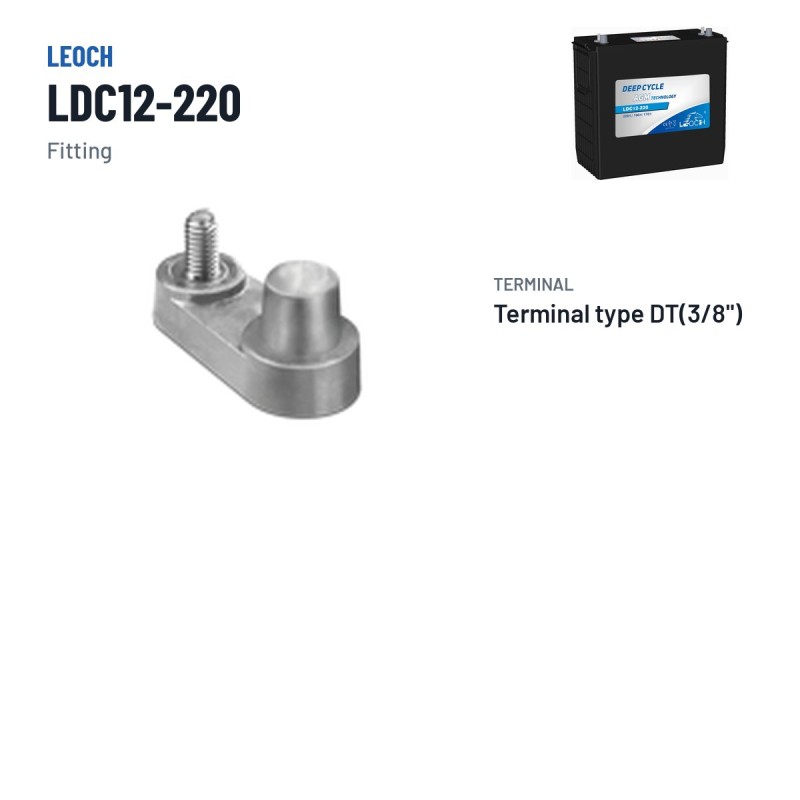

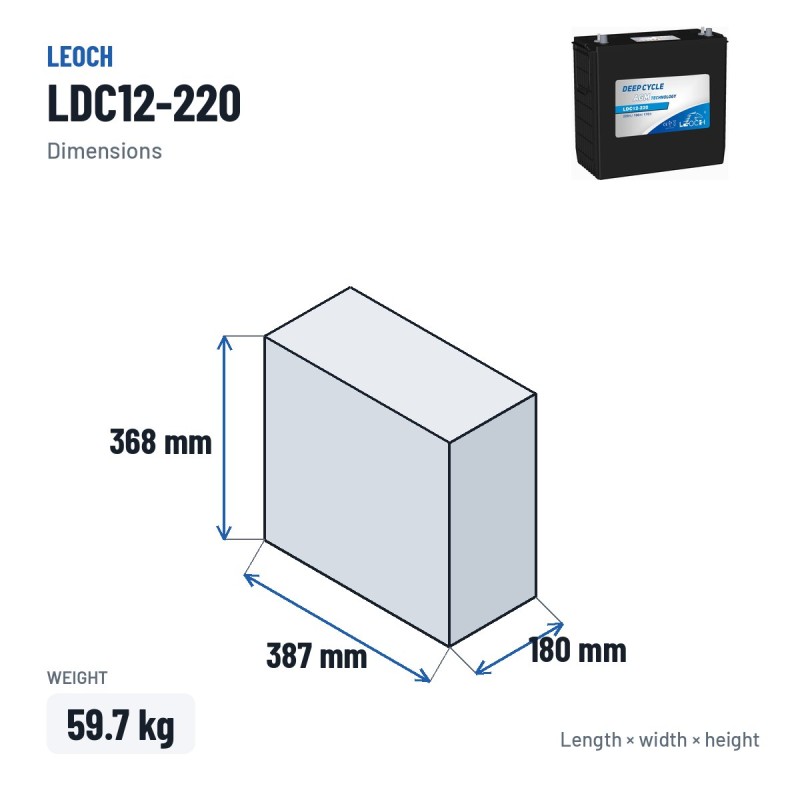

In terms of format, the Leoch LDC12-220 measures 387 × 180 × 368 mm (length × width × height) and weighs 59.74 kg. It uses DT terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Leoch batteries
Leoch's Deep Cycle LDC series has earned its place in mobility, leisure and solar for its tolerance to deep discharge and its value for money. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip.
Manufacturer's warranty
The Leoch LDC12-220 comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
-
-
ReferenceBCOM-LEOCH-LDC12-220

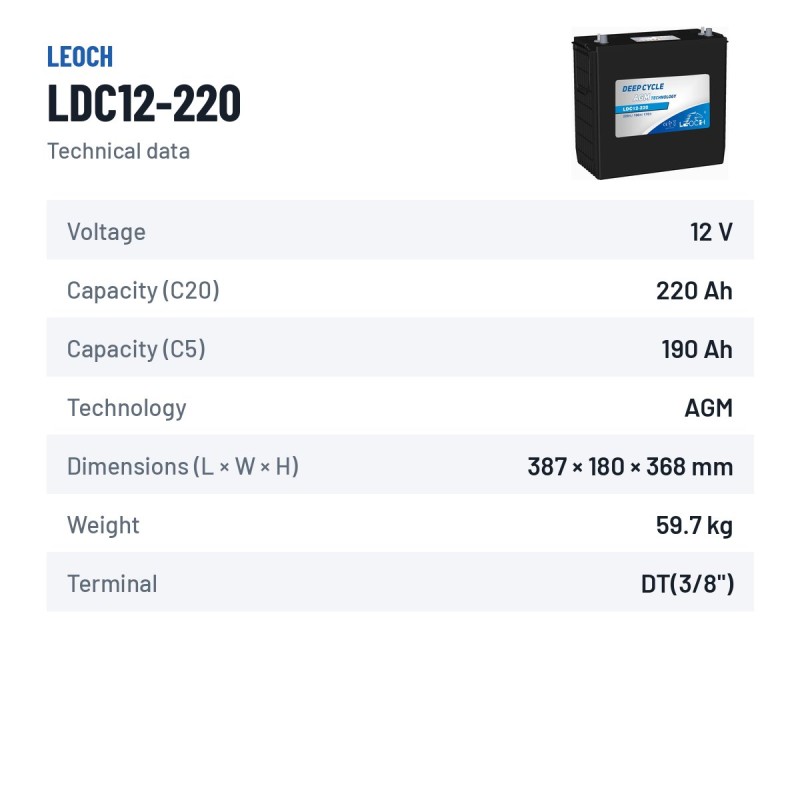

Data sheet
-
BrandLEOCH
-
ReferenceLDC12-220
-
ModelDeep Cycle LDC Series
-
Voltage (V)12
-
Length387.00 mm
-
Width180.00 mm
-
Height368.00 mm
-
Weight59.74 Kgs
-
TechnologyAGM
-
Terminal typeDT
-
Capacity (C20)220Ah (c20)
-
Capacity (C5)190Ah (c5)
Specific References
-
MPNLDC12-220
Recommended accessories
Frequently asked questions
Is the Leoch LDC12-220 an AGM battery and what are the benefits of AGM?
Yes. The LDC12-220 from Leoch uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the LDC12-220 model in my caravan?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the LDC12-220 model?
Expected lifespan of the Leoch LDC12-220 is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the LDC12-220 model?
Dimensions (length × width × height) are 387×180×368 mm — also written as 387x180x368 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Does this battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The LDC12-220 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Leoch LDC12-220?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
