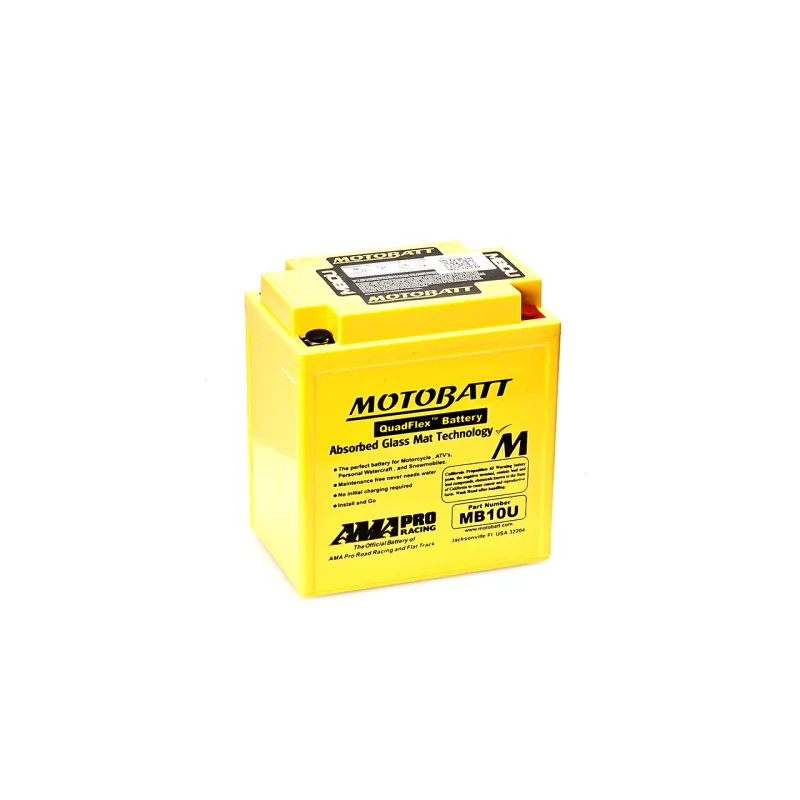

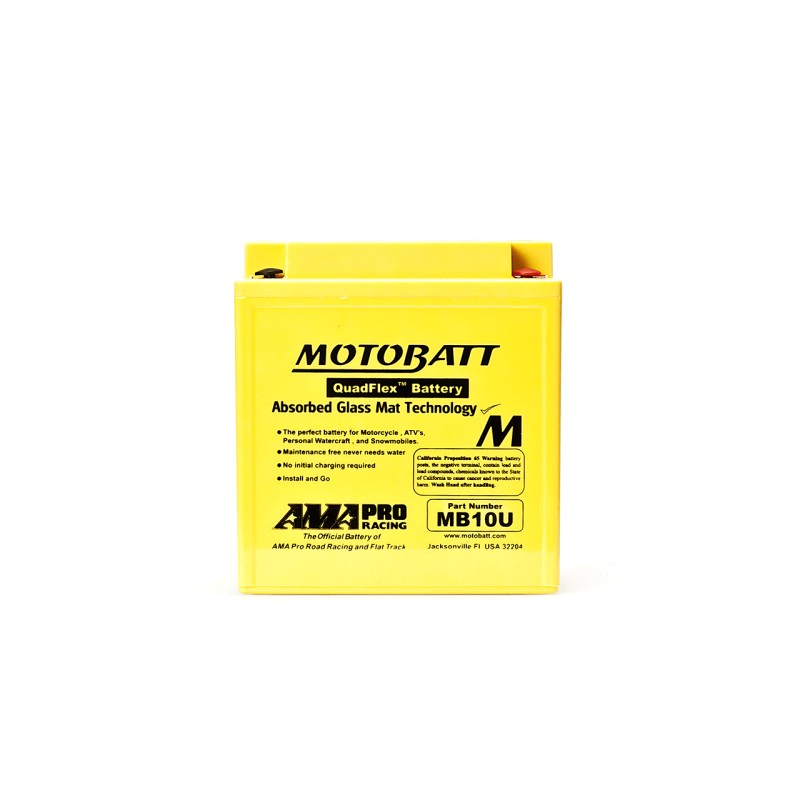

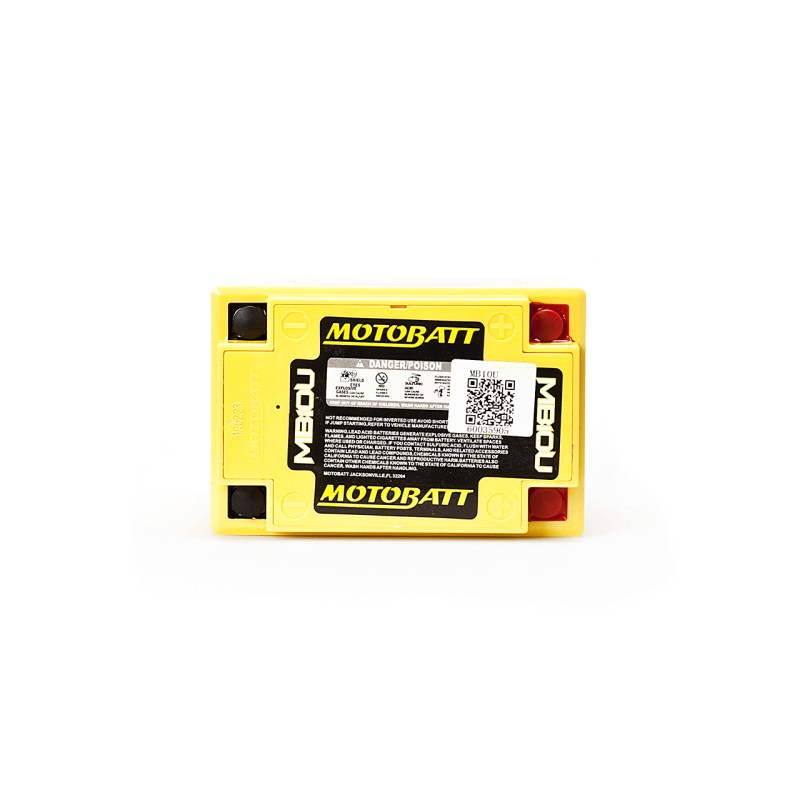

Motobatt MB10U · Motorcycle battery 12V 14.5Ah 175A AGM
Specifications
| Brand | MOTOBATT |
|---|---|
| Part number | MB10U |
| Voltage (V) | 12 |
| Capacity (C20) | 14 5Ah (c20) |
| Capacity (C10) | 14 5Ah (c10) |
| Technology | Quadflex |
| Length | 135.00 mm |
| Width | 90.00 mm |
| Height | 146.00 mm |
€141.20
VAT included
4,78/5★★★★★25 reviewsVerified purchases
- ★★★★Ivan Molina:
Gracias por el asesoramiento
- ★★★★★Mateo Campos:
Excelente atención, resolvieron todas mis dudas
- ★★★★Miguel Soler:
Gracias a vosotros pude instalar la batería en mi coche
Motobatt MB10U 12V 14Ah 175A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
JIS code
YB10AA2, YB10LA2, YB10LBP, YB10LB2
Voltage
12 V
Capacity
14 Ah
Cold cranking
175 A
Dimensions
135×90×146 mm
Technology
AGM Quadflex
Weight
4,3 kg
Model
MOTOBATT QUADFLEX
Mfr. reference
MB10U
Motorcycle battery Motobatt YB10AA2 Quadflex 14Ah 175A 12V
Equivalent JIS codesYB10AA2YB10LA2YB10LBPYB10LB2
12VVoltage
14AhCapacity
175ACold cranking
4.30kgWeight
With 14 Ah at 12 V and 175 A of cold cranking current (EN), the Motobatt YB10AA2 with AGM technology replaces the original battery of motorcycles, scooters, quads and personal watercraft. It measures 135 × 90 × 146 mm, the format sought by anyone replacing a 14 Ah battery in motorcycles.
- Same JIS code as the original battery: fits first time.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Energetic cranking for high-compression engines.
- Resistant to the vibration typical of two wheels.
Will it fit your current battery tray?
The Motobatt YB10AA2 is made in the 135 × 90 × 146 mm format and weighs 4.30 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Motobatt YB10AA2 is for
The Motobatt YB10AA2 is a common replacement in motorcycles, scooters, quads and personal watercraft. If your bike spends the winter standing, a trickle charger stops it reaching spring flat. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 4.30 kg.
The Motobatt YB10AA2: Quadflex range and AGM technology
The YB10AA2 is part of the Motobatt Quadflex range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Motobatt: the maker behind the YB10AA2
Motobatt batteries stand out for capacity and cranking current above the original battery in the same tray, thanks to a compact AGM design and the four-terminal Quadflex system. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Official warranty
The Motobatt YB10AA2 comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Usage and maintenance tips
Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute. If the bike spends the winter standing, connect a trickle charger: deep discharge through inactivity is the first cause of premature failure.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-MOTOBATT-MB10U
Data sheet
- Brand
- MOTOBATT
- Reference
- MB10U
- Model
- MOTOBATT QUADFLEX
- Voltage (V)
- 12
- Length
- 135.00 mm
- Width
- 90.00 mm
- Height
- 146.00 mm
- Weight
- 4.3 Kgs
- Technology
- Quadflex
- JIS
- YB10AA2 YB10LA2 YB10LBP YB10LB2
- Cold cranking amps (EN)
- 175A
- Capacity (C20)
- 14 5Ah (c20)
- Capacity (C10)
- 14 5Ah (c10)
Specific References
- MPN
- MB10U
4,78/5
Verified purchasesLatest verified reviews
★★★★★Ivan Molina
16/06/2026Me asesoraron
Gracias por el asesoramiento
★★★★★Mateo Campos
21/04/2026Buena atención por email
Excelente atención, resolvieron todas mis dudas
★★★★★Miguel Soler
17/02/20265 estrellas
Gracias a vosotros pude instalar la batería en mi coche
★★★★★Ignacio Blanco
14/02/2026Te asesoran gratis
Puedes llamar, la asesoría es gratis y te ayudan a elegir batería y con la instalación
★★★★★Alex Rojas
06/02/2026La batería me llegó al día siguiente
Me llego en tiempo y todo bien
★★★★★Antonio Montero
05/02/2026Recomendaré
La batería que buscaba la encontré aquí y al mejor precio.
★★★★★Xavier Benitez
24/01/2026Llega al día siguiente
Me alegra que cumplen con los tiempos de envío
★★★★★David Cano
09/01/2026Me ayudaron con la instalación
Agradezco que me asesoraran de cómo instalar la batería que compré
★★★★★Jose Manuel Martin
29/12/2025Buen servicio
Gracias a vosotros pude elegir la batería de coche correcta
★★★★★Emilio Blanco
21/11/2025Recomendable 100%
Aquí tenían la bateria más barata que en otros sitios
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Motobatt YB10LB2 battery installed in the vehicle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Motobatt YB10LB2 battery last?
Expected lifespan of the Motobatt YB10LB2 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Motobatt YB10LB2 battery?
Dimensions (length × width × height) are 135×90×146 mm — also written as 135x90x146 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Motobatt YB10LB2 battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The YB10LB2 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Motobatt YB10LB2?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
