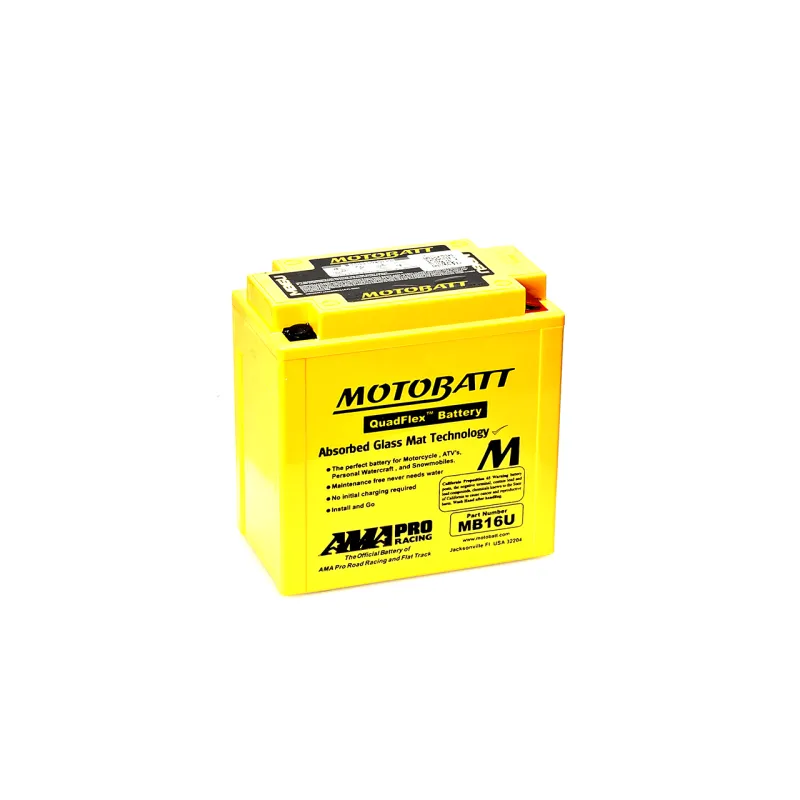

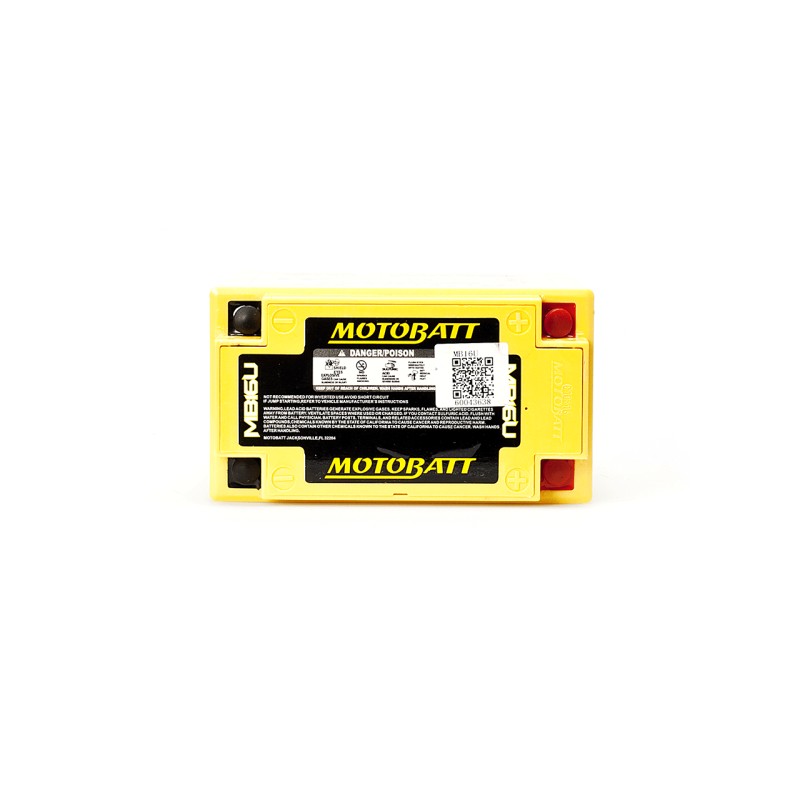

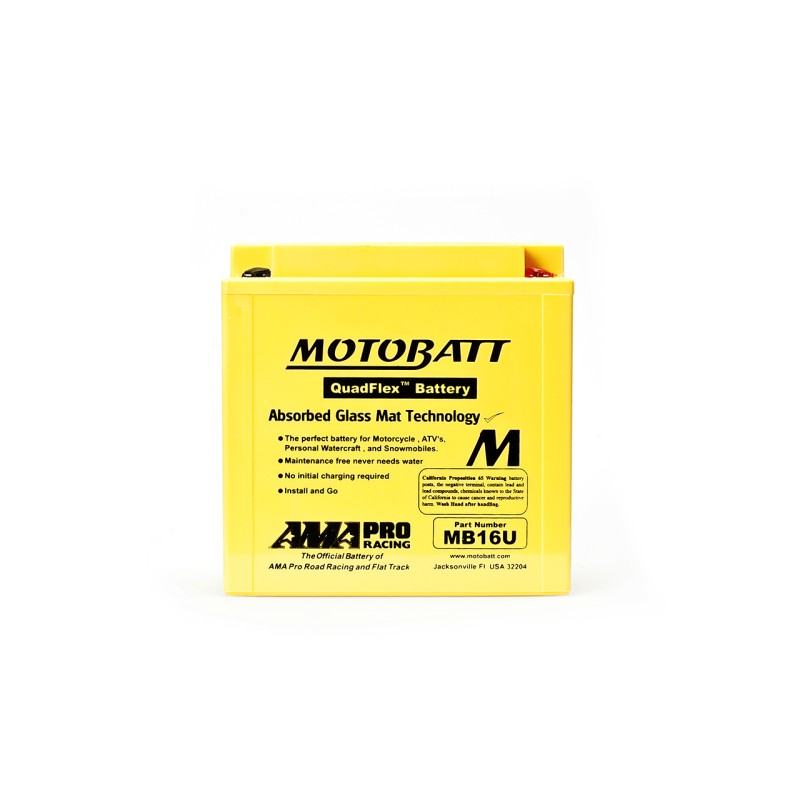

Motobatt MB16U · Motorcycle battery 12V 20Ah 240A AGM
Specifications
| Brand | MOTOBATT |
|---|---|
| Part number | MB16U |
| Voltage (V) | 12 |
| Capacity (C20) | 20Ah (c20) |
| Capacity (C10) | 20Ah (c10) |
| Technology | Quadflex |
| Length | 160.00 mm |
| Width | 90.00 mm |
| Height | 161.00 mm |
€188.20
VAT included
4,76/5★★★★★25 reviewsVerified purchases
- ★★★★★Felix Garrido:
Gracias por el asesoramiento
- ★★★★Samuel Mendez:
Me alegra que cumplen con los tiempos de envío
- ★★★★★Jaime Ramos:
No tenía ni idea de cómo instalar la batería en mi coche y me ayudaron de principio a fin. Muchas gracias
Motobatt MB16U 12V 20Ah 240A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
JIS code
YB16BA, YB16BA2
Voltage
12 V
Capacity
20 Ah
Cold cranking
240 A
Dimensions
160×90×161 mm
Technology
AGM Quadflex
Weight
5,9 kg
Model
MOTOBATT QUADFLEX
Mfr. reference
MB16U
Motorcycle battery Motobatt YB16BA-YB16BA2 Quadflex 20Ah 240A 12V
JIS codeYB16BA-YB16BA2
12VVoltage
20AhCapacity
240ACold cranking
5.90kgWeight
The Motobatt YB16BA-YB16BA2 motorcycle battery is rated at 12 V, 20 Ah and 240 A of cold cranking current (EN) from the Quadflex range, and is designed for motorcycles, scooters, quads and personal watercraft. Measuring 160 × 90 × 161 mm, it is the direct replacement for motorcycles fitted from the factory with a 20 Ah battery of this format.
- Holds its charge through winter storage.
- Compact and lightweight format.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Sealed and ready to fit, no acid handling.
What the Motobatt YB16BA-YB16BA2 is for
The Motobatt YB16BA-YB16BA2 is a common replacement in motorcycles, scooters, quads and personal watercraft. If your bike spends the winter standing, a trickle charger stops it reaching spring flat. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 5.90 kg.
The Motobatt YB16BA-YB16BA2: Quadflex range and AGM technology
Within the Motobatt catalogue, the Quadflex series groups the references designed for this use. The YB16BA-YB16BA2 is the 20 Ah model of that family, with the same performance as its siblings in other sizes.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.

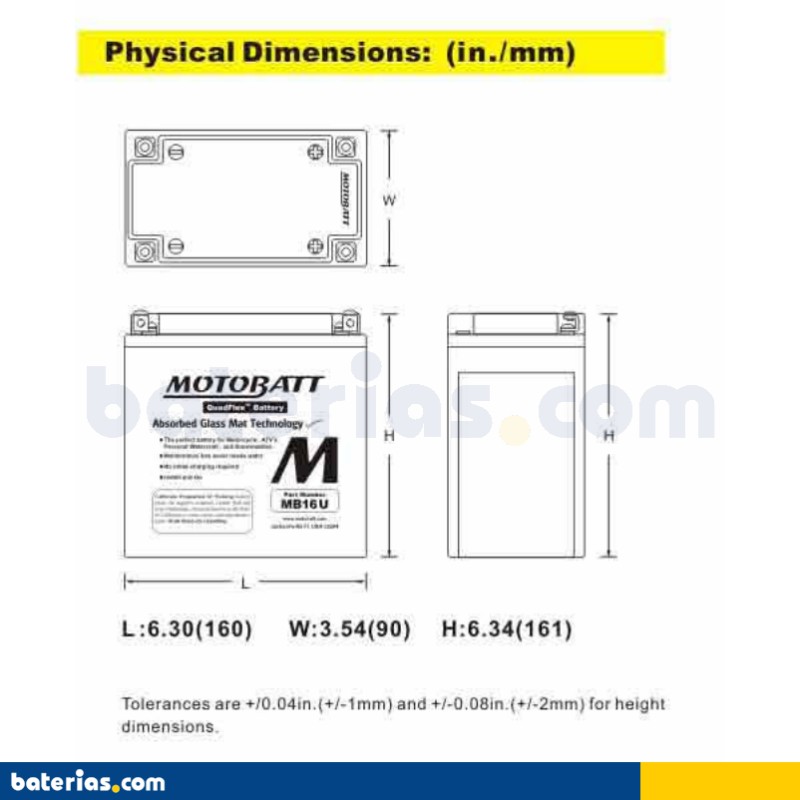

Dimensions, polarity and mounting
In terms of format, the Motobatt YB16BA-YB16BA2 measures 160 × 90 × 161 mm (length × width × height) and weighs 5.90 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Motobatt: the maker behind the YB16BA-YB16BA2
Motobatt batteries stand out for capacity and cranking current above the original battery in the same tray, thanks to a compact AGM design and the four-terminal Quadflex system. All the Motobatt batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
How to make it last longer
If the bike spends the winter standing, connect a trickle charger: deep discharge through inactivity is the first cause of premature failure. Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute.
Official warranty
The Motobatt YB16BA-YB16BA2 comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-MOTOBATT-MB16U
Data sheet
- Brand
- MOTOBATT
- Reference
- MB16U
- Model
- MOTOBATT QUADFLEX
- Voltage (V)
- 12
- Length
- 160.00 mm
- Width
- 90.00 mm
- Height
- 161.00 mm
- Weight
- 5.9 Kgs
- Technology
- Quadflex
- JIS
- YB16BA-YB16BA2
- Cold cranking amps (EN)
- 240A
- Capacity (C20)
- 20Ah (c20)
- Capacity (C10)
- 20Ah (c10)
Specific References
- MPN
- MB16U
4,76/5
Verified purchasesLatest verified reviews
★★★★★Felix Garrido
12/05/2026Me ayudaron a elegir la batería correcta
Gracias por el asesoramiento
★★★★★Samuel Mendez
05/02/2026Entrega eficaz
Me alegra que cumplen con los tiempos de envío
★★★★★Jaime Ramos
04/02/2026Buenos precios
No tenía ni idea de cómo instalar la batería en mi coche y me ayudaron de principio a fin. Muchas gracias
★★★★★Juan Molina
22/12/2025Gracias
Agradezco que me asesoraran de cómo instalar la batería que compré
★★★★★Jose Francisco Lopez
15/12/2025Buen asesoramiento
Gracias a vuestra ayuda pude instalar la bateria
Comparison: Motobatt MB16U vs equivalents
The Motobatt MB16U is interchangeable with these equivalent references: 516015016 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Motobatt
MB16U
This battery
|
12V 20Ah 240A | Quadflex | €188.20 |
Varta
516015016
|
12V 16Ah 200A | Lead-acid | €150.10 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
Compatible vehicles
The Motobatt MB16U fits 4 vehicles. Most searched below:
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Motobatt YB16BA-YB16BA2 battery installed in the vehicle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Motobatt YB16BA-YB16BA2 battery last?
Expected lifespan of the Motobatt YB16BA-YB16BA2 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the YB16BA-YB16BA2 model?
Dimensions (length × width × height) are 160×90×161 mm — also written as 160x90x161 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the YB16BA-YB16BA2 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The YB16BA-YB16BA2 fits 4 verified vehicle versions in our database.
Which batteries are equivalent to the Motobatt YB16BA-YB16BA2?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
