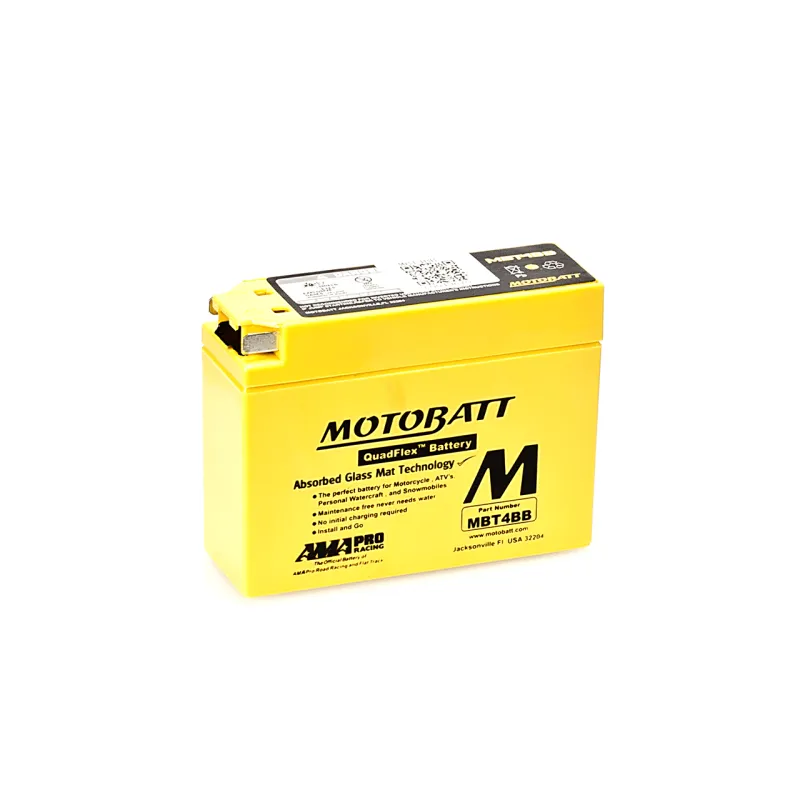

Motobatt MBT4BB · Motorcycle battery 12V 2.5Ah 40A AGM
Specifications
| Brand | MOTOBATT |
|---|---|
| Part number | MBT4BB |
| Voltage (V) | 12 |
| Capacity (C20) | 2.5 |
| Capacity (C10) | 2 5Ah (c10) |
| Cold cranking amps (EN) | 40A |
| Technology | Quadflex |
| Length | 113.00 mm |
| Width | 38.00 mm |
€369.70
VAT included
Motobatt MBT4BB 12V 2Ah 40A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
Voltage
12 V
Capacity
2 Ah
Cold cranking
40 A
Dimensions
113×38×87 mm
Technology
AGM Quadflex
Weight
1,05 kg
Model
MOTOBATT QUADFLEX
Mfr. reference
MBT4BB
Motorcycle battery Motobatt MBT4BB Quadflex 2.5Ah 40A 12V
12VVoltage
2.5AhCapacity
40ACold cranking
1.05kgWeight
The Motobatt MBT4BB motorcycle battery is rated at 12 V, 2.5 Ah and 40 A of cold cranking current (EN) from the Quadflex range, and is designed for motorcycles, scooters, quads and personal watercraft. Its 113 × 38 × 87 mm make it the exact replacement for the 2.5 Ah battery fitted as standard to many motorcycles.
- Compact and lightweight format.
- Holds its charge through winter storage.
- Sealed and ready to fit, no acid handling.
- AGM: faster recharging and better cycle resistance than a conventional battery.
What the Motobatt MBT4BB is for
The Motobatt MBT4BB is a common replacement in motorcycles, scooters, quads and personal watercraft. If your bike spends the winter standing, a trickle charger stops it reaching spring flat. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 1.05 kg.
Will it fit your current battery tray?
The Motobatt MBT4BB is made in the 113 × 38 × 87 mm format and weighs 1.05 kg. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Motobatt MBT4BB: Quadflex range and AGM technology
The MBT4BB is part of the Motobatt Quadflex range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Why choose Motobatt batteries
Motobatt batteries stand out for capacity and cranking current above the original battery in the same tray, thanks to a compact AGM design and the four-terminal Quadflex system. All the Motobatt batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Motobatt MBT4BB comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Care and maintenance
Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-MOTOBATT-MBT4BB
Data sheet
- Brand
- MOTOBATT
- Reference
- MBT4BB
- Model
- MOTOBATT QUADFLEX
- Voltage (V)
- 12
- Length
- 113.00 mm
- Width
- 38.00 mm
- Height
- 87.00 mm
- Weight
- 1.05 Kgs
- Technology
- Quadflex
- Cold cranking amps (EN)
- 40A
- Capacity (C20)
- 2.5
- Capacity (C10)
- 2 5Ah (c10)
Specific References
- MPN
- MBT4BB
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the MBT4BB model?
Expected lifespan of the Motobatt MBT4BB is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the MBT4BB model?
Dimensions (length × width × height) are 113×38×87 mm — also written as 113x38x87 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the MBT4BB valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The MBT4BB typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Motobatt MBT4BB?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
