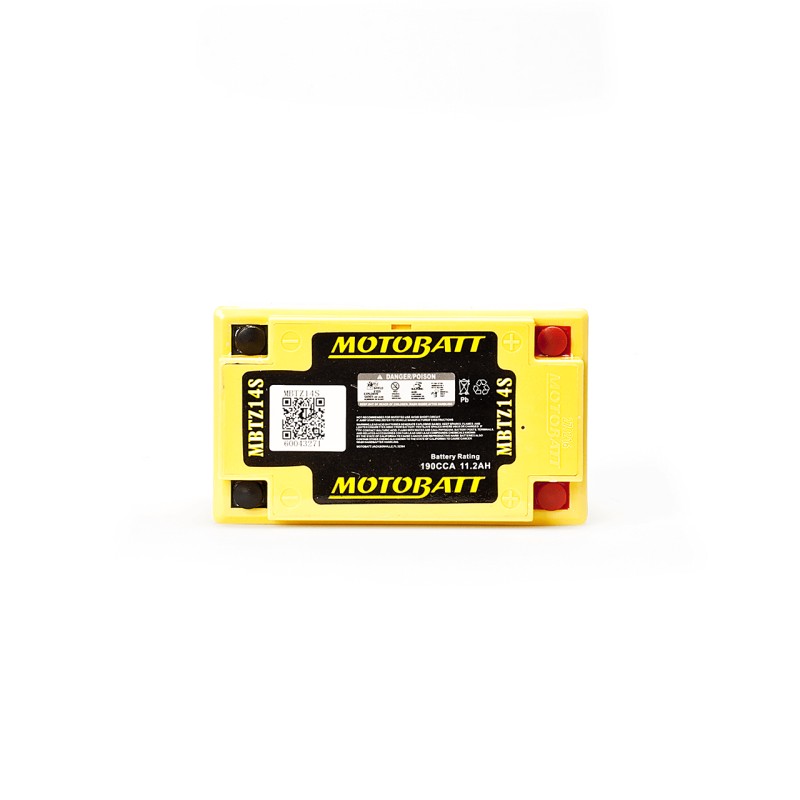

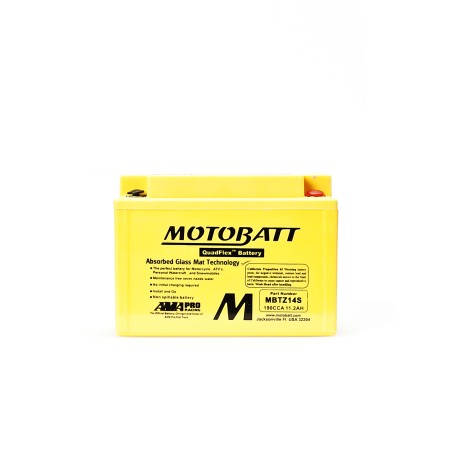

Motobatt MBTZ14S · Motorcycle battery 12V 11.2Ah 190A AGM
Specifications
| Brand | MOTOBATT |
|---|---|
| Part number | MBTZ14S |
| Voltage (V) | 12 |
| Capacity (C20) | 11 2Ah (c20) |
| Capacity (C10) | 11 2Ah (c10) |
| Technology | Quadflex |
| Length | 151.00 mm |
| Width | 87.00 mm |
| Height | 110.00 mm |
€156.30
VAT included
4,82/5★★★★★29 reviewsVerified purchases
- ★★★★Jose Luis Ramos:
Tenía dudas sobre comprar una batería online pero cuando hablé con ellos, me convencieron. La recomiendo
- ★★★★Juan Antonio Nieto:
Muy buena atención telefónica
- ★★★★★Jose Francisco Martin:
No sabía que batería necesitaba mi vehículo y ellos me indicaron la mejor opción. Muy amables
Motobatt MBTZ14S 12V 11Ah 190A is a sealed motorcycle battery ready to fit, with the JIS reference your mechanic recognises at a glance. Vibration-resistant, keeps voltage during the winter off-season and cranks first time when you take it out for a ride.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
JIS code
YTZ14S, YTZ12S
Voltage
12 V
Capacity
11 Ah
Cold cranking
190 A
Dimensions
151×87×110 mm
Technology
AGM Quadflex
Weight
3,5 kg
Model
MOTOBATT QUADFLEX
Mfr. reference
MBTZ14S
Motorcycle battery Motobatt YTZ14S-YTZ12S Quadflex 11Ah 190A 12V
JIS codeYTZ14S-YTZ12S
12VVoltage
11AhCapacity
190ACold cranking
3.50kgWeight
With 11 Ah at 12 V and 190 A of cold cranking current (EN), the Motobatt YTZ14S-YTZ12S with AGM technology replaces the original battery of motorcycles, scooters, quads and personal watercraft. Measuring 151 × 87 × 110 mm, it is the direct replacement for motorcycles fitted from the factory with a 11 Ah battery of this format.
- Holds its charge through winter storage.
- Compact and lightweight format.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Sealed and ready to fit, no acid handling.
What the Motobatt YTZ14S-YTZ12S is for
Designed for motorcycles, scooters, quads and personal watercraft, the Motobatt YTZ14S-YTZ12S replaces the original battery of bikes that use this code or format. Check the position of the positive terminal before ordering. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 3.50 kg.
Size, terminals and hold-down of the Motobatt YTZ14S-YTZ12S
The Motobatt YTZ14S-YTZ12S is made in the 151 × 87 × 110 mm format and weighs 3.50 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What Motobatt does differently
Motobatt batteries stand out for capacity and cranking current above the original battery in the same tray, thanks to a compact AGM design and the four-terminal Quadflex system. We guarantee that every Motobatt arrives new, charged and with the manufacturer's full warranty.
The Motobatt YTZ14S-YTZ12S: Quadflex range and AGM technology
The YTZ14S-YTZ12S is part of the Motobatt Quadflex range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
Care and maintenance
Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute. If the bike spends the winter standing, connect a trickle charger: deep discharge through inactivity is the first cause of premature failure.
Warranty and coverage
The Motobatt YTZ14S-YTZ12S comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-MOTOBATT-MBTZ14S
Data sheet
- Brand
- MOTOBATT
- Reference
- MBTZ14S
- Model
- MOTOBATT QUADFLEX
- Voltage (V)
- 12
- Length
- 151.00 mm
- Width
- 87.00 mm
- Height
- 110.00 mm
- Weight
- 3.5 Kgs
- Technology
- Quadflex
- JIS
- YTZ14S-YTZ12S
- Cold cranking amps (EN)
- 190A
- Capacity (C20)
- 11 2Ah (c20)
- Capacity (C10)
- 11 2Ah (c10)
Specific References
- MPN
- MBTZ14S
4,82/5
Verified purchasesLatest verified reviews
★★★★★Jose Luis Ramos
10/06/2026baterias.com la mejor web
Tenía dudas sobre comprar una batería online pero cuando hablé con ellos, me convencieron. La recomiendo
★★★★★Juan Antonio Nieto
04/06/2026Me atendieron muy bien
Muy buena atención telefónica
★★★★★Jose Francisco Martin
08/02/2026Recomendado
No sabía que batería necesitaba mi vehículo y ellos me indicaron la mejor opción. Muy amables
★★★★★Javier Castillo
26/01/2026Gracias por el excelente servicio
Se agradece ver que detrás de esta web hay un equipo de profesionales preocupados por asesorarte de la mejor manera.
★★★★★Sebastian Cano
13/01/2026Sin duda volveré a confiar en esta web
Llevaba tiempo buscando la batería a un mejor precio y aquí la encontre, llego rapido y todo bien.
★★★★★Luis Miguel Garcia
31/12/2025Oye, un 10
Recomiendo esta web, excelente servicio
★★★★★Domingo Diez
25/12/2025Super bien
Quiero dejar una reseña por que me parece increíble el buen trato que me dieron. Muy buena atención telefónica
★★★★★Juan Luis Vidal
07/11/2025Recomendable
Tenía dudas sobre comprar una bateria online pero cuando hablé con ellos, me convencieron. La recomiendo
Comparison: Motobatt MBTZ14S vs equivalents
The Motobatt MBTZ14S is interchangeable with these equivalent references: 509901020 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Motobatt
MBTZ14S
This battery
|
12V 11Ah 190A | Quadflex | €156.30 |
Varta
509901020
|
12V 9Ah 200A | AGM | €88.70 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Motobatt YTZ14S-YTZ12S battery installed in the vehicle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the YTZ14S-YTZ12S model?
Expected lifespan of the Motobatt YTZ14S-YTZ12S is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the YTZ14S-YTZ12S model?
Dimensions (length × width × height) are 151×87×110 mm — also written as 151x87x110 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Does this battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The YTZ14S-YTZ12S typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Motobatt YTZ14S-YTZ12S?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
