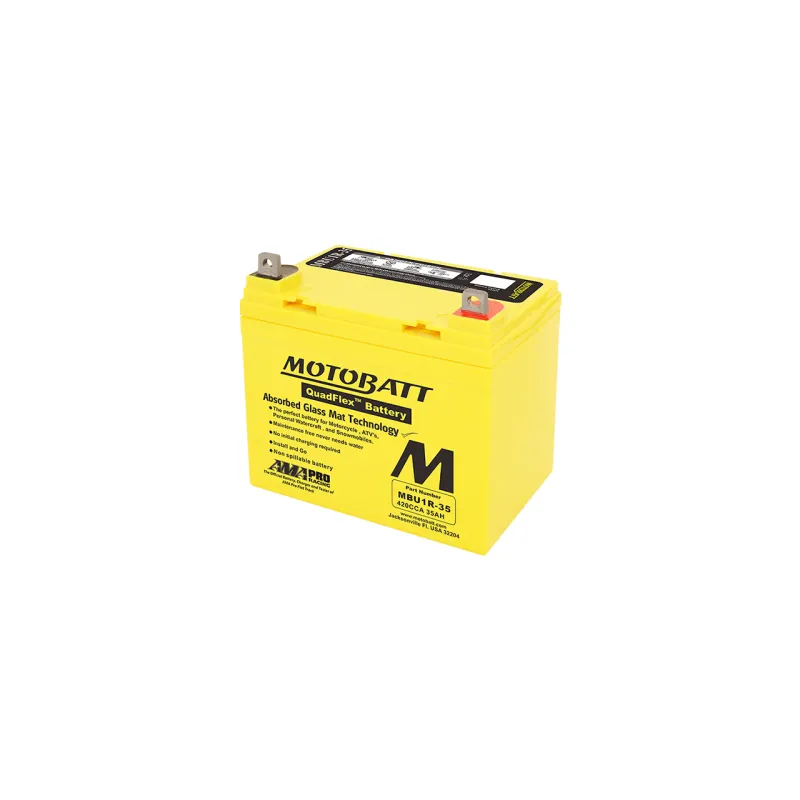

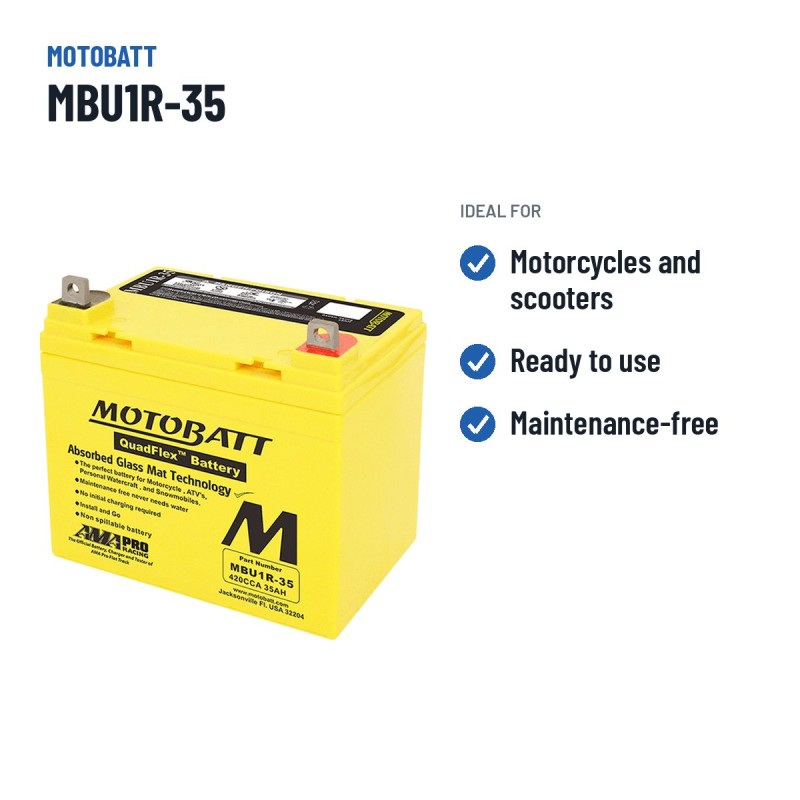

Motobatt MBU1R-35 Quadflex · Motorcycle battery 35Ah 420A AGM
Specifications
| Brand | MOTOBATT |
|---|---|
| Part number | MBU1R-35 |
| Voltage (V) | 12 |
| Capacity (C20) | 35 |
| Capacity (C10) | 35Ah (c10) |
| Cold cranking amps (EN) | 420A |
| Technology | Quadflex |
| Length | 195.00 mm |
| Width | 130.00 mm |
Motobatt MBU1R-35 12V 35Ah 420A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
Where it fits: the Motobatt MBU1R-35 is one of our motorcycle batteries, belongs to our Motobatt batteries and by capacity it sits among our 35Ah batteries.
The Motobatt MBU1R-35 in practice
MBU1R-35 vs Motobatt MBHD12H
The Motobatt MBU1R-35 offers 35 Ah and 420 A cold cranking in a 195 × 130 × 156 mm case. The Motobatt MBHD12H, same brand and technology, stays at 33 Ah and 390 A with 5 mm more length and costs €86.60 less. Coming from the smaller reference, this is a straight upgrade: same case, more reserve, same fitting.

Motorcycle battery Motobatt MBU1R-35 Quadflex 35Ah 420A 12V
The Motobatt MBU1R-35 motorcycle battery is rated at 12 V, 35 Ah and 420 A of cold cranking current (EN) from the Quadflex range, and is designed for motorcycles, scooters, quads and personal watercraft. It replaces the original battery without adaptation in motorcycles with a 195 × 130 × 156 mm format: same 35 Ah capacity.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Same JIS code as the original battery: fits first time.
- Resistant to the vibration typical of two wheels.
- Energetic cranking for high-compression engines.
What the Motobatt MBU1R-35 is for
With 35 Ah, the Motobatt MBU1R-35 covers the starting of motorcycles, scooters, quads and personal watercraft. The JIS code on your current battery label is the safest way to confirm equivalence. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 10.50 kg.

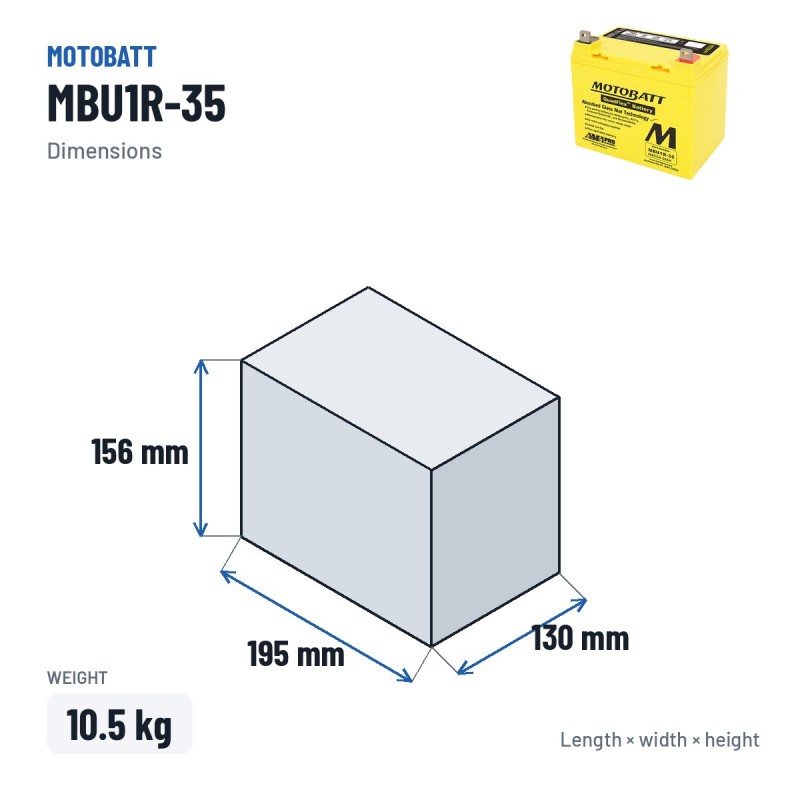

Dimensions, polarity and mounting
In terms of format, the Motobatt MBU1R-35 measures 195 × 130 × 156 mm (length × width × height) and weighs 10.50 kg. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Motobatt MBU1R-35: Quadflex range and AGM technology
The MBU1R-35 is part of the Motobatt Quadflex range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
What Motobatt does differently
Motobatt is the motorcycle battery specialist with Quadflex technology: four terminals that let you connect the battery in any position and a sealed AGM construction ready to fit. All the Motobatt batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Warranty and coverage
The Motobatt MBU1R-35 comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

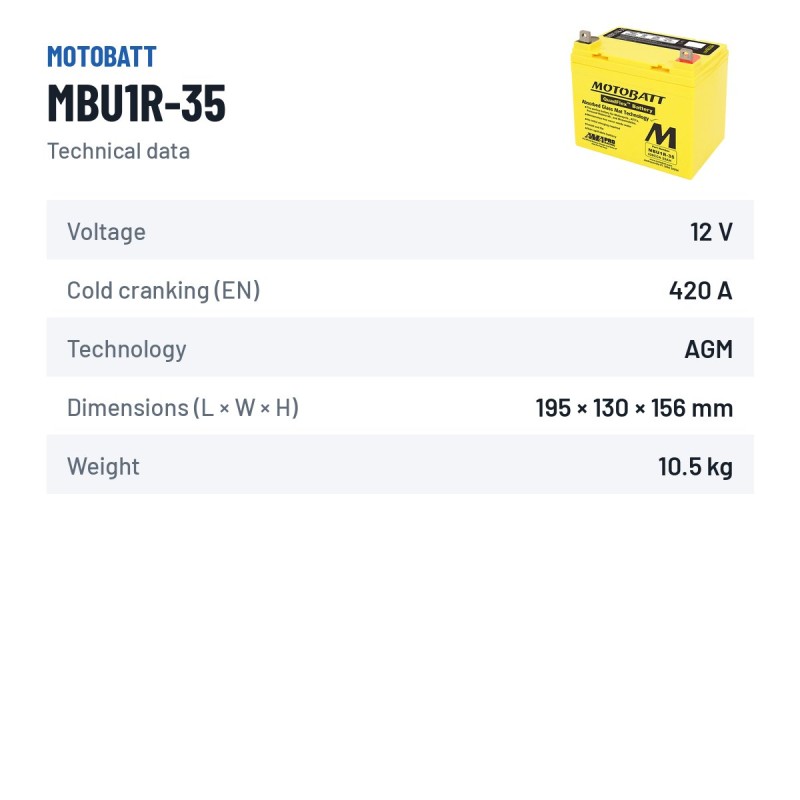

Data sheet
-
BrandMOTOBATT
-
ReferenceMBU1R-35
-
ModelMOTOBATT QUADFLEX
-
Voltage (V)12
-
Length195.00 mm
-
Width130.00 mm
-
Height156.00 mm
-
Weight10.5 Kgs
-
TechnologyQuadflex
-
Cold cranking amps (EN)420A
-
Capacity (C20)35
-
Capacity (C10)35Ah (c10)
Specific References
-
MPNMBU1R-35
Other 35Ah batteries: We stock 20 models of 35 Ah to compare by price, technology and cold cranking: see all 35Ah batteries. Same size (195 × 130 × 156 mm): batteries of 195 × 130 × 156 mm.
Recommended accessories
Frequently asked questions
How should this motorcycle battery be charged?
With a 12 V motorcycle charger delivering at most 10 % of its capacity: 3.5 A for its 35 Ah. High-current car chargers can damage it. If the bike is laid up for the winter, keep it on a maintenance charger.
How long does the Motobatt MBU1R-35 battery last?
There is no exact figure: for a battery such as the Motobatt MBU1R-35, a reasonable guide is 3 to 5 years, keeping it charged when the bike is not in use. What weighs most: temperature (cold makes starts harder and intense heat evaporates the electrolyte), frequent short trips, the condition of the alternator and charging system, power draw while parked and maintenance.
What are the dimensions of the Motobatt MBU1R-35 battery?
It measures 195×130×156 mm in length × width × height, with the terminals included in the height. Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close.
Will the Motobatt MBU1R-35 battery fit my motorcycle?
Three routes: the "Compatible vehicles" tab on this page, with the vehicles verified by our technical team; your number plate in the finder, from which DGT/DVLA/KBA detect model and engine; and WhatsApp, with make, model, engine and year, during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). In every case, the motorcycle manufacturer's specifications (owner's handbook) take precedence. The MBU1R-35 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the MBU1R-35 model?
The "Equivalents" section further down lists the recommended alternatives. A battery interchangeable with the Motobatt MBU1R-35 must match it on dimensions (195×130×156 mm), polarity, capacity (35 Ah) and cranking current (420 A).
