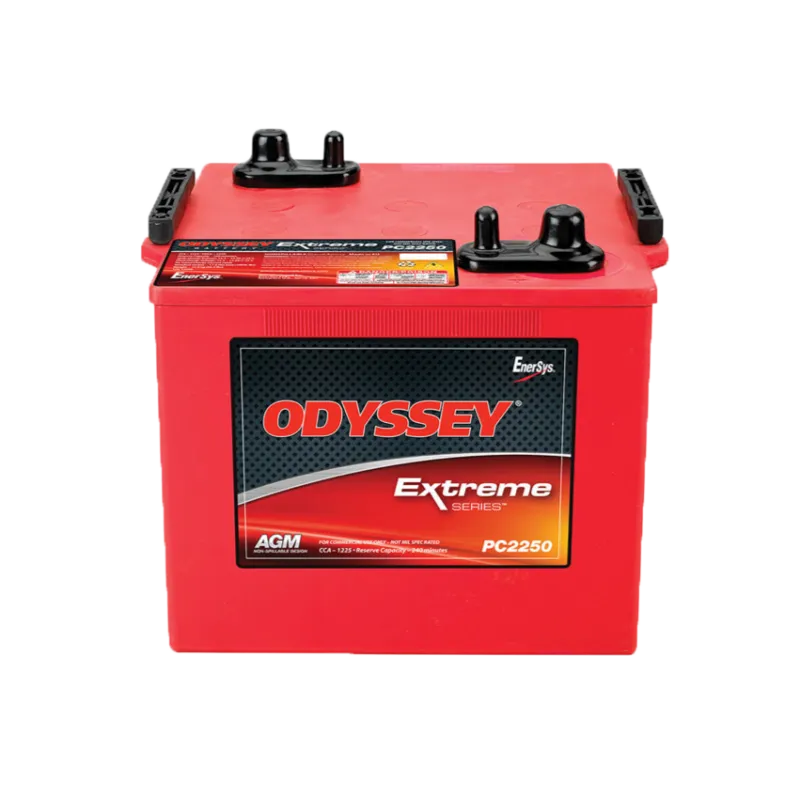

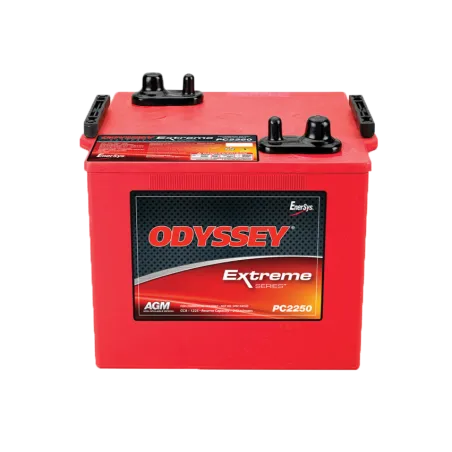

Odyssey ODS-AGM6M · Motorcycle battery 126Ah 1225A AGM
Motorcycle battery Odyssey ODS-AGM6M 126Ah 1225A AGM images
Specifications
| Brand | ODYSSEY |
|---|---|
| Part number | ODS-AGM6M |
| Capacity (C20) | 126Ah (c20) |
| Capacity (C10) | 92Ah (c10) |
| Cold cranking amps (EN) | 1225 |
| Technology | AGM |
| Length | 287.00 cm |
| Width | 269.00 cm |
| Height | 234.00 cm |
Odyssey ODS-AGM6M 126Ah 1225A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
Marine battery Odyssey ODS-AGM6M ODS 126Ah 1,225A
The Odyssey ODS-AGM6M with AGM technology is a marine battery with 126 Ah and 1,225 A of cold cranking current (EN) for motor and sailing boats, both for engine starting and onboard services. Its 287 × 269 × 234 mm make it the exact replacement for the 126 Ah battery fitted as standard to many boats.
- Resistant to humidity and salt air.
- Sealed: no spills or gases in the locker.
- Ready for starting outboard and inboard engines.
- AGM: faster recharging and better cycle resistance than a conventional battery.
What the Odyssey ODS-AGM6M is for
With 126 Ah, the Odyssey ODS-AGM6M covers motor and sailing boats, both for engine starting and onboard services. At the end of the season, charge it fully before winter storage. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 39 kg and SAE and 3/8-16" Stud terminals.
Dimensions, polarity and mounting
In terms of format, the Odyssey ODS-AGM6M measures 287 × 269 × 234 mm (length × width × height) and weighs 39 kg. It uses SAE and 3/8-16" Stud terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Odyssey ODS-AGM6M: ODS range and AGM technology
The ODS-AGM6M is part of the Odyssey ODS range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
What Odyssey does differently
Odyssey batteries combine starting and deep cycling in a single sealed pure-lead unit, with some of the longest warranties on the market. All the Odyssey batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Warranty and coverage
The Odyssey ODS-AGM6M comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
How to make it last longer
At the end of the season, charge the battery fully and, if possible, keep it on a charger over the winter lay-up. As a service battery, avoid routine discharges below 50% to extend its cycle life.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
-
-
ReferenceBCOM-ODYSSEY-ODS-AGM6M
Data sheet
-
BrandODYSSEY
-
ReferenceODS-AGM6M
-
ModelODS
-
Length287.00 cm
-
Width269.00 cm
-
Height234.00 cm
-
Weight39.00 Kgs
-
TechnologyAGM
-
Terminal layout2
-
Terminal typeSAE and 3/8-16" Stud
-
Cold cranking amps (EN)1225
-
Capacity (C20)126Ah (c20)
-
Capacity (C10)92Ah (c10)
Specific References
-
UPC635241140866
-
EAN130635241140866
-
MPNODS-AGM6M
Codes and references Odyssey ODS-AGM6M
| Brand | Odyssey |
|---|---|
| Manufacturer range | ODS |
| Manufacturer part number (MPN) | ODS-AGM6M |
| Also known as | ODSAGM6M · ODS AGM6M |
| EAN-13 barcode | 0635241140866 |
| Dimensions (length × width × height) | 287 × 269 × 234 mm (287x269x234) |
Recommended accessories
Frequently asked questions
Is the Odyssey ODS-AGM6M an AGM battery and what are the benefits of AGM?
Yes. The ODS-AGM6M from Odyssey uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for boats with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the ODS-AGM6M model in my boat?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the ODS-AGM6M model?
Expected lifespan of the Odyssey ODS-AGM6M is 5 to 8 years in mild-climate boat use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the ODS-AGM6M model?
Dimensions (length × width × height) are 287×269×234 mm — also written as 287x269x234 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Odyssey ODS-AGM6M battery fit my boat?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The ODS-AGM6M typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
