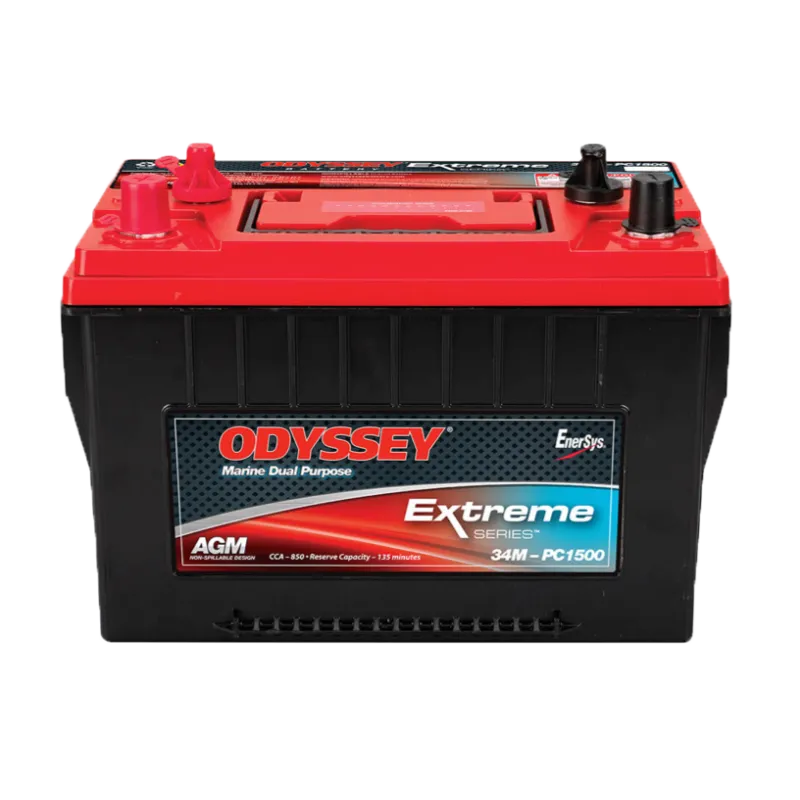

Odyssey ODX-AGM34M · Marine battery 65Ah 880A AGM

Specifications

BrandODYSSEY
Part numberODX-AGM34M
Capacity (C20)65Ah (c20)
Capacity (C10)61Ah (c10)
Cold cranking amps (EN)880
TechnologyAGM
Length277 mm
Width173 mm
Height198 mm
See the full specifications →
Price: €578.80
VAT included
Quantity

Brand: Odyssey Batteries Part number: ODX-AGM34M

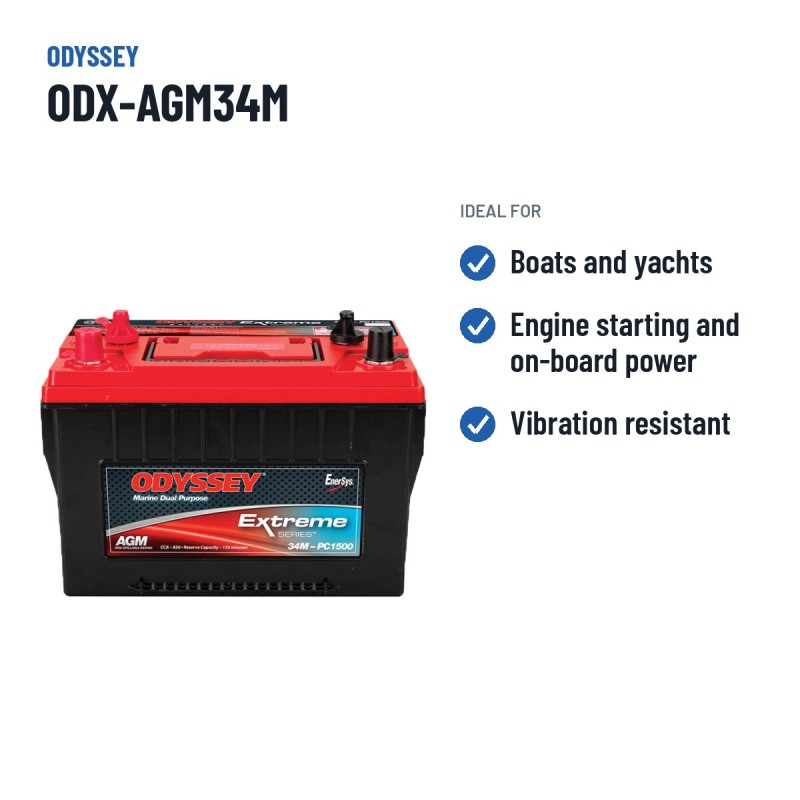

Odyssey ODX-AGM34M 65Ah 880A is a marine battery, vibration- and deep-discharge resistant, suitable both for outboard engine starting and for onboard auxiliary services (navigation lights, GPS, sonar, fridge). Sealed and maintenance-free.

Why this marine battery?

  • Marine designbuilt for boat swell and vibration
  • Dual functionstarts the engine and powers onboard services
  • Sealed and safemaintenance-free even when the boat rolls
Capacity
65 Ah C20
Cold cranking
880 A SAE
Dimensions
277×173×198 mm
Technology
AGM
Polarity
Positive on the left
Weight
23,1 kg
Model
ODX

Where it fits: the Odyssey ODX-AGM34M is one of our boat batteries, belongs to our Odyssey batteries and by capacity it sits among our 65Ah batteries.

Logo Odyssey

Marine battery Odyssey ODX-AGM34M ODX 65Ah 880A

65AhCapacity
880ACold cranking
23.10kgWeight

With 65 Ah at V and 880 A of cold cranking current (EN), the Odyssey ODX-AGM34M from the ODX range is built for motor and sailing boats, both for engine starting and onboard services. It measures 277 × 173 × 198 mm and the positive terminal on the left, the format sought by anyone replacing a 65 Ah battery in boats.

  • Reinforced case against vibration and swell.
  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
  • Tolerates the daily cycling of a boat in season.
  • Powers onboard services: lights, sounder, GPS, fridge.

What the Odyssey ODX-AGM34M is for

The Odyssey ODX-AGM34M is designed for motor and sailing boats, both for engine starting and onboard services. If it is your starter battery, run the services from a separate battery; if it is a service battery, avoid routinely discharging it beyond 50%. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 23.10 kg and M terminals.

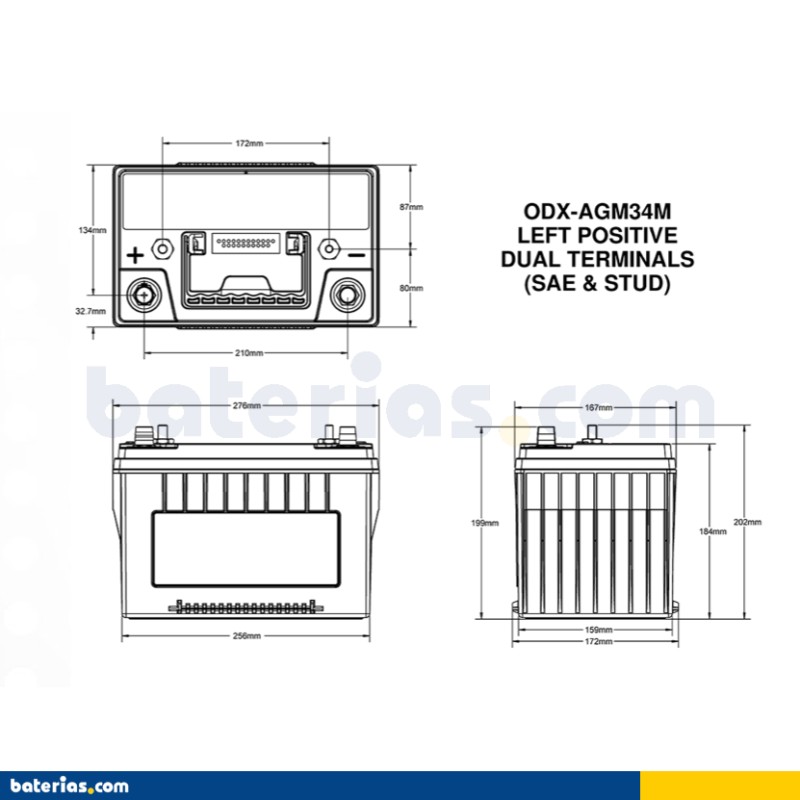

Dimensions, polarity and mounting

In terms of format, the Odyssey ODX-AGM34M measures 277 × 173 × 198 mm (length × width × height) and weighs 23.10 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses M terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

The Odyssey ODX-AGM34M: ODX range and AGM technology

Within the Odyssey catalogue, the ODX series groups the references designed for this use. The ODX-AGM34M is the 65 Ah model of that family, with the same performance as its siblings in other sizes.

AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.

Why choose Odyssey batteries

Odyssey batteries combine starting and deep cycling in a single sealed pure-lead unit, with some of the longest warranties on the market. All the Odyssey batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Warranty and coverage

The Odyssey ODX-AGM34M comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.

Usage and maintenance tips

As a service battery, avoid routine discharges below 50% to extend its cycle life. Protect the terminals with dielectric grease and check the fixing: vibration and swell loosen connections.

Shipping, delivery and returns

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-ODYSSEY-ODX-AGM34M

Data sheet

  • Brand
    ODYSSEY
  • Reference
    ODX-AGM34M
  • Model
    ODX
  • Length
    277 mm
  • Width
    173 mm
  • Height
    198 mm
  • Weight
    23.10 Kgs
  • Technology
    AGM
  • Terminal layout
    Positive terminal on the left
  • Terminal type
    M
  • Cold cranking amps (EN)
    880
  • Capacity (C20)
    65Ah (c20)
  • Capacity (C10)
    61Ah (c10)

Specific References

  • UPC
    635241140842
  • MPN
    ODX-AGM34M

Download

Datasheet Odyssey ODX-AGM34M

PDF datasheet of the Odyssey ODX-AGM34M battery

Download (1.9MB)

Other 65Ah batteries: We stock 22 models of 65 Ah to compare by price, technology and cold cranking: see all 65Ah batteries.

Recommended accessories — complement the Odyssey ODX-AGM34M with a charger or tester

Frequently asked questions

Is the ODX-AGM34M model AGM? What does this technology offer?

Yes. The Odyssey ODX-AGM34M is AGM (Absorbent Glass Mat): sealed lead-acid, with the electrolyte absorbed in glass fibre. It tolerates heat better and handles more cycles than a conventional battery.

In what position can it be installed on the boat?

Being AGM, it is sealed and does not spill: it can be mounted tilted (never upside down) and copes well with vibration and wave impacts. Secure it firmly and keep the terminals away from water.

What are the dimensions of the Odyssey ODX-AGM34M battery?

Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close. It measures 277×173×198 mm in length × width × height, with the terminals included in the height.

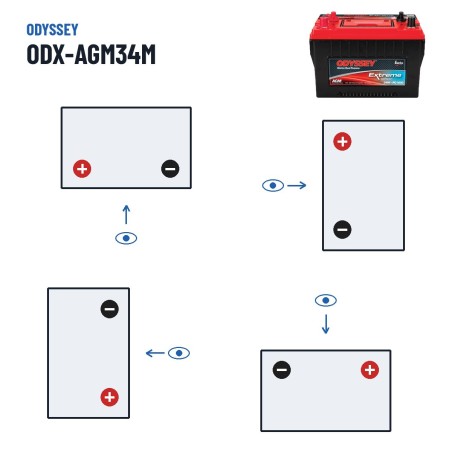

On which side is the positive of the ODX-AGM34M model?

Polarity of the Odyssey ODX-AGM34M: positive on the left. Seen from the front, terminals towards you, the positive (+) is the post with the red ring. A change of polarity from the original means longer cables or a reconfigured system and can cause a short circuit: check it before ordering.
